Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in constructional covered systems. The cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture. They are suitable for applications in equipment with protective insulation

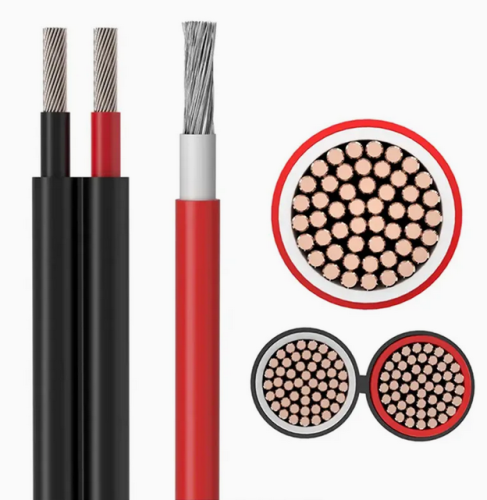

Cable Construction
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Back , Red or Natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black, Red
Smoke Emissions: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Nominal voltage: U0/U=600/1000VAC, 1000/1800VDC
Test voltage: 6500V, 50Hz, 5min
?
Rated temperature:
-45oC ~ +125oC
-40°F ~ +257°F
ambient temperature
-40oC ~ +90oC
-40°F ~+194°F
maximum. Short circuit temperature: 280oC, +536°F
Bending Radius: >4X for fixed installation, >5X for occasional movement
?
?
