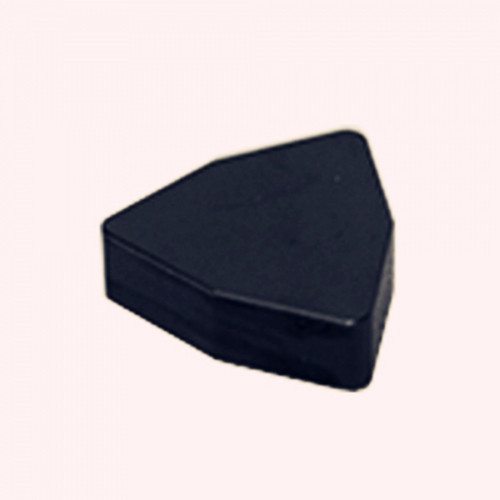

Solid Integral PCBN Turning Inserts. Our WNMN series are widely used to turning rollers, mine machinery, pumps. The red hardness of CBN can reach 1370℃, almost twice as high as the red hardness of diamond; The hardness of PCBN is higher than the room temperature hardness of carbide, ceramics, PCD at 800℃. So the cutting speed of CBN cutting tools can be 2-5 times higher than hard alloy, ceramic cutting tools, and has high cutting efficiency. Also, PCBN turning inserts have strong chemically inert, so can`t occur chemical reaction with ferrous metal under high temperature.

The Specification of our WNMN Solid Integral PCBN Turning Inserts:

The CBN grade of our MBN Series:

Grade           Machining Mode                         Materials                                                             Application Industry
FBN6200     Roughing and finishing       Excellent comprehenive performance:                 Break disc, Belt pulley, Gear, Bear
                                                               Be suitable for grey cast iron, etc.
                                                               Be suitable for hardened steel, etc.
FBN6500    Heavy roughing                 Excellent impact and wear resistance                       Metallurgical roll, Pump, Mining
                                                            Be suitable for roughing high hardness alloy               machinery, etc

                                                             cast iron, gray cast iron, etc.
                                                           Be suitable for roughing high manganese steel, etc.
FBN7200    Roughing and finishing        Excellent wear resistance:                             Brake drum, Brake disc, Metallurgical roll, etc
                                                                Be suitable for roughing and finishing of gray cast iron
                                                              Be suitable for roughing and ?nishing of high

                                                                hardness alloy cast iron. etc.
FBN9000    Interrupted roughing          Excellent impact resistance:                              Big gear, Slewing bearing industry, etc
                                                             Be suitable for roughing high hardened steel, etc.
                                                           Be suitable for roughing surface coated material, etc.
FBN9300 Semi-finishing and finishing     Be suitable for Semi-finishing and finishing of hardened steel, etc.                                                                                                  Gearing industry, bearing industry, etc

Package of our WNMN:

10pcs/box

Our Advantages:

Fast Product Delivery And Technical Support

Perfect Agent Cooperation Mechanism And Channel Protection Measure

MDC Can Design, Develop And Produce The Most Suitable Cutting Tools According to Different Requirements, Such as Equipment, Products, Work Material, etc.

Logos, packages can be customerized.

OUR COMMIITMENT:

REDUCING YOUR COMPOSITE CUTTING COST 30% AT LEAST

FREE SAMPLES ARE PROVIDED

FREE OVERALL SOLUTIONS ARE PROVIDED

ALL PRODUCTS CAN BE CHANGED WITHIN A YEAR

ALL OF OUR INSERTS CAN BE COATED AND CUTTING EDGES CAN BE PREPARED AS REQUIREMENT

Welcome to contact us at any time.
