Solid Liquid Separator Search Engine
$1500.00
≥1 set
Options:
- HY-SERIES
Get Latest Price
You might also like
Basic Info
| Warranty | 1 Year |
|---|---|
| weight (kg) | 300 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | screw |
Show More
Product description
Products Description

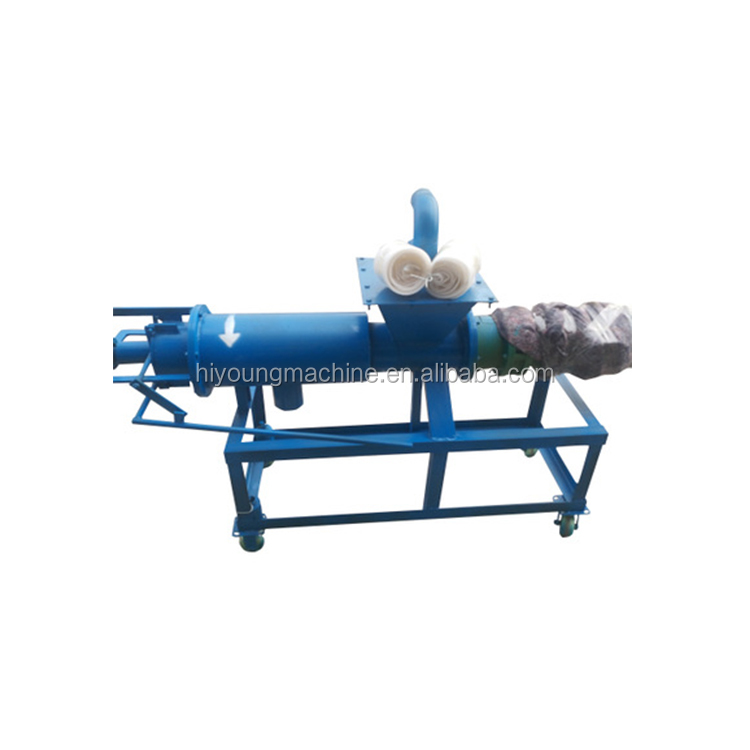

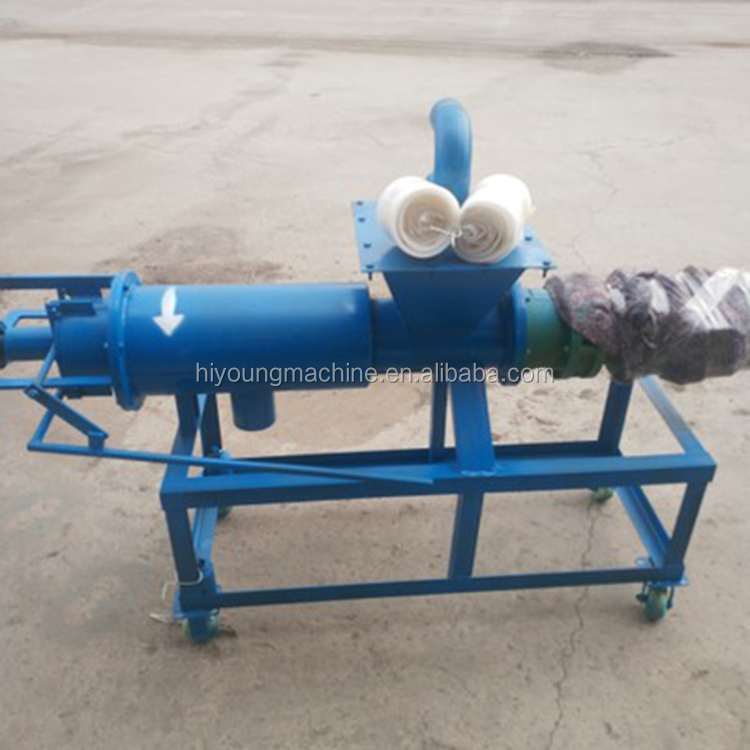

solid liquid separator

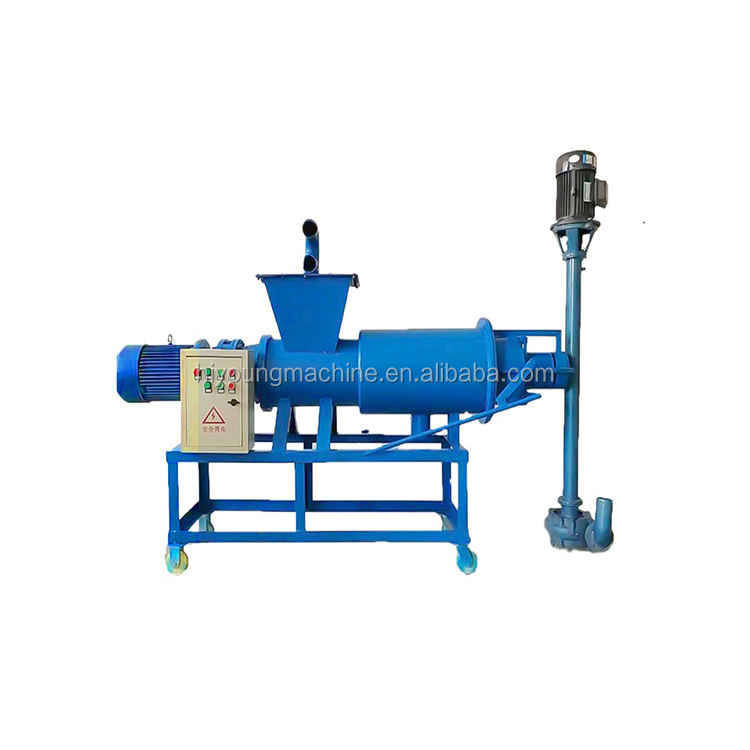

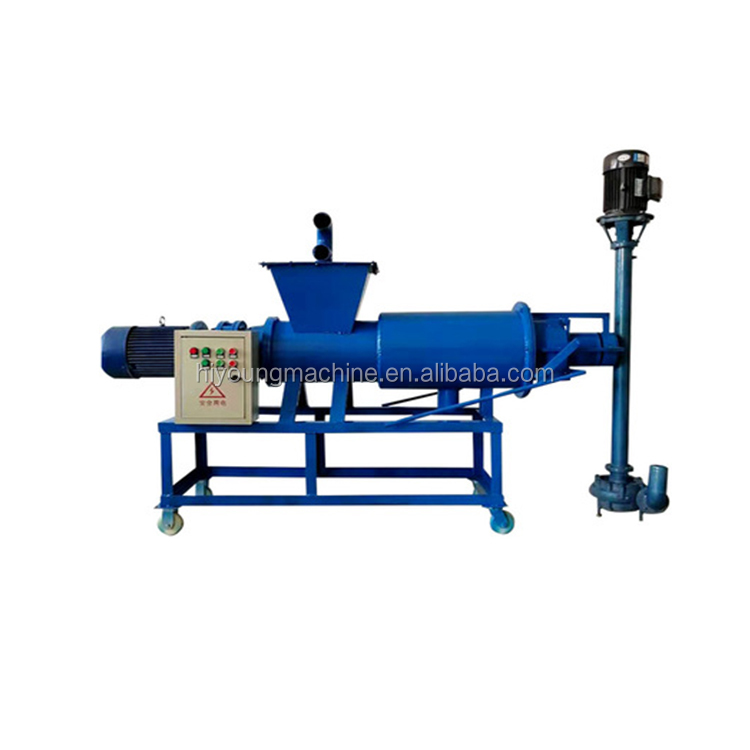

Structure:

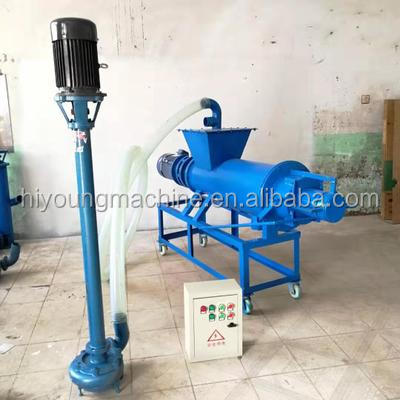

Host, a non-blocked pump, a control cabinet, and a pipeline. The main body consists of a body, a mesh screen, a squeeze Dragon, a vibration motor, a deceleration motor, a weight distribution, and a unloading device.
Description:

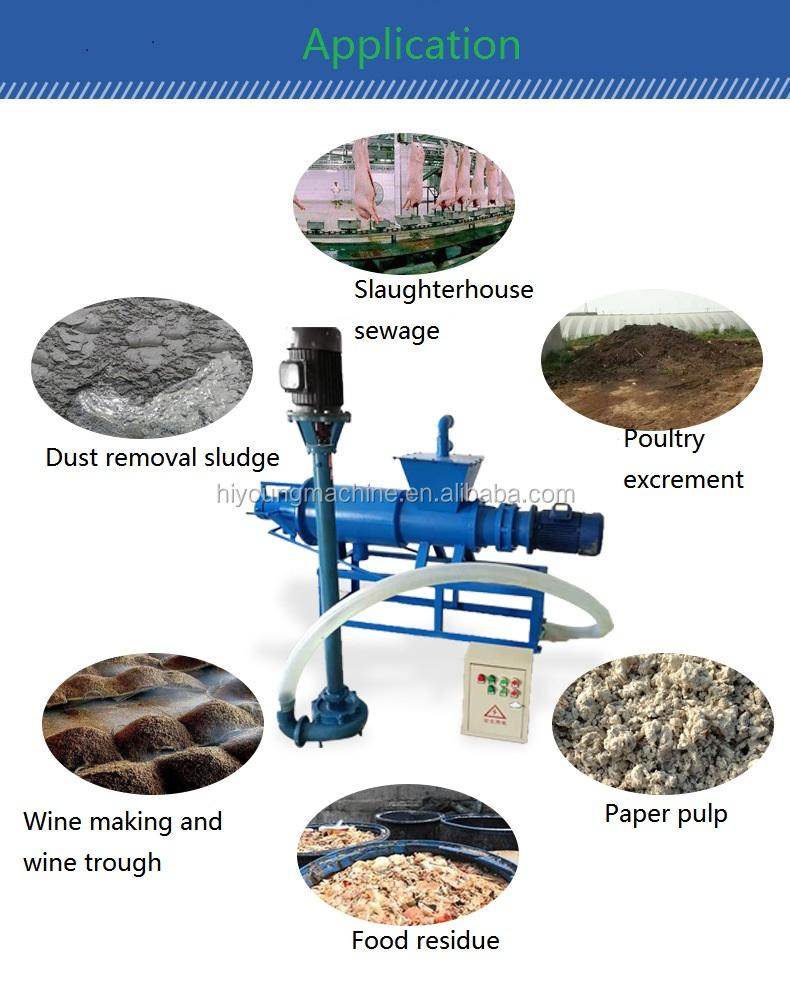

The animal waste solid liquid separator is designed to reduce the water content of animal manure, such as cow dung, pig manure and chicken manure. In addition, the animal waste solid liquid separator can remove acid sludge, dregs, kitchen waste and many other dregs. It separates solids and liquids well. Solids can be used to make organic fertilizers or fuels, and liquids are good materials for irrigation.
Features:
(1) Screw-type extrusion solid-liquid separator has small volume, low rotation speed, simple operation, convenient installation
and maintenance, low cost, high efficiency, fast investment recovery, and no need to add any coagulant;
(2) Integrated hopper design, stable feeding compensation, wet and dry design;
(3) Thick stainless steel spiral shaft, the part is subjected to wear-resisting treatment, long service life, and the pitch
parameter is scientific and reasonable;
(4) The electronic control system has overload protection, leakage protection and low voltage protection;
(5) The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process, which has the characteristic of good filtration, anti-clogging and long service life;
Working principle:
The working process is as follows: The unplugged pump pumps NON-fermented pig dung into the body and accelerates the discharge under the action of a vibration motor. At this time, the power transmission, squeezing the Dragon, gradually pushes the dung water to the front of the body, while constantly improving the front edge pressure, The moisture in the material is forced to squeeze out the screen and flow out the drain pipe under the action of edge pressure band filtration. The work of the Extrusion is continuous, the material is continuously pumped into the body, and the pressure on the leading edge is constantly increasing. When
it is large to a certain extent, the discharge mouth is opened and the extrusion mouth is squeezed to achieve the purpose of extrusion. In order to master the speed and water content of the feed, the weight distribution block below the host can be adjusted to achieve a satisfactory and appropriate feed state.
Host, a non-blocked pump, a control cabinet, and a pipeline. The main body consists of a body, a mesh screen, a squeeze Dragon, a vibration motor, a deceleration motor, a weight distribution, and a unloading device.
Description:
The animal waste solid liquid separator is designed to reduce the water content of animal manure, such as cow dung, pig manure and chicken manure. In addition, the animal waste solid liquid separator can remove acid sludge, dregs, kitchen waste and many other dregs. It separates solids and liquids well. Solids can be used to make organic fertilizers or fuels, and liquids are good materials for irrigation.
Features:
(1) Screw-type extrusion solid-liquid separator has small volume, low rotation speed, simple operation, convenient installation
and maintenance, low cost, high efficiency, fast investment recovery, and no need to add any coagulant;
(2) Integrated hopper design, stable feeding compensation, wet and dry design;
(3) Thick stainless steel spiral shaft, the part is subjected to wear-resisting treatment, long service life, and the pitch
parameter is scientific and reasonable;
(4) The electronic control system has overload protection, leakage protection and low voltage protection;
(5) The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process, which has the characteristic of good filtration, anti-clogging and long service life;
Working principle:
The working process is as follows: The unplugged pump pumps NON-fermented pig dung into the body and accelerates the discharge under the action of a vibration motor. At this time, the power transmission, squeezing the Dragon, gradually pushes the dung water to the front of the body, while constantly improving the front edge pressure, The moisture in the material is forced to squeeze out the screen and flow out the drain pipe under the action of edge pressure band filtration. The work of the Extrusion is continuous, the material is continuously pumped into the body, and the pressure on the leading edge is constantly increasing. When
it is large to a certain extent, the discharge mouth is opened and the extrusion mouth is squeezed to achieve the purpose of extrusion. In order to master the speed and water content of the feed, the weight distribution block below the host can be adjusted to achieve a satisfactory and appropriate feed state.
Specification:
Model Number | Inlet | Drain outlet | Dry manure output (CBM) | Mainframe Power/Voltage | Pump power (KW) | Dimensions (Length*width*height)mm | Weight (KG) |
180 | 76m | 102mm | 5 CBM | 4kw / 380V/220V | 3KW | 1800*1300*500mm | 230 KG |
200 | 7 CBM | 5.5kw /380V/220V | 2100*1400*500mm | 360 KG | |||
200 (Extended type) | 7 CBM | 5.5kw / 380V | 2300*1400*500mm | 380 KG | |||
280 (Extended type) | 12 CBM | 7.5kw /380V | 2300*1400*600mm | 400 KG | |||
300 | 15 CBM | 7.5kw/380V | 2400*1400*600mm | 420 KG | |||
300 (Extended type) | 15 CBM | 7.5kw/380V | 2550*1400*600mm | 450 KG | |||
400 | 20 CBM | 11 kw /380V | 2700*1400*800mm | 600 KG | |||
800(Oblique sieve) | 6 CBM | 4kw / 380V/220V | 320 KG | ||||
1200 (Oblique sieve) | 8 CBM | 5.5kw / 380V | 380 KG |

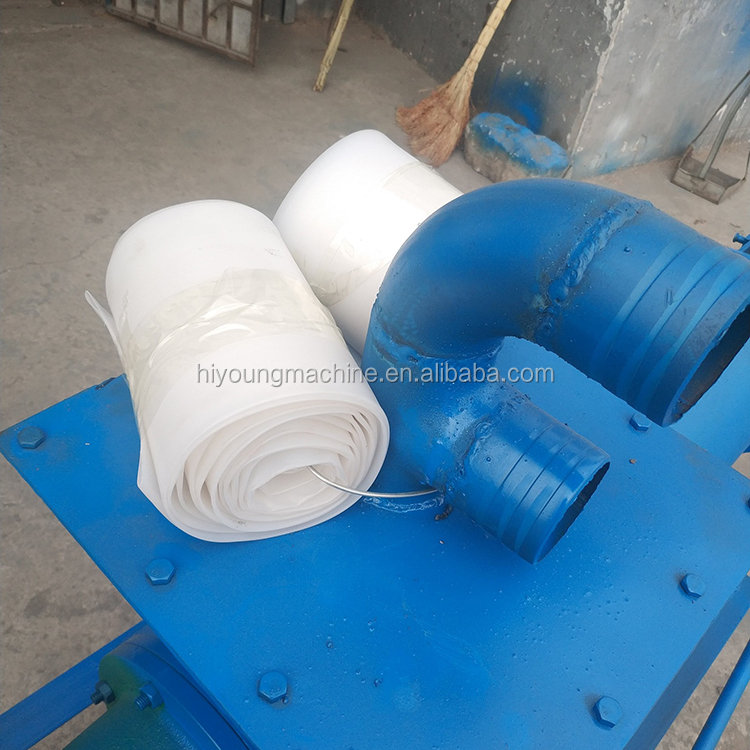

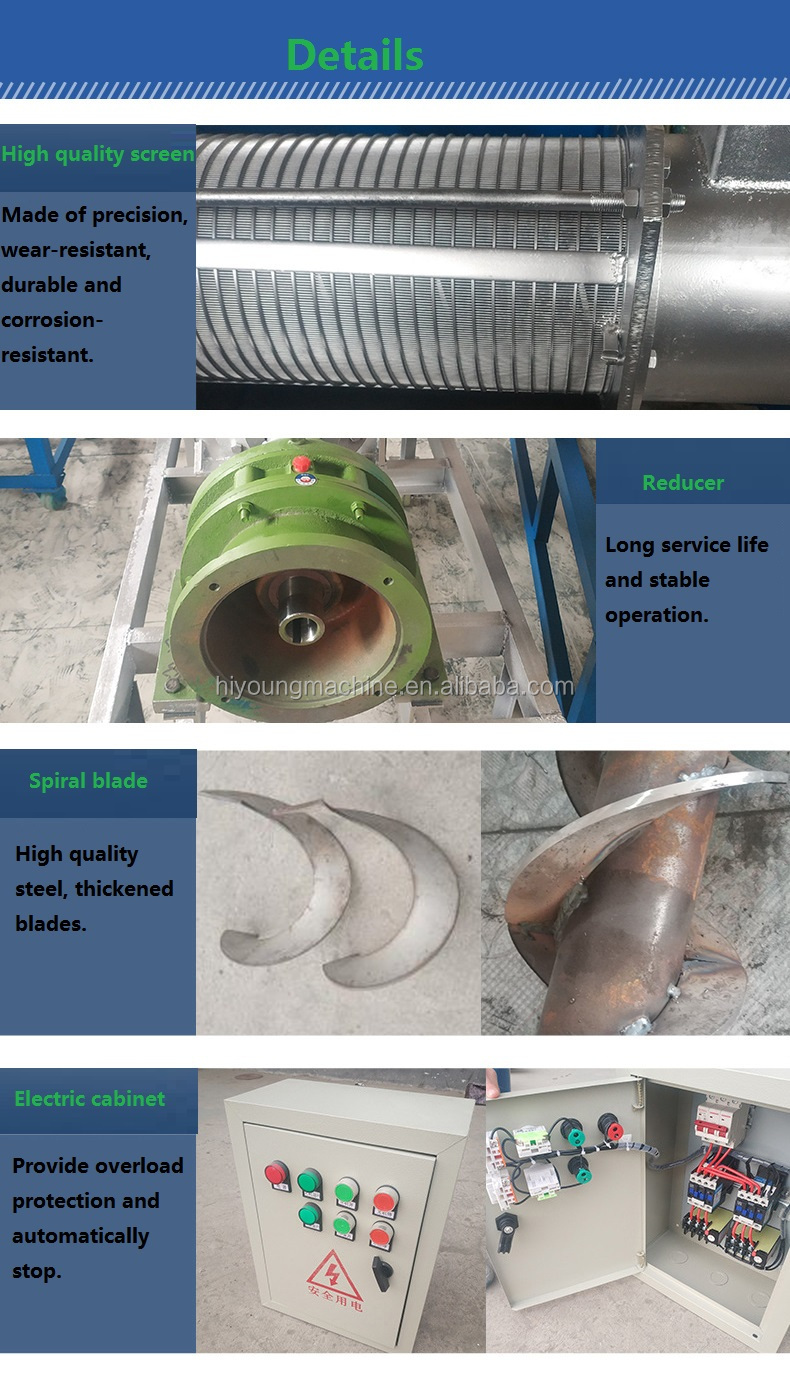

Details Images
Recommend Products
Transportation
Delivery Time | 7-20working days after receiving clients’ payment. |
Payment Terms | T/T, Trade assurance,Paypal, Western Union, L/C, D/P, D/A, Escrow |
Packing | 1. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea. 2.The machines are putted in strong iron sheet case/wooden case which is free of fumigation, lined with metal wire if necessary. |
Quality Guarantee Terms | Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Our Advantages
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we
will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
1.Any problems occur while using, professional advice will be offered.
2. All kinds of frequently used parts are supplied all the year round.
3. 24 hours hot line Mobil
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2.Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we
will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
1.Any problems occur while using, professional advice will be offered.
2. All kinds of frequently used parts are supplied all the year round.
3. 24 hours hot line Mobil
Why Choose Us
Q1,Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models. If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO, FORM E if you need.
A:Yes, we are manufacturer with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models. If larger machine, we suggest you choose by sea to ship.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO, FORM E if you need.
