Solid Plastic Horizontal/vertical burning test apparatus Testing chamber combustion analyzer

2 Piece/Pieces (MOQ)

Basic Info

Model No.	YW-1101
Brand Name	OEM,ODM brand
Applicable industry	Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy &Amp; Mining
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Engine, Gear
Old and new	New
place of origin	China
warranty period	1 Year
working voltage	220V/50HZ
Ignition source power	50W or 500W
Control operation mode	Electrical control, button operation
Apparatus measurement	1100 * 550 * 1200mm

Product description

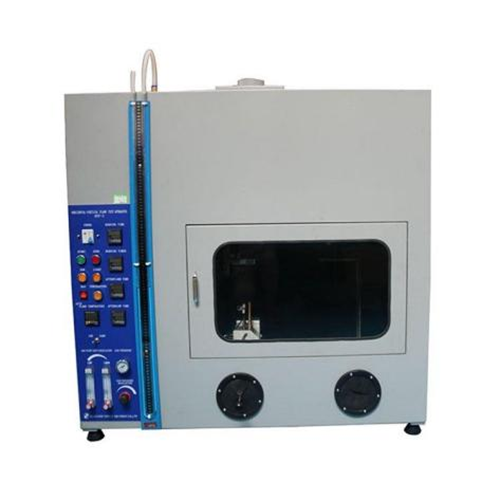

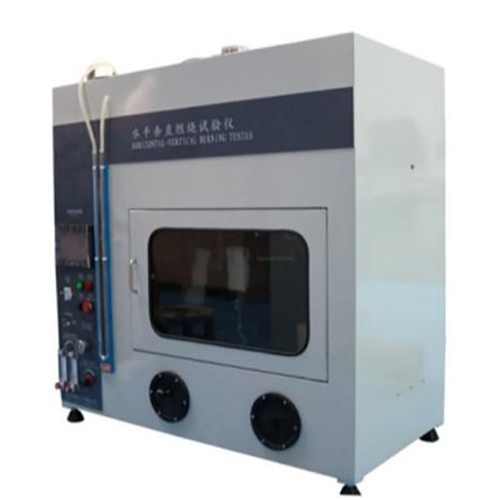

Horizontal and Vertical Flammability Test Chamber YW-1101

Complied standards to be met: UL94 Flammability Test of Plastic Materials for Equipment and Electrical Components, GB2408-2008 Horizontal and Vertical Test Methods for Burning Behavior of Plastics, IGB/T5169.15-2008 (IEC60695-11-3) Fire Hazard Test for Electrical and Electronic Products Part 15: Test Flame 500W Flame Apparatus and Confirmation Test Method, GB/T5169.16-2008 (IEC60695-11-10) 50W Horizontal and Vertical Flame Test Method GB/T5169.17-2008 (IEC60695-11-20) "500W Flame Test Methods", GB/T5169.22-2008 (IEC60695-11-4) "50W Flame Apparatus and Confirmation Test Methods"

Purpose: To simulate the impact of flames in the early stages of ignition around electrical and electronic products, in order to assess the degree of fire hazard through simulation technology. It is mainly used for horizontal and vertical flammability tests of the relative combustion characteristic of plastic, other non-metallic material component samples, solid materials and foam plastics with apparent density not less than 250kg/m 'when measured according to ISO845.

Sample range: plastic and other non-metallic material component samples, solid materials and foamed plastics with apparent density not less than 250kg/m 'when measured according to ISO845

Structure and function: This series of products adopts an integral intake automatic ignition system, with a combustion delay of only 0.1 seconds, ensuring full combustion of the gas; Adopting a steel structure box, the inner box has a black matte background, a large observation window, and imported high-precision digital display instruments for precise detection.

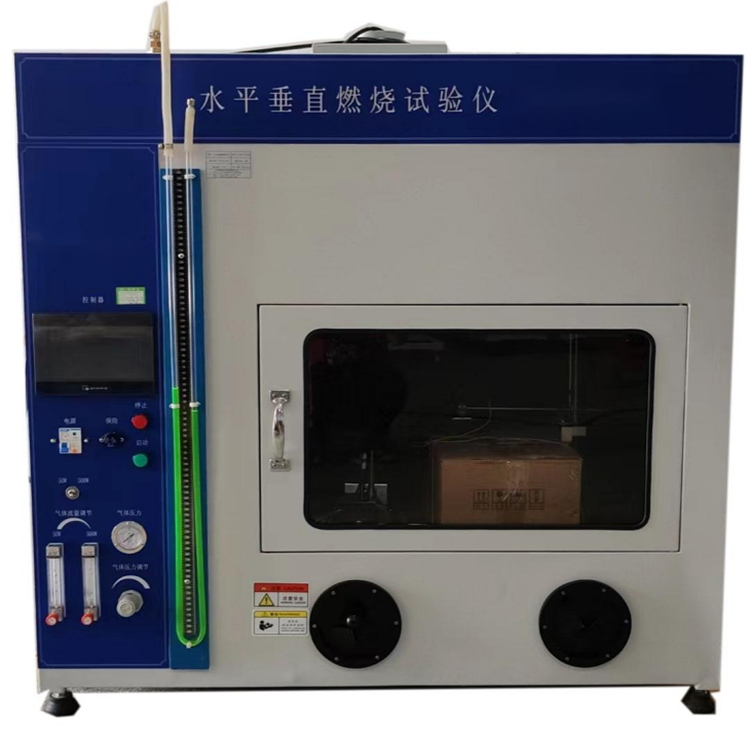

Parameter/Model	YW-1101	YW-1101A	YW-1101B (touch screen version)
working voltage	220V/50HZ	220V/50HZ	220V/50HZ
Ignition source power	50W or 500W	50W and 500W all-in-one machines	50W and 500W all-in-one machines
Control operation mode	Electrical control, button operation	Electrical control, button operation	PLC control, 7-inch color touch screen operation, with infrared remote control
Blowtorch standard	IEC60695-11-3/IEC60695-11-4/10, UL94, inner diameter Φ 9.5 ± 0.3mm length 100mm, made of brass
gas pressure	0.1MPa
Gas flow rate	50W: 105 ± 5ml/min or 18 ± 1 mm; 500W: 965 ± 30ml/min or 117 ± 3 mm, flow meter adjustment
U-shaped pressure gauge backpressure water column height	50W: 10mm; 500W: 125 ± 5 mm
Test angle	50W: 0 °, 45 °; 500W: 20 °
Burning time	0-9999X0.1S can be preset
Burning frequency	0-9999 times, preset
Residual flame/ignition time	0-9999X0.1S can be displayed

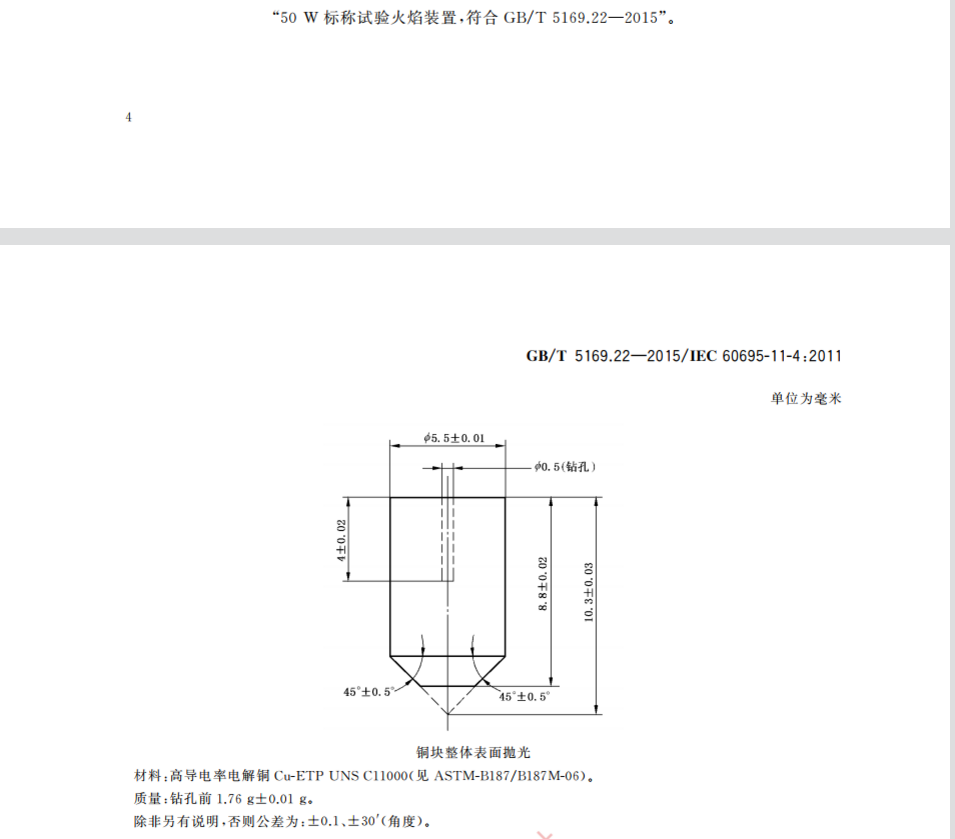

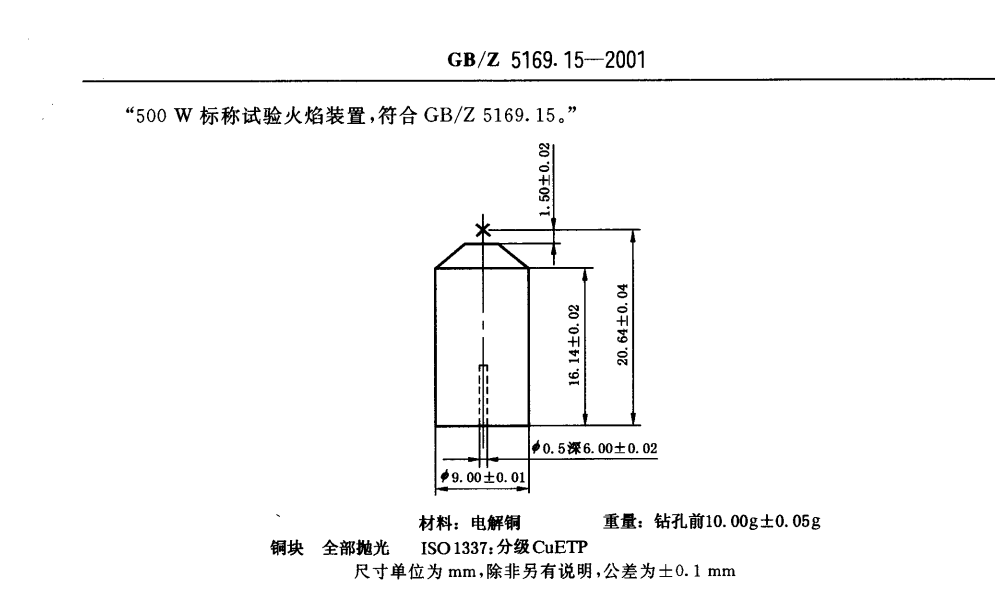

Test flame calibration	Temperature measuring copper head: 50W: Ф 5.5mm ± 0.01mm, 1.76 ± 0.01 g before drilling; 500W: Ф 9mm ± 0.01mm, before drilling 10 ± 0.05g
	Made in the United States φ 0.5 armored nickel chromium/nickel aluminum wire, K-type, resistant to 1100 ° C
	Distance between the Bunsen lamp port and the temperature measuring copper block: 50W: 10 ± 1 mm; 500W: 55 ± 1 mm
	Flame height: 50W: 20 ± 2mm (without distinction between internal and external flames); 500W: Inner flame 40 ± 2mm, outer flame 125 ± 10mm
	Heating time from 100 ± 2 ° to 700 ° ± 3 ° 50W: 44 ± 2S; 500W: 54 ± 2S
lighting	Equipped with test box lighting, with control
Test box and overall dimensions	>0.75 cubic meter, black matte background, with exhaust fan, overall size: 1100 * 550 * 1200mm, 140kg
