products details:

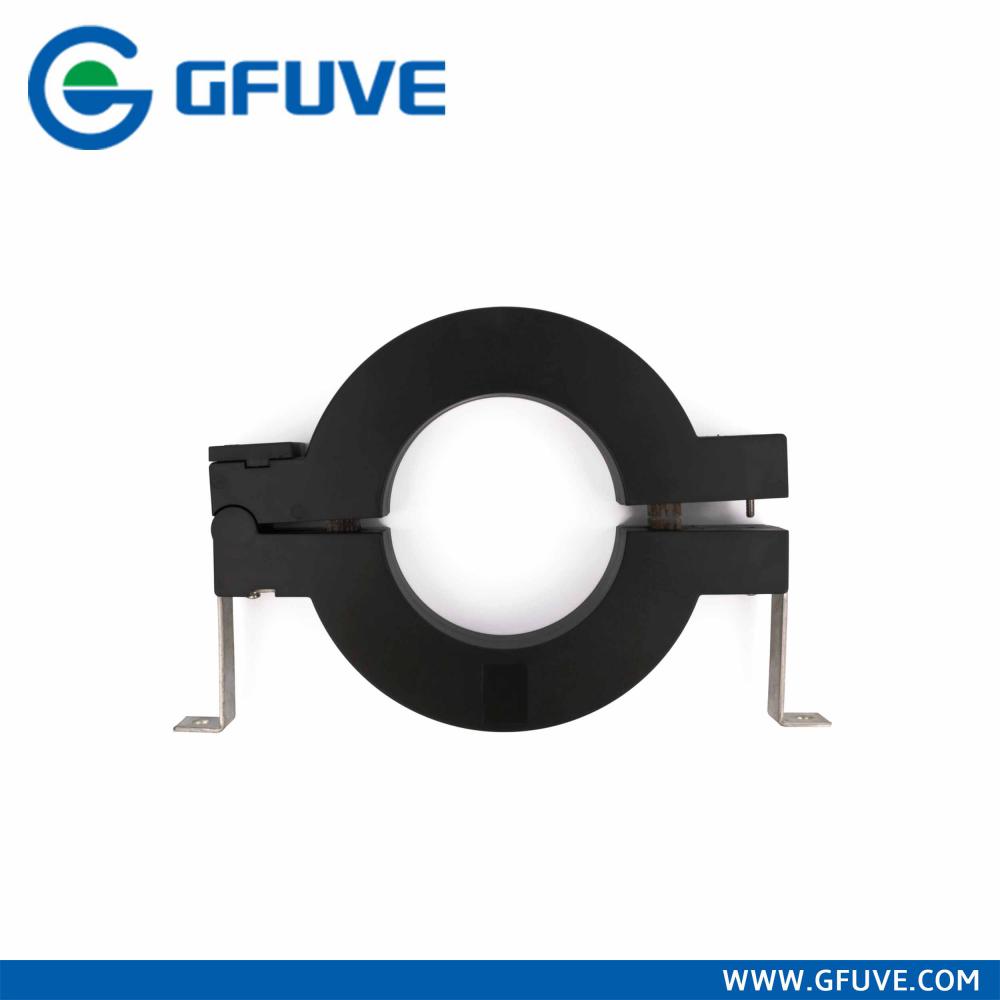

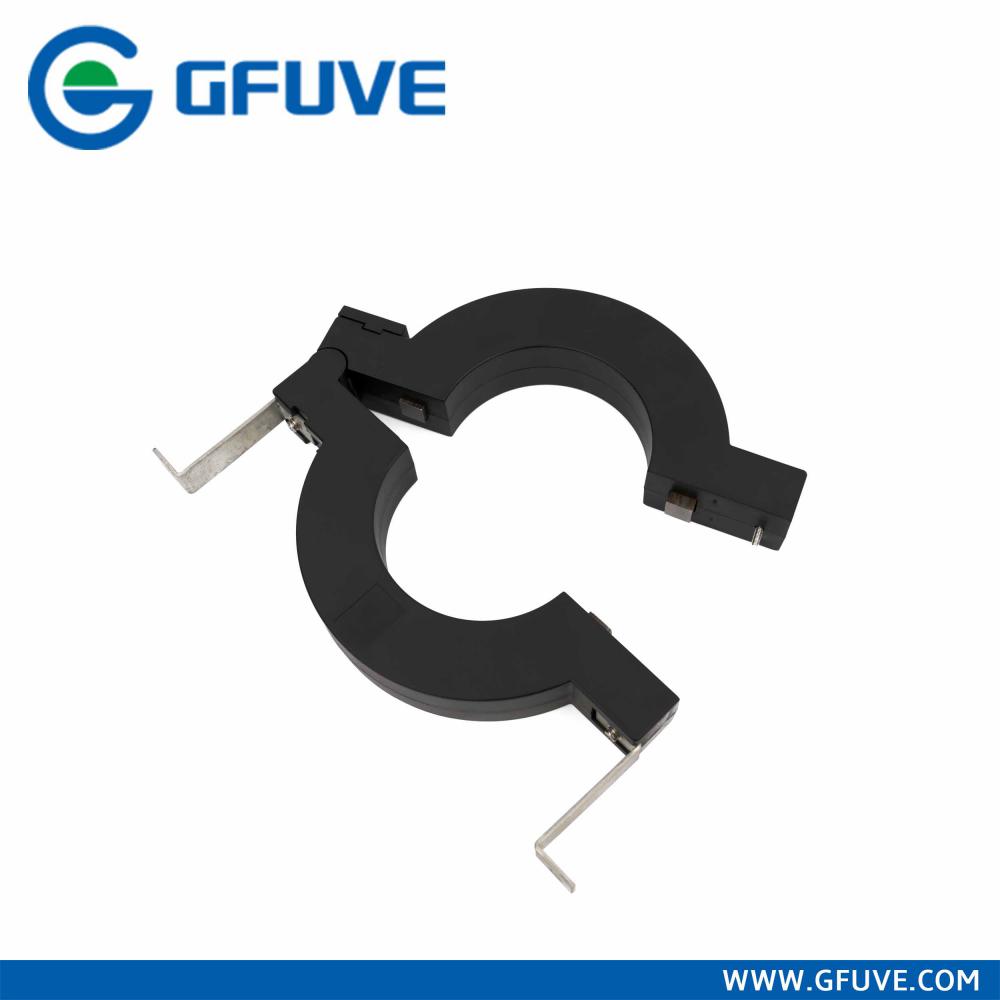

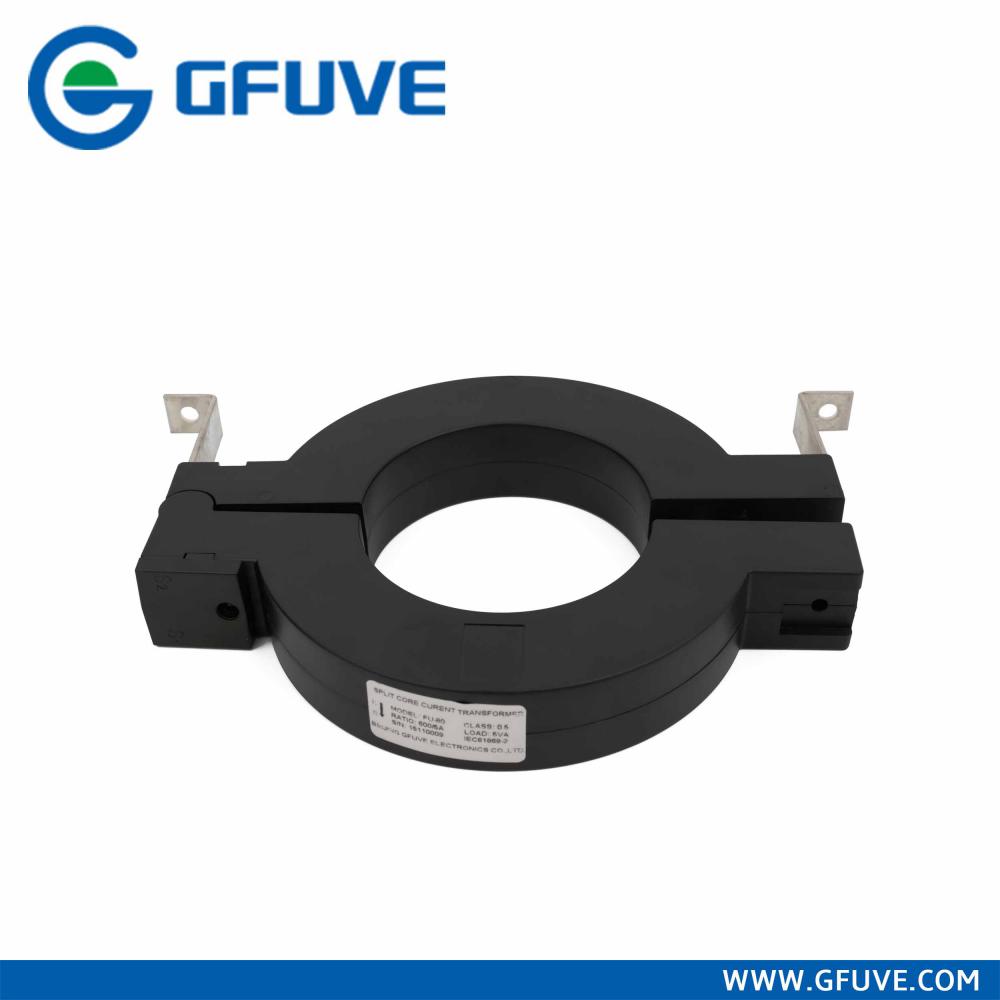

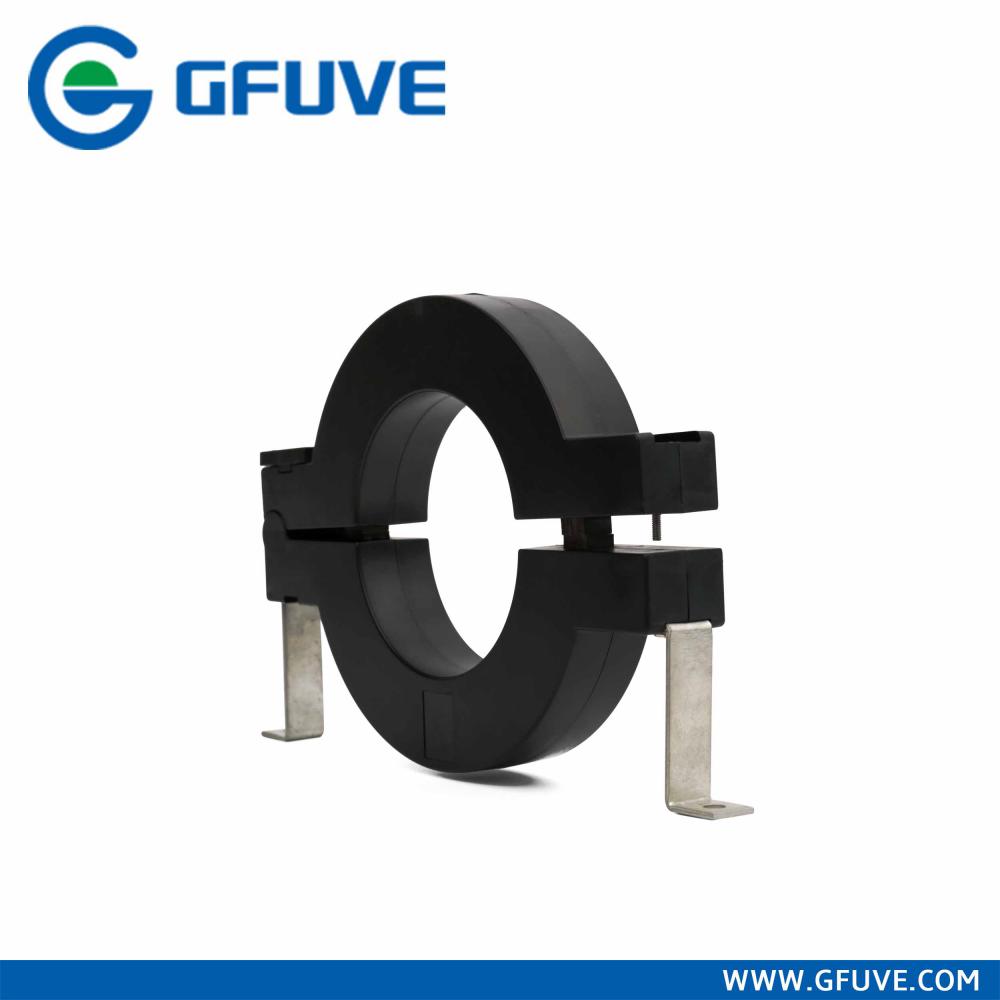

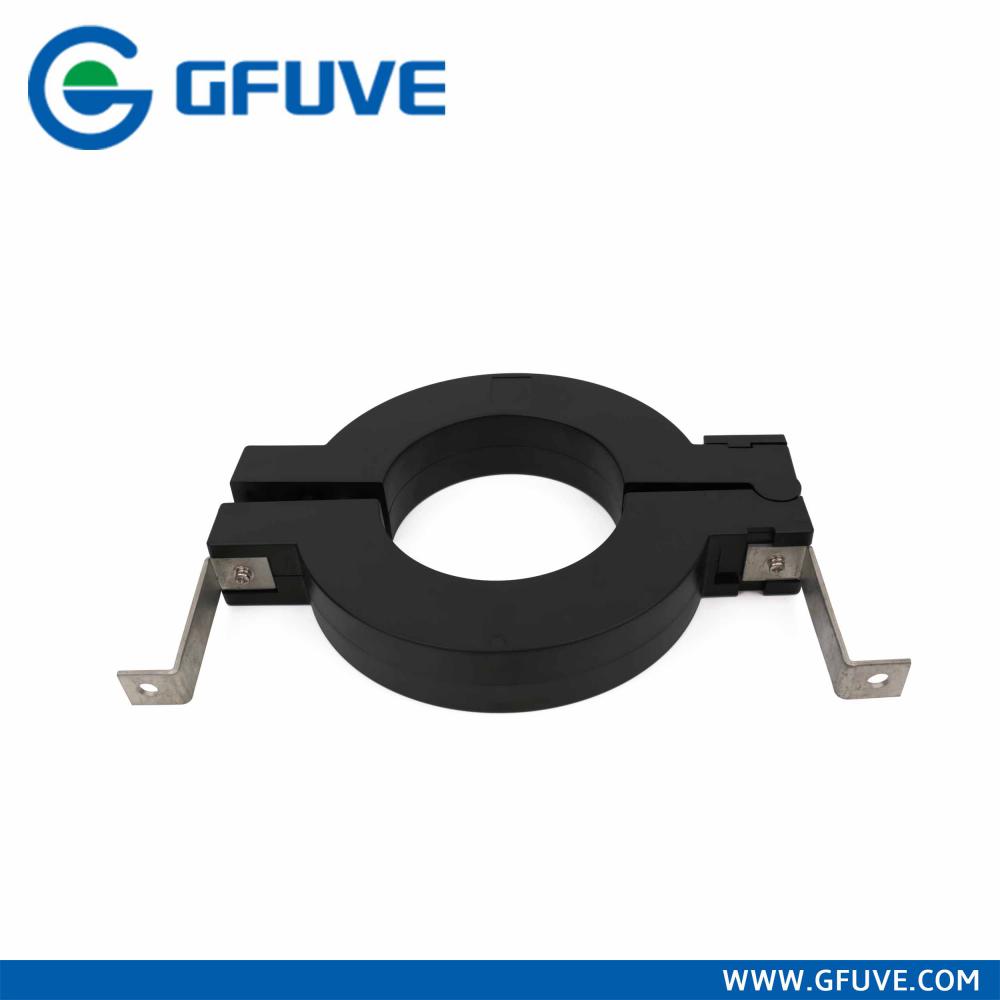

FU-80 Split Core Current Transformer
The GFUVE FU-XX series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

Applications 1. Energy sub – meter 2. Power meters 3. Power quality monitoring 4. HVAC & Pumps, etc 5. Distributed measurement system
Features
1. Most cost-effective 2. Faster installation 3. Safe and easy installations 4. High accuracy 0.5  5. Holding wire diameter: φ30mm, φ55mm, φ80mm 6. Ratio`s ranging from 100/1A to 1200/5A  7. CE, UL
Technical parameters
Standards IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio: 200:1, 400:5, 800: 5 or 1000:5 , customized   Nominal input current(Primary current) 200A-1200A
Overload withstand :1.2 times rated current continuously  Accuracy :0.2%, 0.5 %, 1%   System Voltage :720V(0.72kV)
Output signal: 1A or 5A   333mV AC or 100mV-2V optional   Burden :2.5VA   Frequency range: 40 Hz-500 Hz
Technical parameters-continued:

Dielectric strength: 3KV 50Hz/60Hz at 1 minute   Output mode: Terminal output  Max. jaw opening: 30mm, 55mm, 80 mm
Mechanical parameters:
Dimensions (W×D×H) (mm) :88x 129x 28, 108x 155x 28, 138 x 193 x 28   Weight (g): 400, 550, 600
Operating conditions:
Operang temperature :-25 to +55°C  Relative Humidity: 0-85% non-condensing  Altitude :<3500 meters
Condition: No existence of severely begrimed, erosive and  radioactive gas in the air. Permission of long-term  operation under rated current.
company  profile:

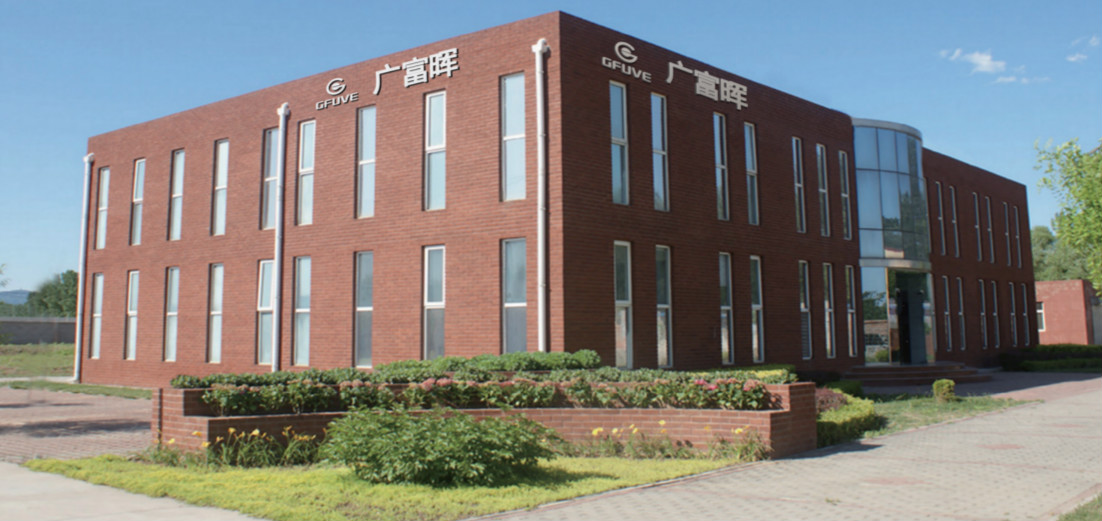

Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc. GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa. We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service. If you have any need, please contact 86-10-85782698.
Ordering information:
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order.  Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
