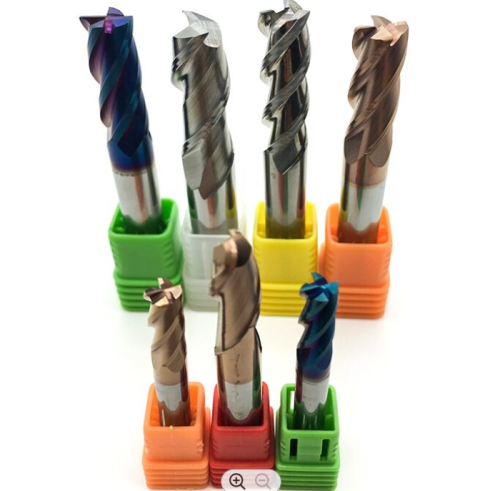

Square Flat Solid Carbide Milling Cutting Tools
$0.95
≥50 Piece/Pieces
$0.08
≥20000 Piece/Pieces
Diameter:
- 4
- 6
- 7
- 8
- 9
- 10
Comprehensive length:
- 50
- 60
- 75
- 100
Types:
- End Mill
Options:
- 50
- 60
- 75
- 100
Basic Info
| Model No. | 199 |
|---|---|
| Brand Name | BOMI TOOLS |
| Certification | Gs |
| Support customization | Obm |
| place of origin | China |
| Material | Carbide |
| Coating | Altin, Tiain, Tin |
Product description
2/4 Corner Radius End Mills- Tungsten Carbide End Mills Features
1. With R2 rounded corner: machine clamp end milling cutter (commonly known as bull nose cutter), machine clamp face milling cutter, welding edge or integral material end milling cutter processing.
2. The radius R2 is guaranteed by the fillet of the tool.
3. The thickness of the bolt surface is 10mm, which is guaranteed by the workpiece clamping accuracy and machine tool accuracy.
4. It is better to use end milling than circumferential milling.
Brand Name:OBT
Model Number:Standard Size
Material:Carbide
Coating:AlTiN, TiAIN, TiCN, Tin
| solid carbide 2/3/4 flutes square end mills tungsten carbide flat milling cutters |
|
flute diameter |
flute length | overall length | shank diameter | flute diameter |
flute length |
overall length | shank diameter |
| 0.3-0.6 | 1.5 | 50 | ?4 | ?5 | 13 | 50 | ?6 |
| 0.7-0.8 | 2.5 | 50 | ?4 | ?6 | 15 | 50 | ?6 |
| ?1 | 3 | 50 | ?4 | ?7 | 18 | 60 | ?8 |
| ?1.5 | 4 | 50 | ?4 | ?8 | 20 | 60 | ?8 |
| ?2 | 5 | 50 | ?4 | ?9 | 22 | 75 | ?10 |
| ?2.5 | 6 | 50 | ?4 | ?10 | 30 | 75 | ?10 |
| ?3 | 8 | 50 | ?3 | ?12 | 30 | 75 | ?12 |
| ?3.5 | 9 | 50 | ?4 | ?14 | 40 | 100 | ?14 |
| ?4 | 10 | 50 | ?4 | ?16 | 40 | 100 |
?16 |
| flute diameter | flute length | overall length | shank diameter | flute diameter | flute length | overall length | shank siameter |
| ?18 | 40 | 100 | ?18 | ?4 | 15 | 75 | ?4 |
| ?20 | 45 | 100 | ?20 | ?5 | 20 | 75 | ?6 |
| ?3 | 12 | 75 | ?4 | ?6 | 24 | 75 | ?6 |
|
solid carbide dovetail cutter end mills router bits 100% raw material to guarantee the milling cutter high quality Super coating to improve the milling cutter's life
|
||||||||||||||||||||||||||||||
|
Advanced CNC grinding machines and test instrument guarantee milling cutter high precision
|
1) Our drill product: Carbide -Tipped Drill，1/2 Reduced Shank Drill Bit， Tct Annular Cutter ，Auger Drill Bit，Combination Drill And Tap，HSS drill bits, masonry drill, Hss Twist Step Drill Bit,Threaded Shank Drill Bit，Hss Taper Shank Drill Bit, wood flat drill, wood auger bit, wood brad drill,Center Drill Bit，2/4 Ball Nose End Mills， left hand drill,Extra-Long Length Drill Bit，Milling Cutter etc.

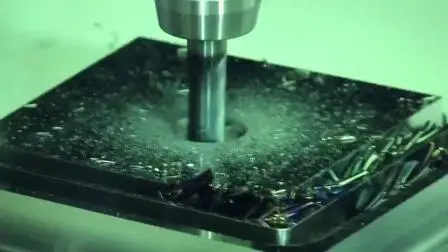

Video
