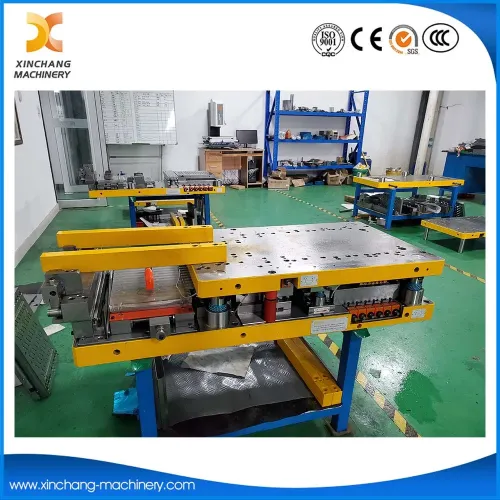

Staggered Pattern Punching Press Machine Press Stamping Die
Basic Info
| Brand Name | xinchang |
|---|---|
| Material | Carbon Tool Steel |
| Processing Method | Punching And Shearing Mould |
| Technics | Cutting Die |
| Process Combination | Single-Process Mould |
| Manufacturing Technology | Automation Technology |
Product description
Fin Die Parameters
| ? | Item | ￠9.52×12R×2P | ￠12×6R×2P | ￠15.88×6R×2P |
| 1 | Type die | ribbon | ribbon | ribbon |
| 2 | Fin shape | v-wave | v-wave | v-wave |
| 3 | Number of rows | 12R | 6R | 6R |
| 4 | Distance between holes in row | 25mm | 30mm | 38mm |
| 5 | Distance between rows | 21.65mm | 25.98mm | 32.9mm |
| 6 | Pattern | staggered pattern | staggered pattern | staggered pattern |
| 7 | Feed progression | 25mm | 30mm | 38mm |
| 8 | Hole size | 9.85mm±0.03mm | 12.4mm±0.03mm | 16.3mm±0.03mm |
| 9 | Material | Temper H22, A1100 Alloy/8011 or O temp | Temper H22, A1100 Alloy/8011 or O temp | Temper H22, A1100 Alloy/8011 or O temp |
| 10 | Fin stock thickness range | 0.1-0.25mm | 0.1-0.25mm | 0.1-0.25mm |
| 11 | Collar height range | 1.5-6.5mm | ?1.5-7.0mm | 1.5-8.0mm |
| 12 | Reflare | individual adjustment for full range of collar heights | individual adjustment for full range of collar heights | individual adjustment for full range of collar heights |
| 13 | Collar base | provided | provided | provided |
| 14 | Slitter blades | blade positions in each row with quick change | blade positions in each row with quick change | blade positions in each row with quick change |
| 15 | Feed | internal hitch finger pull type | internal hitch finger pull type | internal hitch finger pull type |
| 16 | Cut off | guillotine type cut off with plain grind insert blades. | guillotine type cut off with plain grind insert blades. | guillotine type cut off with plain grind insert blades. |
| 17 | Standard production rate | 150-180 strokes per minute. | 150-180 strokes per minute. | 150-180 strokes per minute. |
| 18 | Guide post | Every guide post have lubrication | Every guide post have lubrication | Every guide post have lubrication |
Fin Die Standard Component
We made our automatic fin stamping equipment use the best quality material from JAPAN or SWEDEN. The following form shows some of our material used in this automated fin die press equipment.
| ? | Item | MATERIAL | HARDNESS | ORIGIN |
| 1 | Punching convex and concave die | HAP40 | HRC62-64 | JAPAN |
| 2 | Slitting blades | HAP40 | HRC62-64 | JAPAN |
| 3 | Edge cutting blades | HAP40 | HRC62-64 | JAPAN |
| 4 | Crosscut blades | HAP40 | HRC62-64 | JAPAN |
| 5 | Drawing unloading plates of die | NAK80 | HRC40-42 | JAPAN |
| 6 | Drawing concave plates of die | NAK80 | HRC40-42 | JAPAN |
| 7 | Sub-plates of die | NAK80 | HRC40-42 | JAPAN |
| 8 | Fixed seat of crosscut knif | NAK80 | HRC40-42 | JAPAN |
| 9 | Drawing convex and concave die | SKD11 | HRC 62-64 | JAPAN |
| 10 | Collar convex and concave die | SKD11 | HRC 62-64 | JAPAN |
| 11 | Sub-die rack | PDS 5 | Pre-hardened steel | JAPAN |
| 12 | Fixed plates of die | PDS 5 | Pre-hardened steel | JAPAN |
Display photos
?
Video
Fin Press Stamping Die
Fin Press Stamping Die
Fin Press Stamping Die
Staggered Pattern Punching Press Machine Press Stamping Die
