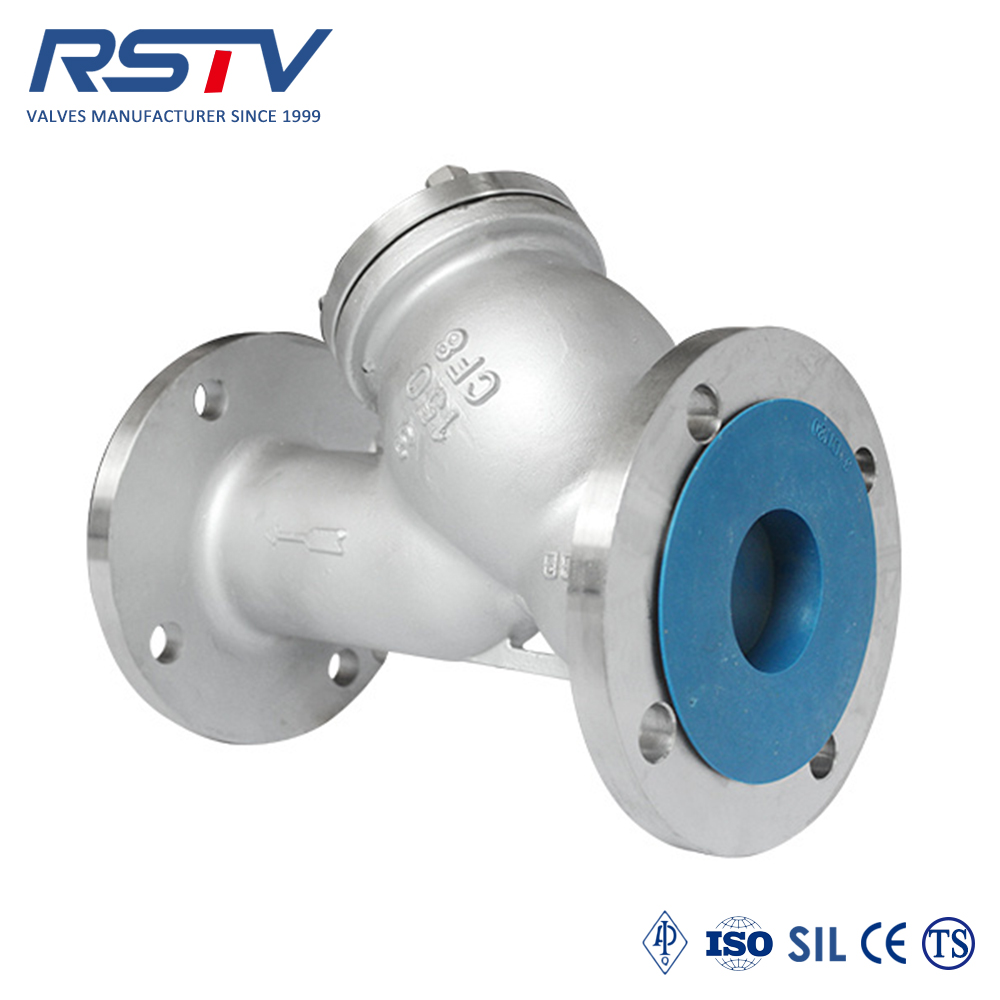

API DIN JIS Stainless Steel Flange ends Y Type Strainer

Stainless Steel Flange Y Strainer could manufacture according to API/ASME/DIN/GB standards for different markets. Y Strainer, there is a screen in it help to make filtration, and there are many choice for screen mesh, customer could choose mesh number according to medium type. Generally speaking, customer could choose single screen or double screen for it. Stainless steel Y type strainer is bolted bonnet, there is a drain valve on the bonnet, it could change screen or clean valves from this. Sometimes change screen could make strainers to work better during operation. Actually strainer could make in Y type and basket type(T type), which need to choose for different pipelines and medium.



Stainless Steel Y Strainer Specifications:



Product Name	Carbon Steel Flange ends API Standard Y Type Strainer
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2’'~'' ( DN15~DN1200)
3. Thread standard	ISO9001 & CE, TS
4. Type	Y type
5. Working Pressure	150LB~1500LB/ PN16~PN250/10K~20K
6. Connection Ends	RF, FF. RTJ
7. Screen	20 mesh to 160 mesh
8. Working Temp.	-29~425℃, or according to customer requirements for different industry.
9. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size



Stainless Steel Y Strainer Special Features:

The Y-Type Strainers convince through the following characteristic

features:

1. less pressure drop

2. large filtration area - increasing of the endurance

3. short delivery times by standard sizes (ANSI 150 and 300)

Stainless Steel  Y Strainer Advantage and Utility:

1. Reasonable strainer

2. Standard types available from stock

3. Permanent filtration of the medium

4. Suitable for mounting in horizontal and vertical pipelines

5. No disassemble of the filter housing for cleaning is necessary

6. Simple handling / basket cleansing

7. Low-maintenance

8. Reusable elements

9. Contamination level indicator (optional)



Stainless Steel  Y Strainer Technical Data:

Medium: liquids, steams, gases or mixtures

Engineering Specification

Flange nominal width:  DN 15 to 1200 (1/2“ to 48“)

Operating Pressure:  PN 16 to PN 250* (ANSI 150 to ANSI 1500 lbs)*

Filter fineness (Mesh sizes): 400 μm* (Standard) or s per to customer’s requirement

Connection Flanges acc. to ANSI / DIN

Material

Housing: 1.0169 (A216 WCB) 1.4408 (A315 CF8M)

Filter element: 1.4401 (316)

Surface treatment: one coat of red oxide* (carbon steel)

Fitting position: Horizontal or vertical

Direction of flow: lateral or from top to down



Carbon Steel Y Strainer Competitive Advantage:

1. OEM/ODM is applicable

2. Offer free sample for testing

3. 100% test before delivery

4. 18 months warranty







Carbon Steel Y Strainer Material List:

No.	Part Name	Material
1	Body	SS316
2	Strainer Screen	SS316
3	Bolt	A193 B
4	Gasket	PTFE
5	Bonnet	SS316
6	Nut	A193 8
7	Bolt	A194 B8
