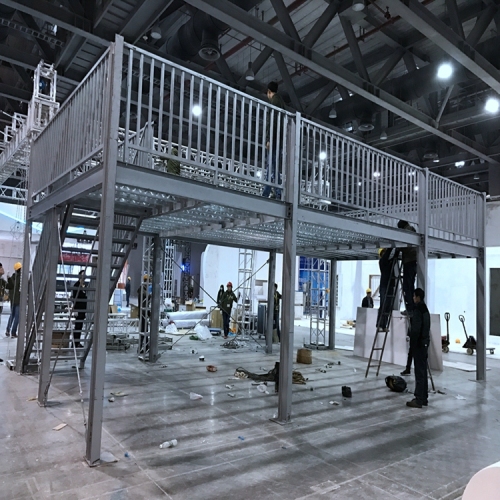

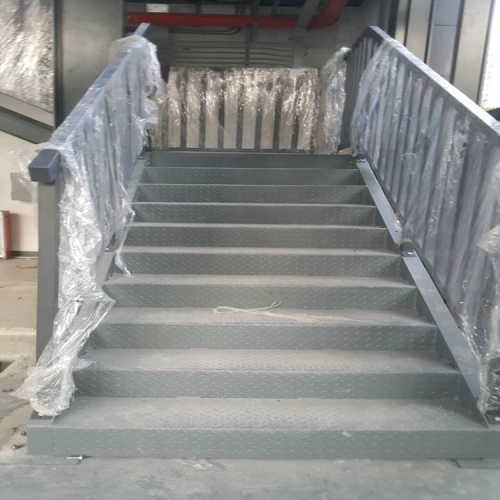

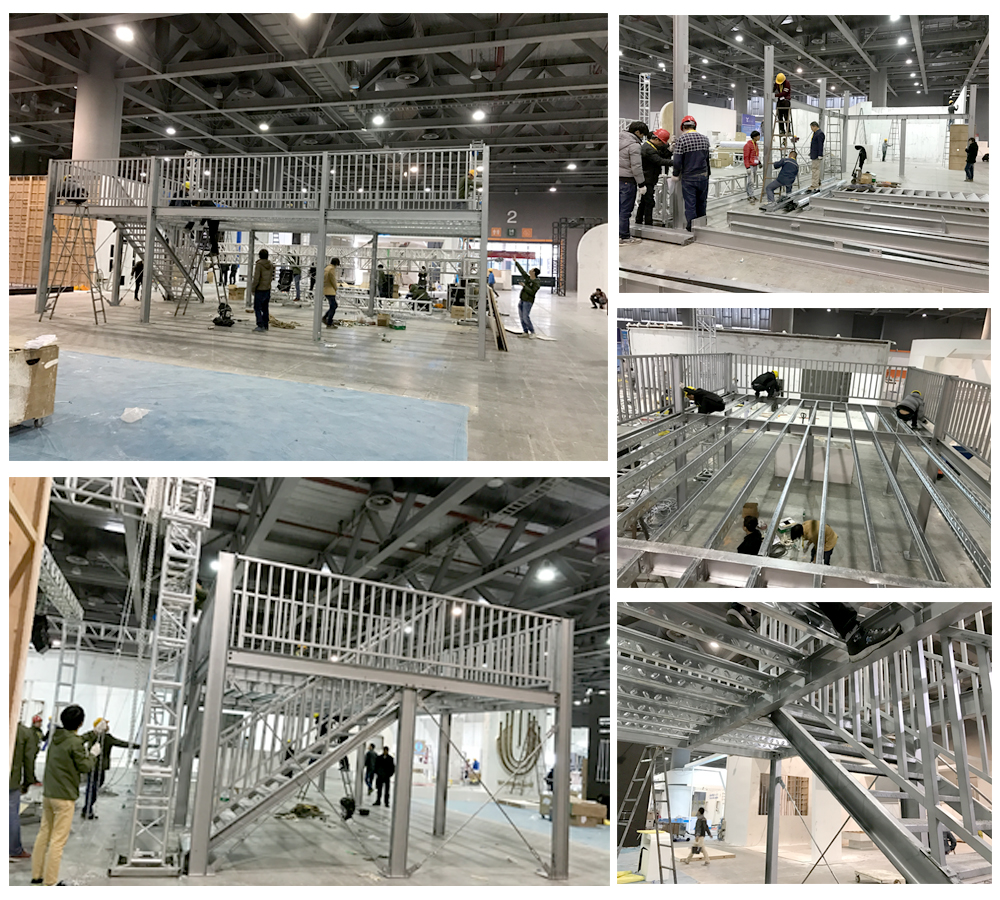

Steel Structure Layer Platform Racking with Stair



Steel Structure

Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.

Structural Drawing

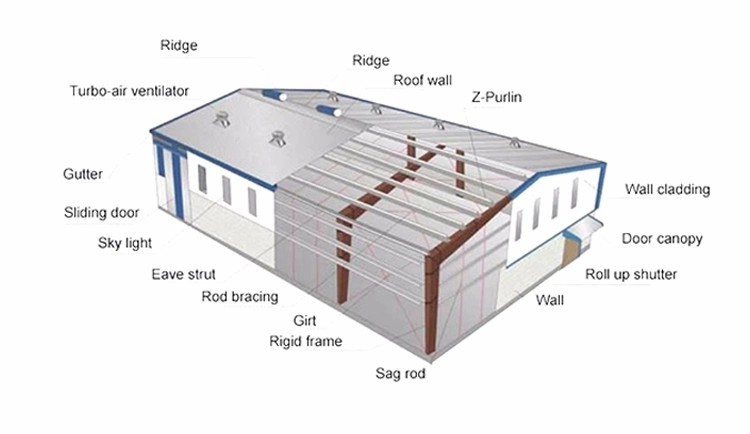

Steel Building Materials Component

Embedded parts	Anchor bolt	M30
?	High strength bolt	M20,10.9S
?	Common bolt	M20
?	Galvanized bolt	M12
?	Shear studs	M16
?	Brace	M12
Main steel frame	Steel column (Q235B)	HN350X175X6X9
?	Wind column (Q235B)	HN300X150X5.5X8
?	Roof beam (Q235B)	HN350X175X6X9 HN300X150X5.5X8
?	Roof frame beam (Q235B)	HN400*200*7*11
?	Floor beam (Q235B)	HN350X175X6X9
?	Tie rod	?89*3.0
?	Horizontal bracing	20
?	Column bracing	20
?	Wall purlin (Galvanized)	C160*50*20*2.0
?	Roof purlin (Galvanized)	C160*50*20*2.0
?	Connecting plate	4mm～20mm steel sheet
Maintenance	Roof tile	50mm sandwich panel (steel sheet thk: 0.276mm,  density: 80kg/m3)
?	Wall panel	50mm sandwich panel (steel sheet thk: 0.276mm, density: 80kg/m3)
?	Partition wall panel	50mm sandwich panel (steel sheet thk: 0.276mm, density: 80kg/m3)
?	Rolling door (automatic)	W4500*H5000
?	Steel door	W1000*H2100/W850*H2100
?	Sandwich panel door	W5000*H3500
?	Aluminum window (thk:1.2mm)	W250*H2000/W1130*H1000/W2000*H1000
?	Aluminum window with security mesh (thk: 1.2mm)	W500*H500
?	Gutter	PVC
?	Down pipe	PVC110
?	Trimming	1.0mm galvanized /steel sheet
Decoration	Office floor tile	800*800
?	Outdoor electric gate (W: 7000mm * H: 2000mm)	Column: 80*80*2.0mm Zinc Steel Pipe
		Cross pole: 50*50*1.5mm zinc steel pipe
?	Small gate (W: 800mm * H: 2000mm)	Column: 80*80*2.0mm Zinc Steel Pipe
		Cross pole: 50*50*1.5mm zinc steel pipe

Steel Structure Material

Wall & Roof System

Product Characteristics

1. Low maintenance costs.

2. Environmentally friendly, recycling.

3. Flexibility when fixing doors, windows and interior partitions.

4. Steel structure construction is strong, durability and stability.

5. Steel components is resistant to termites and other destructive insects.

6. Long service life for more than 50 years.

7. Fast construction ,easy installation and convenient to transport.

Price

Basic Design Requirements: design Load (very important)	Building Purpose:
1. Snow load:	A. Warehouse/Storage
2. Wind load:	B. Factory
3. Seismic magnitude:	C. Agriculture Barn
4. Middle Column allowed or not:	D. Retail Store
5. Project location:	E. Repair/Mechanic Workshop
6. Length (side wall, m):	F. Office Space
7. Width (end wall, m):	G. Animal Farm (please confirm what kind of animal)
8.Wall Height (eave, m):
9.Mezzanine or not? And usage:

Steel Building Pictures Display

About Us

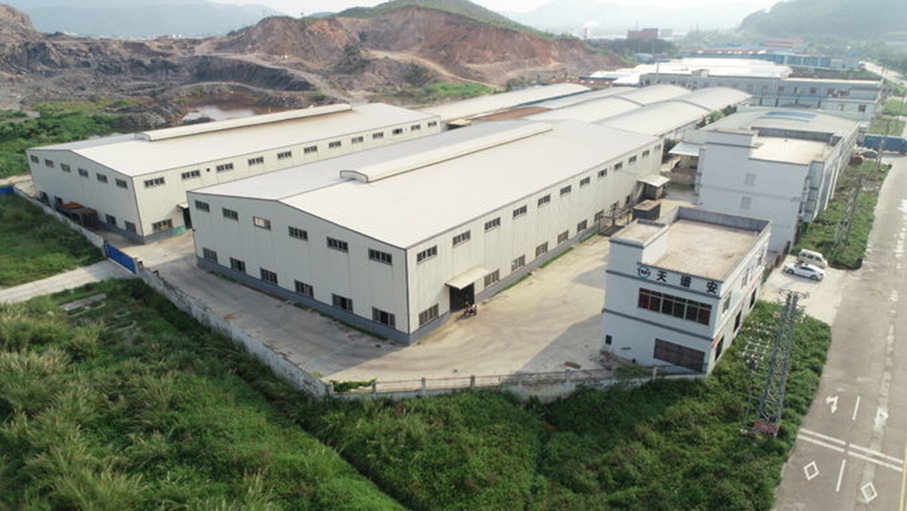

Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
