String Wound Water Filter Elements
Basic Info
| Model No. | FST-SWF-1/5/10/15/20/25/40/60 Microns |
|---|---|
| Brand Name | SINOFILTEC |
| Material | Chemical Fiber |
| Type | Wound Filter |
| Filter Connector | 222 Connector |
| Filtration Grade | Medium Filter |
| Activated Carbon Filter Type | Compact |
Product description

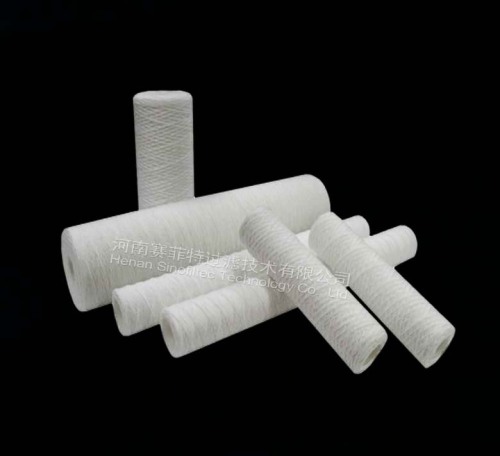

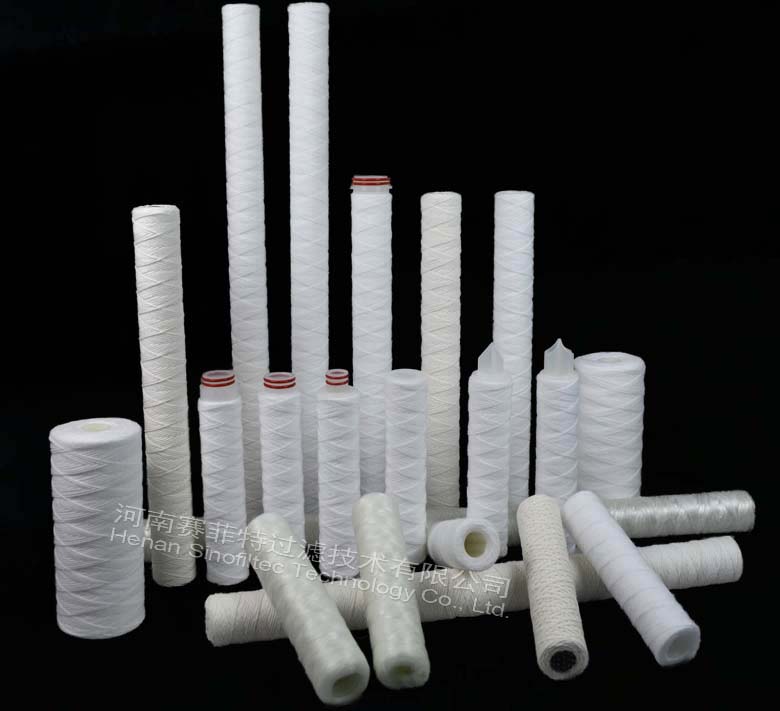

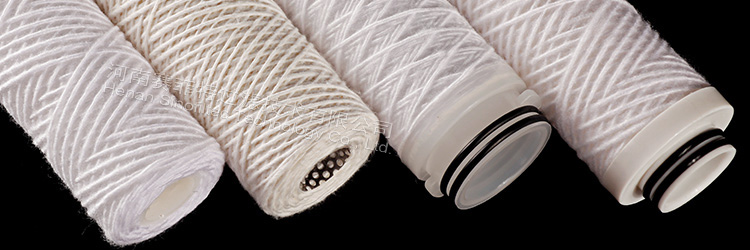

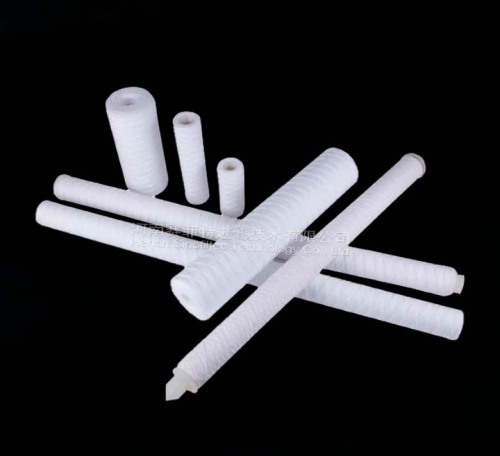

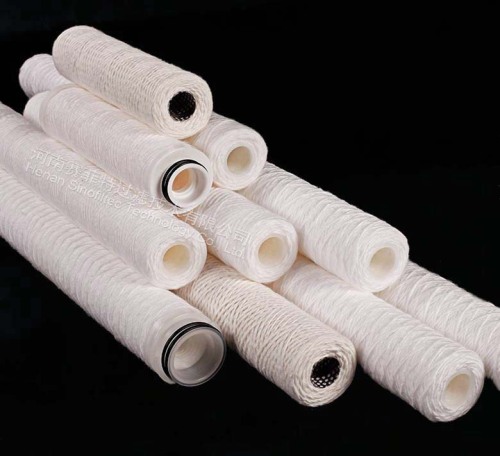

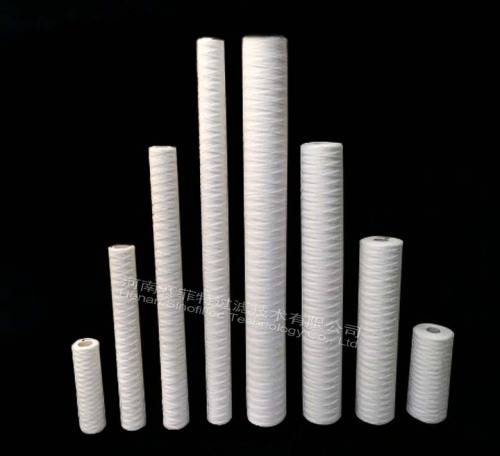

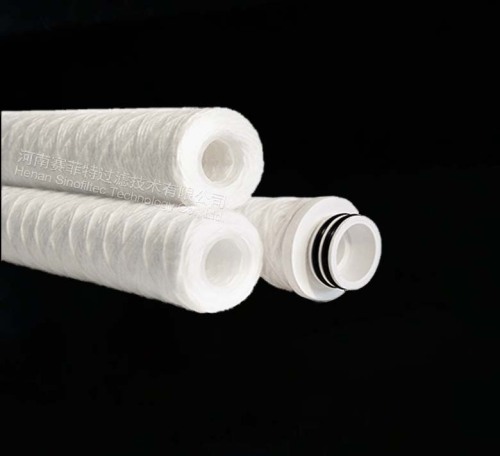

String Wound Water Filter Elements: FST-SWF-1/5/10/15/20/25/40/60 Microns
Production describle:
The cotton quality wire winding filter element is made of cotton yarn winding on the porous inner core. In the process of production, different filter grades are realized by intelligent control, and the outer sparse and dense honeycomb structure is formed to realize the deep filtration. To form various filter layer strength and filter hole shape. It has excellent filtration characteristics. Extend the service life of chemical solutions, detergents, oils, coolants and liquids, greatly reducing material and labor costs.
Characteristics:
Sinofiltec provides all types of interface customization services for winding filters. If you have some important ideas for finding cotton winding filters, please feel free to contact us for engineering solutions. Natural cotton dielectric wire winding filter elements can also be installed in our industrial filters, water filters, etc. Our OEM/ODMservice enables longer service life and better filtered water quality.
Main parameters:
|
Filter Media |
PPor Degreased cotton wire medium |
|
Inner core |
PP or stainless steel |
|
O-rings/ Gaskets(only for 222,226,DOE) |
Silicone/Nitrile/EPDM/Viton |
|
Micron Rating |
1.0, 5.0, 10, 20um |
|
Normal Operating Temperature |
PP : <80℃ (176 ℉ ) at P≤1.0 bar (14.5psi) |
|
Max. Operating Temperature |
<80℃ (176 oF) |
|
flow pressure |
PP: 4.0 bar(58psi) at 25℃ (77℉ ) |
|
Filtration efficiency |
≥ 80% |
|
Sterilization |
Not recommended |
|
Outer Diameter |
Φ 63(2.5'') /114(4.5) mm |
|
Inner Diameter |
Φ 28mm (1.10") |
|
Filtration area(m2) |
0.4 /10'' |
|
Length(based on DOE end cap) |
10``, 20``, 30``, 40``, 50'', 60'', 70'' |
Features & Advantages of Cotton Wound Filter Cartridge:
(1) Graded honeycomb pore structure provides true depth filtration.
(2) Large flow rate and high dirt holding capacity.
(3) Optional spiral stainless steel inner core offers high pressure resistance for high differential pressure filtration.
(4) More filter media and inner core materials are available for wide chemical compatibility.
(5 ) Different length and outside diameter are available for different filtration area requests.
Applications of High flow water filter cartridges:
(1) General purpose:R.O. system pre-filtration, Deionized water pre-filtration, water filter.
(2) Food and Beverage: Drinking water, Beer, Mineral water, Wines, Beverage.
(3) Chemical: Filtration of Solvent, Acid, Alkali, Amine and etc.
(4) Pharmaceutical: Filtration of Medicine, Biology, Plasma, Compressed Air and Gas.
(5) General Industries: Filtration of Electroplate liquid, Metal machining liquid and Magnetism medium.
