Structured MBBR Filter Media Bio Block Filter

Get Latest Price

Model No.
Brand Name	qijing

Our Core Products

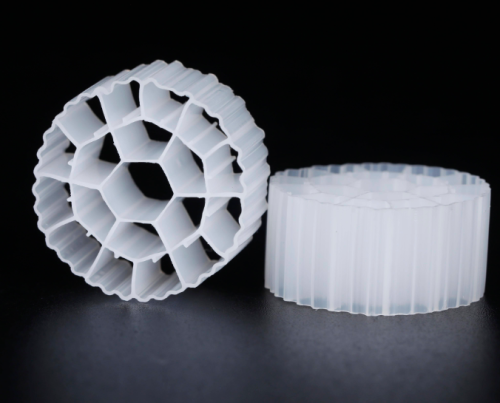

1. Structured MBBR Filter Media (Moving Bed Biofilm Reactor)

Our flagship MBBR Bio Media is engineered from 100% virgin HDPE (High-Density Polyethylene) using advanced polymer modification techniques with bio-enzyme additives to enhance catalytic performance.

Key Specifications:

Material: Food-grade virgin HDPE (density: 0.94–0.98 g/cm3)
Models Available: K1 (25×10mm), K3 (25×4mm), K5, PE05, PE37, and custom specifications
Surface Area: 800–5,500 m2/m3 depending on model
Void Ratio: >85% for optimal fluidization
Service Life: >16–20 years with 10,000-hour durability certification
Operating Temperature: 5–60°C

Advanced Features:

Rapid biofilm formation: 3–15 days membrane-forming time
Superior decarburization: COD removal efficiency 85–95%
Excellent ammonia nitrogen removal: 400–1,200 gNH?-N/m3·day
Shock load resistance: Handles organic loading rates of 2,000–15,000 gCOD/m3·day

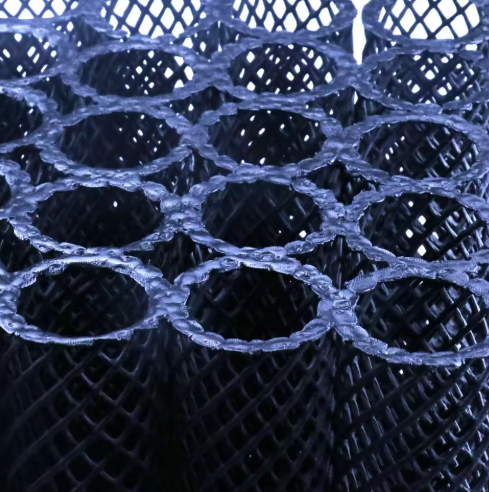

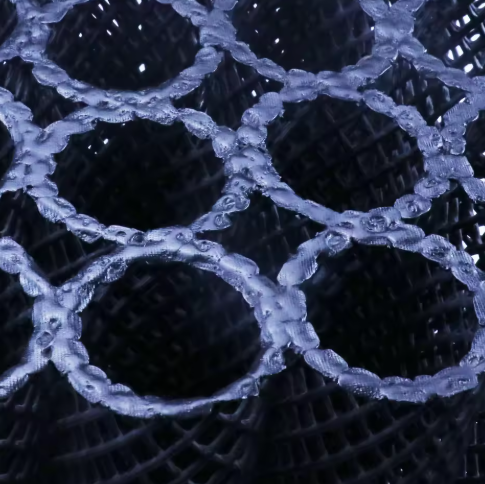

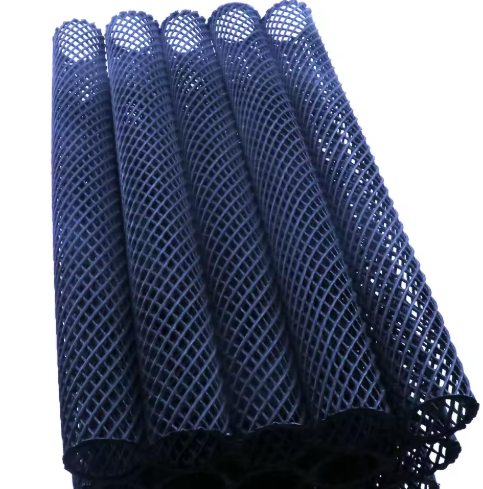

2. Bio Block Filter Media (Structured Grid Systems)

Our Bio Block products are extruded from HDPE and welded to form three-dimensional grid processing units, creating a robust, self-supporting structure ideal for high-flow applications.

Key Specifications:

Dimensions: 50×50×50cm standard (customizable)
Configuration: Reticular tube structure with vertical flow channels
Surface Area: 150–350 m2/m3
Applications: Trickling filters, RAS systems, large-scale wastewater treatment

Advantages:

Modular installation: Easy to stack and configure
High mechanical strength: Supports heavy biofilm growth without deformation
Anti-clogging design: Open structure prevents biomass accumulation

?

Free Sample Program

We proudly offer a comprehensive free sample program to demonstrate product quality and performance:

Sample Type	Quantity	Details
MBBR Media Samples	1 kg (approx. 20–50 pieces)	K1, K3, K5, or specified model
Bio Block Samples	1–2 pieces	50×50×50cm or custom size
Bulk Trial Batches	Up to 20 kg	For pilot testing and biofilm activation studies?
