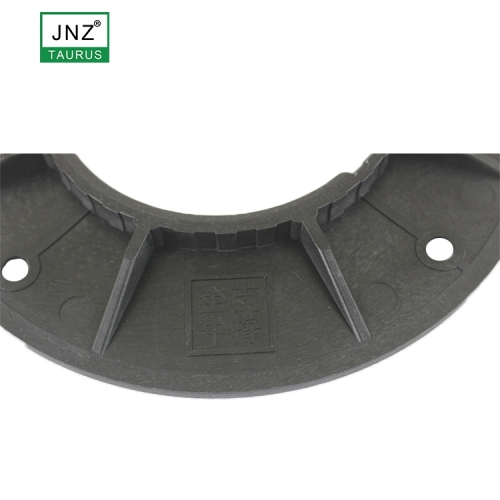

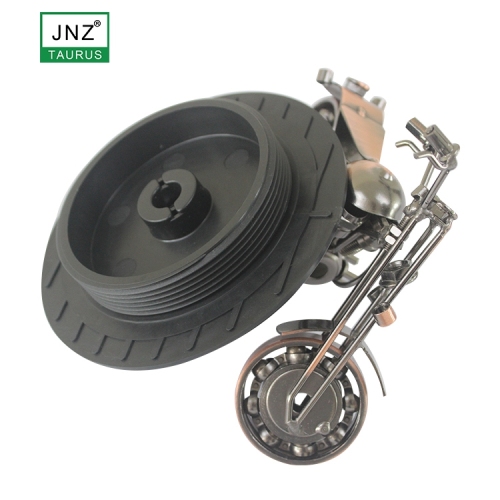

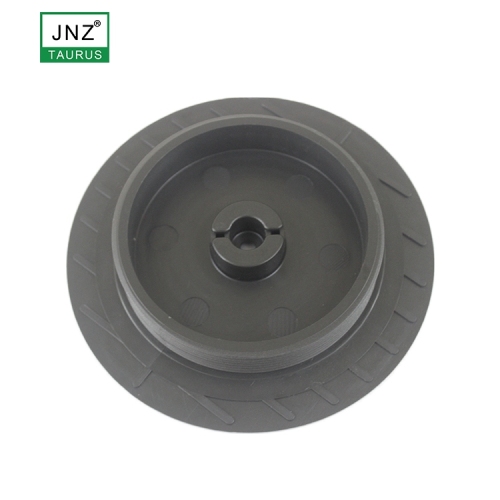

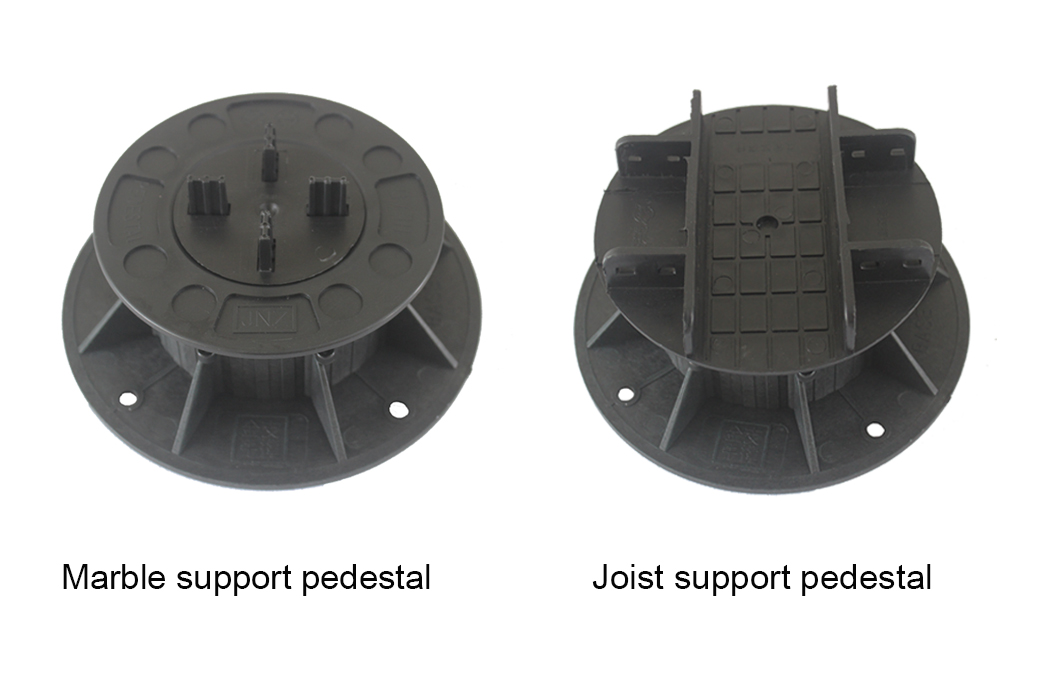

Taurus raised floor support for hardwearing floor panels
Basic Info
| Model No. | TA-U |
|---|---|
| Brand Name | Taurus |
| Place Of Origin | China(Mainland) |
| Color | Black Or Customized |
| Height Range | 19-75mm |
| Material | 90% Polypylene(PP),10% Additives |
| Diameter | Base Diameter 200mm, Head Diameter 150mm, |
Product description

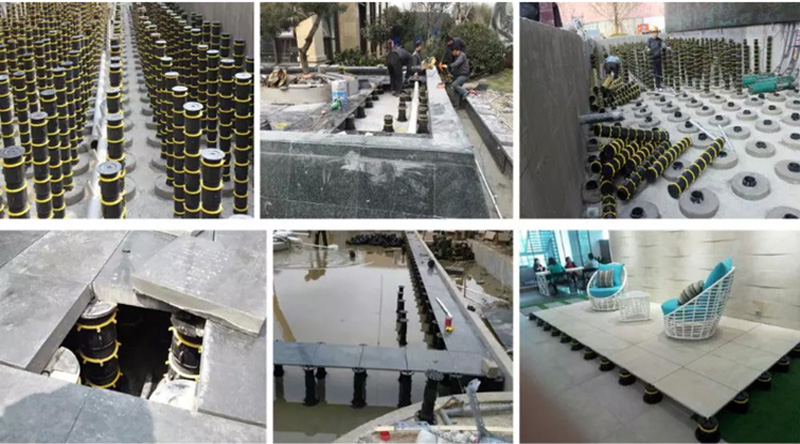

Installation of the finished universal support:
(1) In order to determine the placement position of the universal support, first determine the starting position, pull the horizontal line, and draw the grid.
(2) Temporarily place the supporter on the painted grid.

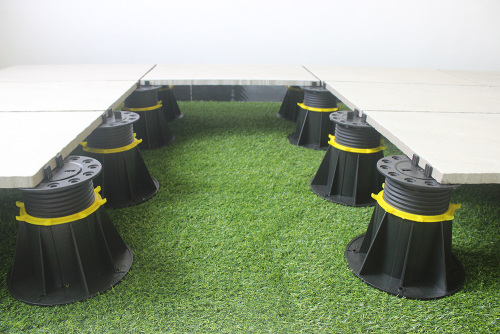

(3) Place the stone or wooden board on the supporter, place the level on the stone board, observe the level, and adjust the level of the stone board by adjusting the support one by one.
(4) Stone, the board is placed in a good shape.
(5) Repeat step three to place other stone planks while using the level.
(6) Install the remaining materials in the same way and level them.
(7) Construction is completed.
Installation points: When installing stone, each piece of stone should be dense, and the side of the stone should not leave a gap.
Product description
| Product name | Taurus raised floor support for hardwearing floor panels |
| Brand name | Taurus |
| Material | 90% polypylene(PP),10% additives,such as polyethylene(PE),Ultraviolet light absorber(UV),black masterbatch etc. |
| Max diameter | Head diameter 150mm, Base diameter 200mm |
| Height range | 19-70mm |
| Slope corrector | Compensate 0% to 5% slope corrector |
| Color | Black or Customized Color |
| Application | Square, indoor decoration,waterscape,roof garden,outdoor terrace,balcony,park etc. |
Taurus Plastic & Mould CO.,Ltd have been in adjustable plastic pedestal business for more than 5years.Through 5 -years development and research, we have been one company combine R&D, design,production,recycle,marketing in one.

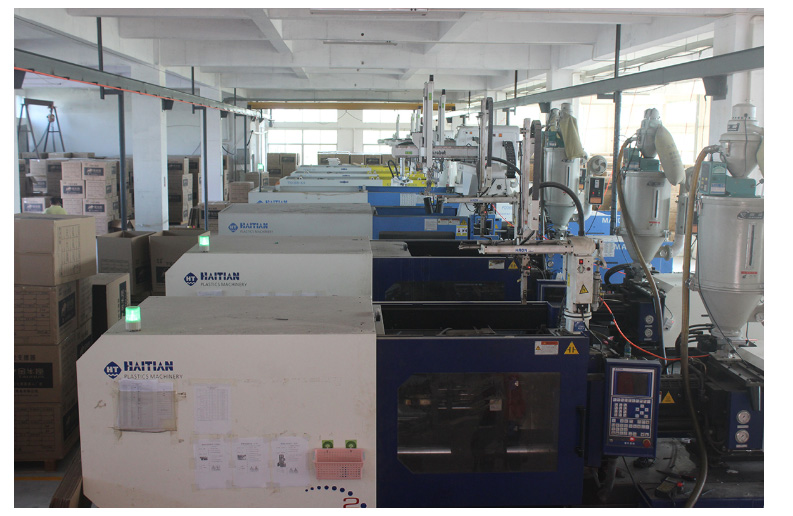

Nowdays, Taurus have 15 production lines and R&D testing lab and our products are popular to many countries.
Since we have 5 years experience in adjustable pedestal business experience, we did some improvements on the tradional pedestal which make the pedestal more suitable to construction work.
If you are interest in our brand,you can have a look in our homepage WW.Chinapedestal.com.
Supply Ability : 200000 Cartons per month
Packing details: Strong Cartons and Pallets Package
Carton Size:60*40*42CM
Port: ShangHai/ShenZhen Port
Lead time:
Qty<1000 sets ship within 5days after shipment
1000<Qty<5000 sets Ship within 8 days after shipment
Qty>5000 sets ship about 10-14 days after shipment
1. Are we factory?

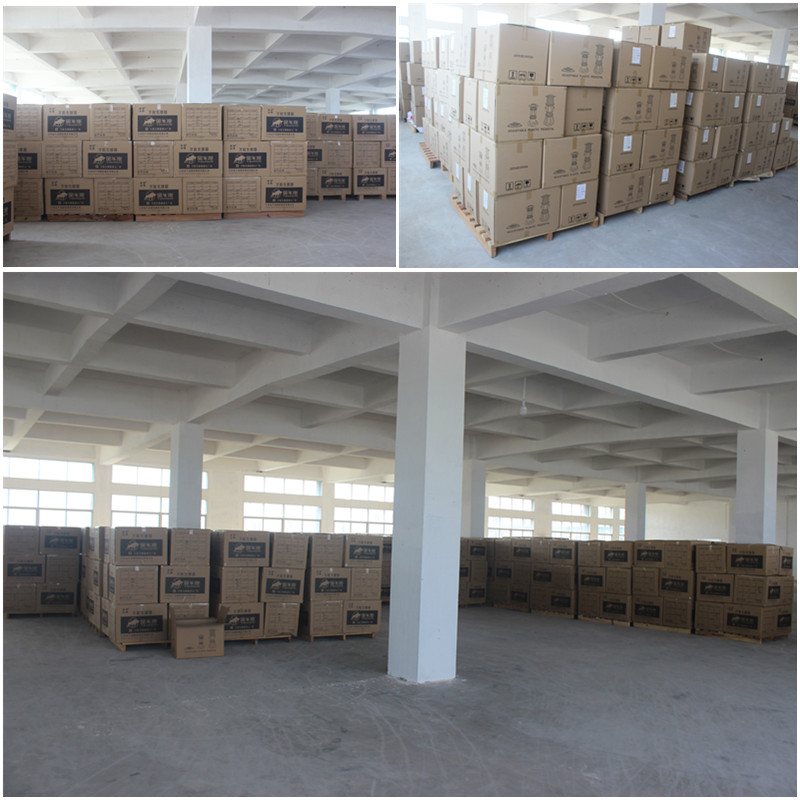

Yes, we have 3000 SQM factory, we welcome you pay our factory a visit anytime!
2.How many PCS of pedestal do I need for each SQM?
For tiles:
| Tile size | PCS/SQM |
| 600X600mm | 2-3PCS |
| 500X500mm | 4-5PCS |
| 400x400mm | 6-7PCS |
For decking boards:
Each SQM needs 4-5 PCS of pedestal for standard installation.
3.Can our pedestal compensate slope on the ground?
Yes, we have slope corrector to compensate slope 0%-5%, making perfect leveling floor surface.
4.How long is the lead time for 20GP container?
For 20GP container, our lead time is 5-7 days.
5.How can I get a sample?
Free samples are always available, delivery cost would be paid by buyer, we will return you delivery cost when you place order.
Tel:+8615807061517
Skype:+8615807061517
Zip:343000
Add:China(Mainland) Jiangxi Ji'an city Hedong Economic development Zone.
Qingyuan District.
