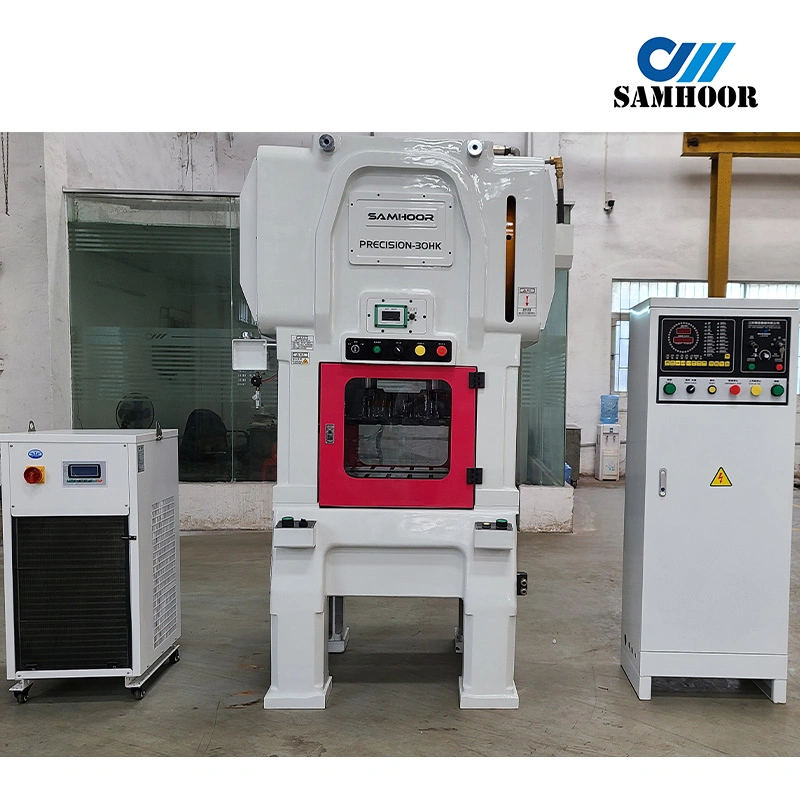

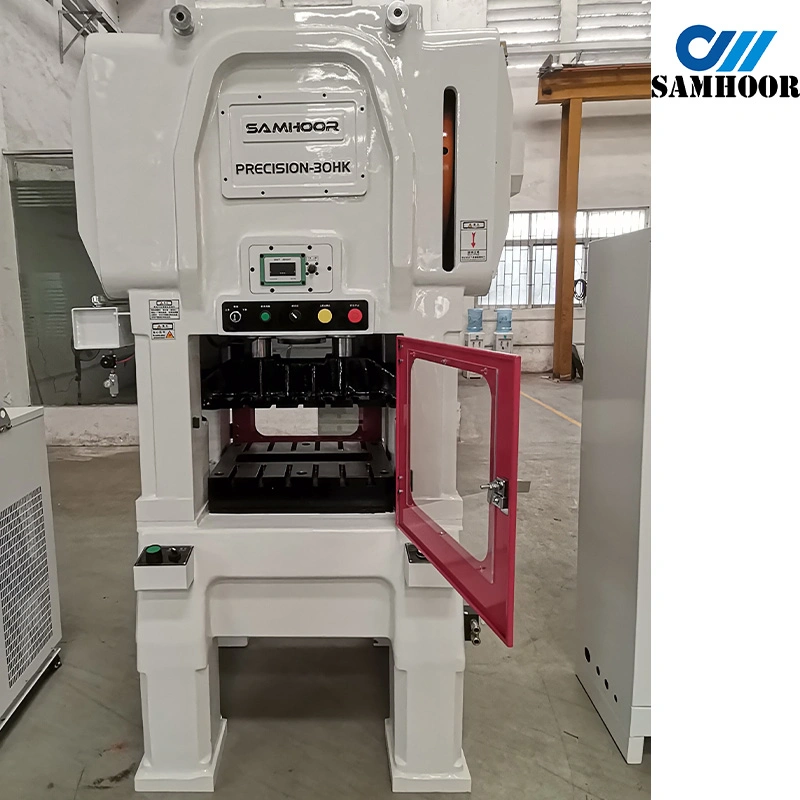

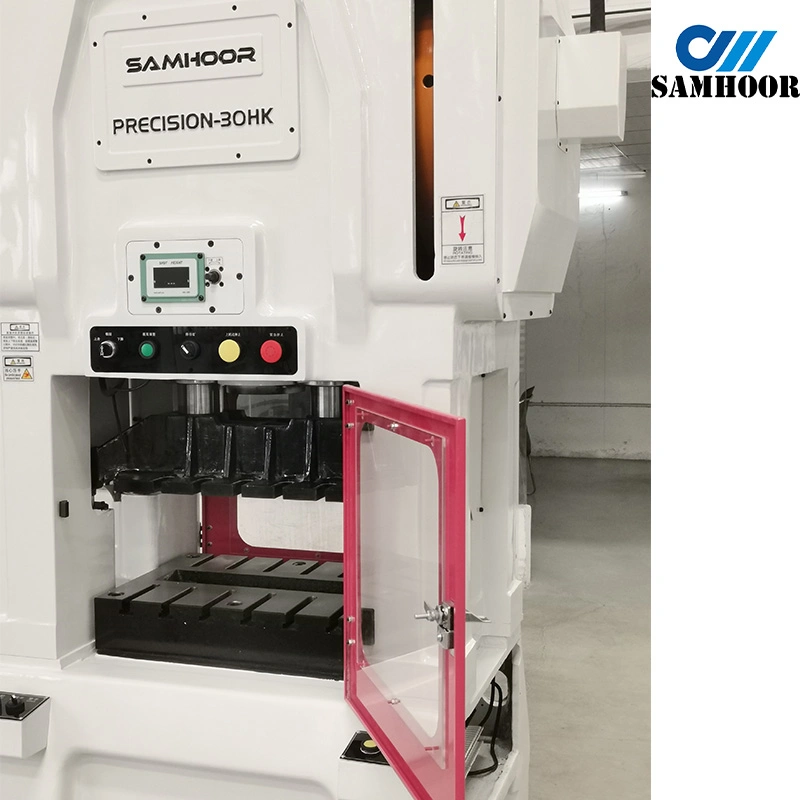

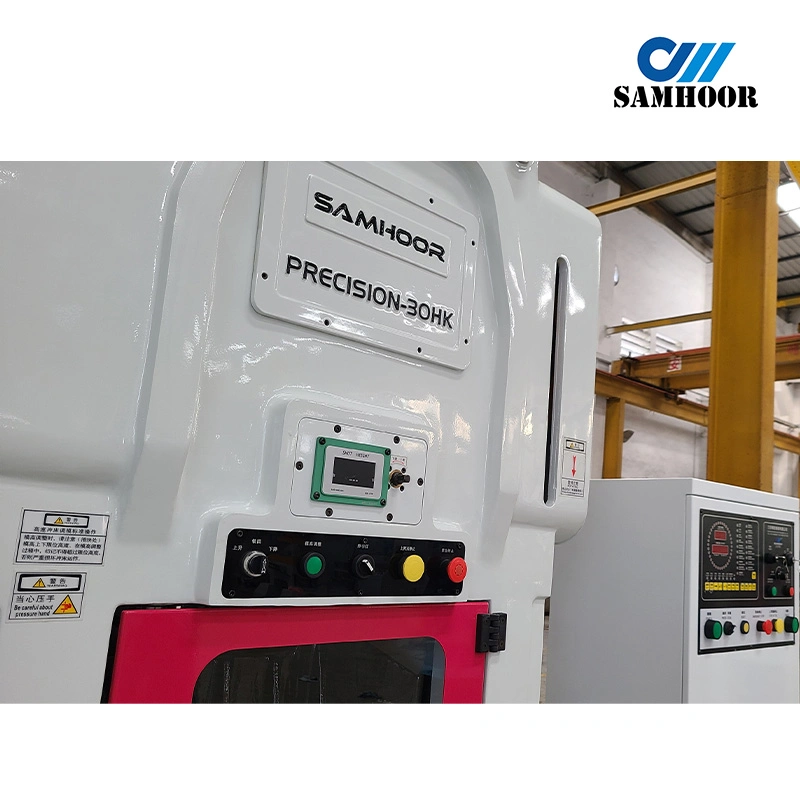

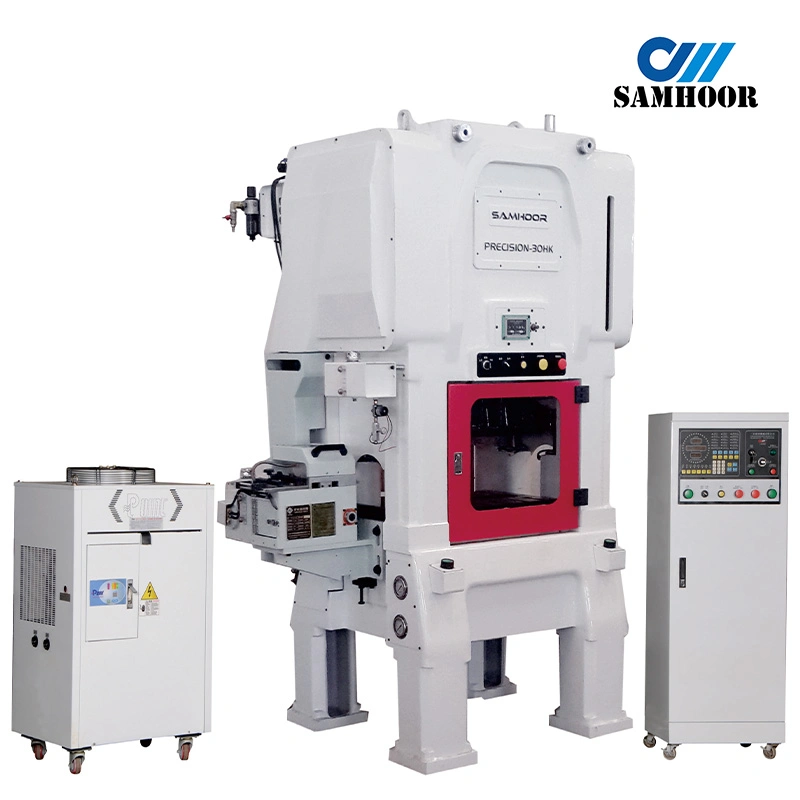

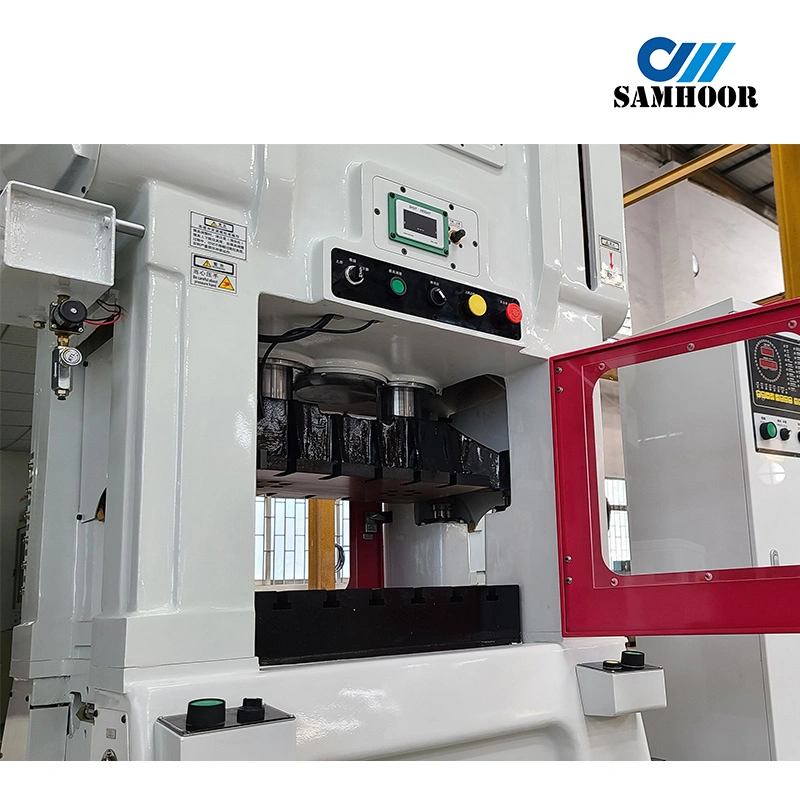

Terminals connectors Gantry type high speed power press
Nominal force (kN):
- 30
Basic Info

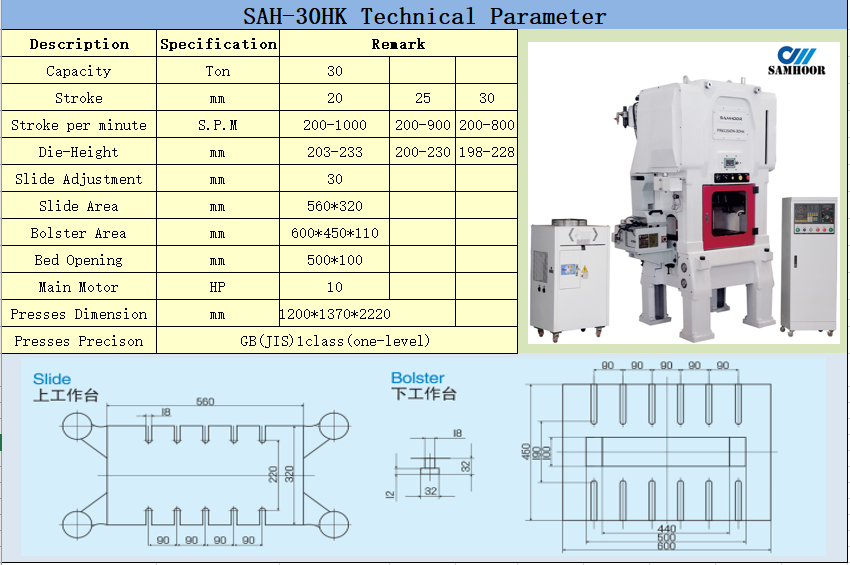

| Model No. | SAH-30HK |
|---|---|
| Brand Name | Samhoor |
| status | New |
| Machine type | Punching Machine |
| power | Mechanical |
| place of origin | China |
| Core selling point | High-Accuracy |
Product description
A terminal connector high speed press is a machine used in the manufacturing industry to automate the process of joining terminal connectors to wires or cables. Terminal connectors are small metal or plastic components that provide a secure electrical connection between a wire and a device or another wire.
The punch press works by using a combination of mechanical force and precision control to attach the terminal connector to the wire. Here is a general overview of how the process works:
1. Preparation: The operator loads the terminal connectors and wires into the high speed stamping machine, and the punching machine is typically equipped with a feeding system that ensures the correct components are in place.
2. Positioning: The high precision stamping presses positions the terminal connector and the wire in the correct alignment for joining. This is usually achieved using guides or fixtures that hold the components in place.
3. Insertion: The high speed punching machine applies force to insert the wire into the terminal connector. This force can be generated through various mechanisms like hydraulic, pneumatic, or servo-driven systems.
4. Crimping: Once the wire is inserted, the high speed press applies further force to crimp or compress the terminal connector around the wire. This creates a secure electrical connection.
5. Monitoring: Majority of terminal connector stamping presses are equipped with sensors or monitoring systems to ensure the quality of the connection. These systems can detect issues like incomplete insertion or insufficient crimping.
6. Ejection: After the crimping process is complete, the high speed precision press releases the finished assembly. The operator can then remove the joined terminal connector and wire from the machine.
Terminal connector high speed presses are designed to work at high speeds, allowing for efficient and rapid production of wire harnesses or cable assemblies. They are commonly used in industries such as automotive, electronics, telecommunications, and appliances, where reliable electrical connections are crucial.
Where you can find the high speed punch press factory? Please come here our Dongguan Samhoor Precision Machinery Co., Ltd.
We have specialized in producing high speed precision presses for 18+ years and can not only provide you with precision presses, but also set up a reliable and low cost stamping production solution according to your product. We look forward to your cooperation, win-win cooperation and growth together.
What products can be pressed by our high speed precision press?

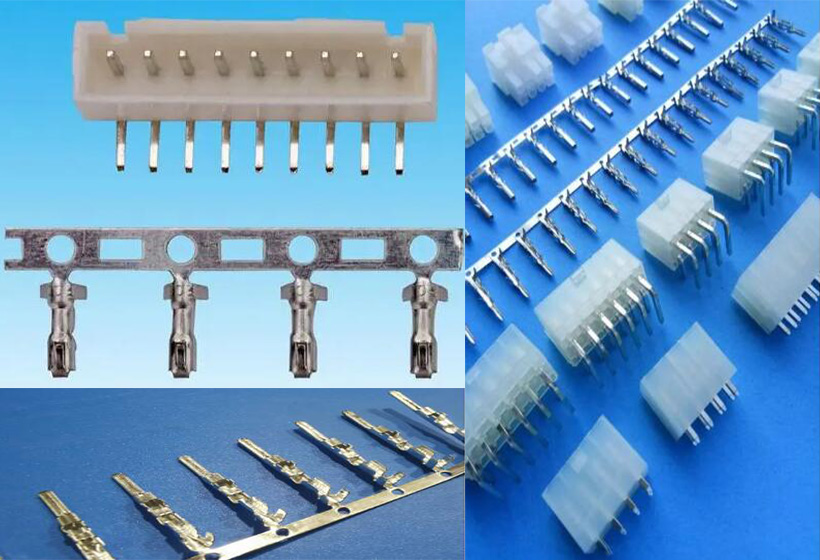

Motor stator, transformer EI piece, crystal head chip, USB, connector piece, shrapnel, terminal connectors, hardware parts and so on.

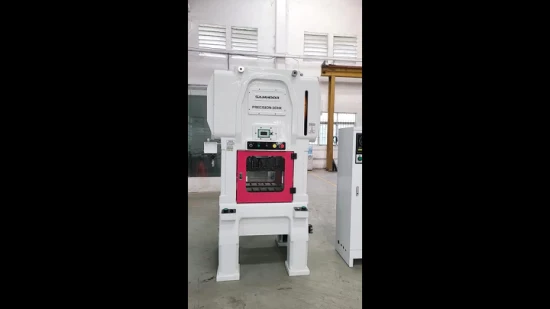

Video
High Speed Precision Press Stamping Machine Sah-30HK Gantry Punching Machine1
High Speed Precision Press Stamping Machine Sah-30HK Gantry Punching Machine1
High Speed Precision Press Stamping Machine Sah-30HK Gantry Punching Machine1
Terminals connectors Gantry type high speed power press
Nominal force (kN):
- 30
