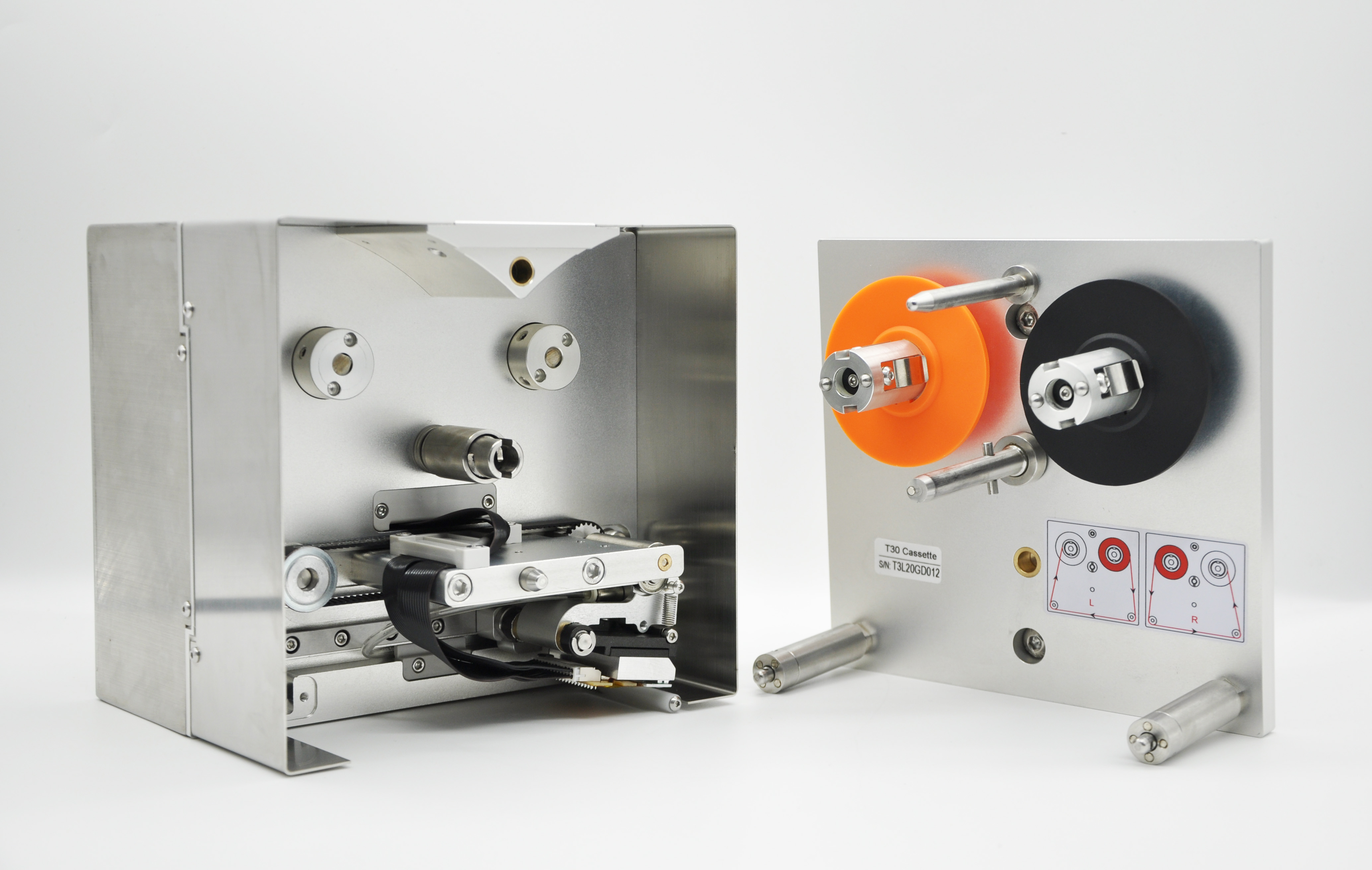

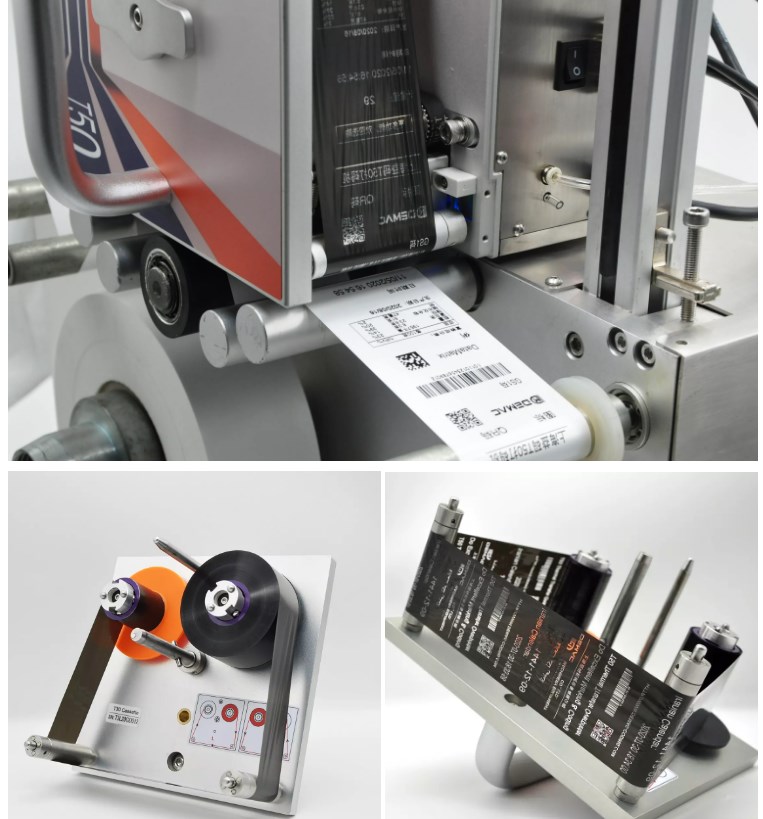

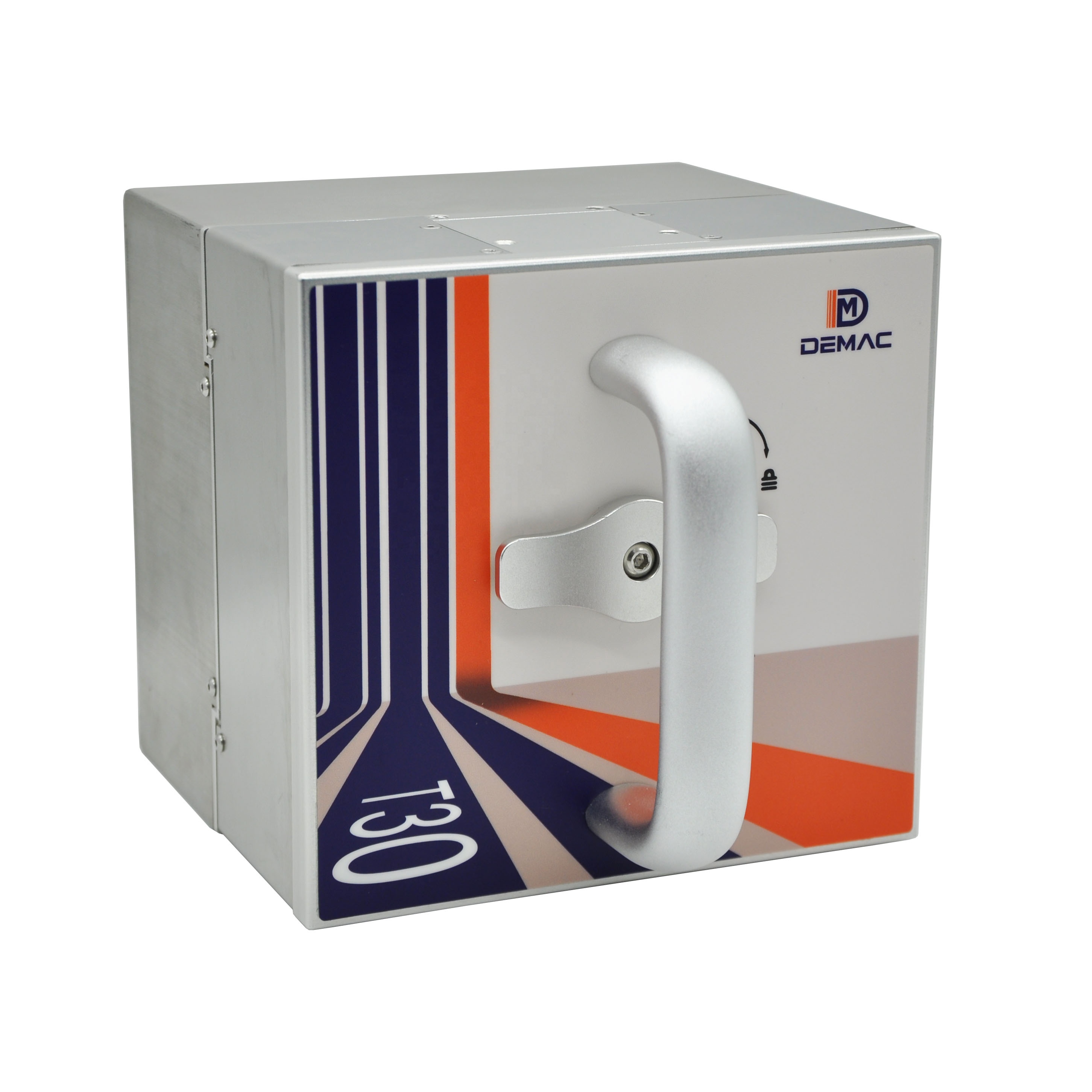

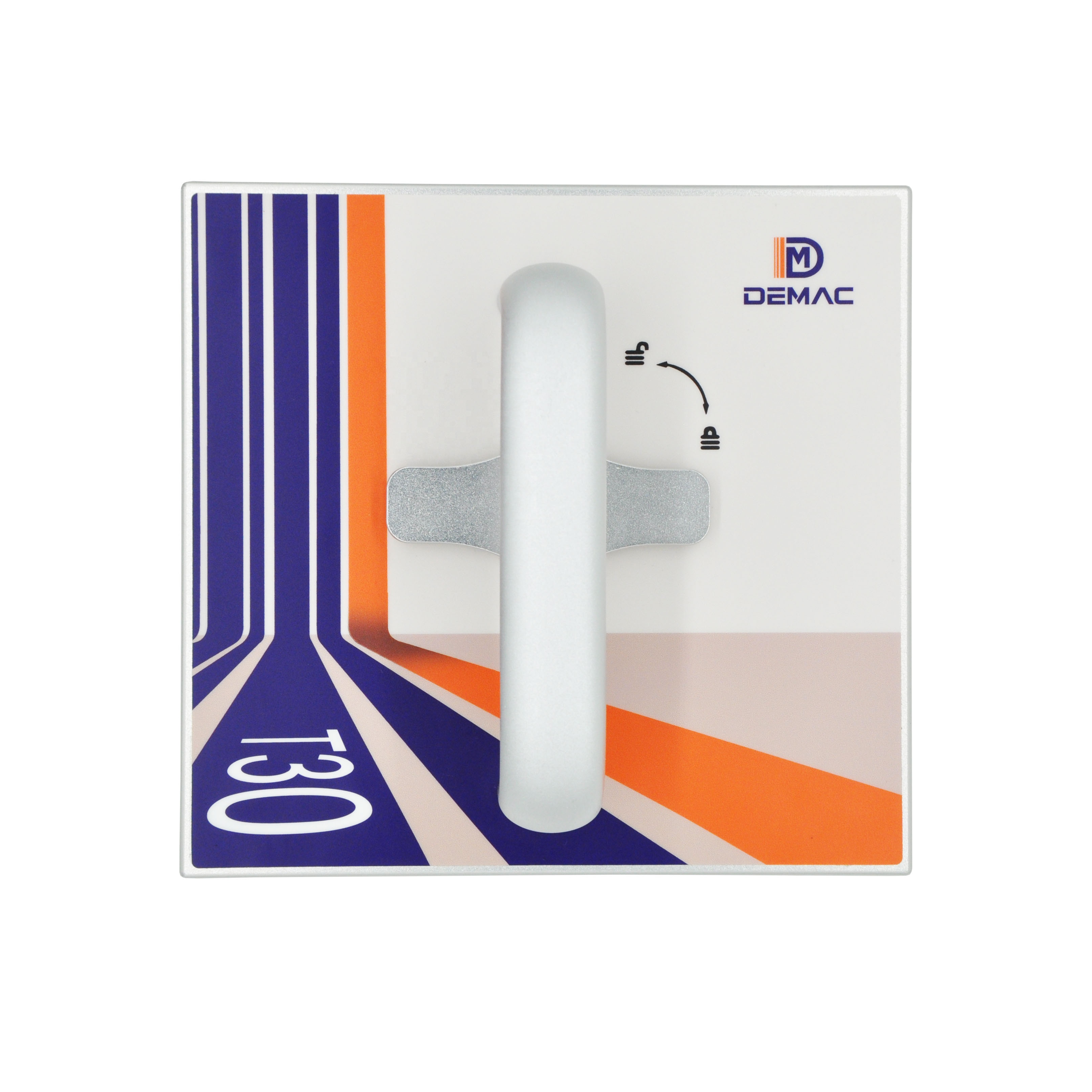

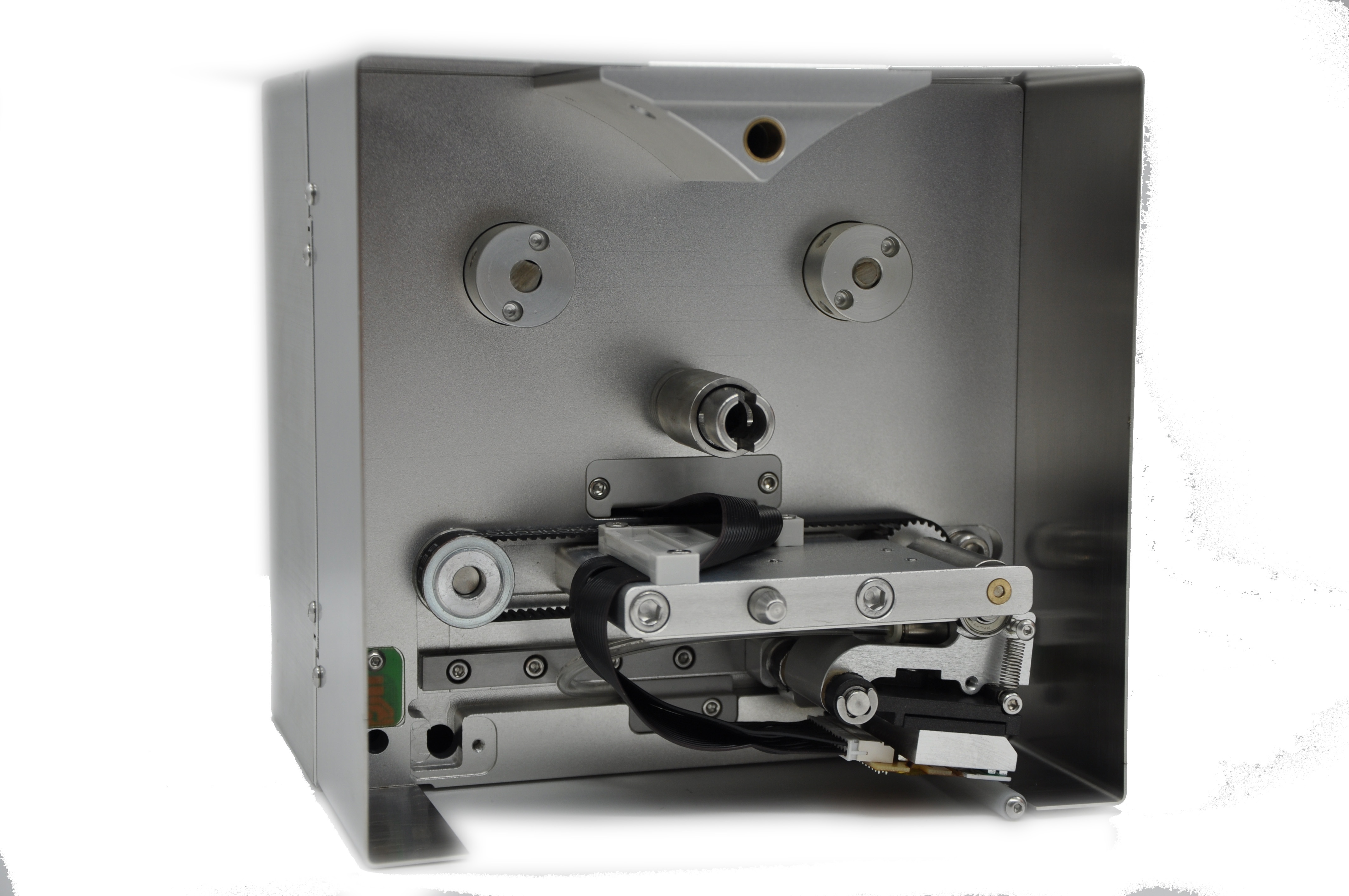

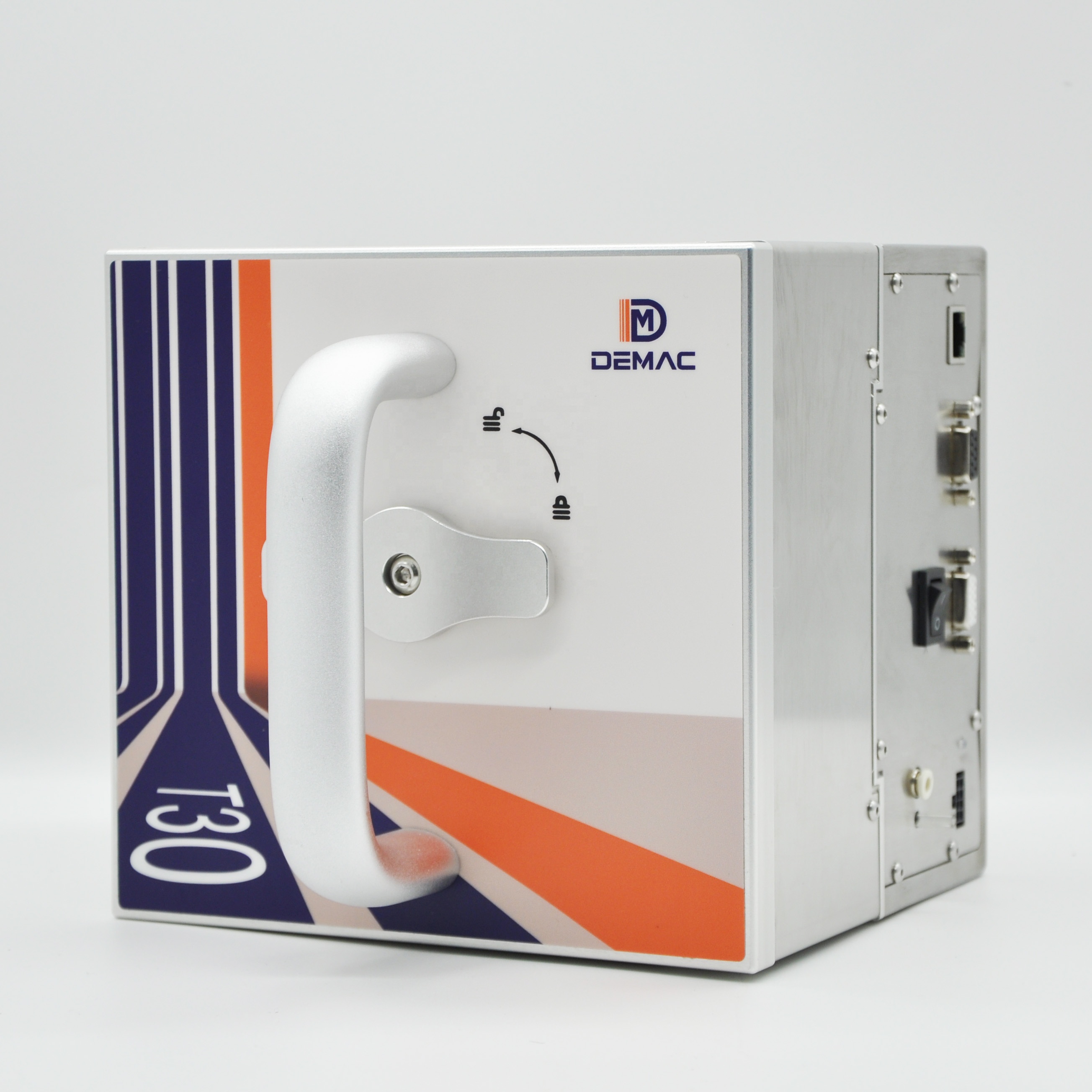

Thermal Transfer Overprinter for Packaging Coding Machines
$1980.00
≥1 set
$1880.00
≥6 set
$1800.00
≥10 set
power:
- 200W
Options:
- T30
Basic Info
| Video Outgoing-inspection | Provided |
|---|---|
| Machinery Test Report | Provided |
| Core components | Plc |
| Automatic Grade | Automatic |
| Application | Food & Beverage Factory |
Product description
?
?
?
?
?
| Specifications | |||||
| Model | T30 | T30 | T50 | T50 | |

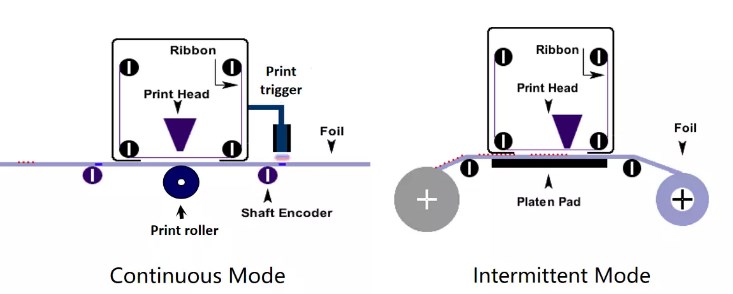

| Intermittent | Continuous | ?Intermittent | Continuous | ||

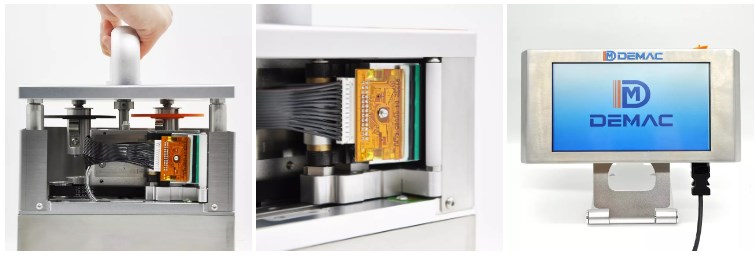

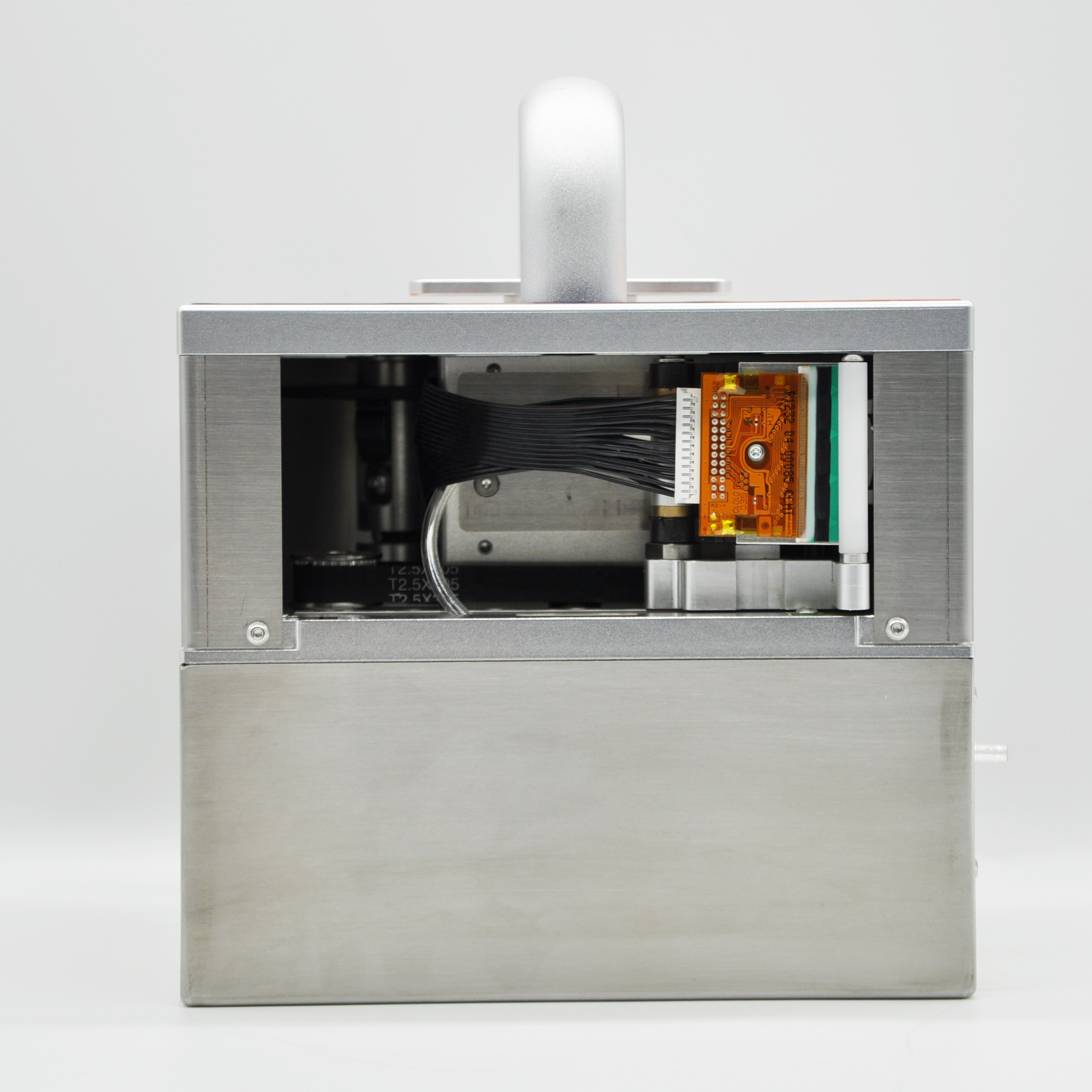

| Print Head | 32mm,300dpi (12points/mm) | 53mm,300dpi (12pionts/mm) | |||
| Print Area | 32mm*70mm | 32mm*150mm | 53mm*90mm | 53mm*150mm | |
| Print Speed | At Fixed Speed | ≤?40 m/min | At Fixed Speed | ≤?40 m/min | |
| Print Frequency | ≤ 200 times/min | ≤ 350 times/min | ≤ 200 times/min | ≤ 350 times/min | |
| Max Ribbon Len | 500mm | 600mm | |||
| Print Job | Real time clock (hours/minutes), dates, user entered alphanumeric date,?automatic shift code, automatic serial number, logos, bar?codes, QR codes, nutrition tables, etc. | ||||
| Bar code ? |
Code128(Support GS1 Mode), EANX, Code11, QR code(Support GS1 Mode), C25matrix, C25inter, C25iata, Upca, Upce, EAN128, PDF417, DataMatrix(Support GS1 Mode), etc. ? |
||||
| PC Based Interface ? |

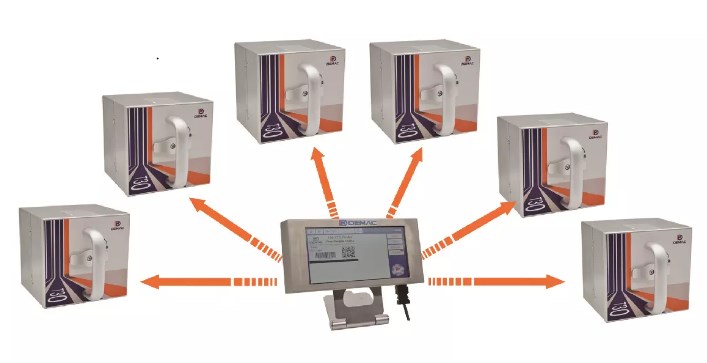

Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols. | ||||
| More features ? |
Ribbon saving modes; automatic repeat prints; position-compensation prints (can have multiple choices) | ||||
| Menu languages | Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc. | ||||
| Touch Pad | Support Hot-plugging | ||||

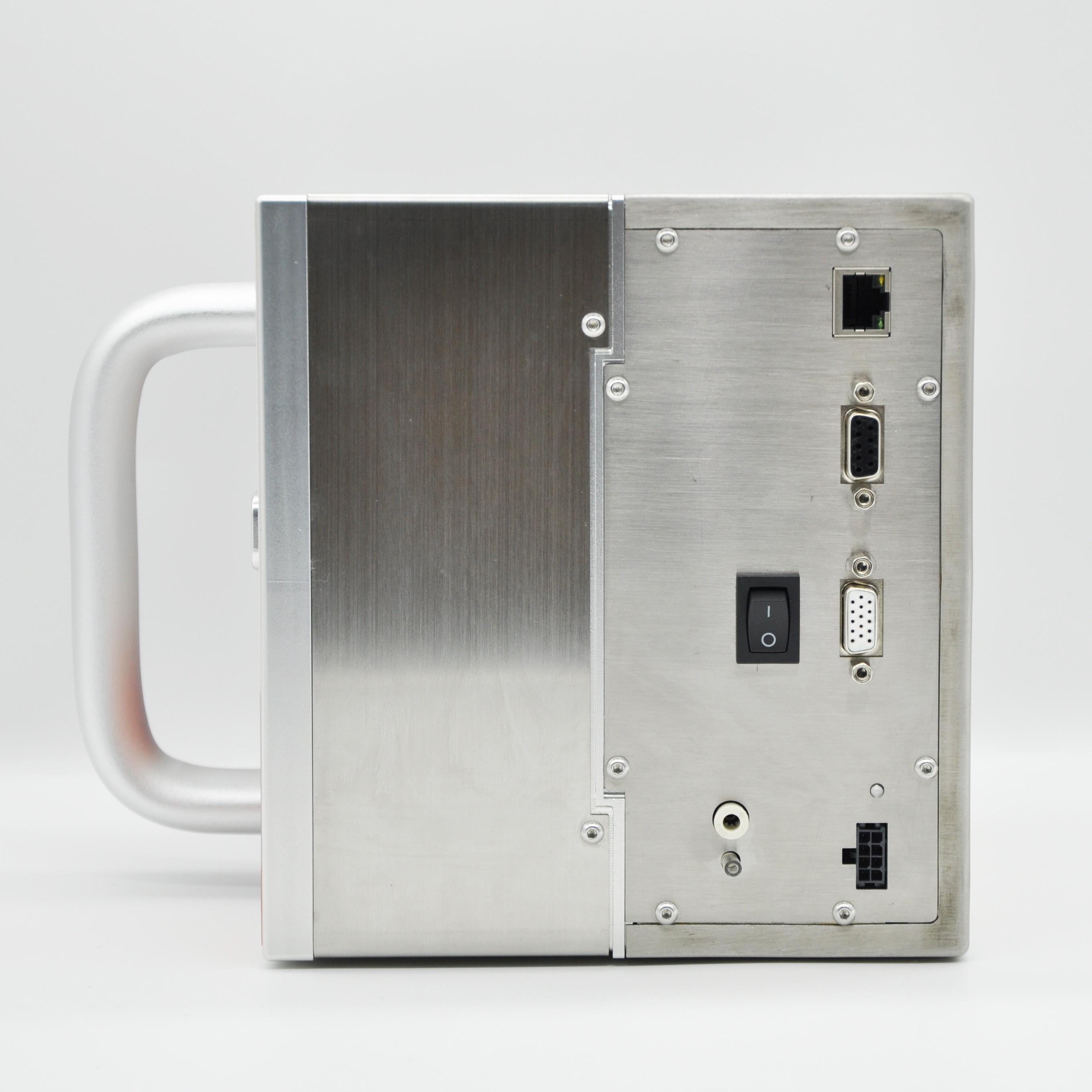

| COM Interface | USB,RS232,TCP/IP | ||||
| Max Ribbon Len | 500m | 600m | |||
| Ribbon Width | 22mm ~ 33mm | 35mm ~ 55mm | |||
| Power Supply | AV110~240V 50/60Hz | ||||
| Power | 200W | ||||
| Dimension(L*W*H) | 190mm*180mm*170mm | 210mm*180mm*170mm | |||
| Handheld Touch Pad: 220mm*120mm*30mm | |||||
| Weight | Print Unit: 7.5kg, Touch Pad: 0.75kg | Print Unit: 8.0kg, Touch Pad: 0.75kg | |||
| Working Env. | Temperature: 0-40℃ Humidity: 10-90% (non-condensing) | ||||
| Air Supply | 0.35~0.6Mpa, Dry, Clean | ||||
?
?
?
?
?
?

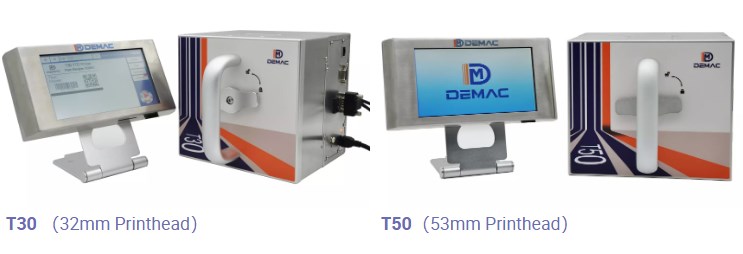

Why to choose T30/T50:
Wide Printing Area?– maximum 70mm (intermittent) and 150mm (continuous) length
High Printing Speed?– The speed can be set from 33mm to 666mm per second allowing 350 printed packs per min at 300dpi.
Various printing content– It can print real time, variable data, bar codes, QR codes, logo, pictures, dates,nutrition tables, etc, achieve the product traceability.
?

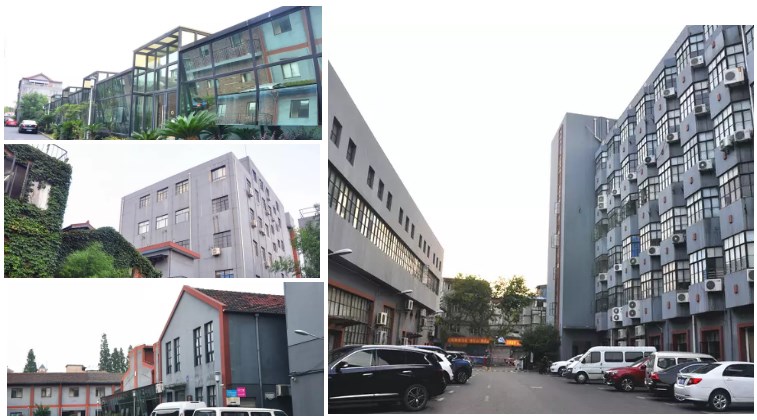

Shanghai Demac Coding Technology Co.,Ltd.?is a technology-oriented manufacturer integrating independent research and development, production, sales, service and other businesses. It is committed to providing industrial code marking technology, inspection technology, system solutions of traceable products, and production and sales services for related equipment products.
?
?
?
?
