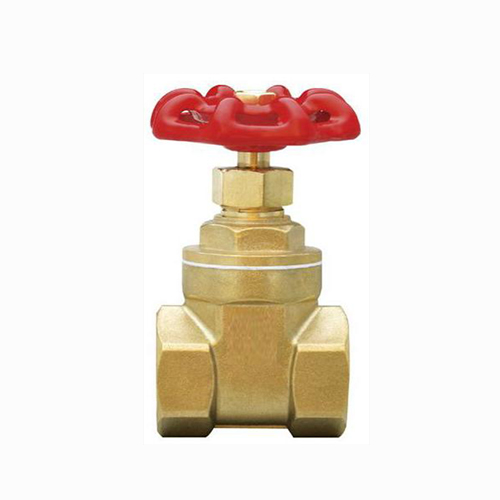

Product Description

• Body Material: Stainless Steel, Bronze Alloy, Brass Alloy, etc.
• Non-Rising Stem, Solid Wedge
• Construction: Screw-in Bonnet
• Blow-out Proof Stem
• Size Range: NPS 1/2” ~ 2”
• Pressure Rating: Class 125 & Class 150 / 200 psi & 300 psi
• End Threaded Type: NPT / BSP / BSPT

• Mode of Operation: Handwheel, Wrench nut, etc.

Technical Specifications

• Design and Manufacture: MSS SP-80
• Pressure-Temperature Rating: ASME B16.34
• Face to Face Dimensions: MFR’s Standard
• Threaded Ends Connection: ASME B1.20.1  or  ISO 228  or  DIN 2999
• Inspection & Test: API 598
