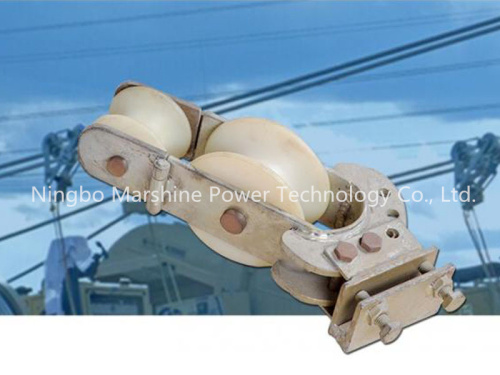

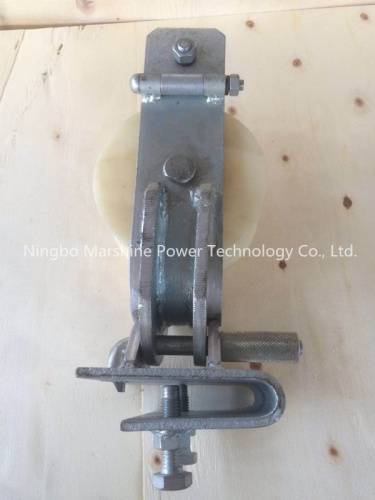

Three Purpose Stringing Cable Pulling Pulley Block
Basic Info
| Model No. | SHCS |
|---|---|
| Brand Name | MARSHINE |
| Type | Flat Belt |
| Net Weight | 4.35kg |
| Rated Load | 20kn |
| Sheave Features | Nylon Wheel with Stringing Block |
| Specification | Nylon Or Aluminum |
Product description
Three Purpose Stringing Cable Pulling Pulley Block
Three Purpose Stringing Pulley Block it is the solid pulley block, it can be applicable conductor less than ACSR240, and weight is 4.0~4.35 g, which can be made both aluminum sheave and nylon sheave, the rated load id 20Kn, and breaking load is 40kn.
Technical Parameters
|
Item number |
Rated load (kN) |
Breaking load (kN) |
Applicable conductor |
Weight (kg) |
Remark |
|
10291 |
20 |
40 |
≤ACSR240 |
4.35 |
Aluminum sheave |
|
10292 |
20 |
40 |
4.0 |
Nylon sheave |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
Video
Solid Three Purpose Stringing Pulley Block
Solid Three Purpose Stringing Pulley Block
Solid Three Purpose Stringing Pulley Block
Three Purpose Stringing Cable Pulling Pulley Block
