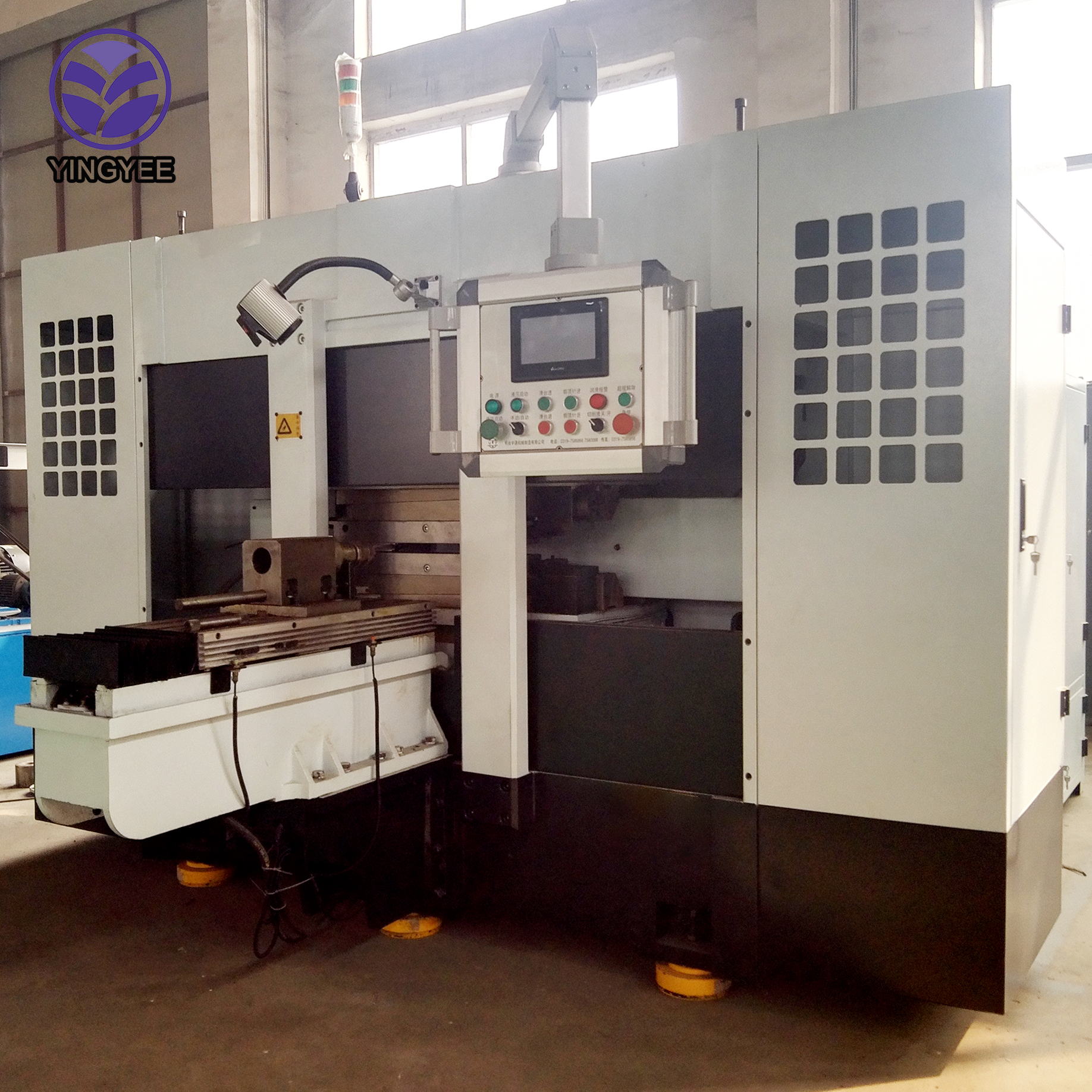

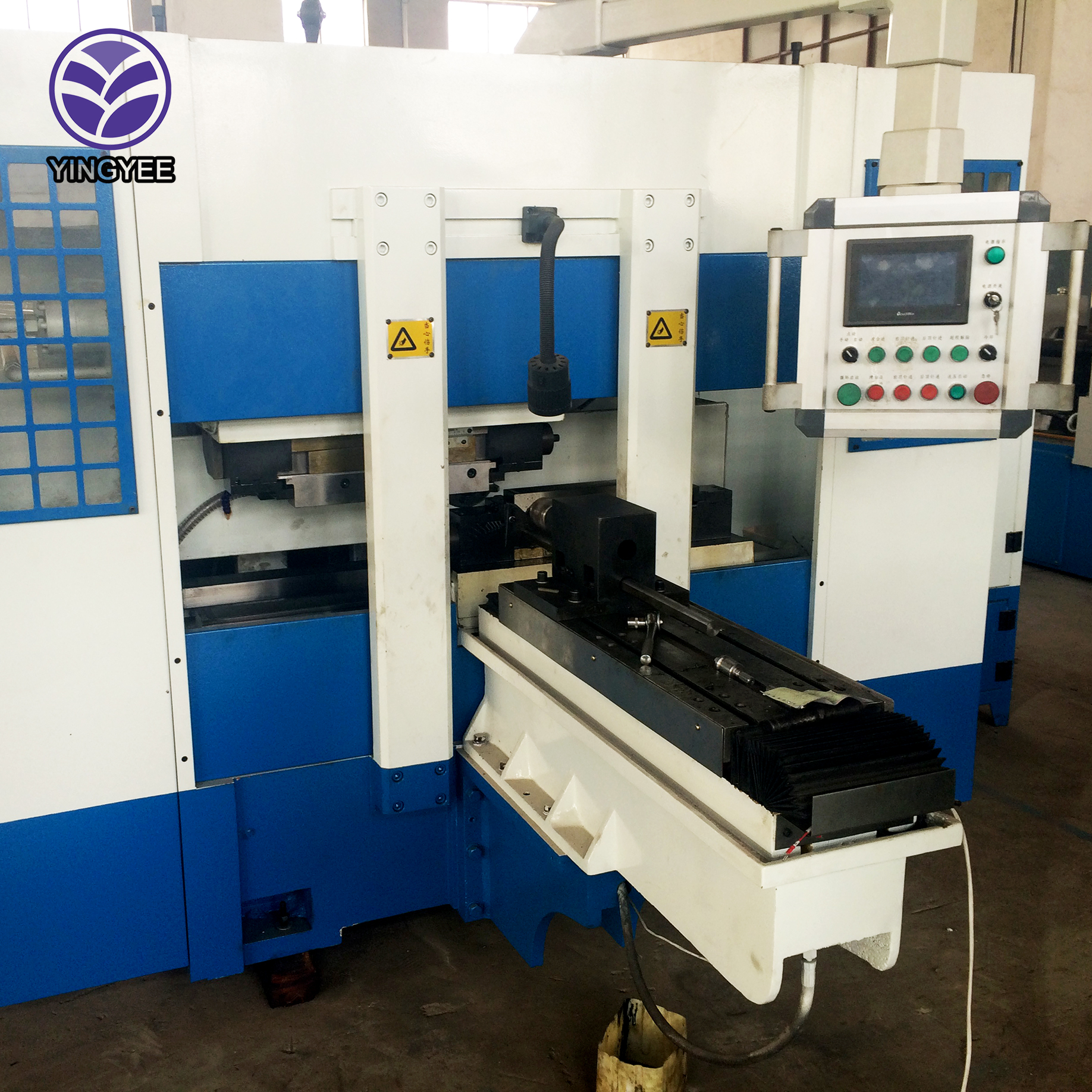

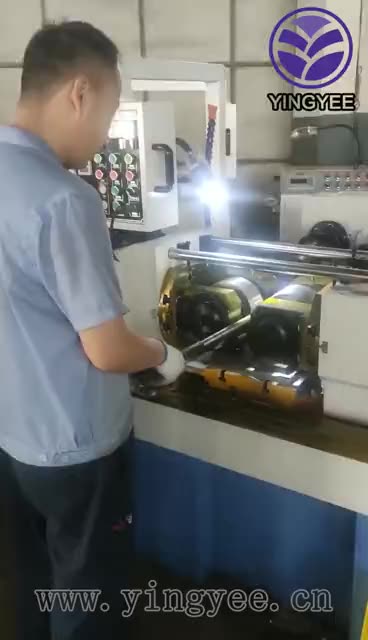

Thread rolling machine model YY160

This model is characterized by rational and solid structure, great active force, low noise, low failure rate, convenient adjustment, high precision in processing screw thread, and wide application. It can have roll finishing on various external threads including regular, trapezoidal and modulus screw threads, and have molding, barreling and knurling processes on workpieces. Driven by worm gear and worm, equipped with an automatic lubrication system, manual, pedal, semi-automatic and automatic controls, it is easy in operation, high in production efficiency and low in labor intensity. Equipped with corresponding thread roller, it can process regular and abnormal bolts of various specifications.



Technical Parameters

Pressure of Roller max.	160KN	Rotary Speed of Main Shaft	25,40,60,100(r/min)
Rolling Material Diameter	4-56mm	Thread Length	(no limits)
Rolling round aperture	54mm	Main Power	5.5kw
Rolling round of the max weidth	130mm	Hydraulic Power	2.2kw
Dip Angle of Main Shaft	±5°	Weight	1830kg
Center Distance of Main shaft	120-240mm	Size	1450×1520×1430mm



Shijiazhuang Yingyee Import&Export Co., Ltd.

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor fromall the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.



Our products were sold to more than 20 countries already. Also included US and Germany.

Main product :

•  Roof roll forming machine
•  Roller shutter door roll forming machine
•  C and Z purlin roll forming machine
•  Downpipe roll forming machine
•  Light keel roll forming machine
•  Shearing machine
•  Hydraulic decoiler
•  Bending machine
•  Slitting machine

Welcome to contact us , we are sure you will get good machine quality and best service. Hope to cooperate with you!                      High efficiency Thread Rolling Machine
