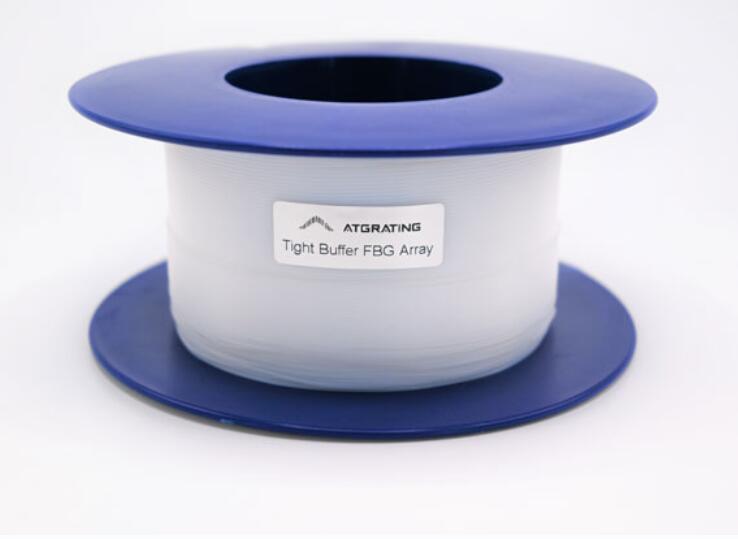

FBG is a core element used as a sensor for structure health monitoring. The tight buffer FBG array consists of FBG array sensors. The outer layer could be material of PVC, nylon or hytrel which protects the FBG sensors and ruggedizes the construction.

The fiber optic buffer array is designed to make handling and installation fast, easy and intuitive. It delivers the many advantages inherent to all FBG based sensors while elevating the degree of ruggedness to be consistent with, if not exceeding, industry expectations.

Features Of Tight Buffer FBG Array
High Sensitivity Ribbon

Increased Bonding Strength

Embeddable Ribbon Sensor

Surface Mount Ribbon Sensor

Easy Handling and Deployment

Low Cost and Long Lifetime

Application Of Tight Buffer FBG Array
Perimeter Monitoring

Building Security

Energy

Civil Engineering

Specifications Of Tight Buffer FBG Array
Parameters Unit Values
Center Wavelength nm 1460 ~ 1610
Wavelength Tolerance nm +/-0.5
FBG Length mm 5~10
Reflectivity % >70
Reflection FWHM nm <0.3
SLSR dB ≥15
Strain Sensing Sensitivity pm/με 1.2
Sensor Strength KPSI >150
Temperature Calibration Constant for -20C to 120C pm/°C ~20
Optical connector -- FC/UPC, FC/APC Or E2000

AtGrating is a professional supplier for optical fiber sensing. AtGrating offers fiber optic sensor, fiber bragg grating pressure sensor, tight buffer fiber, tight buffered fiber cable, buffered fiber, tight buffered fiber optic cable, tight buffer cable, tight buffered, fiber sensing, etc. For more information, please feel free to contact us!
