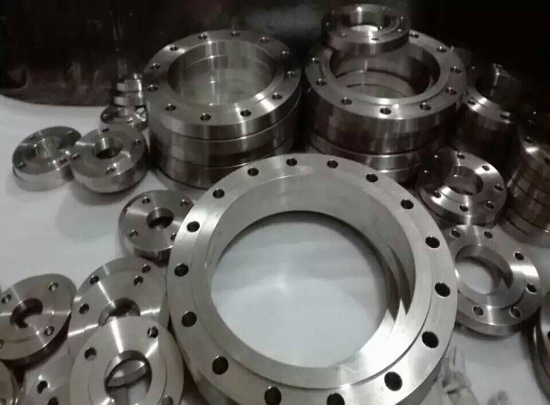

titanium flange
Trademark: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Processing methods: forging + machining
Size Range (mm): DN10-DN4000
Implementation of standards: ASME, DIN, ISO, JIS American Standard Series
standard number nominal size pressure class ANSI B 16.5 (88) 1/2 "-24" Class 150,300,600,900,1500,2500 ANSI B 16.47 (90) 26 "-60" Class 150,300,600,900 ASME B 16.5 (96) 1/2 "-24" Class 150,300,600,900,1500,2500 ISO 7005-1 (92) 1/2 "-24" PN2.0 5.0 11.0 15.0 26.0 42.0 BS4504-3.1 (89) 1/2 "-24" Class 150,300,600,900,1500,2500 JPI 7S-15-93 1/2 "-24" Class 150,300,600,900,1500,2500 NF E29- 203 1/2 "-24" PN2.0 5.0 11.0 15.0 26.0 42.0 API 605-81 26 "-60" Class 150,300,600 ASME B 16.36 (96) 1 "-24" Class 300,400,600,900 , 1500,2500 German Standard Series
Standard number nominal size pressure class
DIN 2630 WN DN1200-DN2400 1 Bar
DIN 2631 WN DN10-DN3600 6 Bar
DIN 2632 WN DN200-DN3000 10 Bar
DIN 2633 WN DN10-DN2000 16 Bar
DIN 2634 WN DN200-DN1000 25 Bar
DIN 2635 WN DN10-DN500 40 Bar
DIN 2636 WN DN10-DN400 64 Bar
DIN 2637 WN DN10-DN350 100 Bar
DIN 2638 WN DN10-DN300 160 Bar
DIN 2573 PL DN10-DN500 6 Bar
DIN 2576 PL DN10-DN500 10 Bar
DIN 2527 PL DN10-DN500 6 10 16 25 40 Bar
DIN 2501 WN DN15-DN500 10 16 25 40 63 100 160 250 320 400 Bar
DIN 2566 TH DN15-DN500 10 16 Bar
DIN 2655 PL DN15-DN500 0.25 0.6 1.0 1.6 2.5 4.0 Bar
DIN 2656 PL DN15-DN500 0.25 0.6 1.0 1.6 2.5 4.0 Bar Japanese Standard Series
Standard number nominal size pressure class
JIS B 2220 PL DN10-DN400 5K
JIS B 2220 SO DN450-DN1000 5K
JIS B 2220 PL DN10-DN225 10K
JIS 2220 SO DN250-DN1000 10K
JIS 2220 SO DN10-DN1200 16K 20K 30K
JIS 2220 WN DN15-DN400 30K
