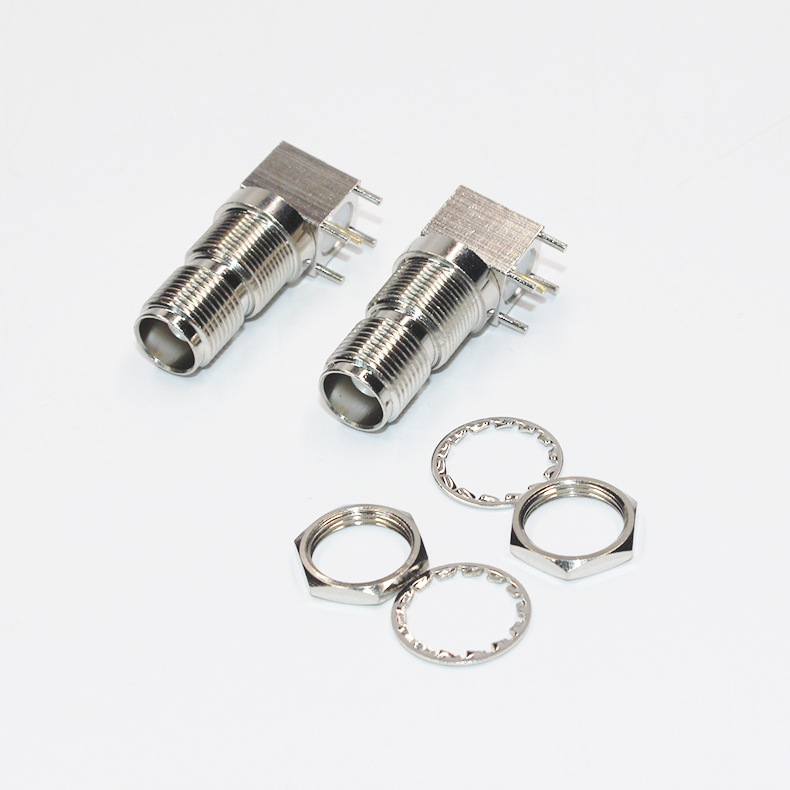

TNC Female Right Angle Jack for PCB

1 / 1

TNC Female Right Angle Jack for PCB

  • $1.88

    ≥50 piece

  • $1.28

    ≥500 piece

  • $0.99

    ≥1000 piece

Options:

  • TNC Right Angle
Get Latest Price

Basic Info

Model No.
Brand Name
Model Number CEY-TJ
Type Plug
Place of Origin Hubei, China
Brand Ceyetec
Packaging PE bag+ Carton Box
Description Female TNC
D/C TNC Right Angle
Product Name TNC Type Connector
Material Brass
Connector Type Coaxial Connectors
Contact material Brass Gold Plated
Impedance 50 Ohm
Frequency Range DC - 11 GHz (DC - 18 GHz on Extended Range Designs)
Insulation Resistance 5000 MΩ Min
Rated Voltage 500 Volts RMS Continuous
Temperature range -65°C to +165°C
Mating Cycles 500 Min
Show More

Product description

Features and Benefits

Threaded coupling interface ensures connector with not de-couple in vibration-intense applications Durable construction Expansive product line includes designs for many common cable types

TNC Connector Applications

Antennas Industrial Wireless Military Broadband
