1 / 1
Basic Info
| Model No. | DONGFENG_OIL(15m3)1 |
|---|---|
| Brand Name | JDF |
| Transmission Type | Manual |
| Power | Diesel |
| Load Capacity | >50t |
| Emission Standard | Euro 3 |
| Tank Volume | 5001-10000L |
Product description
top 10 oil tanker shipping companies in world
Dongfeng 4x2 15000L tanker truck

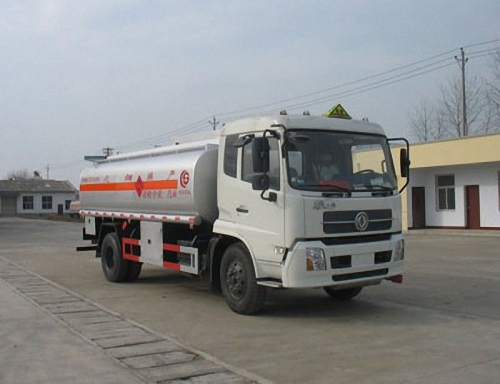

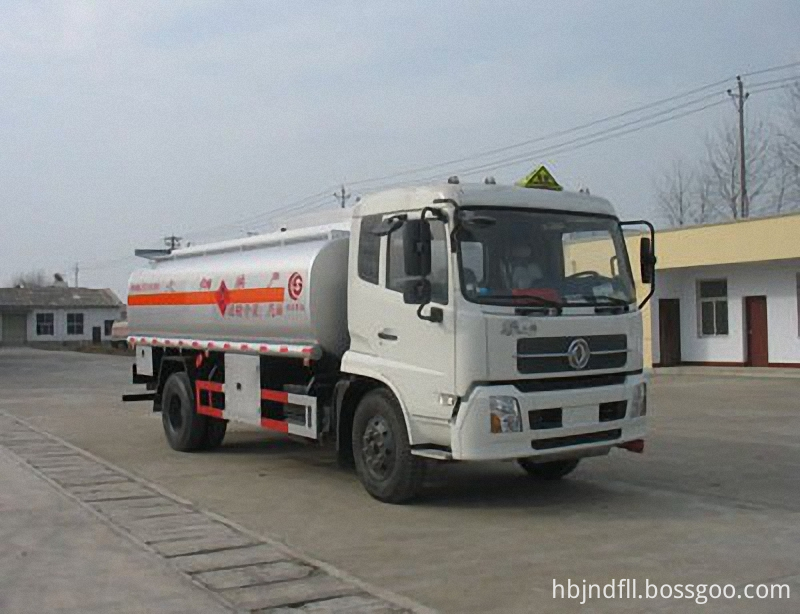

DONGFENG 15m3 OIL TRANSPORTING TRUCK
|
Summary |
||||||
|
This vehicle is reffitted from original DONGFENG chassis (Model:) with compact structure , |
||||||
|
Basic Information |
||||||
|
Vehicle name |
OIL TANK TRUCK |
Chassis: |
DONGFENG |
|||
|
Outline size(L×W×H) (mm) |
8990×2380×3180 |
Cargo inline size(L×W×H)(mm): |
/ |
|||
|
Rating mass(kg) |
10000 |
Empty mass(Kg): |
6155 |
|||
|
Full mass(kg) |
16300 |
Emission standard |
Euro 3 |
|||
|
Engine Information |
||||||
|
Model |
ISDE180-30 |
Type |
6 Cylinder Diesel engine |
|||
|
Power/displacement(KW/ML) |
132/4500 |
Manufacture |
DONGFENG CUMMINS |
|||
|
Chassis Information |
||||||
|
Wheelbase(mm): |
4700,5000 |
Axle load(kg) |
Front :6000/Rear :10000 |
|||
|
Tire |
9.00-20,10.00-20 |
Max speed (km/h) |
90 |
|||
|
Front suspension(mm) |
1430 |
Rear suspension(mm) |
2560 |
|||
|
Front track(mm) |
1880 |
Rear track(mm) |
1800 |
|||
|
Approach angel(°) |
19 |
Departure angle(°) |
12 |
|||
|
Steering |
Power steering |
Brake |
Air brake |
|||
|
Cabin |
Straight head ,single row with bed |
|||||
|
Special function |
||||||
|
Tank capacity(m3) |
15m3 |
Tank size |
/ |
|||
|
Trade terms |
||||||
|
Quote Lifetime |
30workdays (we promise the quote is effective in the lifetime!) |
|||||
|
Payment terms |
1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading. 2. Letter of credit payment for some countries and regions. |
|||||
|
Deliver time |
10workdays for LHD , 20workdays for RHD after receive 30% earnest money |
|||||
|
MOQ |
1set |
|||||
|
Supply quantity |
2,000sets/year |
|||||
|
Package |
waxing |
|||||
|
|
|
|
|
|
|
|
Note:
1.All the data above is for reference ,we keep the right to improve our product.
2..Price will be changed depending on the exchange rate and amount.
A tank truck or tanker truck or tanker, is a motor vehicle designed to carry liquefied loads, dry bulk cargo or gases on roads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single or multiple loads. Some are semi-trailer trucks.
The tank truck can be called oil tanker and refueling truck. It is mainly used for the transport and storage of petroleum-based stuff such as gasoline, diesel oil, crude oil, lubricating oil, coal tar, and more.
Features of Tank Truck
1.
The chassis is manufactured by China Dongfeng Automobile Company, China
Dongfeng Motor Limited Company, China Dongfeng Automobile Limited
Liability Company. It also can be purchased from other domestic
well-known companies, such as FAW Jiefang, Sino Truck, Beiqi Foton
Motor, Hualing Heavy-duty Truck, Northern Benz, and Shaanxi Automobile.
2.
The tank is oval, and made of superior quality carbon steel (4-6mm). It
can be manufactured according to production standard of Chinese oil
tank truck or European oil tank truck.
3. The tank body adopts
advanced butt welding technique. Anti-wave clapboards are installed in
it to ensure security. Additionally, high pressure gas will be filled
into it for leak test when the tank body is manufactured well. All these
make our truck have advantages of high strength, stability, and
security.
4. The shot blasting pretreatment technique and advanced
baking varnish technique are adopted to make tank body have properties
of rust prevention, anti-corrosion, durability and aesthetic appearance.
5. Tax control computer tankers and flow meter can be equipped in the oil tank truck.
6.
Our oil tank can be divided into single silo or more silos to storage
oil, chemicals, or water according to customers' needs.
7. Heating
pipe and insulating course are optional. The heat insulator is 50-100mm
thick, and filling materials could be rock wool, polyurethane foam, and
aluminum silicate. The outer sheet iron cold plate of insulating course
is 1.2mm thick, and stainless steel mirror face and frosted sheet
are1.0mm thick.
8. One or three gravity-flow valves can be installed on the bottom or side of tank.
Maintenance and care of Tank Truck
1. The oil tank, relief valve, filter and oil hose should be regularly cleaned to ensure cleanness.
2. Users should regularly apply lubricating oil to the joints of both ends of oil hoses for easy destuffing.
3. The maintenance and use of lubricant pump should be strictly carried out according to operation instruction.
Operating Notes of Tank Truck
1.
Good conduction of static is required during the whole fueling
operation process. So users should first stick the pole into earth and
then place oil hoses on the ground before fueling operation.
2. Tyre
chain and low speed is required when the truck is driven on snowy and
icy road. The speed should be below 35km/h when the truck is driven on
the rain-drenched roadway. Urgent brake and turn are not permitted.
3.
Drivers should light foglight and lower speed in foggy days. Besides,
he or she must pay more attention on road center line and taillights of
moving vehicles before him or her. If the fog is quite heavy, drivers
should stop the truck, turn on alarm switch, light all direction signal
lights and keep it in a safe place.
We can produce 300kinds of different special vehicals for customers:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
