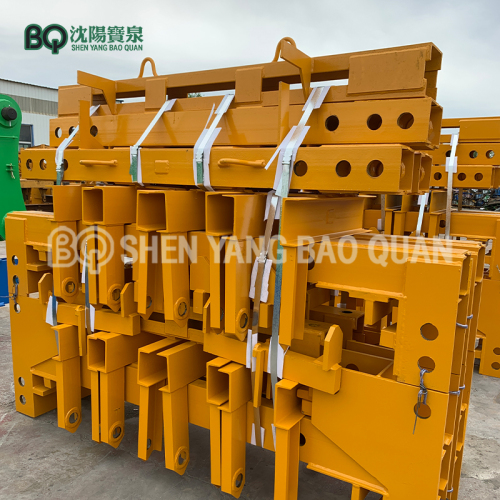

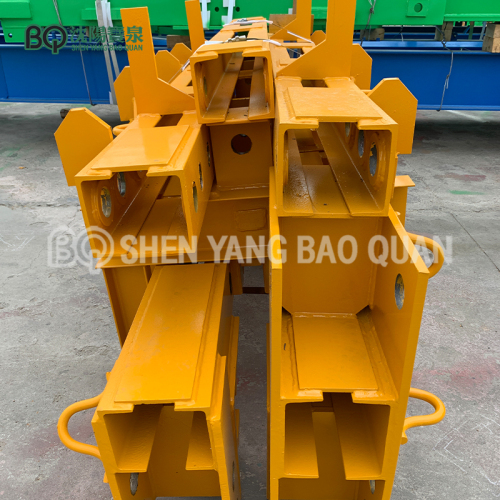

Tower Crane Spare Parts Anchorage Frame
Basic Info
| Brand Name | BQ |
|---|---|
| characteristic | Tower Crane |
| Applicable industry | Machinery Repair Shops, Construction Works |
| Out-of-warranty service | Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | Uae |
| Showroom location (in which countries are there sample rooms overseas) | Uae |
Product description
An anchorage frame secures the tower crane mast section to a structure or framework and provides stability when the tower crane is under load or experiencing wind forces. The number of tower crane anchor is calculated by taking into account such factors as the type of crane, jib length, height under hook, and maximum out-of-service wind speed.
When the height of tower crane beyond its free standing height, the Tower Crane Anchorage Frame will be required. Based on the specification of the tower crane mast , the anchorage frame will be fixed between tower boday and building. The installation of the Anchorage Frame for Mast Section will be decided by the actual condition on the working site.
The common dimension of tower crane Mast Section is 1.2m*1.2m*3.0m, 1.6m*1.6m*3.0m and 2.0m*2.0m*3.0m.
Product Parameter of Anchorage Frame for Tower Crane
 |
Model | 2.0m |
| Material | Q345B | |
| Package | nude in container | |
| Warranty | 12 months |
b.From cutting, welding, painting, drying till final packing, the standard inspection procedure is set up.
c.Tooling is adopted for the steel structure manufacturing, which makes sure that every product is total same with each other.
d.Final penetration detection of BQ tower crane steel structure is one of the guaranteed of the reliable quality.
Video
Tower Crane Spare Parts Anchorage Frame
