√Fine powder or granular materials（The fine, small and flake biomass powder must first be formed into wood chip sticks by a wood chip forming machine, which can be carbonized by a horizontal carbonization furnace.): sawdust, shavings, wood chips, rice husk, rice grams, peanut shell, wood chips, nut shells, palm shells, cashew nut shell, hemp straw, biomass, some crops, semi-coke bark, furfural residue.
Search
Sign In Join Free
1 / 6
Tree Nuts and Seed Nuts Processing: Pecans, Macadamia Nuts, Charcoal Burner, Carbonization Machine
$1291.00
≥1 set
$856.00
≥5 set
$532.00
≥10 set
application:
- 15
Options:
- Spontaneous Combustion
- 50
- 100
- 200
- 250
- 300
- 500
- 700
- 1000
Get Latest Price
You might also like
Basic Info
| Place Of Origin | Henan, China |
|---|---|
| Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | pipeline |
| Brand Name | ZHUOZHILAN MACHINERY |
Show More
Product description

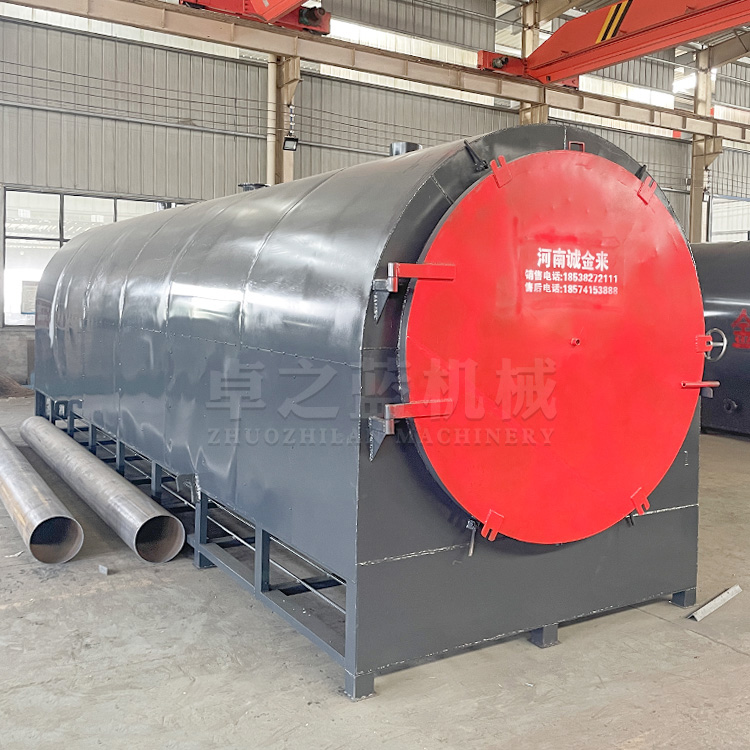

Product Overview
1.Introduction:

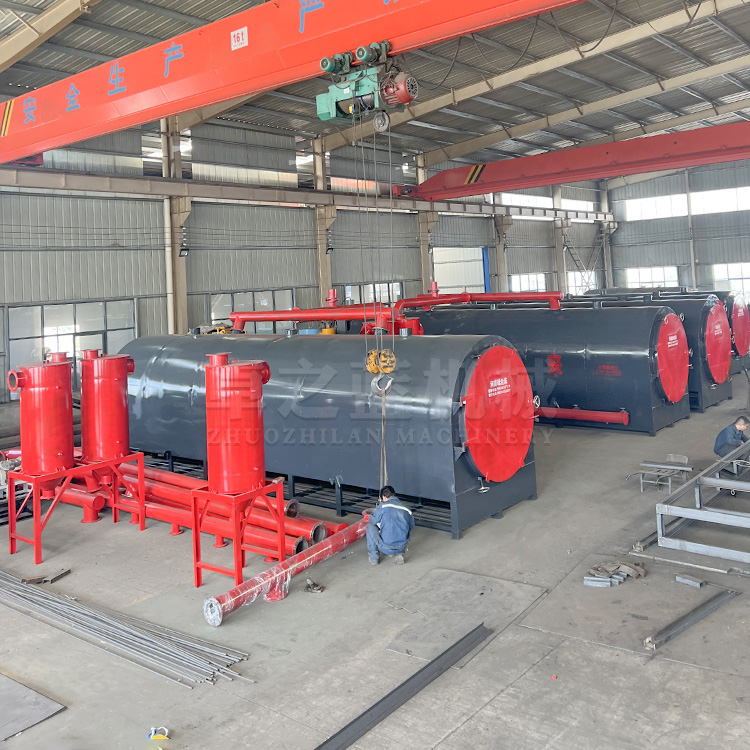

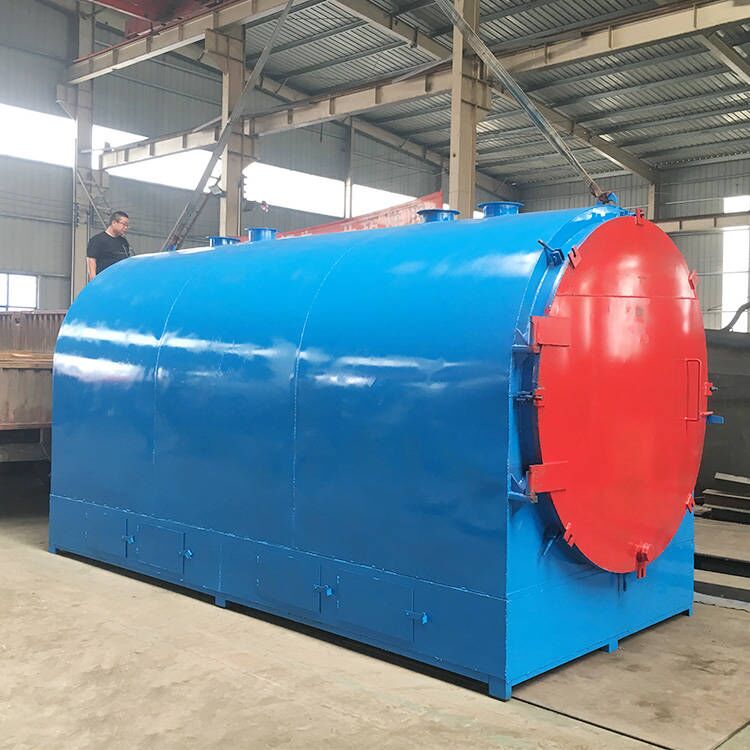

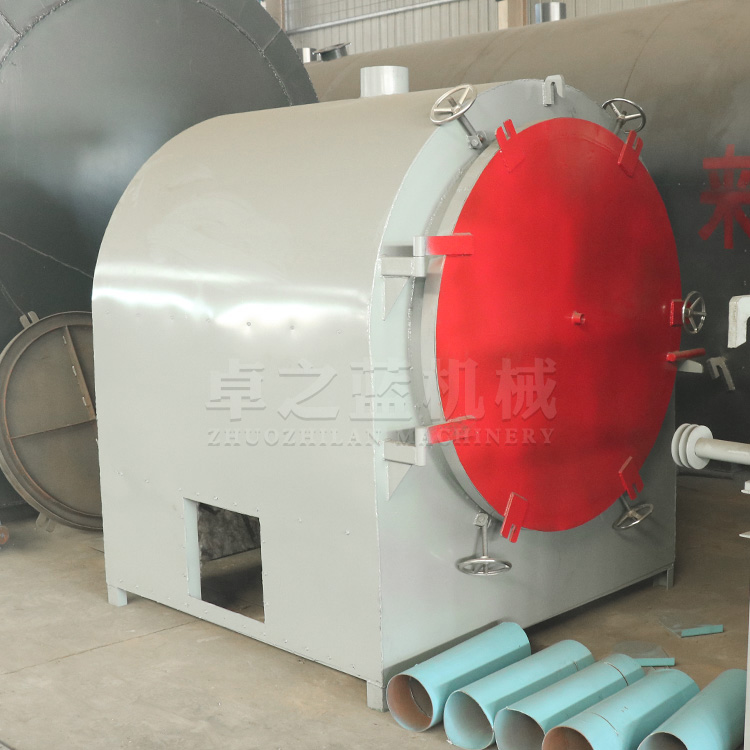

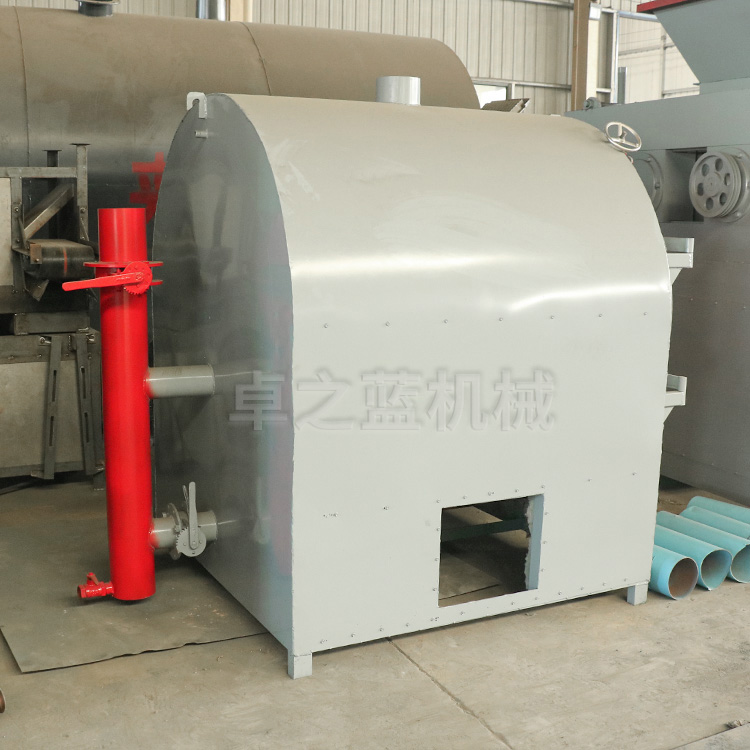

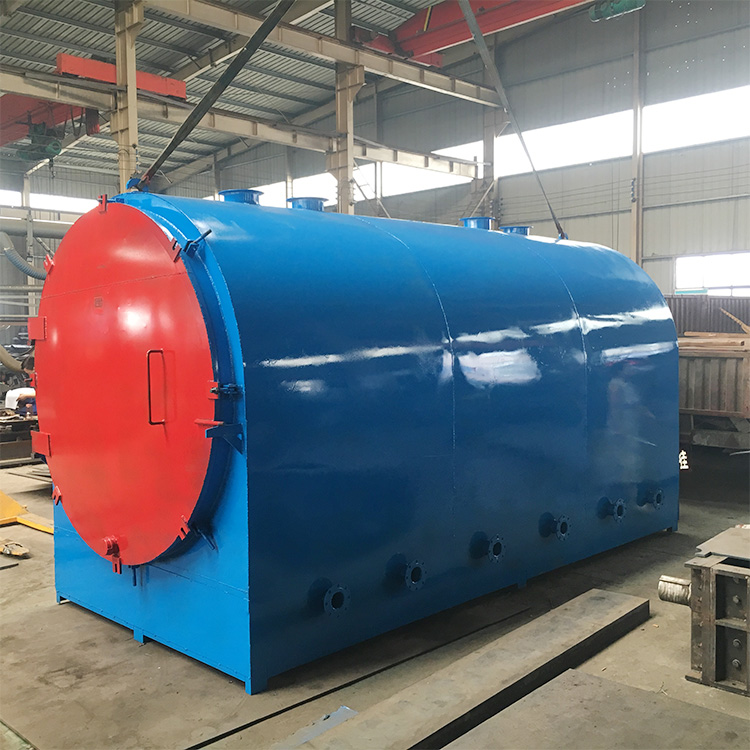

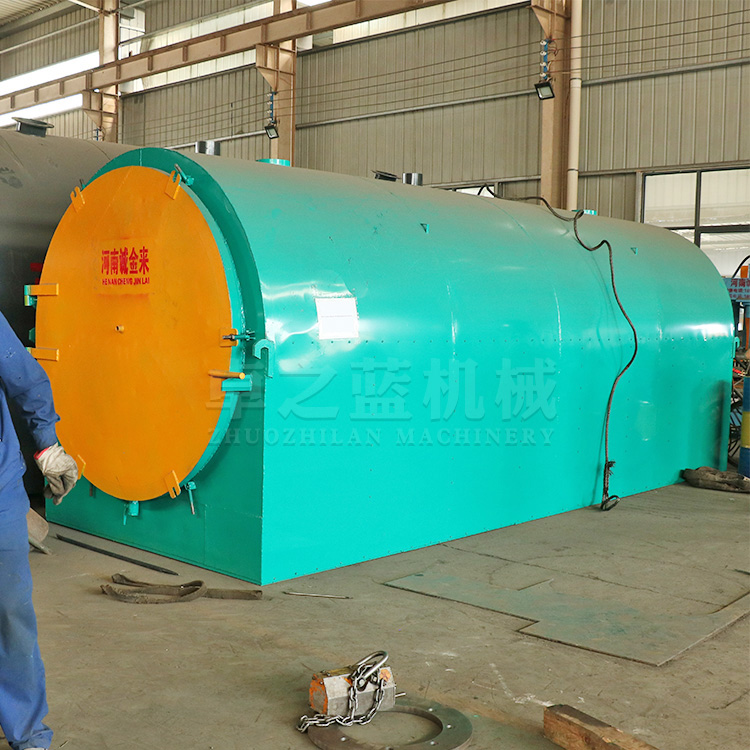

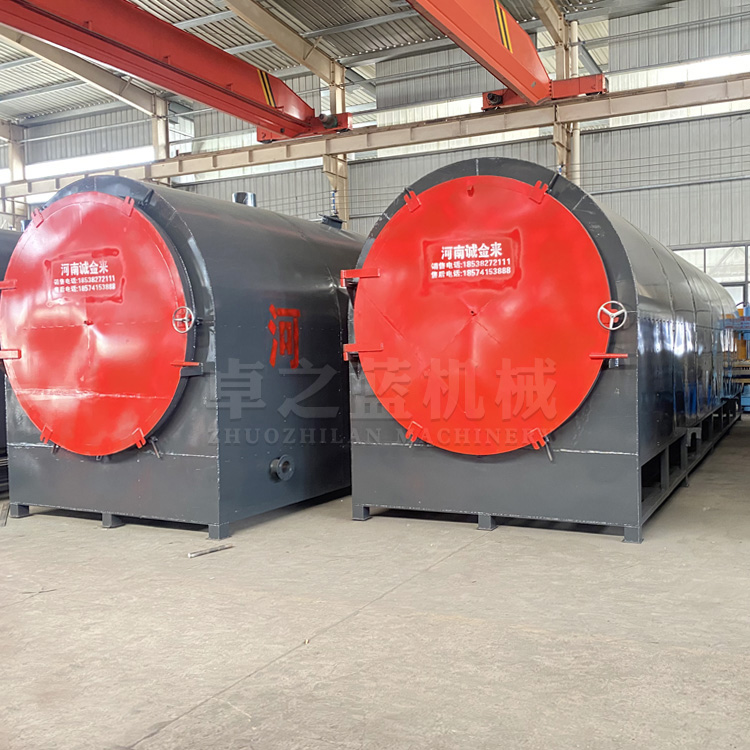

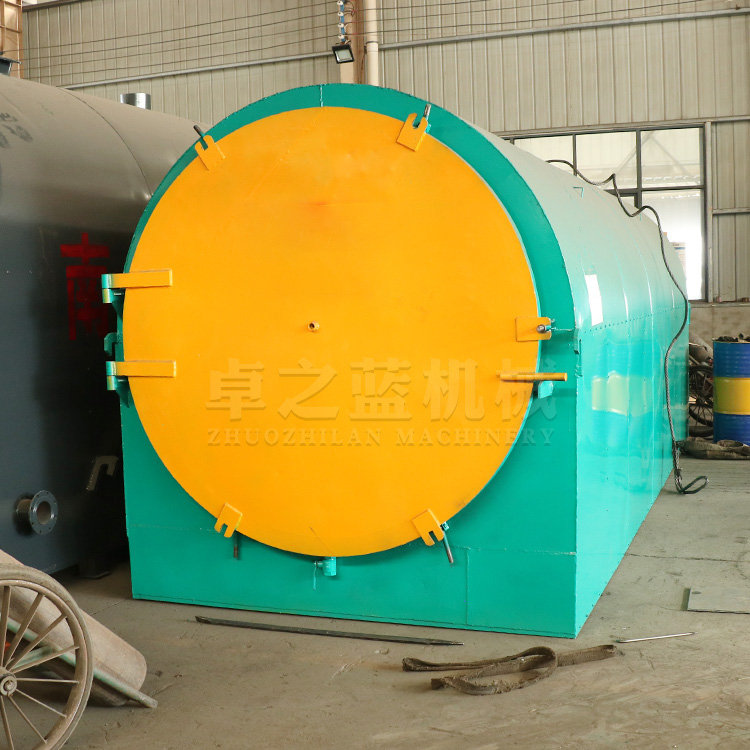

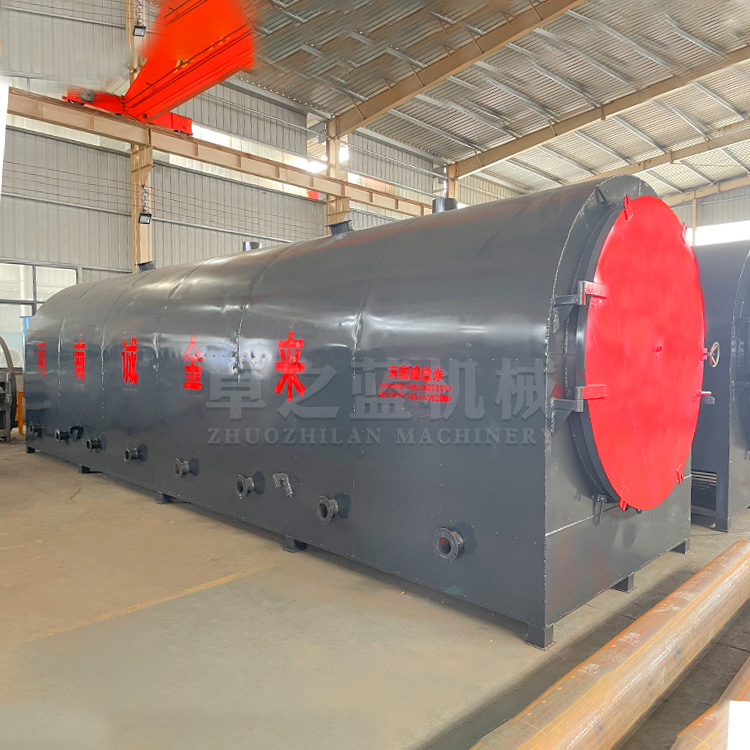

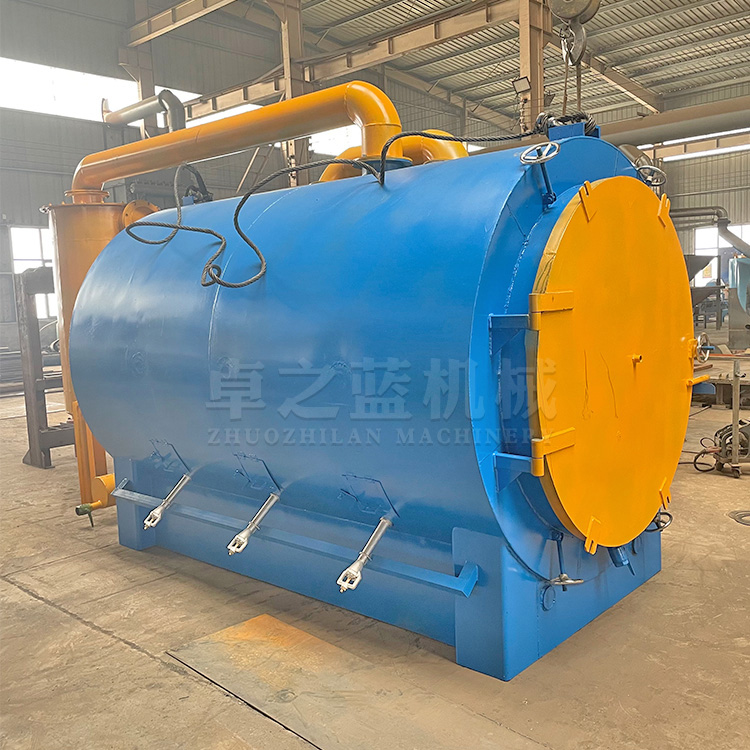

?Horizontal carbonization furnace is a new kind of type carbonization stove, which can also be called charcoal kiln, charcoal making machine, charcoal stove.
?It adopts the advanced carbonized technology heat flow, uses a unique storage chamber structure, make full use of the flue gas produced by carbonization.
?It is used to make charcoal from the wood and all kinds of biomass.
?6-8h can be carbonized furnace, carbonized rate is 99%.
?The operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance, simple and convenient, need not power and mobile production.
?It ensures that the entire process does not produce harmful gases and does not pollute the environment.
?It is an ideal equipment of family,large and medium scale production of charcoal.
2.Advantages:
1.High carbonization efficiency: The carbon efficiency is up to 99%. It only takes 6-8 hours can got a batch of charcoal.

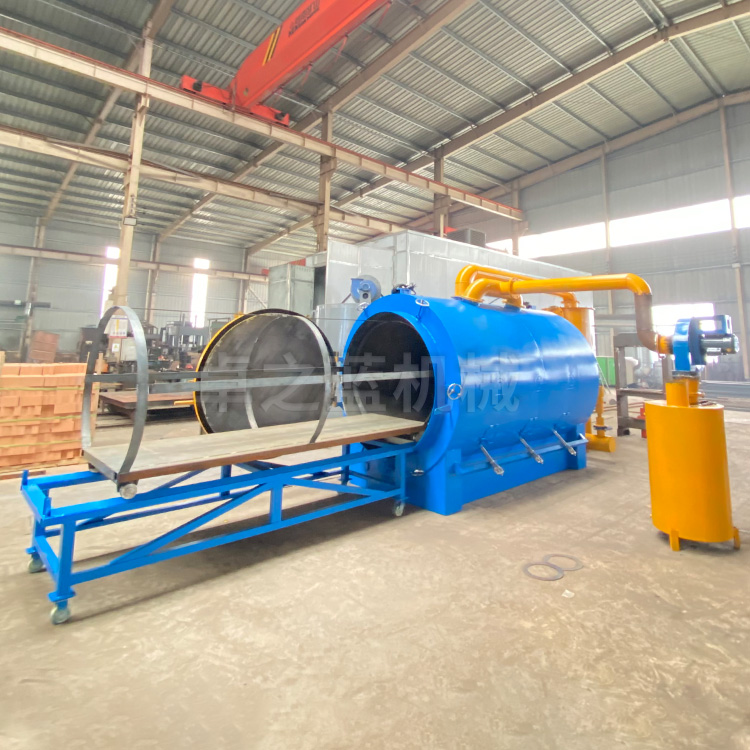

2.More Efficient: Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier and more efficiency. Carbonization furnace to end charcoal cooling time is shorter, we design the water cooling. We use the gap between the intermediate layers to cool the carbonization furnace with unit water cooling, compare with the natural cooling more efficient and convenient. Carbonization furnace production can be greatly improved.
3.Various heating methods: The heating source can be the firewood / coal/ coal gas/ natural gas/ liquefied gas/ Combustible gas/ burner, electric, etc..

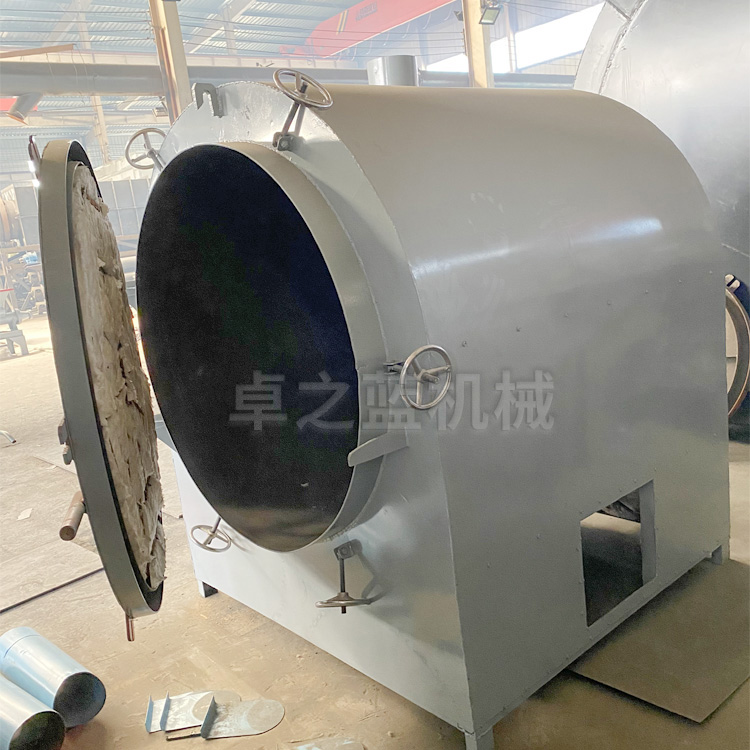

4.Strong door seal of the furnace: It is sealed with graphite packing, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
5.Durable and long service life：Prominent three layers structure of the Carbonization furnace is the use of horizontal manufacturing process. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. So can reduce its carbonization time. The middle layer is the asbestos for light insulation materials. It is possible to keep the temperature in the furnace at all times. The outer layer is painted steel.
6.Green and energy saving: The new environmentally friendly carbonization furnace uses anaerobic coking and combustible gas recycling technology. After the flue gas is recovered, the purifier tank can clean the smoke, carbon monoxide,methane, oxygen and other combustible gas generated in the carbonizing. It can reach dust-free and smoke-free. The cleaned gas enters the burning chamber through the pipes can be used to ignite like liquefied gas for heating, cooking, and baking and used for dry machine and itself. Excess combustible gas can be recycled, recycled wood tar system, Recycling, purification and utilization of water vapor. In this process of recovery, purification, and advanced technology of cyclic combustion, no harmful gas is emitted and reduces the consumption of wood, coal, LPG, etc for heating, which solves the problem of common carbonization furnaces in the carbonization process.
7.High security level: The design of the carbonization fumace is reasonable, there is no gas pressure when carbonization, the carbonization furnace has an explosion-proof mouth. Even if the operation is improper, the gas will be discharged safely. The carbonization temperature is up to 700°C. If you accidentally touch it, also won't get burned. Because the external insulation material is very safe.
Carbonization Process

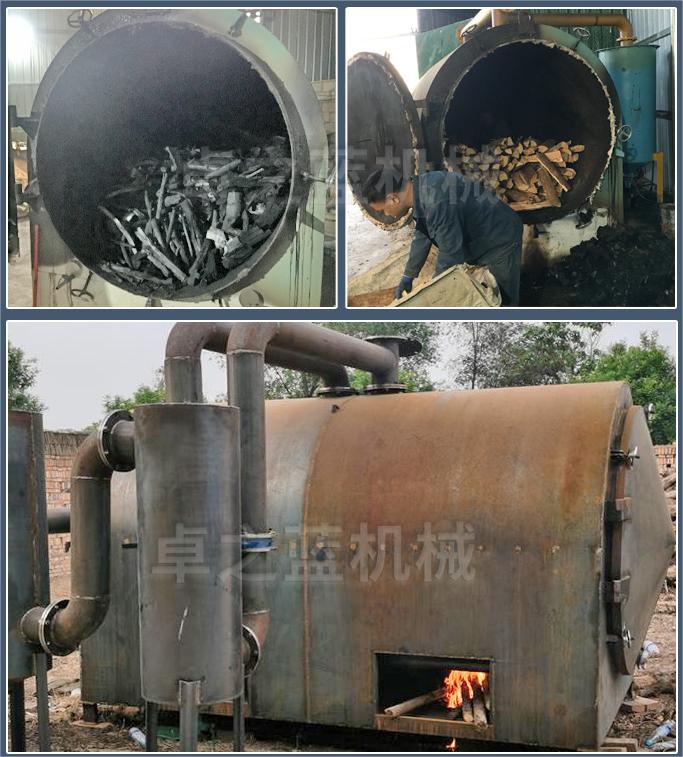

Feeding raw material and sealing the furnace → Preheating and drying the raw material → Anaerobic carbonization → Cooling and discharging the carbon.
1.?Preparing the materia, if it's the wood, please make sure the size is not with big different;
2.?Open the furnace door, and put the mateiral inside directly; or you can put the mateiral on the rail car to send the material into the inner pot.
3.?Seal the furnace, and check the valves and other things, make sure the furnace is ok before firing.
4.?FIre the furnace and to make the charcoal. This step, there is the combustible gas to produce and this gas can be sent to the bottom of the fire mouth to let the machine heat.?
5.?After the charcoal finished and cooled, then use the rail car to delivery the charcoal out. Then all the steps are finished.?

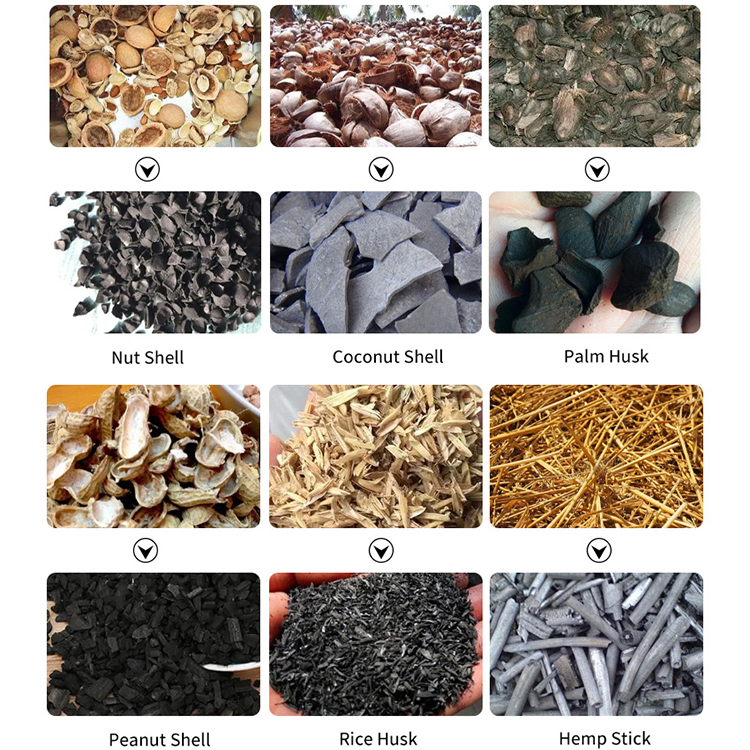

Raw Materials & Finished Products

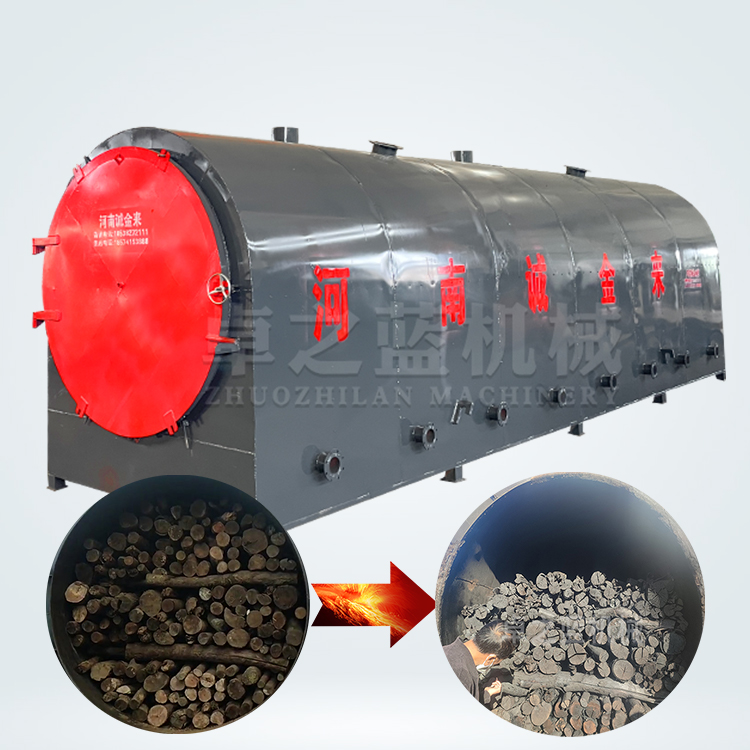

√New model horizontal bamboo charcoal carbonizer furnace oven can directly carbonize (Bulky timber): fruit tree, bamboo, wood branches, wood blocks, coconut shell, waste wood, trunks, wood logs, stumps, roots, wooden pallet, corncob, furniture factory scrap.
Product Paramenters
Model | Inner Barrel Size | Boundary Dimension (m) | Weight (kg) |
50 | 0.5*0.75m*6mm | 1.1*0.7*1 | 130 |
100 | 0.8*0.75m*6mm | 1.1*1*1.4 | 200 |
200 | 0.8*1.5m*6mm | 1.8*1*1.4 | 400 |
250 | 1*1.5m*6mm | 1.8*1.2*1.6 | 450 |
300 | 1.2*1.5m*6mm | 1.8*1.4*1.8 | 700 |
500 | 1.5*1.5m*8mm | 1.8*1.7*2.2 | 1000 |
700 | 1.5*2m*8mm | 2.3*1.7*2.2 | 1300 |
1000 | 1.5*3m*12mm | 3.3*1.8*2.4 | 2800 |

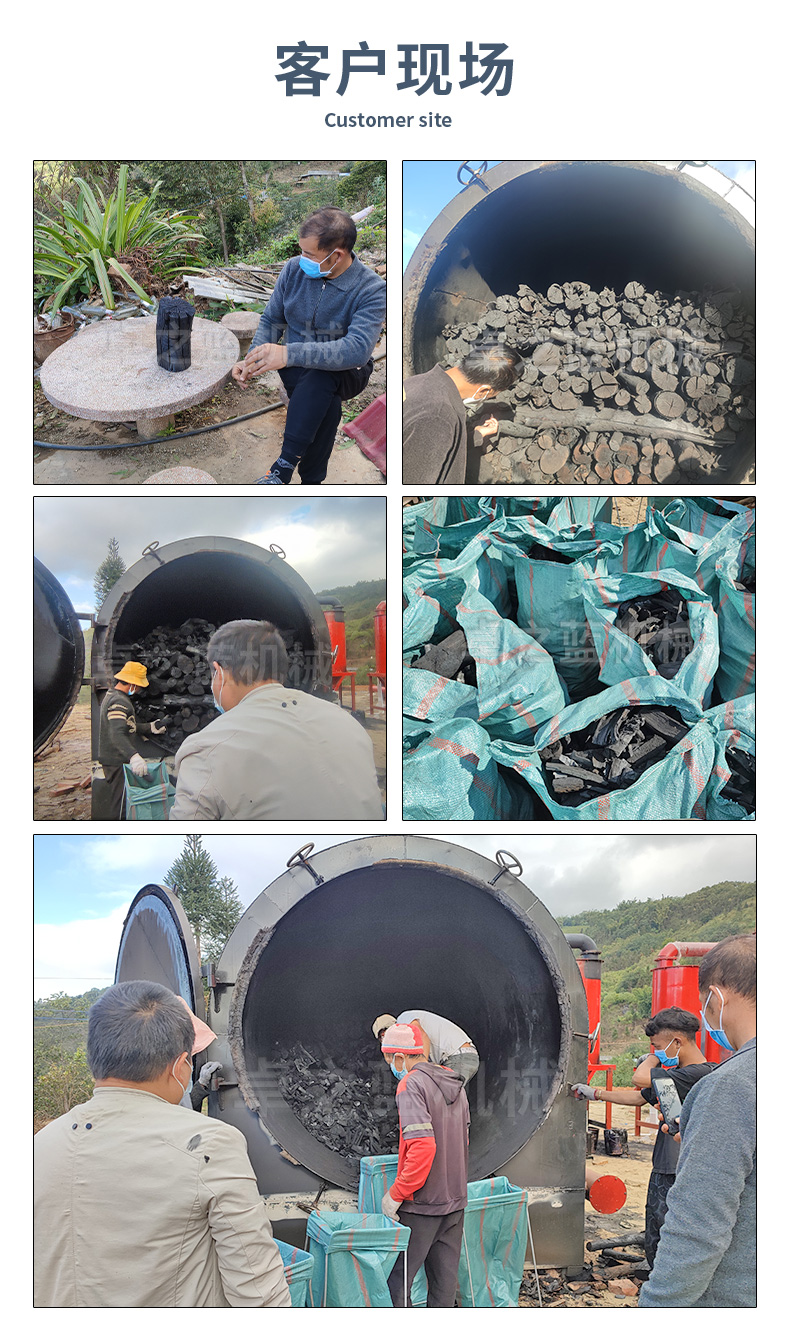

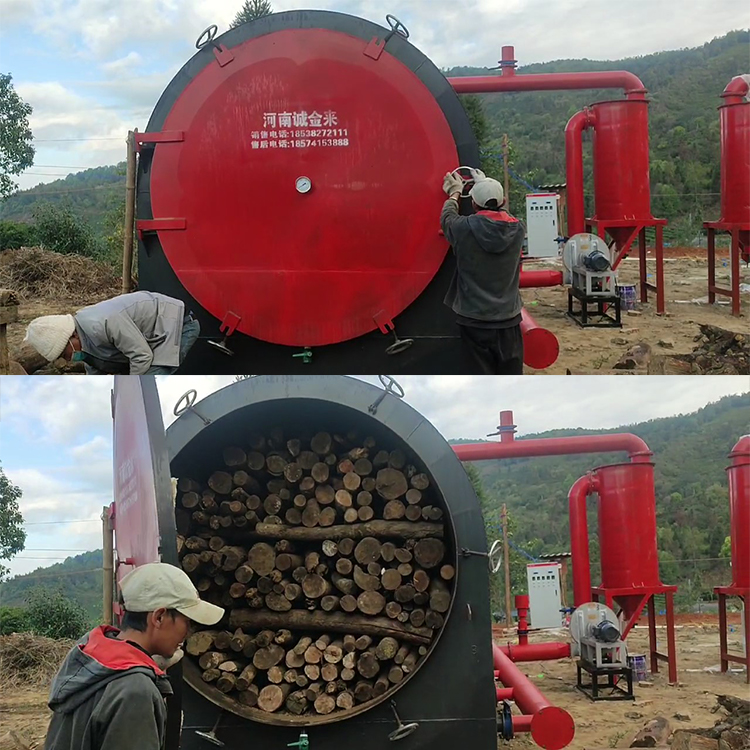

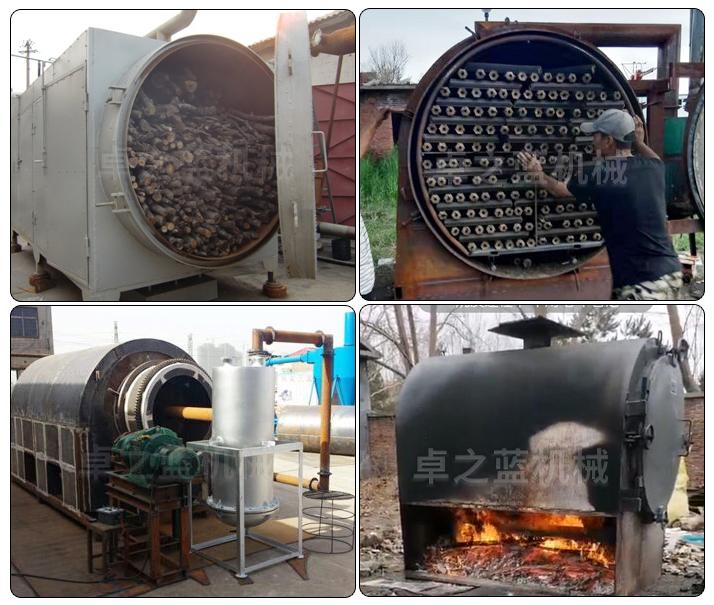

Customer Sites
?Our team have more than 30 years export experience for carbonization furnace. We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

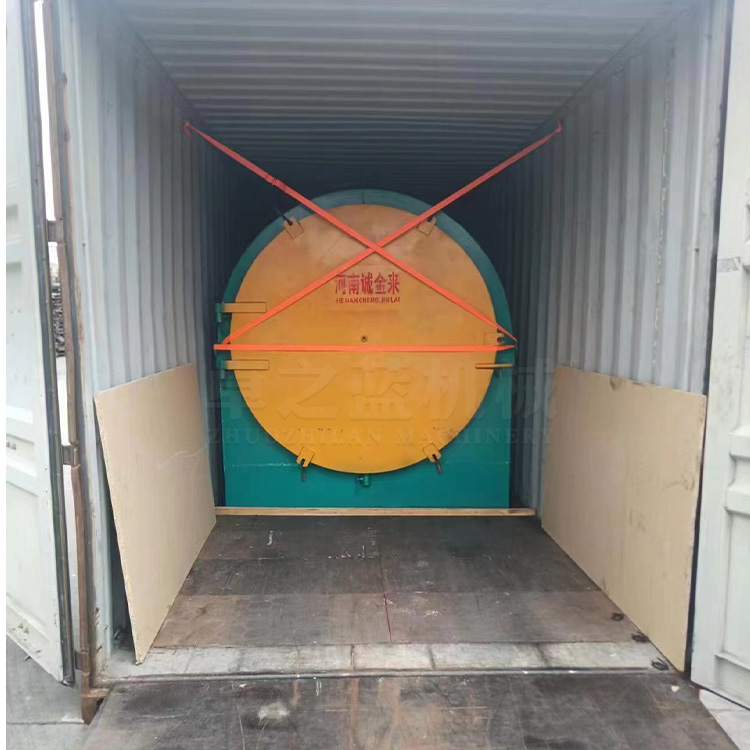

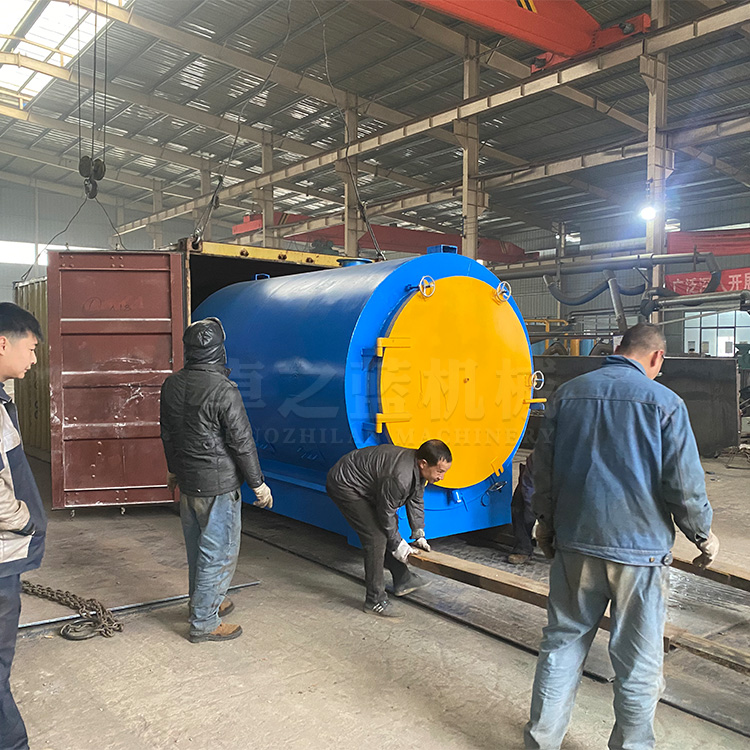

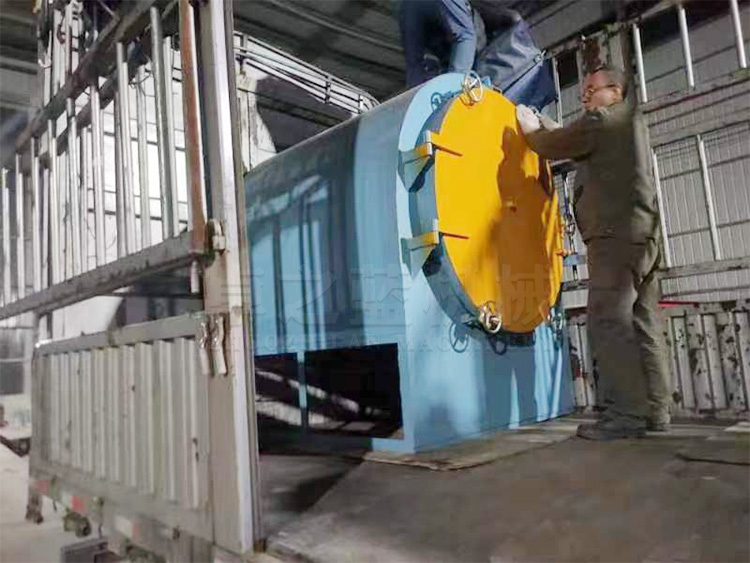

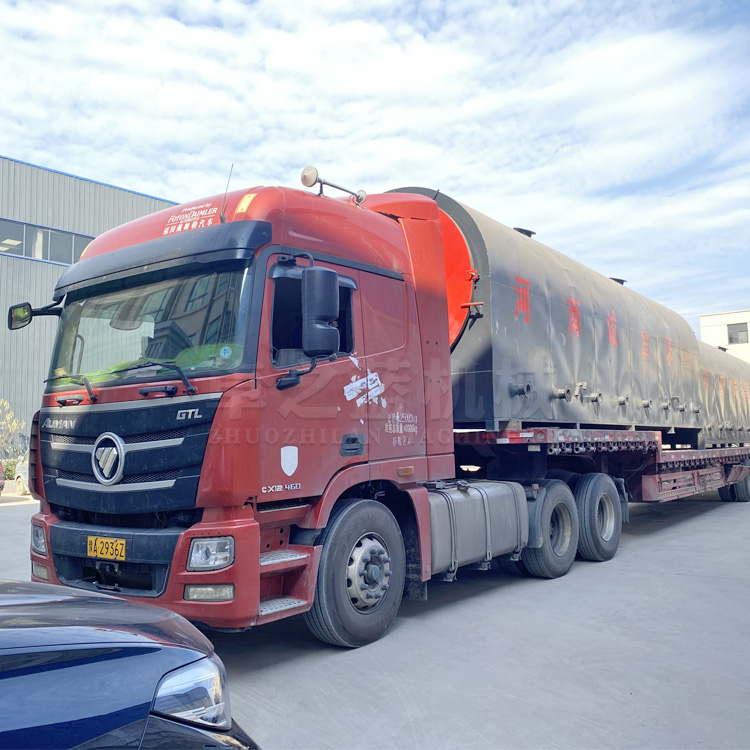

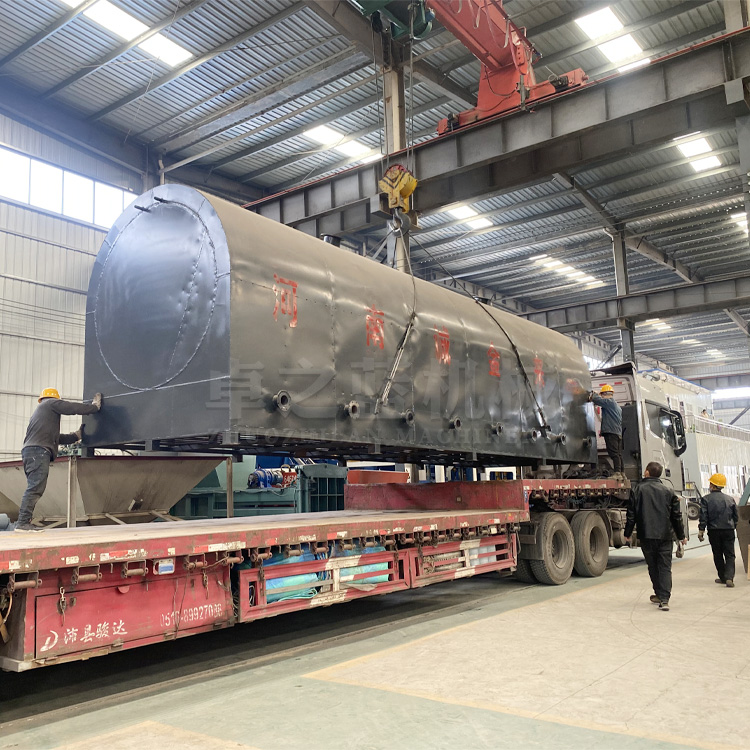

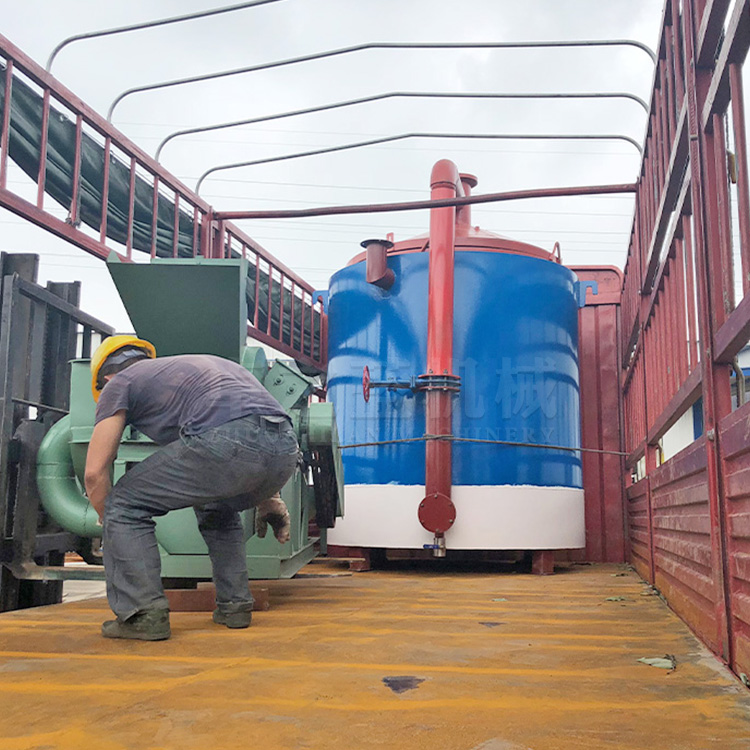

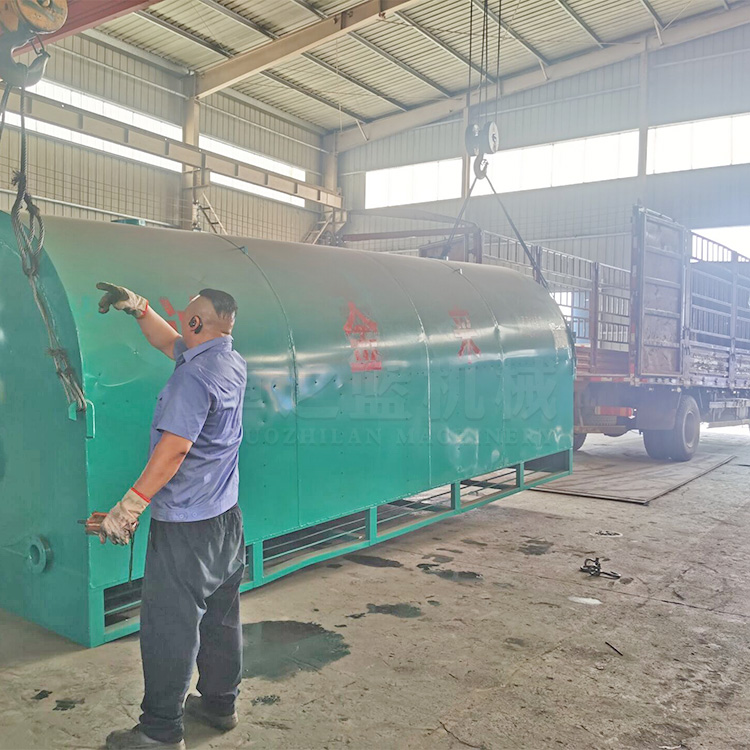

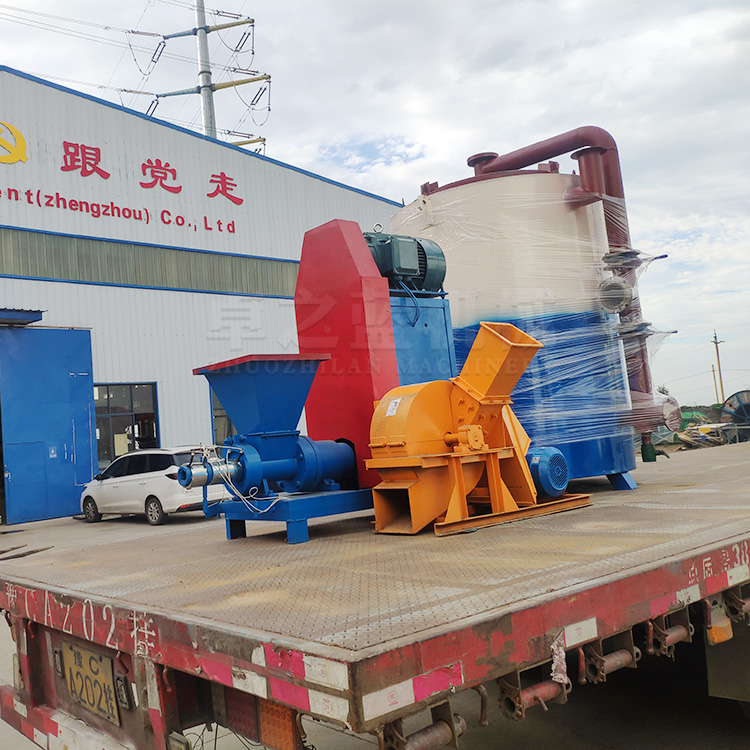

?The plastic film bag wrapped machine, according to the size and weight to make wood case, put machine in and fixed the box after loading. (The box material can be made as your requirements) The carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

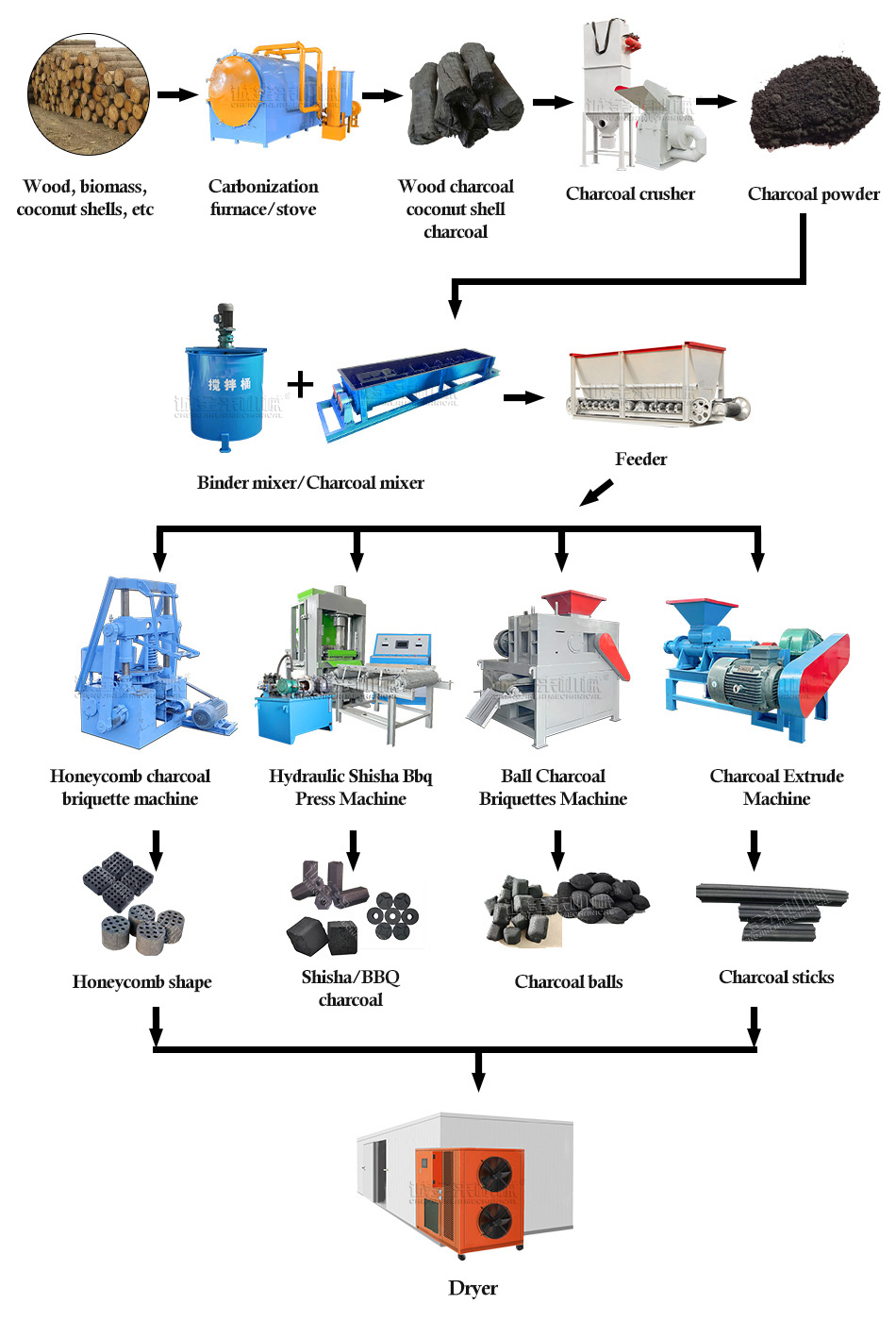

Production Line
?We could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements.
?Firstly, palm shell, coconut shell, wood, bamboo and other biomass are carbonized into charcoal by carbonization furnace and enter storage tank. According to customer's raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace.
?Secondly, charcoal can be crushed into charcoal powder by dust-free grinder.
?Thirdly, charcoal powder are stirred by double shaft mixer and mixer.
?In the end, charcoal powder can be formed into ball, cylinder, tables and cubic by briquette machine and enter the dryer by drying.
?The whole charcoal making kiln, peanut shell carbonization furnace and charcoal machine for sale production line are fully automatic.
Similar Products

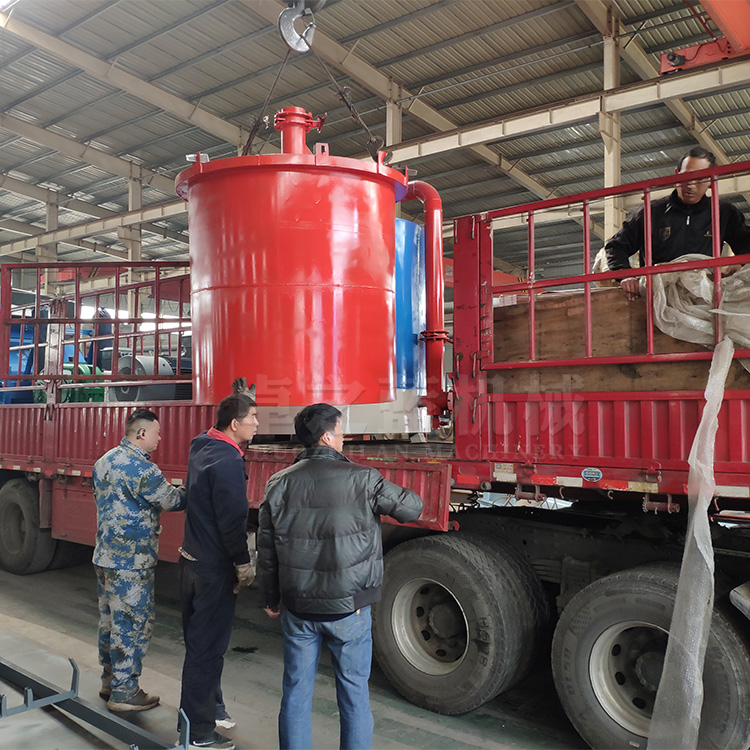

HOISTING CARBONIZATION FURNACE

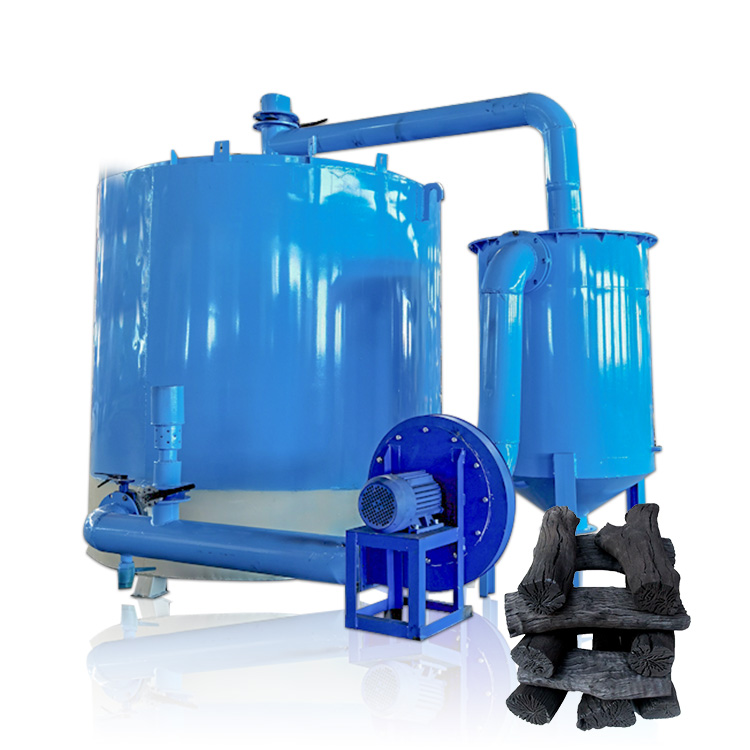

Hoisting carbonization furnace are composed of carbonization furnace body, furnace cover, inner tank, cage, combustible gas return pipe, exhaust pipe, flue gas dust removal device, tank lifting device and thermometer. The furnace adopts the principle of anaerobic dry distillation to remove the volatile substances in the biomass and achieve the purpose of biomass carbonization. Carbonization process through: charging sealing furnace, preheat drying, anaerobic carbonization and cooling out carbon four steps to complete.
CONTINUOUS CARBONIZATION FURNACE

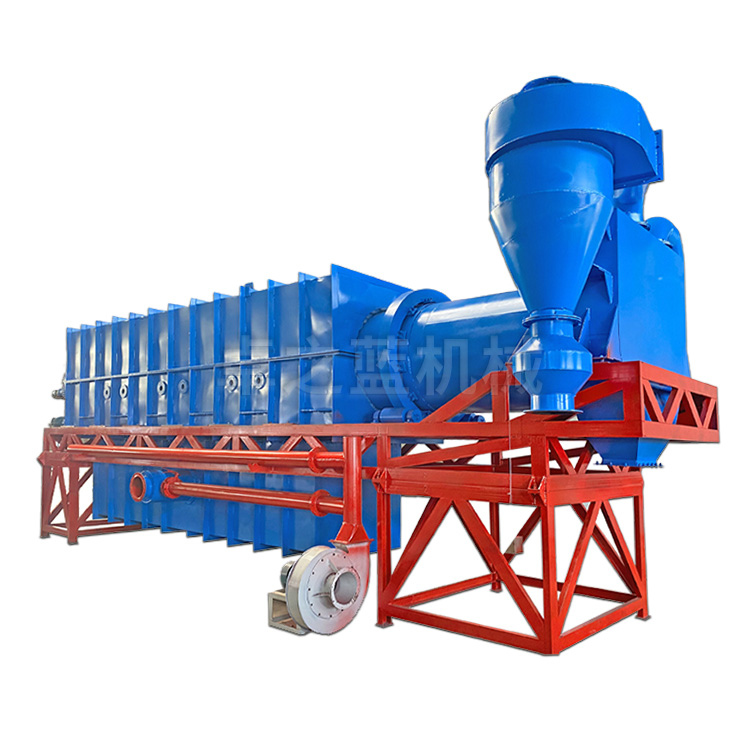

Continuous carbonation machine uses the carbonized flue gas purification into combustible gas generated in combustion itself. it can continuous product 24 hours. It has an advantages of zero pollution, zero emission, save labor, high capacity, energy-saving consumption, the high degree of automation and advanced technology. Which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high efficiency advantages. This machine is suitable for all kinds of forestry and agriculture powder particles.
Gold Services
Pre-sales service:
1.Understand the actual situation of each customer, raw materials, moisture of raw materials, output, actual budget and use of finished products.
2.According to the actual situation of customers, provide equipment matching scheme and equipment quotation scheme, such as plant and equipment planning, transformer capacity and other technical services.
3.Customized order: machine color, machine material, finished shape and drive mode (motor, diesel engine, generator set, etc.)
4.Every step from raw materials to production process will be monitored by the engineer, equipment debugging the final before delivery.With engineer and boss signature before shipment ensure the reliability of the technology, has the practicability of products
After-sales service:
1. Report the production progress to the customer once a week.
2. Quality control: The purchasing department strictly controls the quality of purchased parts before production, and the technicians strictly controls the production schedule and machine quality during production.
3. Equipment installation and commissioning(Provide technical guidance):
(1) Online technical guidance: email, video, WhatsApp and other online communication tools.
(2) Paid technical service: directly dispatch technical service personnel to install and debug the machine on site.
3. Equipment installation and commissioning(Provide technical guidance):
(1) Online technical guidance: email, video, WhatsApp and other online communication tools.
(2) Paid technical service: directly dispatch technical service personnel to install and debug the machine on site.
