Overview of triangular sample machinery:

The screw extruder is composed of feeding system, extrusion system, heating system, transmission system, rotary cutting system and control system. The material is fed into the feeder, and the barrel goes through high temperature, high pressure and high shear, so that the material is expanded to reach the required state of organization and other quality requirements.

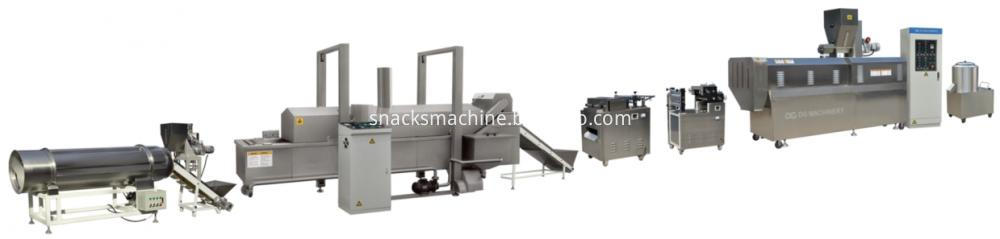

Process Line Prameter

Model	Installed power	Power consumption	Capacity	Dimension
DS65-M Process line	82kw	65kw	120~150kg/h	29000x1200x2000mm
DS70-S Process line	92kw	76kw	180~220kg/h	32000x1800x2600mm

Main Features

1) Belt transmission between motor and gear box,reducing energy consumption.

2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.

3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products

4) Automatic lubrication system can lower down power consumption and prolong the life.

5) Double screws feed equal materials forcibly.

6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.

Our Services

We provide the following service free of charge

 1.   provide optimized and advantage solution for customer

 2.   service on raw materials, flavor select

 3.   workshop , water, gas, electricity design for customer

 4.   management of  shipment

 5.    training of equipment maintenance and operating work

 6.   provide new production techniques and formulas

 7.   Provide  maintenance service within 1 year complete warrantee and lifetime

 8 .2 technician will be sent to customer factory after shippment for installation
