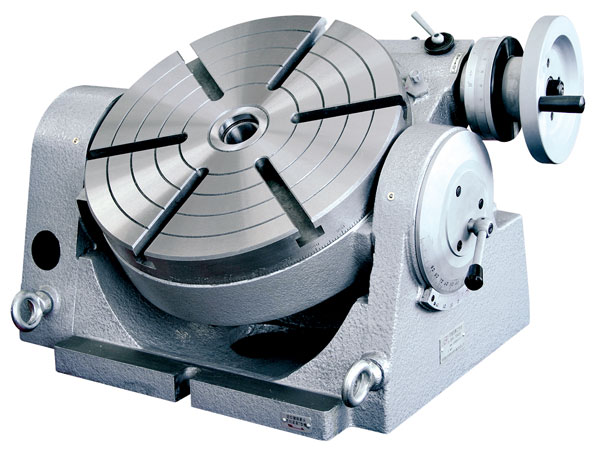

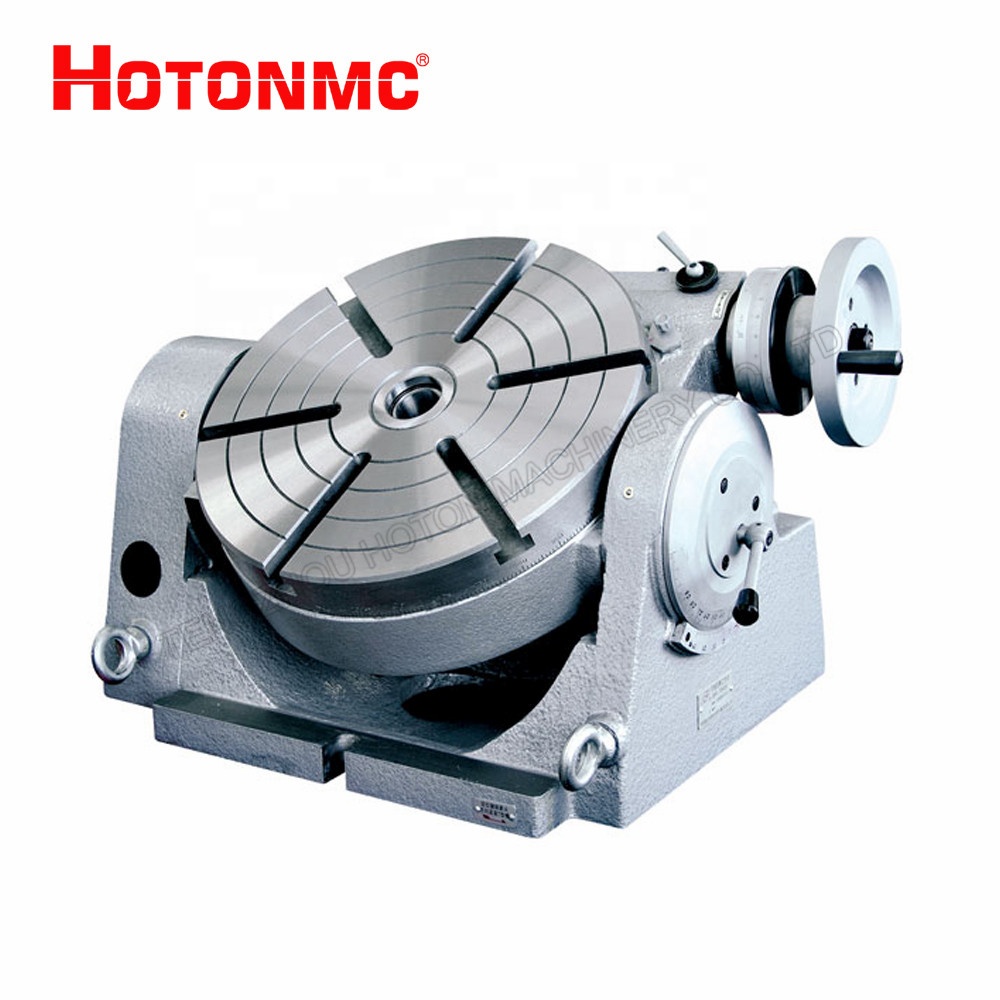

TSK160, TSK250, TSK320, TSK400 Universal Tilting Rotary Table Milling Machines

1 / 6

TSK160, TSK250, TSK320, TSK400 Universal Tilting Rotary Table Milling Machines

$1000.00

≥1 set
$950.00

≥2 set

Options:

TSK160
TSK250
TSK320
TSK400

Get Latest Price

You might also like

Basic Info

Model No.
Brand Name
Place Of Origin	Shandong, China
Brand Name	HOTONMC
Material	Cast Iron
Weight (KG)	305
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty	1 Year
Core components	Gear
Color	Required
Product name	Rotary Tables Working tables
Keywords	Horizontal rotary table
Origin	China
Usage	Milling Drilling Machine
After Warranty Service	Video Technical Support
After-sales Service Provided	Online support

Product description

WELCOME

TSK SERIES TILTING ROTARY TABLE FEATURES:
This is an accurate designed table for milling, boring and other machine tools. This table allows indexing, facing and other
work to be carried out rapidly with extreme precision.
Tiliting range 0-90 degrees from horizontal to vertical position, 1 rotation of handle equals 3 degrees, 5 minutes tilting reading.
10 Second Vernier Scale.
Table Dial 1 Minute Graduations.
Fast Degrees: Dividing Notch Pin & 24 Holes in 15 Degrees Around The insures Rapid Accurate Spacing.
Minimum Set-up time
Rugged Construction

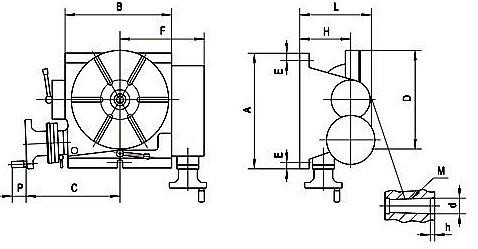

SPECIFICATIONS	TSK160	TSK250	TSK320	TSK400
Diameter of table (mm)	Φ160	Φ250	Φ320	Φ400
Mose taper of the center hole	MT2	MT3	MT4	MT4
Diameter of the center hole(mm)	Φ25*6	Φ30*6	Φ40*10	Φ40*10
Width of t-slot (mm)	10	12	14	14
Adjacent angle of t-slot	90°	60°	60°	60°
Width of the locating key(mm)	12	14	18	18
Modules of worm and worm gear	1.5	2	2.5	3.5
Transmission ratio of the worm gear	1:90
Graduation of the table	360°	360°	360°	360°
Tilting table	0°~90°	0°~90°	0°~90°	0°~90°
Readout of the hand wheel	1’	1’	1′	1′
Minimum value of vemier	10"	10"	10"	10"
Minimum reading of the tilting vemier	2’	2’	2’	2’
Indexing accuracy	60"	60"	60"	60"
Max bearing(with table hor)kg	100	200	250	300
Max bearing(with table vert)kg	50	100	125	150
Net weight kg	36	80	135	280
Gross weight kg	44	93	150	305
Case dimensions mm	420380300	550430330	630490395	830600460

About US

Other

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity ?more than.

Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. ?Airline and sea shipping also optional.

Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
