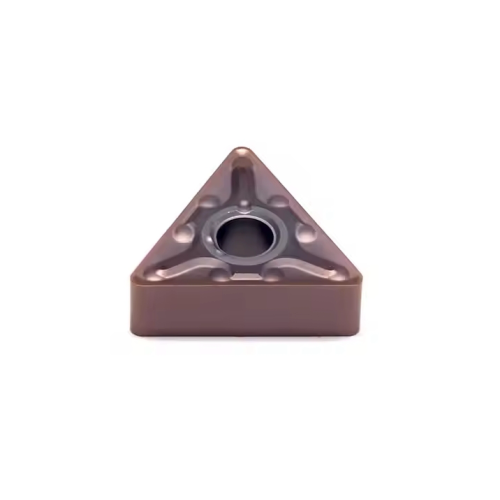

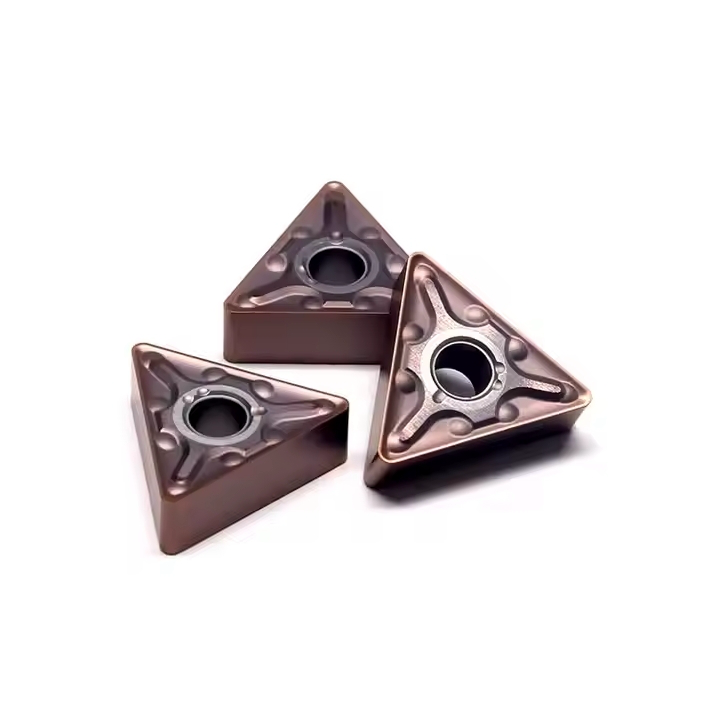

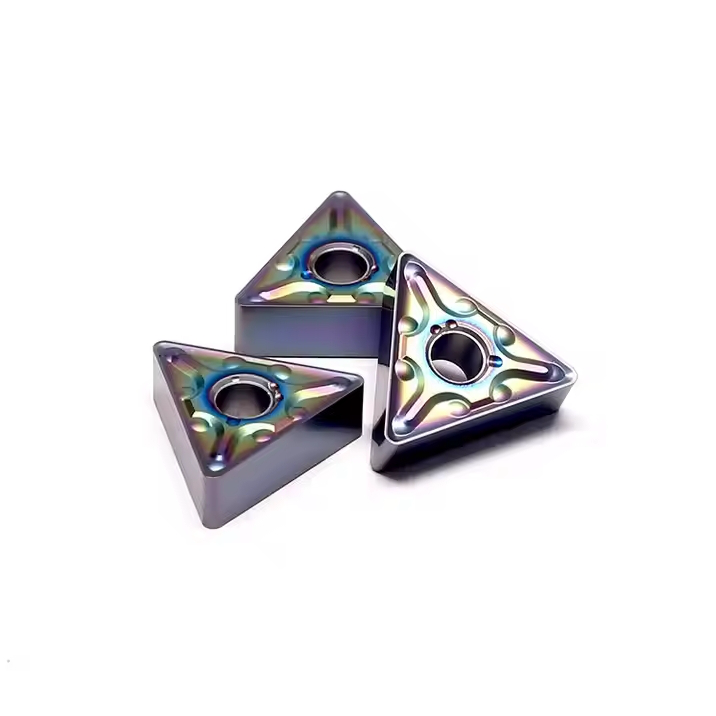

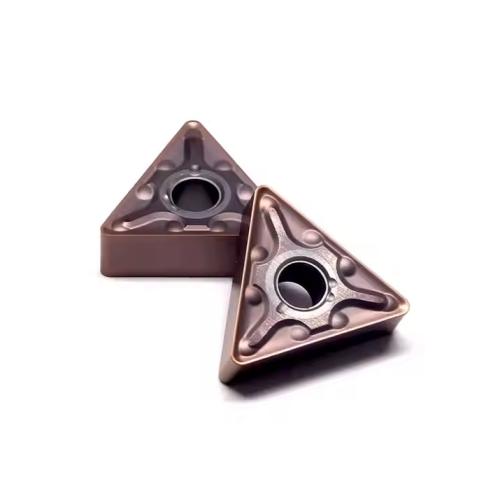

High-performance TNMG160412 tungsten carbide turning inserts for steel machining. Features excellent hardness, thermal resistance, and wear resistance—ideal for cutting hard materials up to 50HRC. Achieves 4–7x faster cutting speeds and up to 80x tool life compared to HSS.

Industry Specific Attributes

usage	Internal Turning Tool
hardness	HRA89~HRA93.5
coating	CVD

Key Features:

• Superior Performance: Delivers cutting speeds 4–7 times faster than high-speed steel (HSS), significantly increasing machining efficiency.

• Extended Tool Life: Offers up to 5–80 times the service life of HSS tools, reducing downtime and tooling costs.

• Excellent Wear Resistance: Maintains performance under high-temperature and high-pressure conditions, ideal for demanding industrial applications.

• Hard Material Capability: Efficiently cuts hardened steel up to 50HRC, suitable for alloy steel, carbon steel, stainless steel, and more.

• Standard TNMG Design: Universal triangular design compatible with a wide range of tool holders and CNC lathes.

Other Attributes

place of origin	Sichuan, China
warranty	3 months
customized support	OEM, ODM
Product name	Tungsten Carbide Material Indexable Turning Inserts
Color	Purple ,Yellow , Black, Bronze
Material	tungsten carbide
Workpiece	Steel, Stainless steel
Application	milling inserts
Grade	TBG2110,TBG2025,TBC2015,TBD2025,etc
Hardness	HRA86~93
Package	10pcs/plastic Box
Linear Speed(V)	160~220 m/min
Keyword	TNMG Lathe Cutting Inserts

?
