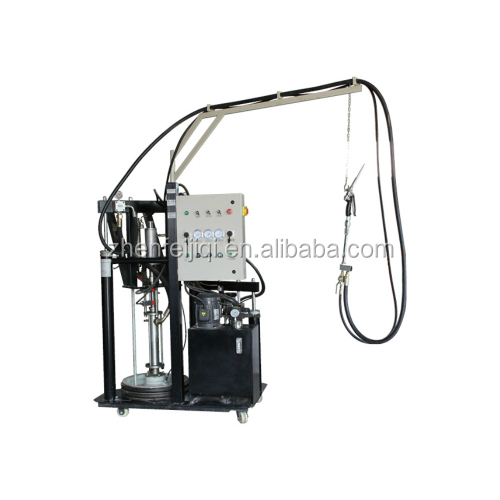

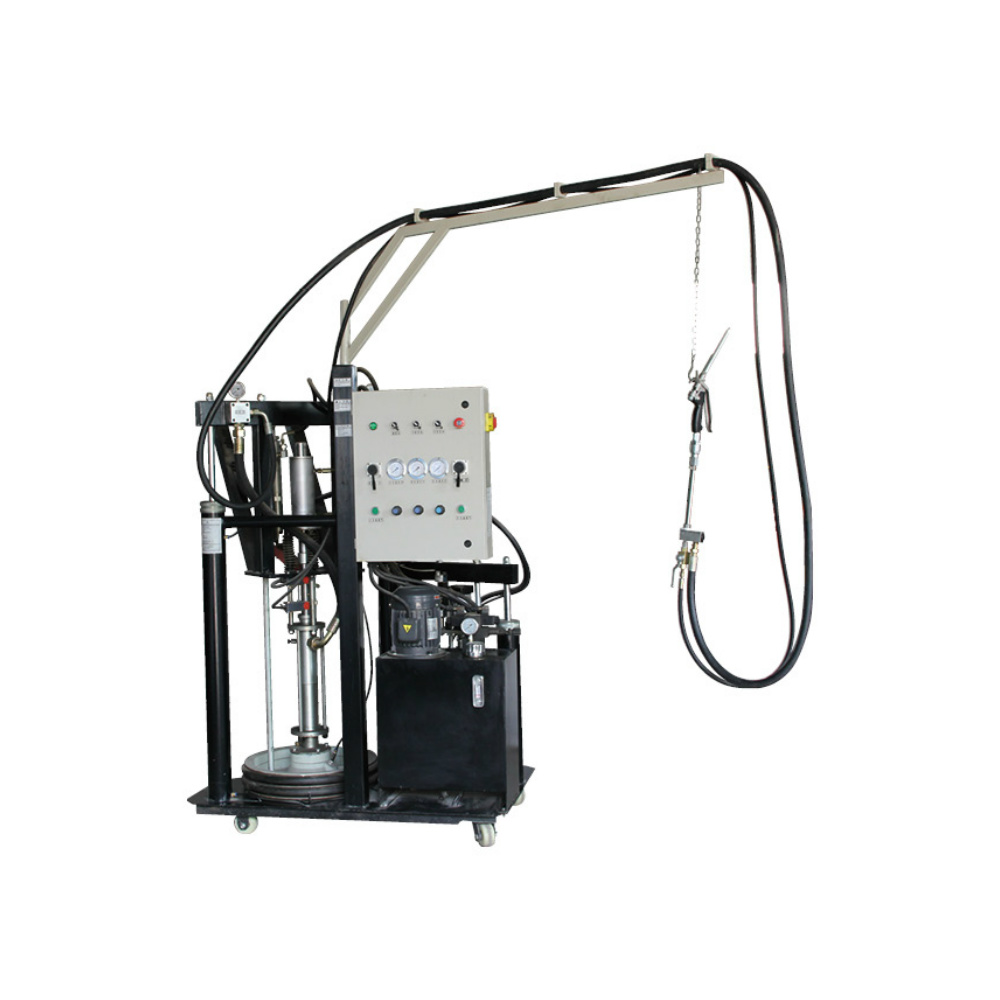

Insulating Glass Two Component Sealant Machine/Two Component Sealant Extruder

?

?

Features:

1.It is composed of raw material pump,solidification pharmaceutical pump,proportional pump,

sealant-mixture system,hydraulic pressure system,electric system and so on.

?

2.Raw material pump,solidification pharmaceutical pump and proportional pump adopt the

special high-pressure filling pump and the materials can be supported equivalently in two-way.?

The raw material pump is compelled by the hydraulic pressure system while the solidification

pharmaceutical pump is compelled by the?pneumatic motor.

3.There are high-pressure valves in the underpart entrance of solidification?pharmaceutitcal filter

and material-feeding place of the mixing device and one-way valve is set?in the mixing device

so as to prevent two-components from fleeing each other.

?

4.Rising and falling system is controlled by hand valve and the proportion of the two-components

can be changed by adjusting the slipper in the swinging pole.Tightening the nut?once?the demanding

scale is reached.

?

2.?Technical data:

?

Mixing ration proportion of mixture:	6:1-14:1
Raw material barrel:	55Gallon(200L)
Solidification pharmaceutical barrel:	5Gallon(20L)
Max.air-consumption volume:	0.5m3/min
Max.squeeze pressure:	20Mpa
Air source pressure:	0.5-0.8Mpa

?

?

Model	Name	Origin of Pump
1	ST02A	Pnuematic Silicone Extruder	made in China
2	ST03	Korean Pump Pneumatic Silicone Extruder	made in Korea
3	ST04	Pump Pneumatic Silicone Extruder	made in USA

?

?

?

?

?

?

?

?

Contact person: Ms.Sailing He

Whatsapp/WeChat: +86 13361033782

?

?

?

Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.

?

?
