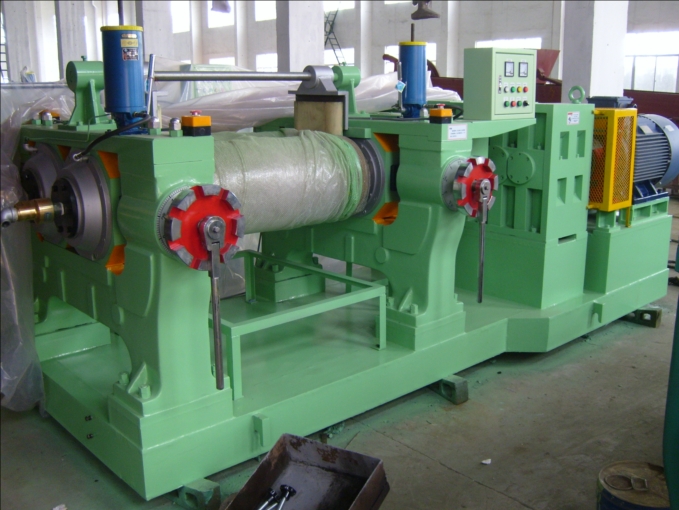

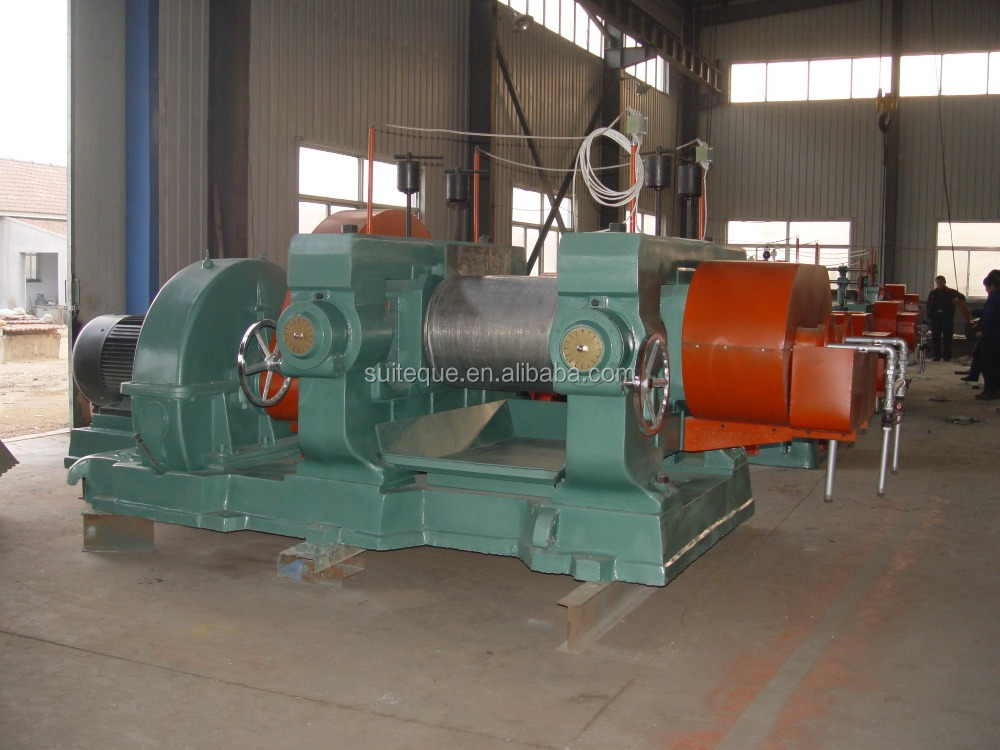

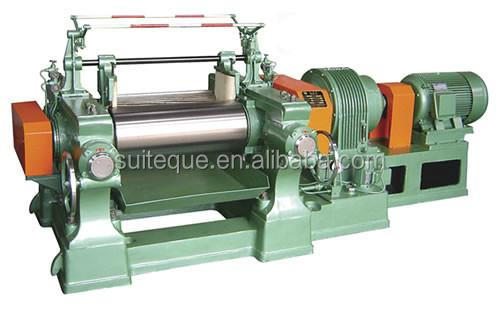

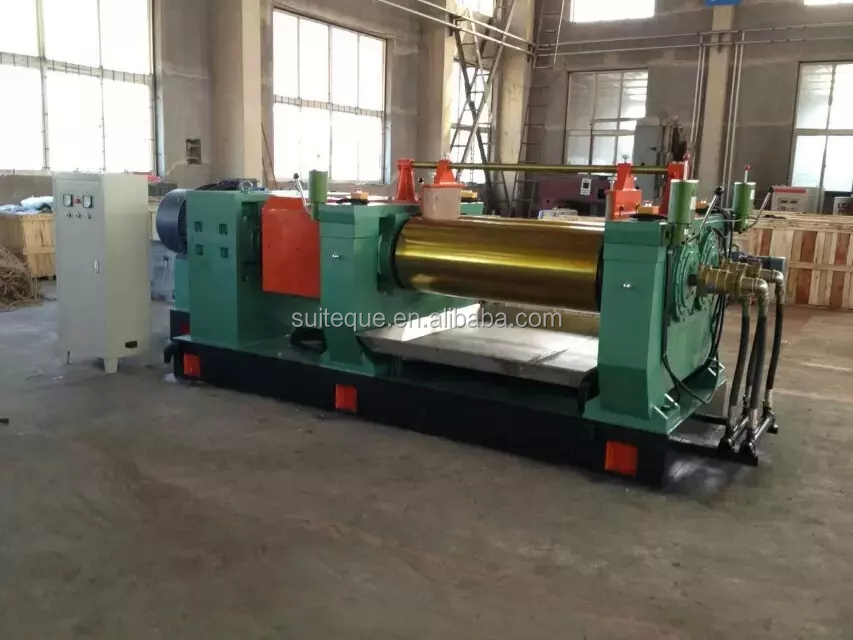

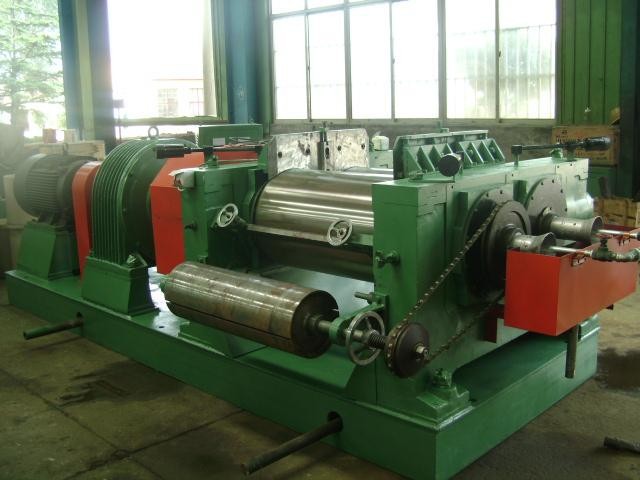

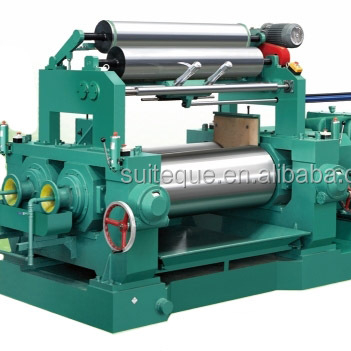

Two Roll Open Mixing Mill/Rubber Refining Machine
Options:
- XK series
Basic Info
| Diameter of Roll(mm) | 160 mm |
|---|---|
| Length of Roll(mm) | 320 mm |
| Video outgoing-inspection | Not Available |
| Machinery Test Report | Not Available |
| Core components | Bearing |
Product description
Two Roll Type Open Mixing Mill / Rubber Refining Machine
Two Roll Type Open Mixing Mill / Rubber Refining Machine
[Use]??:
It is used in rubber and plastics mixing, warming mixing, sheeting mixing,etc.
[Features]??:
1.Roll is made of alloy chilled cast iron, which has high rigidity and good wearable.
2.Twmperature control adopts TCU, so temperature control is fast and accurate, and assure the quality of
? ? ?mixing rubber.
3.Configure and select machine type according to your request.
?
| Type ? ? ? ? ? ? ? ? ? |
roll diameter x length(mm) |
front roll speed (m/min) |
roll ratio |
batch capacity (kg) |
motor power (KW) |
Max. nip adjusting (mm) |
dimension (mm) |
weight (T) |
|
X(S)K -160 |
160x320 | 8.95 | 1:1.35 | 1-2 | 5.5 | 4.5 | 1120x920x1295 | 1.1 |
|
X(S)K -200 |
200x500 | 19.5 | 1:1.05 | 8 | 11 | 5 | 2055x900x1165 | 2.5 |
|
X(S)K -250 |
250x620 | 15.2 | 1:1.0 | 10-15 | 18.5 | 8 | 3220x1500x1290 | 3.8 |
|
X(S)K -360 |
360x900 | 16.26 | 1:1.25 | 15-20 | 30 | 10 | 3920x1650x1725 | 5.53 |
|
X(S)K -400 |
400x1000 | 18.65 | 1:1.27 | 25-35 | 40 | 10 | 4380x1710x1880 | 8.14 |
|
X(S)K -450 |
450x1200 | 23.85 | 1:1.27 | 25-35 | 55 | 10 | 4380x1710x1880 | 13 |
|
X(S)K -560 |
560/510x1530 | 27.61 | 1:1.315 | 50-60 | 90 | 12 | 5830x2300x2000 | 22 |
|
X(S)K -550 |
550x1500 | 27.175 | 1:1.25 | 50-65 | 90(110) | 15 | 6040x2100x1625 | 20 |
|
X(S)K -610 |
610x1830 | 28.7 | 1:1.25 | 90-120 | 160 | 15 | 6750x3040x1743 | 35 |
|
XKY -660 |
660x2130 | 32.45 | 1:1.09 | 165 | 185 | 15 | 7450x3660x2080 | 45 |
|
XKY -660 |
660x2130 | 28.60 | 1:1.24 | 165 | 250 | 15 | 7465x3660x2080 | 45.6 |
|
X(S)K -710 |
710x2200 | 31.90 | 1:1.09 | 350 | 280 | 15 | 7108x3805x3015 | 50 |
|
X(S)K -760 |
760x2540 | 33.23 | 1:1.09 | 350 | 315 | 15 | 7108x3805x3015 | 58 |
|
X(S)K -810 |
810x3540 | 31.90 | 1:1.09 | 350 | 355 | 15 | 7108x3805x3015 | ? |
?
Qingdao Suiteque Rubber Machinery Co.,Ltd make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we hope to be one reliable factory for you!
- Special manufacturer that has professional producing team and technical support
- Exclusive?and?unique?solution?can?be?provided?to?our?customer?by?our?well-trained and professional?engineers?and?staff.
- Best after sale---follow the whole producing situation,provide photos of machines loaded into containers,?track the operating and using situation of client in case of any problems occur.
- Reasonable price and flexible delievery time
- More than?30 years of experience of exporting ability
?
?? ??? Qingdao Suiteque Machinery Co.,Ltd is located in the west coast of Qingdao city. It is a professional enterprise that engage in manufacturing, custom-making, selling and technical service products such as rubber kneader series, rubber mixing mill series, rubber extruder and strainer series ,motorcycle and electric bike outer tyre and inner tube ,tube flap, plate vulcanizing machine series and so on. There are more than 60 types of rubber plastic machines in our company. The machines are widely used for producing cycle tyre, bicycle tyre, electric car tyre, car tyre etc.
? ? ?The corporation has enormous potentially in science and technology development, advanced manufacturing facilities, complete test and scientific modern management system. Products sold throughout the country and being sold in places such as Southeast and Middle Asia, the Middle East, South Africa and North America.
? ? ?All friends are welcome to visit us and faithfully hope to enter into business relations with you.
