Basic Info

Model No.	TZJ-3
Brand Name	SRI

Product description

Soil direct shear machine, Soil shear test apparatus, Soil mechanics test equipment, Geotechnical testing equipments

Description

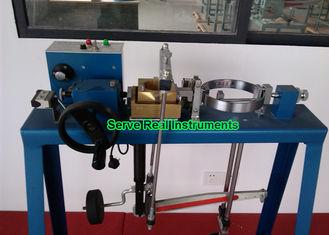

This shear test apparatus is used to test the soil shear strength, it has two or three speed steps. The specimens are tested under different vertical pressure and applied shear force, thus to obtain the broken shear force. It's kind of common soil mechanics testing equipment.

Technical specifications

Vertical loading: 400KPa, 300KPa, 200KPa, 100KPa, 50KPa

Horizontal loading: 1.2KN

Lever ratio: 1:12

Specimen area: 30cm²

Shear speed: Two speed: 0.8mm/min. 2.4mm/min

Three speed: 0.02mm/min. 0.8mm/min. 2.4mm/min

Power: Two speed: <55W; Three speed: <70W

Power supply: 220V±10% 50Hz

Instrument size: 850 x 550 x 1100mm (L x W x H)

Net weight: 40Kg

Serve Real Instruments Co., Ltd
