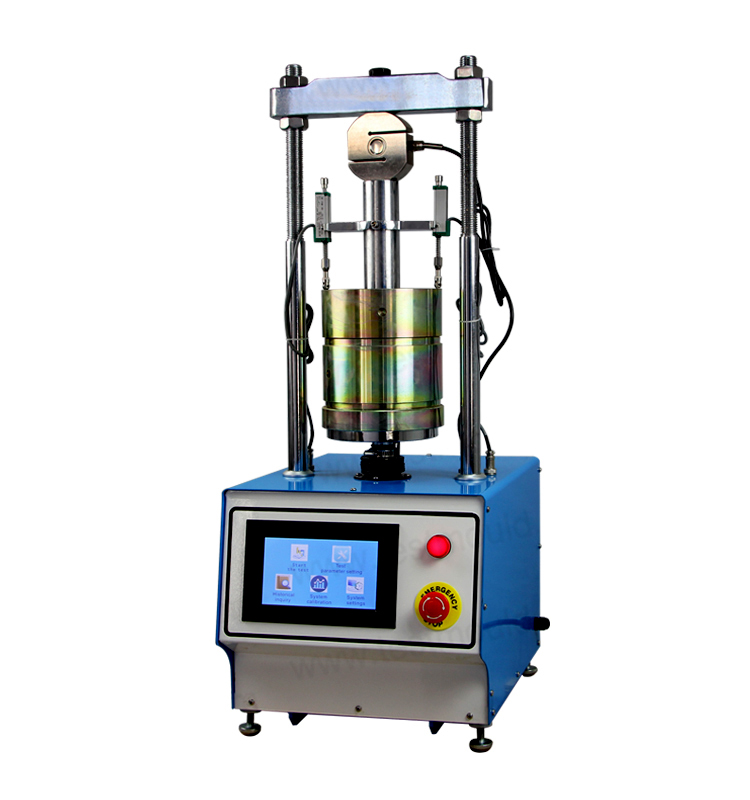

Updated CBR Loading Testing Machine With Sensor 50KN
$1400.00
≥1 Set/Sets
Basic Info
| Brand Name | OBRK |
|---|
Product description
Updated CBR Loading Testing Machine With Sensor 50KN
Bearing ratio (CBR) tester is used for carrying out bearing ratio tests on various soil and pavement base and underlying materials after making specimens in the specified test cylinder.The maximum particle size of the mixture should be controlled within 25mm and not more than 40mm.
Technical Specifications:
|
Model |
CBR-A50 |
|
Standard |
BS 1377-4,EN 13286-47,ASTM D 1883,AASHTO T 193 |
|
Capacity |
50KN |
|
Speed |
1mm/min/1.27mm/min(can set) |
|
Fast speed |
15mm/min |
|
Penetration bar |
Diameter 50mm x100mm |
|
Displacement sensor |
0-25.00mm/0.001mm |
|
Multi-orifice |
2PCS |
|
Loading plate |
4PCS(OD 150mm,ID 52mm, weight 1.25KG/PC) |
|
Cylinder mould |
ID 152mm x170mm |
|
Power |
220V |
