User-Friendly Dead Animal Rendering Plant Equipment: Batch Cooker and Oil Press
$80000.00
≥1 set
$78000.00
≥2 set
Options:
- 99%
Basic Info
| place of origin | China |
|---|---|
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided |
| Core components | Pressure Vessel |
Product description
High efficiency eco-friendly large capacity poultry waste feather rendering machine
?
| ? ?Production Information | ? | ? |
?
? |

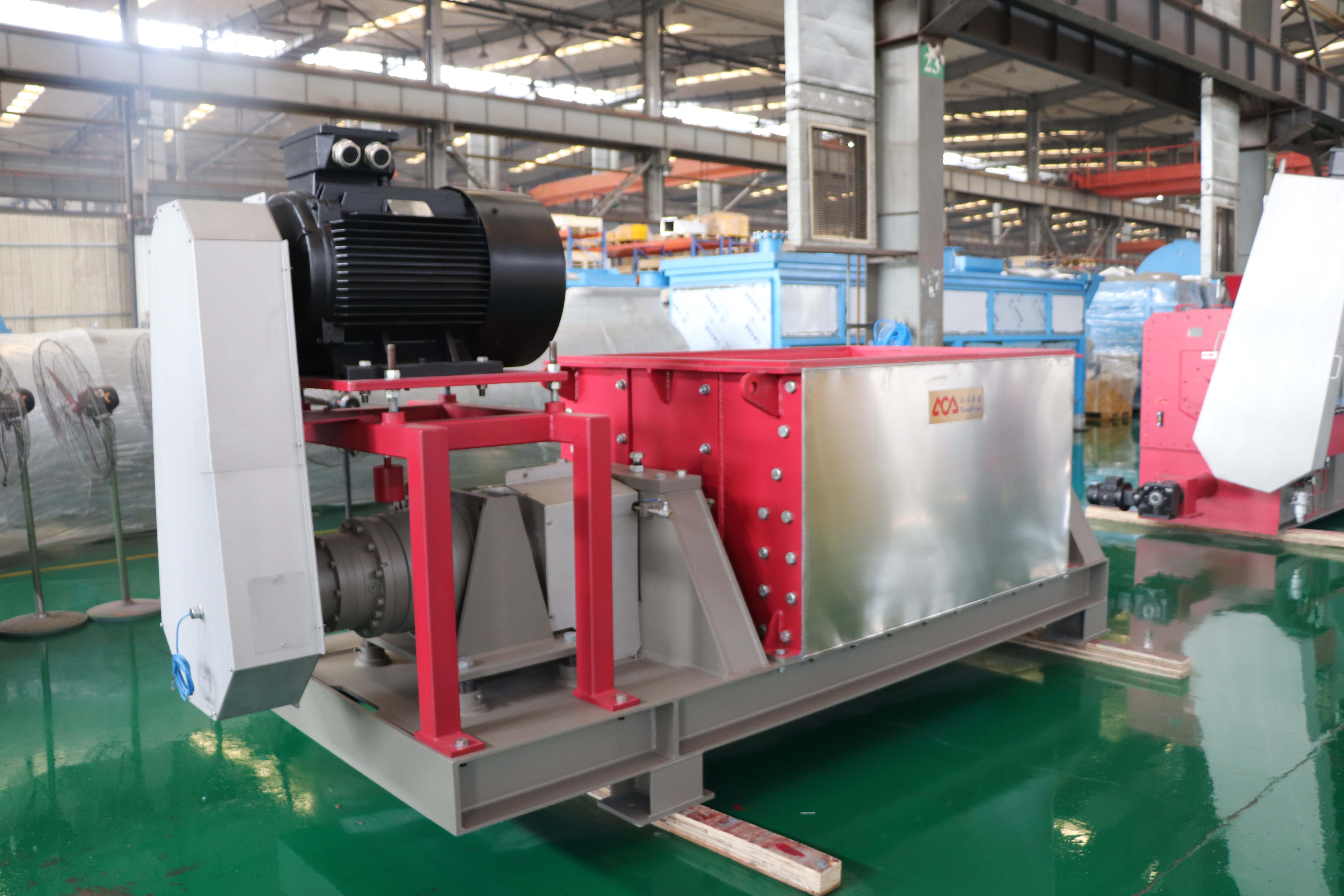

Poultry waste reception section ? There is a ?Material Silo For the reception and storage of poultry wast,dead animal. There is a Pre-crushing machine in the middle in function of chopping whole animal caicasses and large pieces with aim of 50mm size piece(easily transported) A Material Pump is at the bottom to transport the marterial to cooker. ? |
?
|

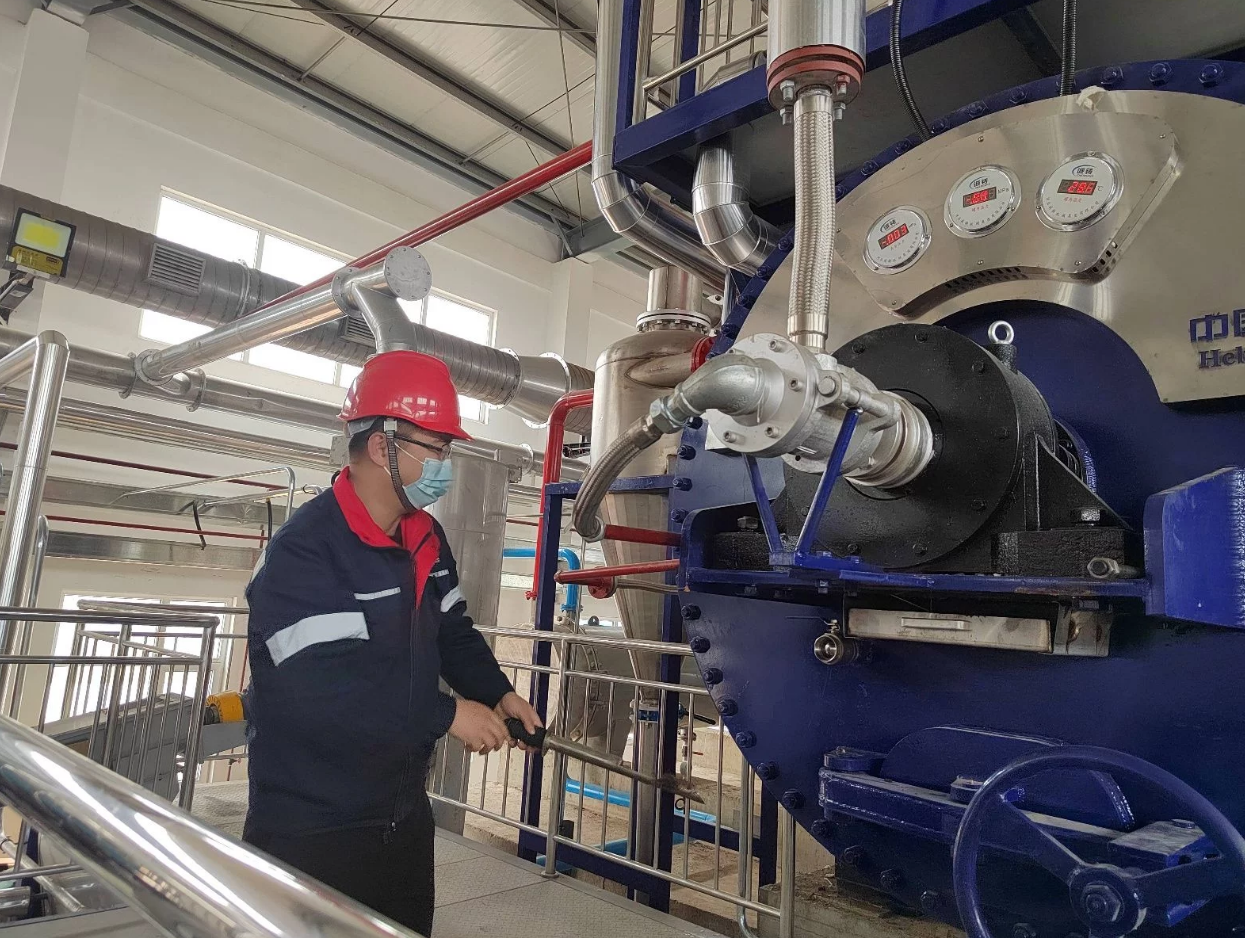

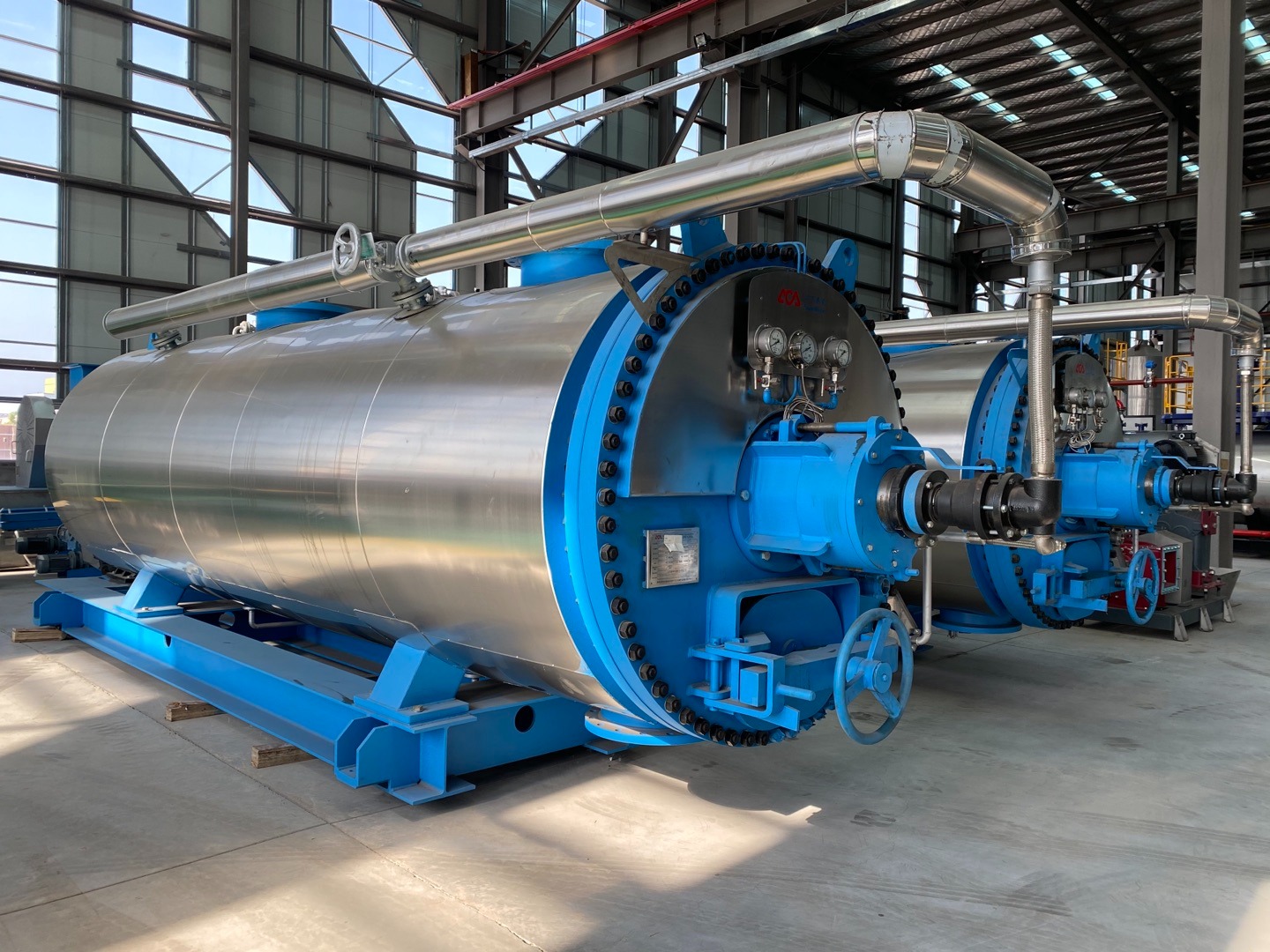

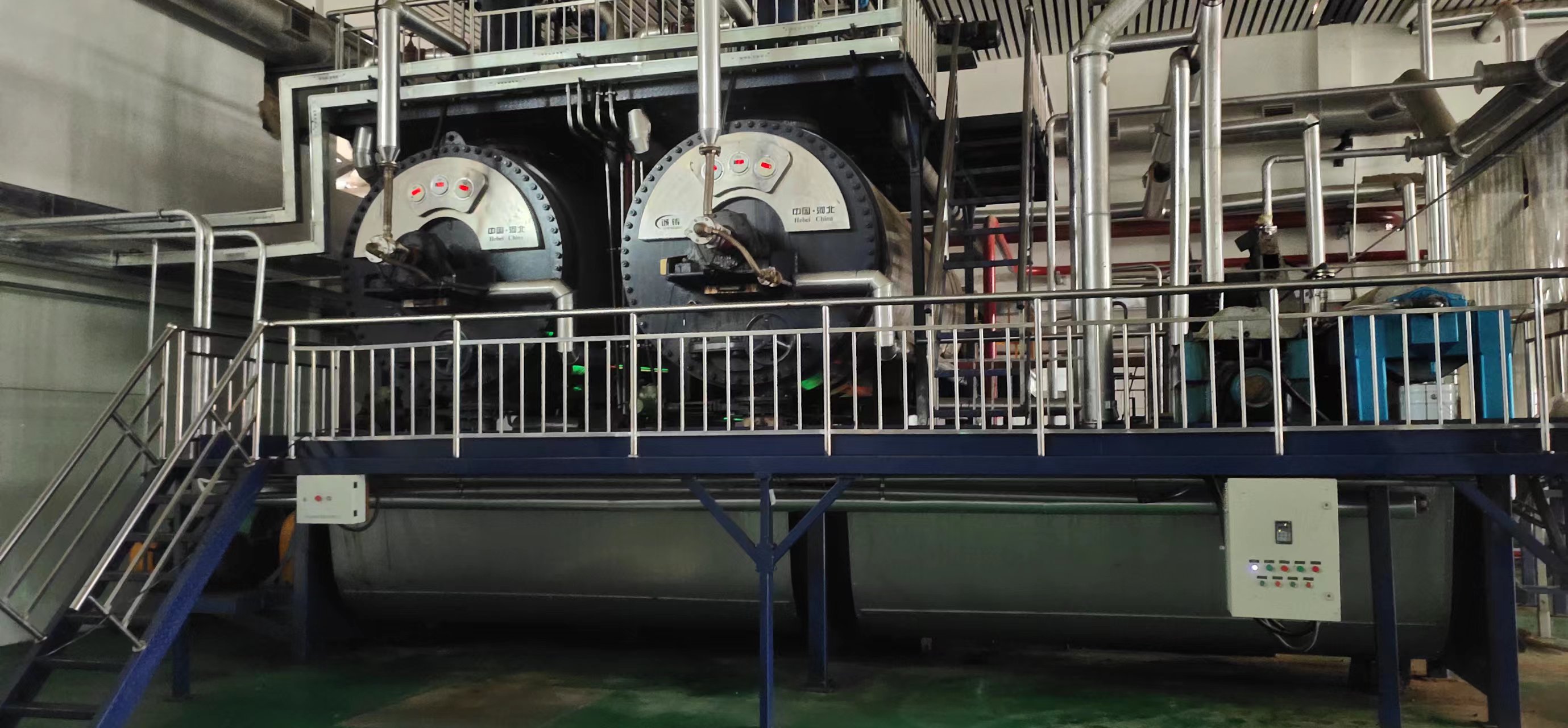

?Cook and Dry Section ? Function: Waste raw materials(feathers,animal,fur,sick livestock,animal carcasses) through the?process of high temperature and pressure to achieve the effect of sterilization and break down ? Features: Big capacity of each batch,the efficiency of sterilization is complete and safe. It could be used to break,cook,sterilization and drying. ? |
? ?  |
?
? |

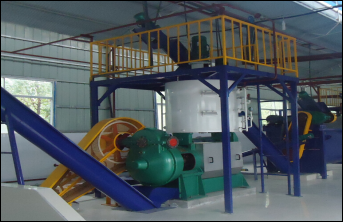

?Oil Press?Section ? The material from silo are sent to the heated pot by screw conveyor, and then go into the oil press, after oil press, we get the cake with 10-12% oil and fat ,the odor from this section collected by? pipeline and is treated together. |
?
|
?Cooling?Section ? The cake from cooker is sent to cooling system by screw conveyor(with dust collection), the tempertaure is reduced to ±5℃ room temperature. |
? |
?
|
? |
Meal Section ? Function: To reduce the size of meal. ? Features: 1.Unique crushing chamber to improve the efficiency of grinding. 2.Special rotor design program,and the harmmer sieve gap,which can meet different granularity. |
?
|
Packing Section ? ? Automaticly packing the meal. ? ? ? ? ? ? ? |
? |
?
? |
?Odor treatment section ? To seperate solids and liquids entrained in the process vapoures from cooking /drying equipment,by washing of glasses collected from several process points. |
?
|

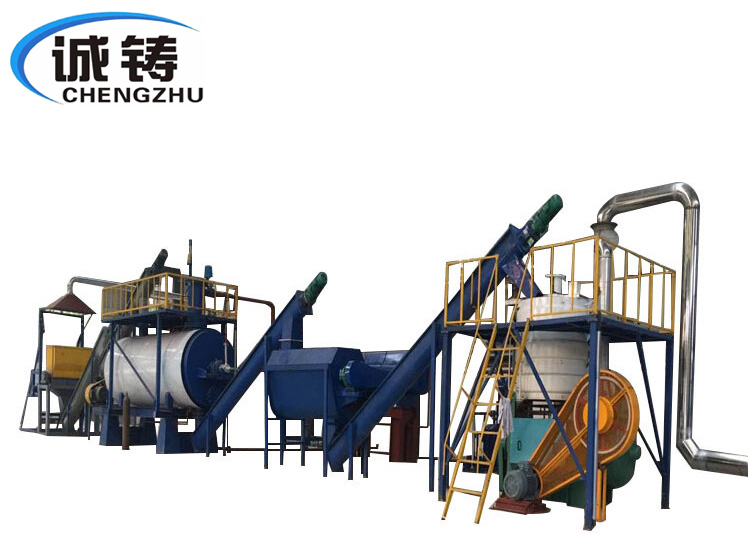

?Final Products Tallow: Moisture<1% Meat and Bone Meal: Protein≥65% ? The whole line consists of material buffer bin,conveyor,cooker dryer,grinding,packing and odor treatment system ? |
? |
?
?
| ? ?Product Features | ? | ? |
?
| ?Features | Automatic control, processing quickly, clean thoroughly to germs and environmental science processing, the production of 100% without peculiar smell, does not produce secondary pollution, processing the finished product, can bring good social benefits, is, in the world, the most recognized treatment. |
| Function | The principle of abandonment (feathers, animal fur, diseased animal and animal carcasses) is achieved through high temperature and high pressure technology to achieve the effect of sterilization and sterilization. |
| Characteristics | Single batch processing is large, the sterilization effect is safe and thorough, and integrates crushing, sterilization, sterilization and drying. |

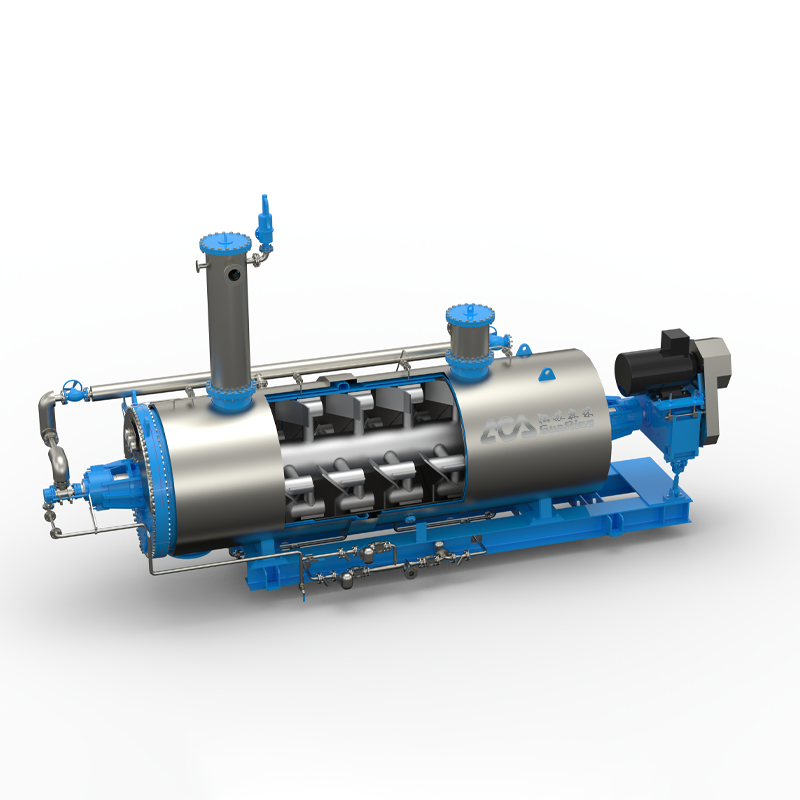

| Structure | 1. Jacket structure, filled with steam |
| 2. The stirring shaft is inflated to increase the heat exchange area and improve the production efficiency. | |
| 3. Integral steel structure bracket, can change the installation position arbitrarily. | |
| 4. It is convenient to operate with the bump type structure. | |
| 5. The external insulation is made of stainless steel plate, which can enhance the anti-corrosion ability, prolong the service life and the appearance is beautiful. | |
| 6.?Using the steam recovery system, the steam is recycled to the boiler to reduce energy consumption and save water. |
?
| ? ?Applications | ? | ? |
?
Process Flow
?
Crusher ----> ?Cooker ----> ?Dryer ----> Defatting ----> ?Cooling ----> Milling ----> Packing
?
After cleaning the feather dust, it is put into a hydrolyzed tank, hydrolyzed at high temperature and high pressure, then dried, cooled, crushed and packaged into finished products.
The hydrolyzed feather powder processing technology is relatively advanced, its outstanding characteristic is thoroughly feather Angle protein stability of spatial structure, so that it becomes soluble protein of the livestock and poultry can absorb, digest rate above 75%.Suitable for fishmeal supplement, added to fish meal, good sense, good fluidity, can improve protein reduce cost, the key is not to affect feeding effect.
?
Notes:
We can design a turnkey production line for our customers,the line including many machines,customer also can choose the one they need depend on their production ?and the founds,so no matter what requriements you have,we will try our ?best to with you?
?
?
If you need more information, please click to contact us!
?
?
?
?
?
| ? ?Company Information | ? | ? |
?
COMPANY
PROFILE__
|
Hebei Chengzhu Machinery Group Co., Ltd was founded in 2009, we specialized in contracting the project of poultry and livestock waste rending plant and slaughterhouse waste, after 20 years development and growth, we have become the company with technology research and development, processing design, product manufacturing, installation and training. Our company has developed a new type of hydrolyzed feather dusting machine, which is based on the advanced technology of European and American countries, and combined with the new generation products developed by our company for many years. ? ? |
? ? ?COMPANY ? ?CERTIFICATE ? ? ? ? ? ? Products passed ? ? ? ISO 9001 ? ? ? ?? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? MORE+ |
? |
|
?
?
?
| ? ?Our Service | ? | ? |
?
?
Pre-sale Service:
?
Your inquiry related to equipment or price will be replied within 24 hours.
Well-trained and experienced staff will answer all your inquiries in English of course.
We accept OEM&ODM projects.
We have strong R&D team here to help.
Your business relationship will be confidentional to any third party
?
After-sale Service:
1 year warranty period, please don't hesitate to contact us if you have any question with the equipment
?
