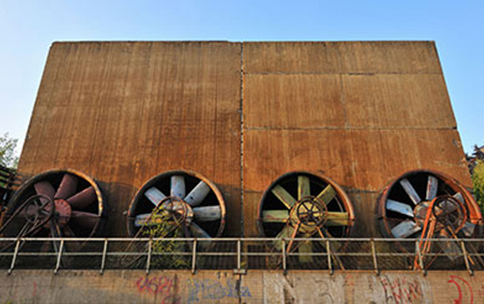

Ventilation Automatic Control System

A complete range of ventilation solutions for the paper industry. Our know-how in air-technology is the basis of effective solutions for new machines as well as existing systems.

With properly designed air systems, a significant reduction in energy costs and an increase in productivity are feasible. Effective air systems also lead to improvements in availability and quality. Moreover, they are elementary for conservation of building structure. Our products are designed for reducing energy costs and optimizing the production process and quality.

One of the major barriers to implementing highly efficient HVAC systems is the installation of oversized systems that result in inefficient part-load most of the time. In order to break the vicious circle created by this conventional practice, training workshops to upgrade professional knowledge will be necessary. Furthermore, well designed demonstration building projects that are equipped with highly efficient HVAC systems and show a proven records of energy saving and good thermal comfort performance, will be a good catalyst.

Product Features

Strong environmental adaptability: Iron Slurry Analyzer can adapt to the harsh industrial site environment.

Highly corrosive environment: The probe is made of corrosion-resistant materials and can adapt to most corrosive environments such as strong alkalis.

There are no special requirements for the composition of the materials to be measured: Ventilation Control System is not affected by bubbles; Mine Ventilation System is low affected by large particles; Mine Control System is not affected by magnetic interference.

The detection range of particle size is wide: the maximum size range of 60 percentage points can be detected, and the minimum size range of 20 percentage points can be detected.

The size fraction span is large: The particle size analyzer measurement can be achieved in the diameter of the grain between 20μm to 1000μm.

Product Parameter

The maximum detectable flow channel number           1
The number of size fraction that can be detected at the same time in each channel   ≤2
The grain diameter range that can be detected (μm)  20 ～ 1000
The nominal detectable particle size interval per size fraction (%)
Size fraction	Interval
μm：-75 ～ -850 mesh：200 ～ 20	20 ～ 80
μm：-45 ～ -75  mesh：325 ～ 200	30 ～ 70
μm：-25 ～ -45  mesh：500 ～ 325	70 ～ 95
Maximum nominal particle size span (percentage point) 30
the absolute error in the 1σ (%)                1 ~ 2
Analog output：4 ~ 20mA
Level of protection：detector：IP65；main control box：IP54
Ambient temperature：0 ~ +50℃
Medium environment：1 ~ 90℃
Medium pressure：86 ~ 106KPa
Power supply：220V AC，50Hz，50W

Product Application

It is mainly used to detect and analyze the particle size of the hard grain in the liquid and solid mixture slurry. PSI can be used in the grinding and dressing fields of black metal industry, basic metal industry, industrial mineral industry, and gold industry.
