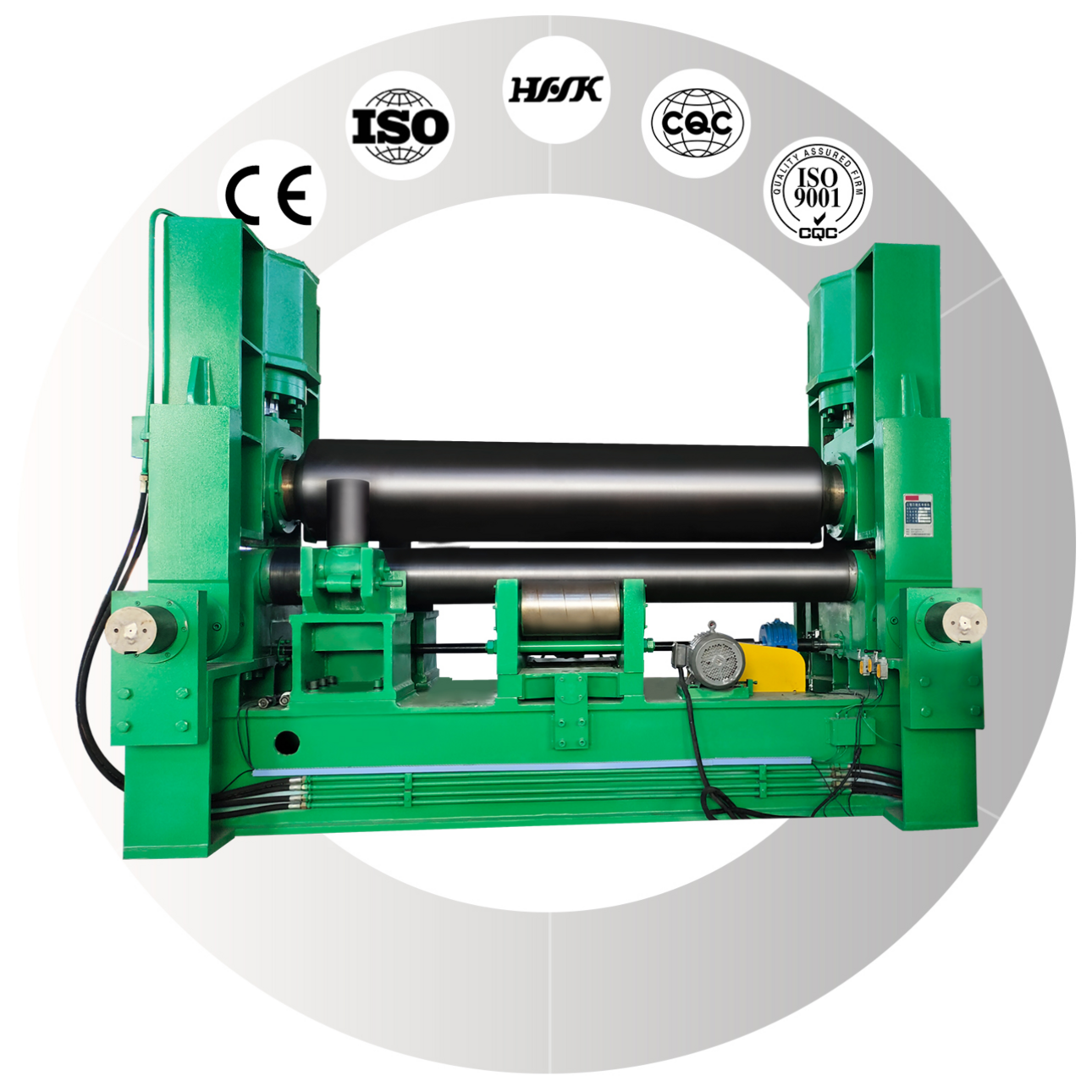

Vertical Automatic Rolling Machine: Multifunctional Solution

1 / 6

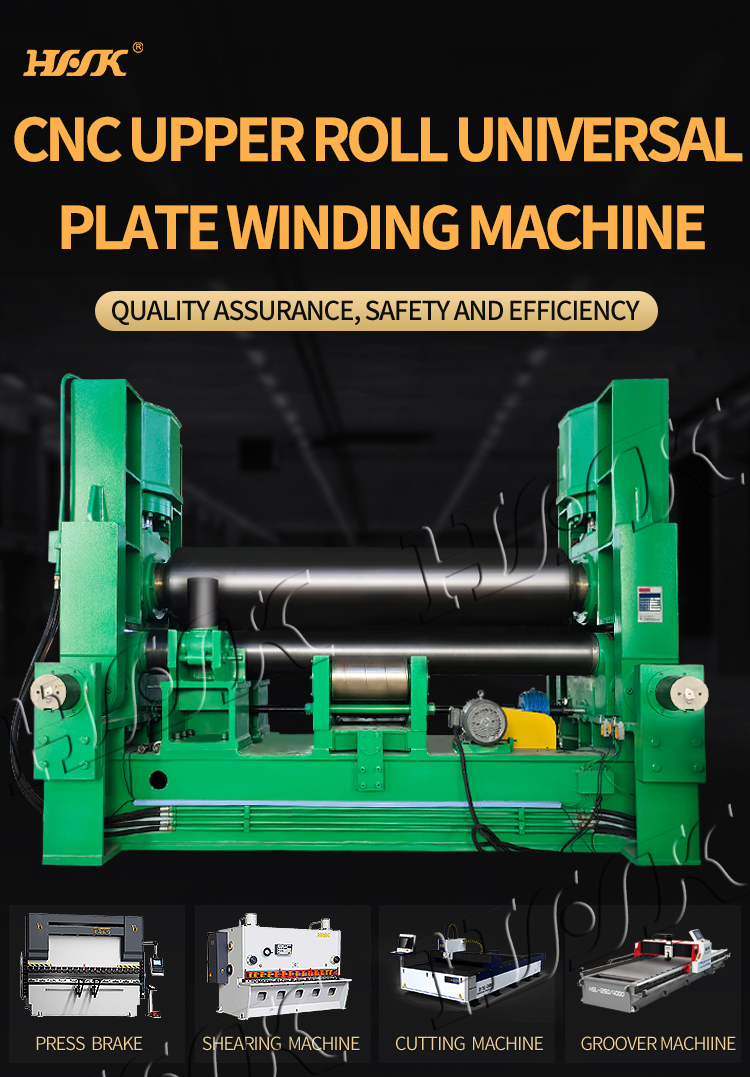

Vertical Automatic Rolling Machine: Multifunctional Solution

$2000.00

≥1 set
$1700.00

≥5 set

Options:

3/4-roller rolling machine 48

Get Latest Price

You might also like

Automatic Pipe Roll Forming Machine Profile

1 set (MOQ)

High-Accuracy Hydraulic CNC Tube 3-Roller Plate Rolling Machine

1 set (MOQ)

Easy to Operate 3-Roller 12mm CNC Rolling Machine

1 set (MOQ)

High-Safety-Level CNC Roll Bending 4-Roll Machine

1 set (MOQ)

Vertical Automatic Rolling Machine: Multifunctional Solution

1 set (MOQ)

Automatic 10mm to 40mm Plate Rolling Machine for 20mm Plates

1 set (MOQ)

Automatic 2 Meter Roller Sheet Metal Rolling Machine

1 set (MOQ)

W11 CNC Hydraulic Cone Rolling Bending Machine for Aluminum and Steel Plates

1 set (MOQ)

Competitive Price Iron Bending Three Roller Rolling Machine" could be suitably condensed to: "Iron Bending Three Roller Rolling Machine - Competitive Price

1 set (MOQ)

Competitive Price Boilie Copper Manual Sheet Metal Rolling Machines

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place Of Origin	Jiangsu, China
Brand Name	HUNSONE
Condition	New
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty Of Core Components	2 years
Core components	Plc
Material / Metal Processed	Aluminum, Carbon steel
Automation	Automatic
Year	2023
Weight (KG)	5000 KG
Motor Power (kW)	11 kW
Warranty	2 years, 2 Years
Key Selling Points	Multifunctional
Applicable Industries	Manufacturing Plant
Showroom Location	Canada
Keyword	vertical rolling machine
Raw Material	Sheet
Application	Steel Plate Sheet Rolling
Usage	Metal Sheet Rolling Bending
name	4-roller Plate Rolling Machine
function	Roll Bending Plate
Type	W11/W11S/W12NC
Power	Cnc
Material	Stainless Steel Metal Sheet

Product description

Products Description

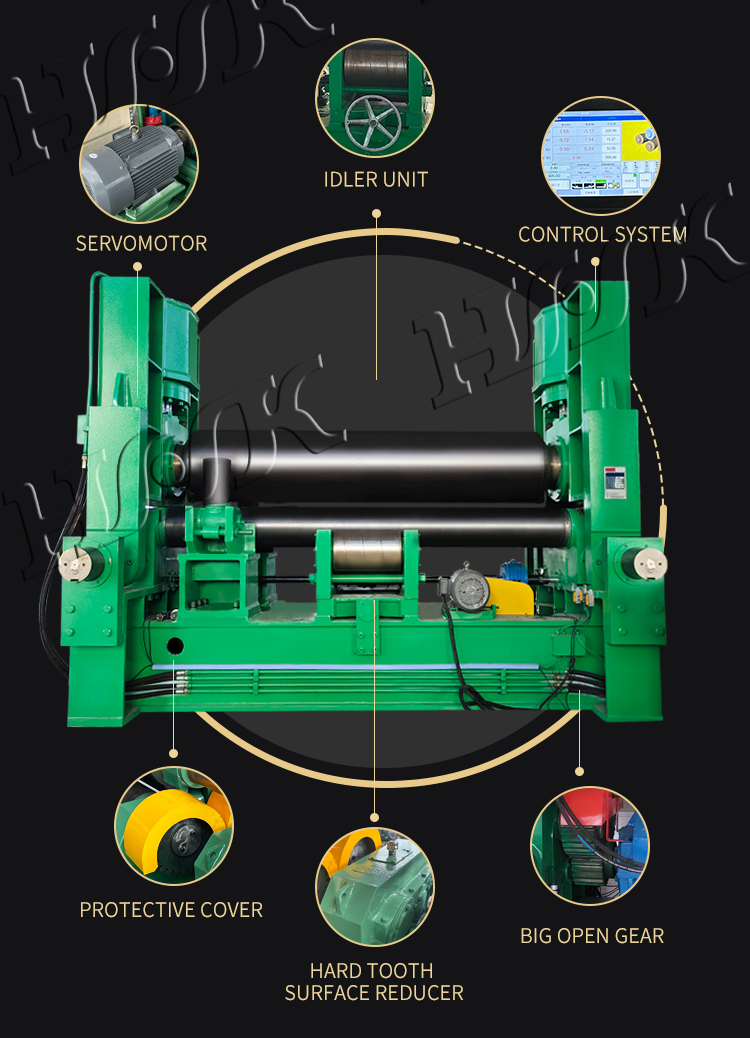

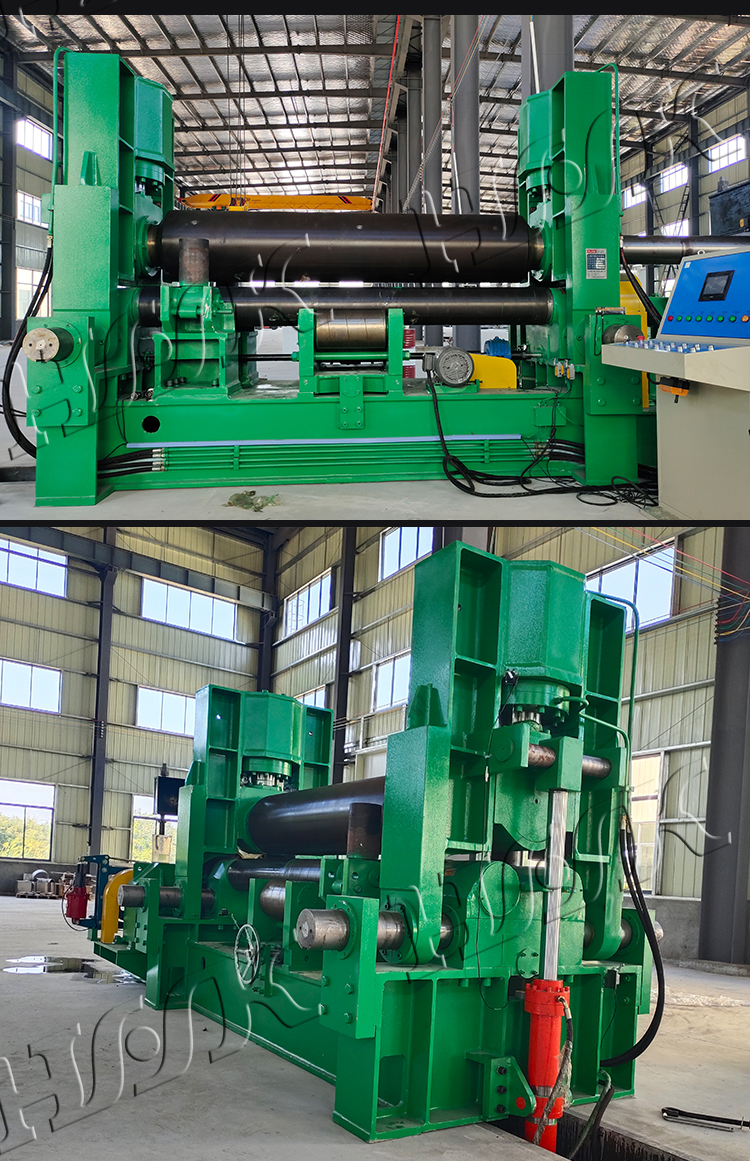

Details Images

Technical parameter

Model	Pressure	Max.rolling			Max.rolling	Upper roller	Down roller	Rollers	Motor
	Pressure			thickness		Upper roller	Down roller	Rollers	Motor
		(Ton)	(mm)		Max.rolling		length	diameter	diameter	distance	kw
				Pre-bending	Max bending	mm	mm	mm	mm	Driving	Hydraulic
				mm	mm	mm	mm	mm	mm	Driving	Hydraulic
6x1500	25	4.8	6	1500	175	125	160	3	2.2
6x2000	25	4.8	6	2000	195	125	160	3	2.2
6x2500	25	4.8	6	2500	205	135	180	3	2.2
6x3000	37	4.8	6	3000	215	135	180	4	2.2
8x1500	25	6.4	8	1500	175	125	160	3	2.2
8x2000	25	6.4	8	2000	195	125	160	3	2.2
8x2500	37	6.4	8	2500	205	135	180	4	2.2
8x3000	45	6.4	8	3000	215	135	180	4	2.2
10x1500	37	8	10	1500	205	135	180	4	2.2
10x2000	45	8	10	2000	215	135	180	4	2.2
10x2500	45	8	10	2500	235	135	180	4	2.2
10x3000	65	8	10	3000	245	135	180	5.5	4
10x4000	75	8	10	4000	255	150	245	7.5	4
12x2000	65	9.6	12	2000	250	145	200	5.5	4
12x2500	65	9.6	12	2500	255	150	245	5.5	4
12x3000	75	9.6	12	3000	270	150	245	7.5	4
12x6000	100	9.6	12	6000	290	150	245	15	5.5
16x2000	75	12.8	16	2000	255	150	245	7.5	4
16x2500	100	12.8	16	2500	270	150	245	15	5.5
16x3200	100	12.8	16	3200	290	150	245	15	5.5
16x6000	190	12.8	16	6000	300	165	270	22	7.5
20x2000	100	16	20	2000	325	165	270	15	5.5
20x2500	130	16	20	2500	330	180	300	15	5.5
20x3000	160	16	20	3000	350	180	300	18.5	7.5
20x4000	190	16	20	4000	360	200	330	22	7.5
20x6000	380	16	20	6000	375	200	330	45	22
25x2000	160	20	25	2000	330	180	300	18.5	7.5
25x2500	190	20	25	2500	350	180	300	22	7.5

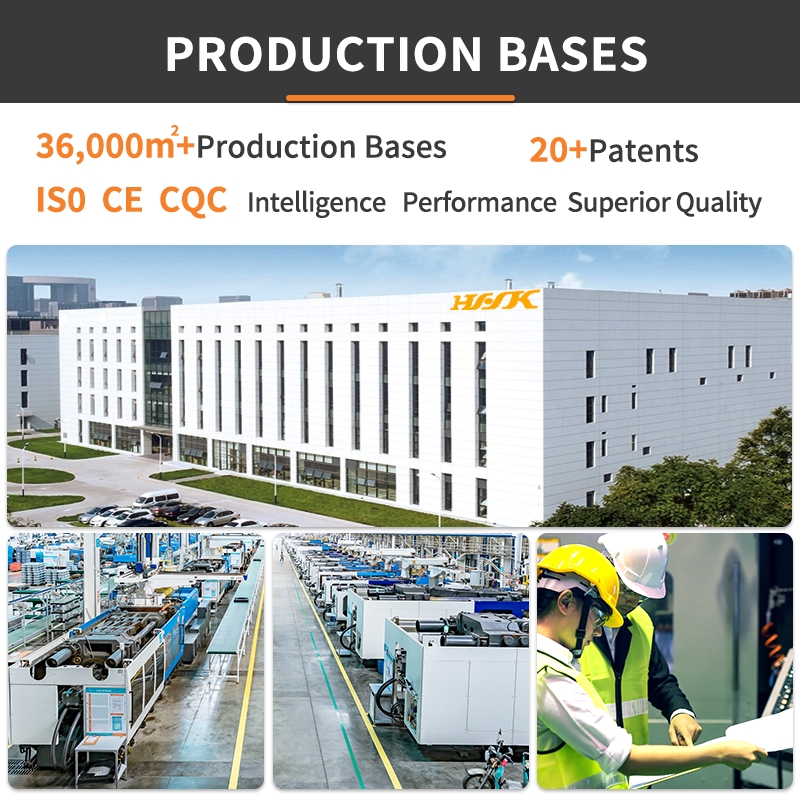

Why choose us?

HUANGSHI (HANSEN) supply press brakes, shearing machines, Ironworker, and grooving machines to the global market with good quality and competitive prices. And our machines are strictly according to CE, and ISO9001 standards.

We use the European Belgium forging machine tool production technology. Exported to Europe, America, the Middle East, South Africa, Southeast Asia and more than 30 countries and regions. We have a professional R & D team with world-class design and manufacturing capabilities.

PRODUCT CERTIFICATE

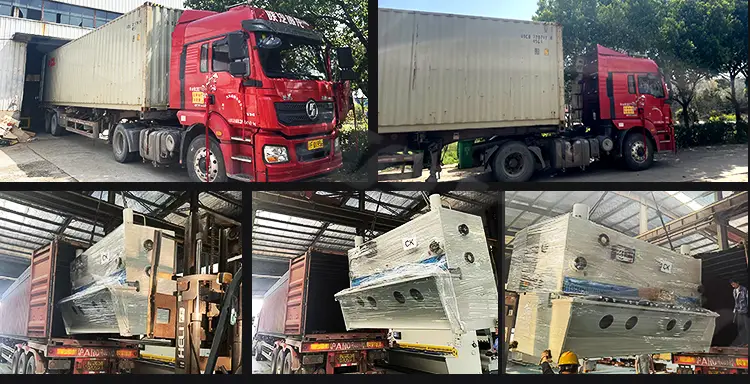

Product packaging

Packing? transportation

Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time

1. How can I choose the most suitable machines ?

A: Please tell me your metal sheet size, or please send us the products drawing ,we will choose the most suitable machines for you.

2. Leading time 30 days, sometimes, we have it in stock. 3. Payment term 30 % T/T in advance and 70 % before shipment usually. Or Irrevocable L/C at sight. Or payment on Alibaba.

4. Warranty 2 years. Apart from the accident of human damage. 5. After-sales service Free online training, If the clients require onsite training, they need to bear return airfare, and accommodation, and the cost of an engineer is $100 per day. 6. Shipping fee Please tell us your nearest sea port, we can check the freight for you, we can make CFR and CIF trade term too.
