Viscoelastic Pipe Wrap Adhesive Tape
$2.60
≥800 Roll
Basic Info
| Model No. | T800 |
|---|---|
| Brand Name | XUNDA OR OEM |
| place of origin | China |
| Plastic molding process type | Extruding |
| Processing Service | Cutting |
Product description
Jining Xunda Pipe Coating Materials CO.,Ltd
XUNDA Company offers a wide range of coating systems that meet the rigorous demands ofon-land and off-shore pipelines. Through aglobal network of certifed applicatiors, the plant coating specifications and quality standards are rigorously monitored, thus ensuring reproducible long-term coating performance the end-user.
XUNDA cold-wrapped tape has several anti-corrosion systems: Butyl Rubber Pipe Coating, in this system, Pipeline Anticorrosion Tape And Pipe Corrosion Protection Tape are the most favored by customers. PE Bitumen Tape also includes PE bitumen tape and PP bitumen tape. At present, Viscoelastic Tape system is more popular in the world. The Viscoelastic Tape provides customers with a variety of solutions with high quality.

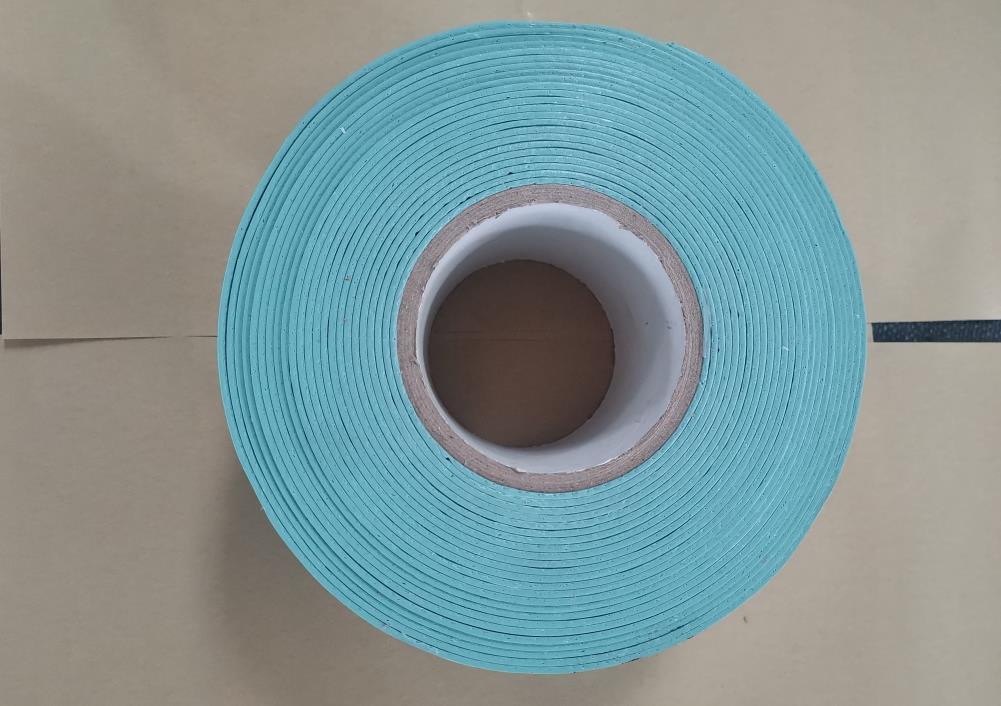

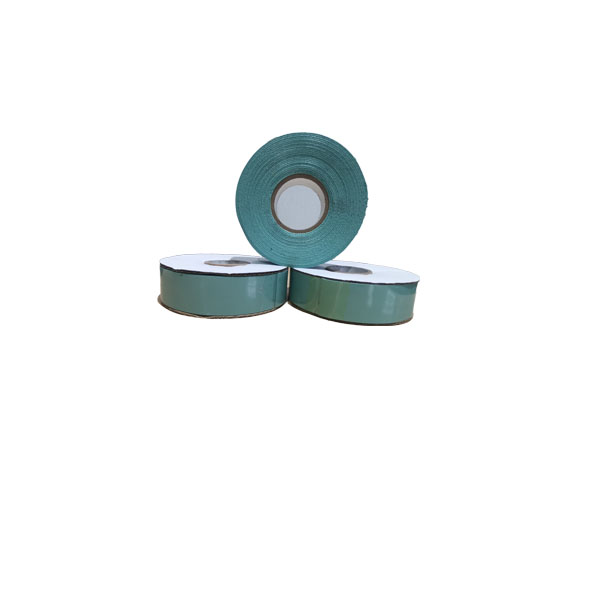

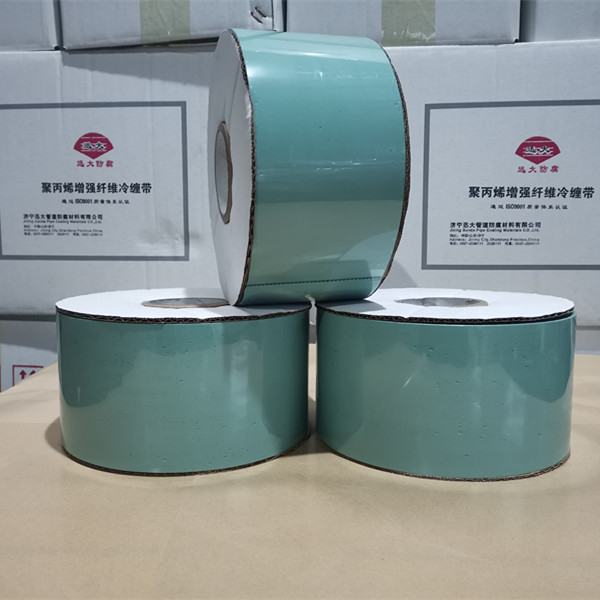

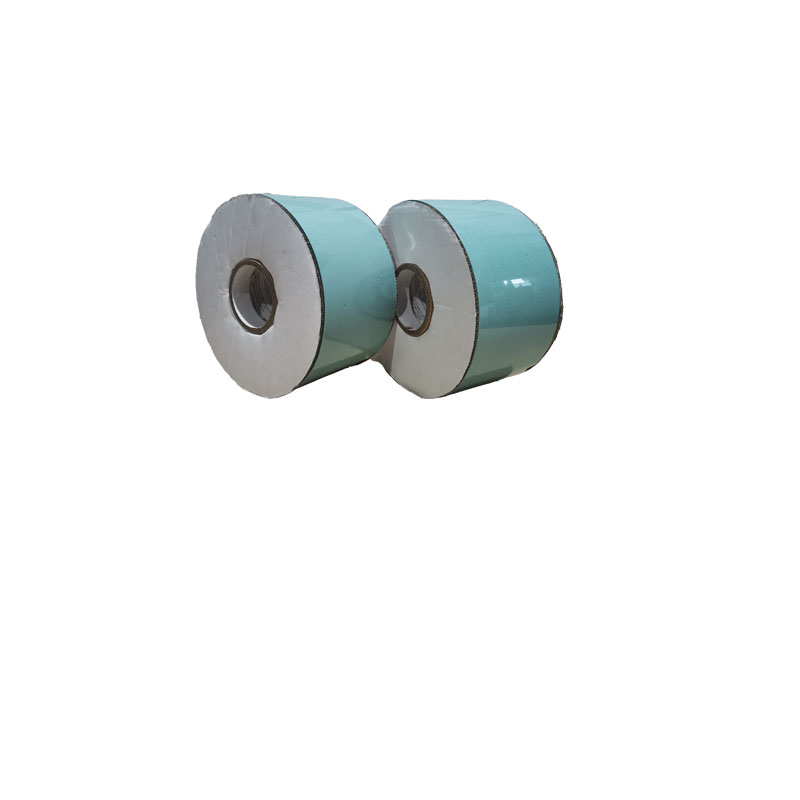

XUNDA T800—— Viscoelastic Pipe Coating system
Description:
Viscoelastic tape is a new-type high-performance visco-elastic polyolefin material. It preserves the dual characteristics of the solid adhesive material and liquid adhesive material. In normal conditions, its visco-elastic property will keep above 30 years. This product has excellent visco-elastic, sound water-proof and easy-used characters.
visco-elastic tape Non-crystalline low-viscosity polyolefin coating
product feature:
l It can be use in the surface of steel, PE, PP, FBE etc. directly.
l Completely compatible to other coating (three-layer PE, PVC,CTE-coating, asphaltum)
l Excellent chemical resistance and sealing, it is completely water-proof.
l It can be self-repair for light defects.

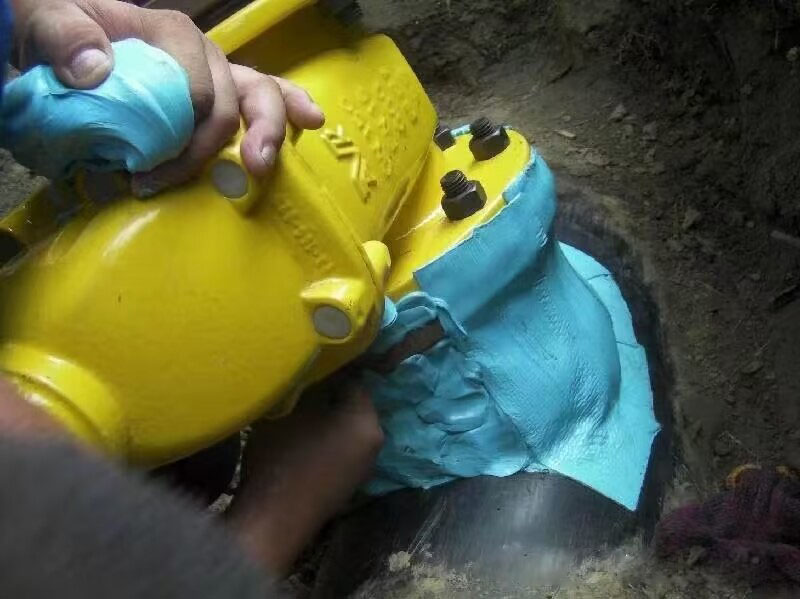

l It is useful to pipeline joint anticorrosion and repair, also for elbow pipe, pipe bending, three joints and insulated flange.
l Widely applicable temperature (it can be installed between -45°C~70°C).
l The Construction Quality can be handled. It seldom affects by the environment and the operator.
l It can be stored in long time and the material it adopts is eco-friendly.
Performance of visco-elastic tape Non-crystalline low-viscosity polyolefin coating
|
Item |
Test method |
Performance |
|
color |
Visual estimation |
green |
|
thickness |
ASTM D 1000 |
≥1.8mm |
|
application temperature range |
----- |
-45~70°C |
|
Specific Insulation Resistance |
EN 12068 |
≥108Ω.m2 |
|
Dielectric strength |
DIN 53481 |
≥10kv/mm |
|
peel strength @ (23 ℃) to PE to Steel to FBE |
ISO 21809-3 |
4N/cm 5N/cm 6N/cm |
|
Lap Shear @ 23℃ |
ISO 21809-3 |
0.04N/mm2 |
|
Water Absorption |
ASTM D 570 |
0.03% |
|
Impact Resistance |
EN 12068 |
＞ 15J |
|
Cathodic Disbandment |
EN 12068 |
≤20 mm-rad |
|
Drip Resistance @85 ℃ for 72 hours |
----- |
No dripping |
|
Chemical Resistance 10% HCL,10%Na OH, 3%NaCL for 90 days |
----- |
Pass |
|
Hot water immersion @60℃ for 120 days |
---- |
Pass |
Hot Tags: Pipe Anticorrosion Tape,Pipe Corrosion Protection Tape,3-ply Adhesive Wrapping Tape,PE Bitumen Tape，PE Anticorrosion Bitumen Tape,Aluminum Foil Waterproof Pipe Tape,Waterproof Aluminium Tape,Viscoelastic Pipe Coationg,Self Adhesive Bitumen PE Pipe Tape,China, manufacturer, supplier, High quality and competitive price
