VSM Multi-sizer API screen

$50.00 ~ $60.00 / Piece/Pieces

Get Latest Price

Model No.	VSM Multi-sizer screen
Brand Name	Dongrui

Replacement Primary Screens for Lower Deck of Brandt VSM 300 Shaker

Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Body Material: Q235 steel/composite.
Screen Type: pretension, Repairable.
Screen Angle: 7°.
Screen Layered: Single, dual or triple layered.
API RP 13C Designation: API 10 – API 325.
Color: green, black.
Package: 2 pcs per carton, 20 pcs/wooden case.

SJ-VSM 300P primary shale shaker screen is manufactured for the replacement screen which compatible with Brandt VSM 300 shale shaker. It is installed on the lower (primary) deck of the VSM 300 which mounted on a constant 7° ramp. Primary screen offers a higher throughput capacity and ensures consistent conveyance of solids thus minimize the solids build-up.

Adaptable Shale Shaker Model

SJ-VSM 300P primary shaker screens are used as the substitute screen for

Lower deck screen (4 screens) of Brandt VSM 300 shale shaker.
Brandt VSM 300 vibrating screens.
Brandt VSM 300 mud cleaner.

Product Description

Model Of Shale Shaker Screen	Mesh Range	Dimension	Weight
Brandt VSM 300 Scalping	10-325	940*676mm	11kg
Brandt Steel Frame VSM 300 Primary	10-325	885*686mm	11.1kg
Brandt Composite VSM 300 Primary	10-325	885*686mm	8.8kg
Brandt VSM 300 Secondary	40-325	686*208mm	3kg

VSM 300 shale shaker screen is a popular screen. Clients selected such shakers as the multiple decked shaker provide better filtration result. Among 3 decked screen, primary screen is the most popular one and inquired frequently.

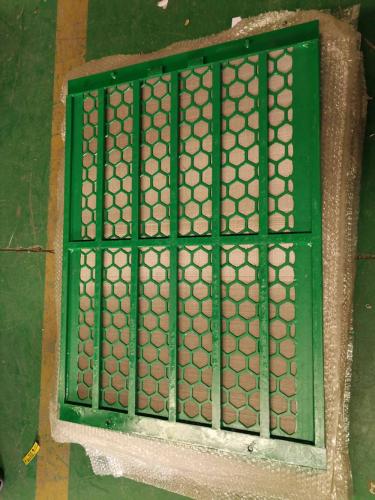

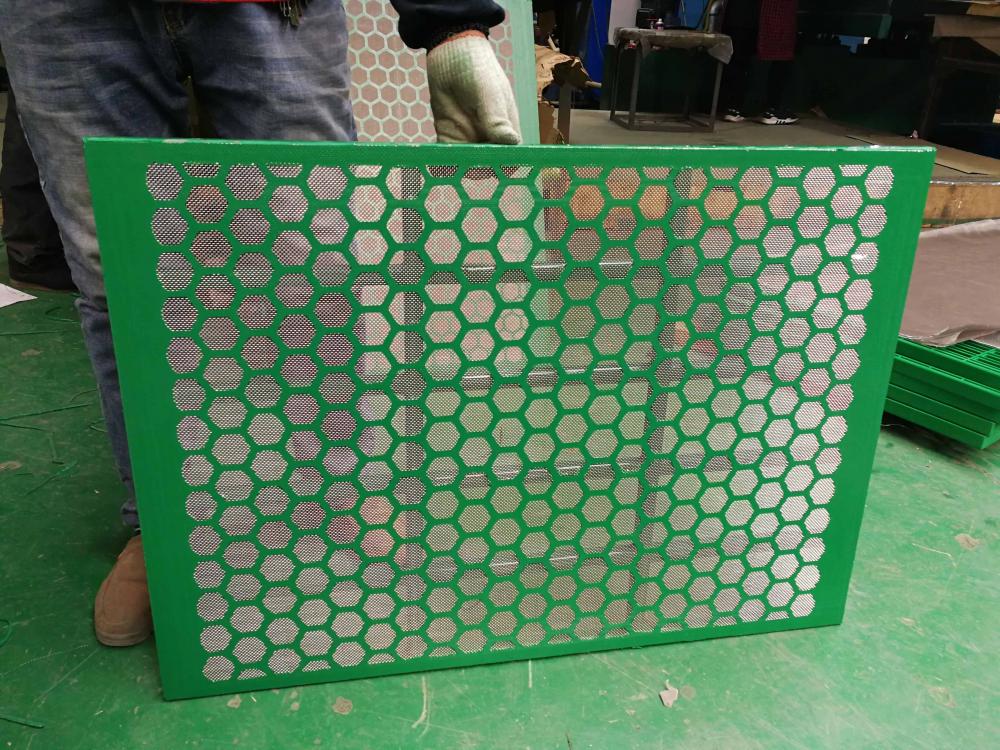

For the primary screen, there are steel framed, composite framed for options. Flat frame screen panel and corrugated panel. While the scalping and secondary deck will be steel framed.Presently, more and more users prefer composite screen replacing VSM 300 primary screen. Composite frame screen is the replacement for primary deck of Brandt VSM 300 shaker. Mesh size is available from API 40 to API 325.

Mesh size is from 10 mesh to 325 mesh. According to certain screen deck, mesh size will differ from each other. And the filtration result, separation efficiency are different as well. For example, the scalper screen is almost coarser than API 60.

Features Brant VSM 300 Shale Shaker Screen:

1.Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better.

2.High strength frame, multi-ribs and the mesh cloth with moderate tension , from one reliable combination , which can increase screen’s acceptable flow , the intensity and the lifetime

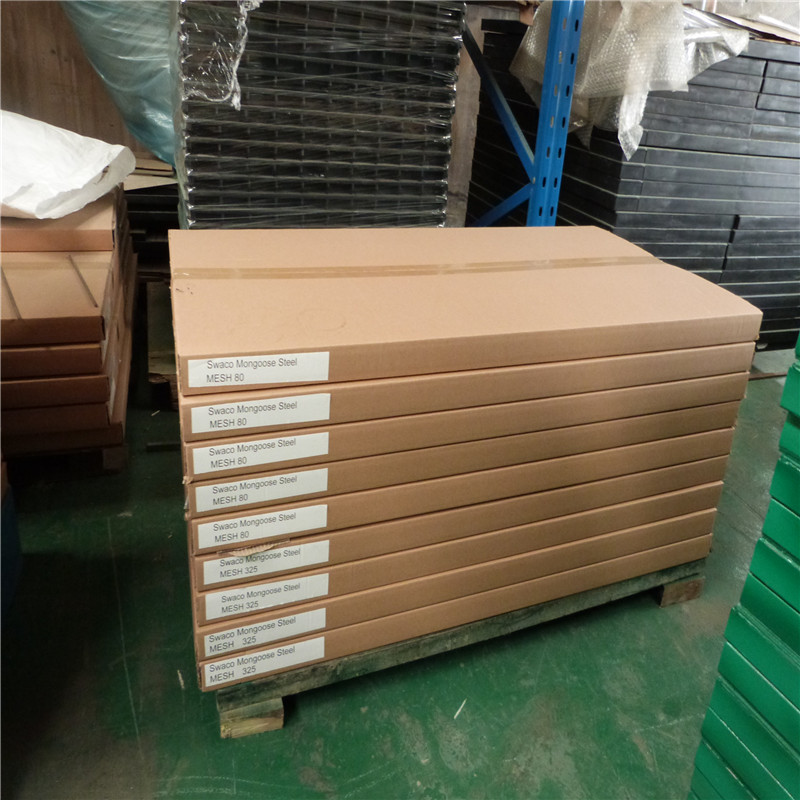

packaing&shipping
