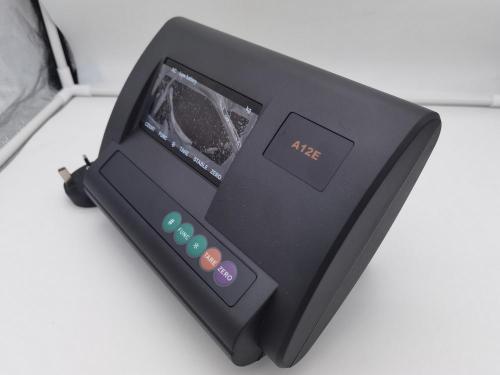

Oiml Digital Weighing Indicator For Truck Scale Floor Scale Platform Scale A12E

Main functional parameters

◆Using plastic shell, strong anti-interference ability
◆Chinese display, simple operation.
◆Accuracy:Level3 , n=3000
+Input signal range : -16mV ~ 18mV
◆Switch speed: 10 times per second
◆Display: 7-bit LED, 7 state indicator, 3 power indicator symbols
◆Mode of transmission: RS232C/RS422 (optional) / Rs485(optional)
◆Large screen display interface (optional): serial output mode;The signal transmission distance is less than 30 m.
◆Baud rate : 600/1200/2400/4800/9600 optional.
◆Alternating current power supply : AC220V ( -15%~+10%) ; 50Hz( -2%~+2%).
◆Use temperature : 0~40°C.
◆Relative humidity :≤80%RH.
◆Storage temperature: -25 ~ 55°C. .
◆Dead-weight: 2.5kg
◆Dimension:310x195x 186 ( mm )
