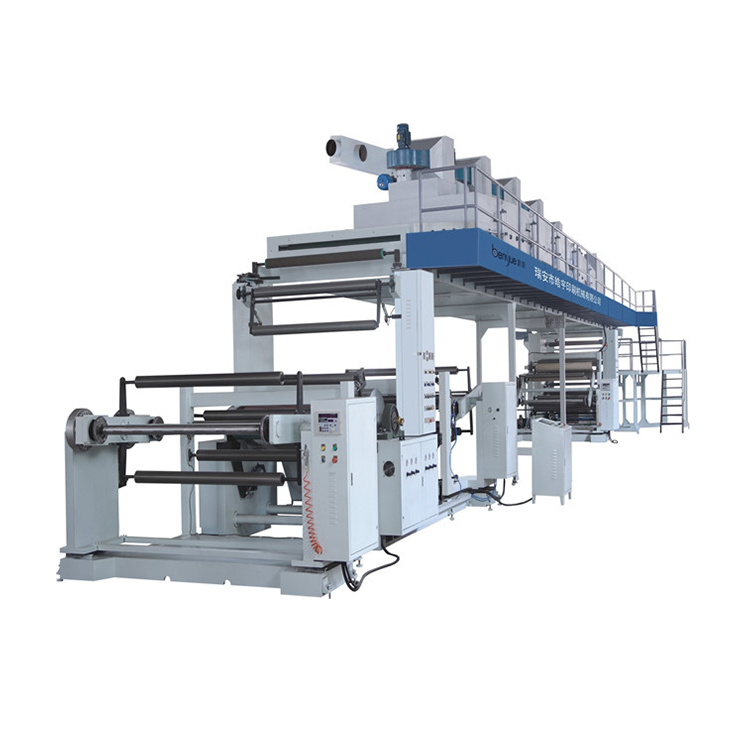

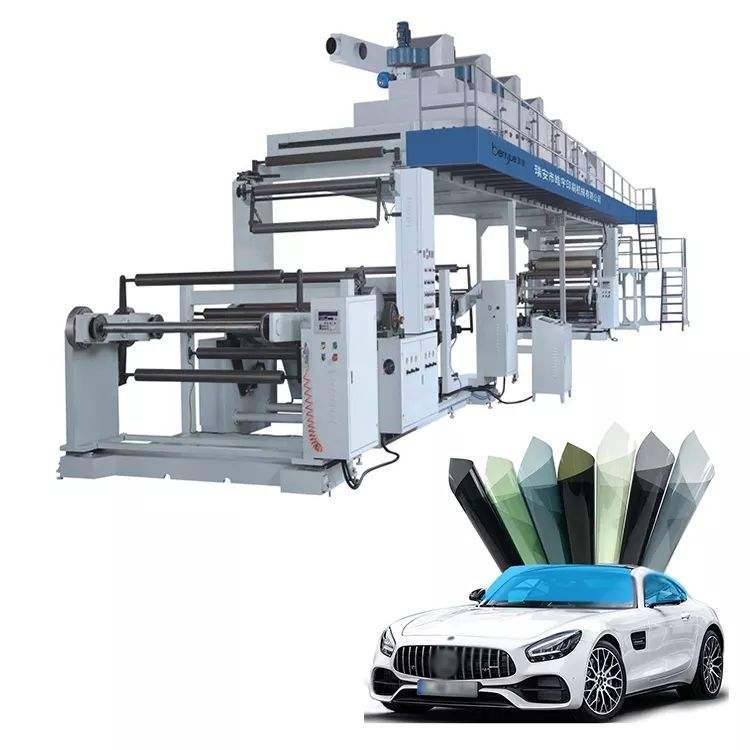

Window Glass Protective Films Coating Machine
$100000.00
~ $400000.00
/ set
power:
- 55KW
Options:
- TB600-2500B
- Customizable
Get Latest Price
You might also like
Basic Info
| Video Outgoing-inspection | Provided |
|---|---|
| Machinery Test Report | Provided |
| Core components | Plc |
| Application | window film |
| Automatic Grade | Automatic |
Show More
Product description
Model | TB600~2500B window film coating machine |
Coating method | comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot die coating /micro gravure coating?（Can be customized） |
Coating width | 600-2500MM? （Can be customized） |
Unwinding diameter | 600-1500MM?（Can be customized） |
Winding diameter | 600-1500MM?（Can be customized） |
Coating?thickness | 2-300g/square meter |
Coating speed | 10-300m / min (depending on material) |
Heating method | Electric heating, oil heating and natural gas heating |

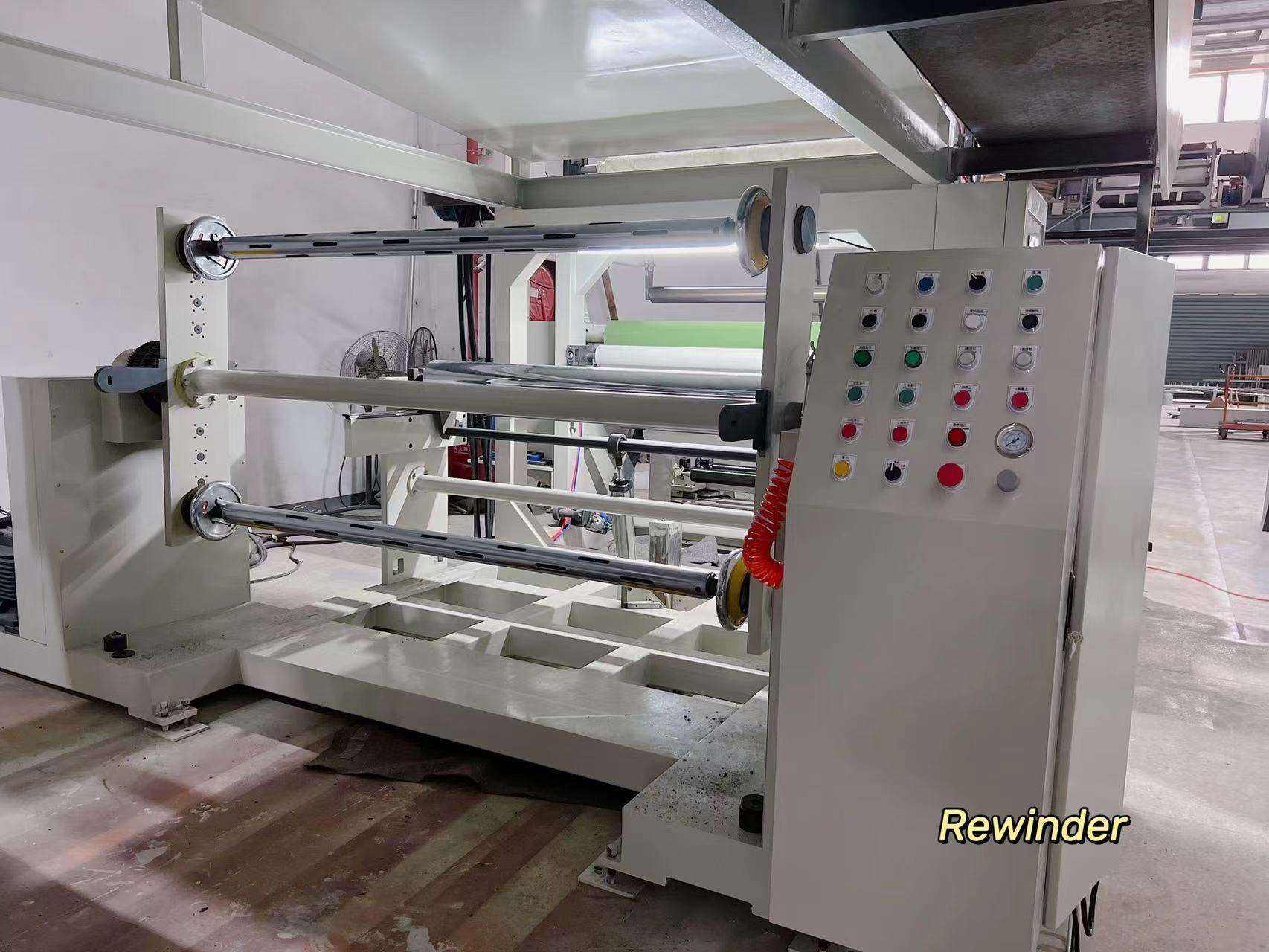

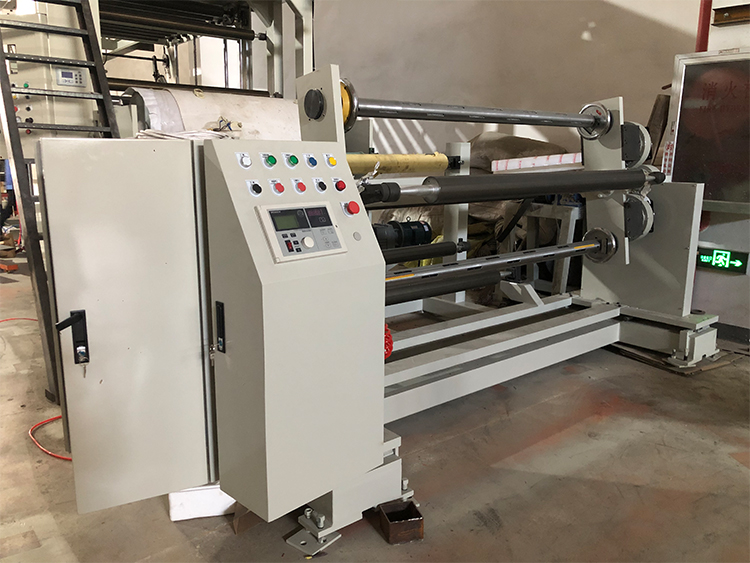

Rewinding

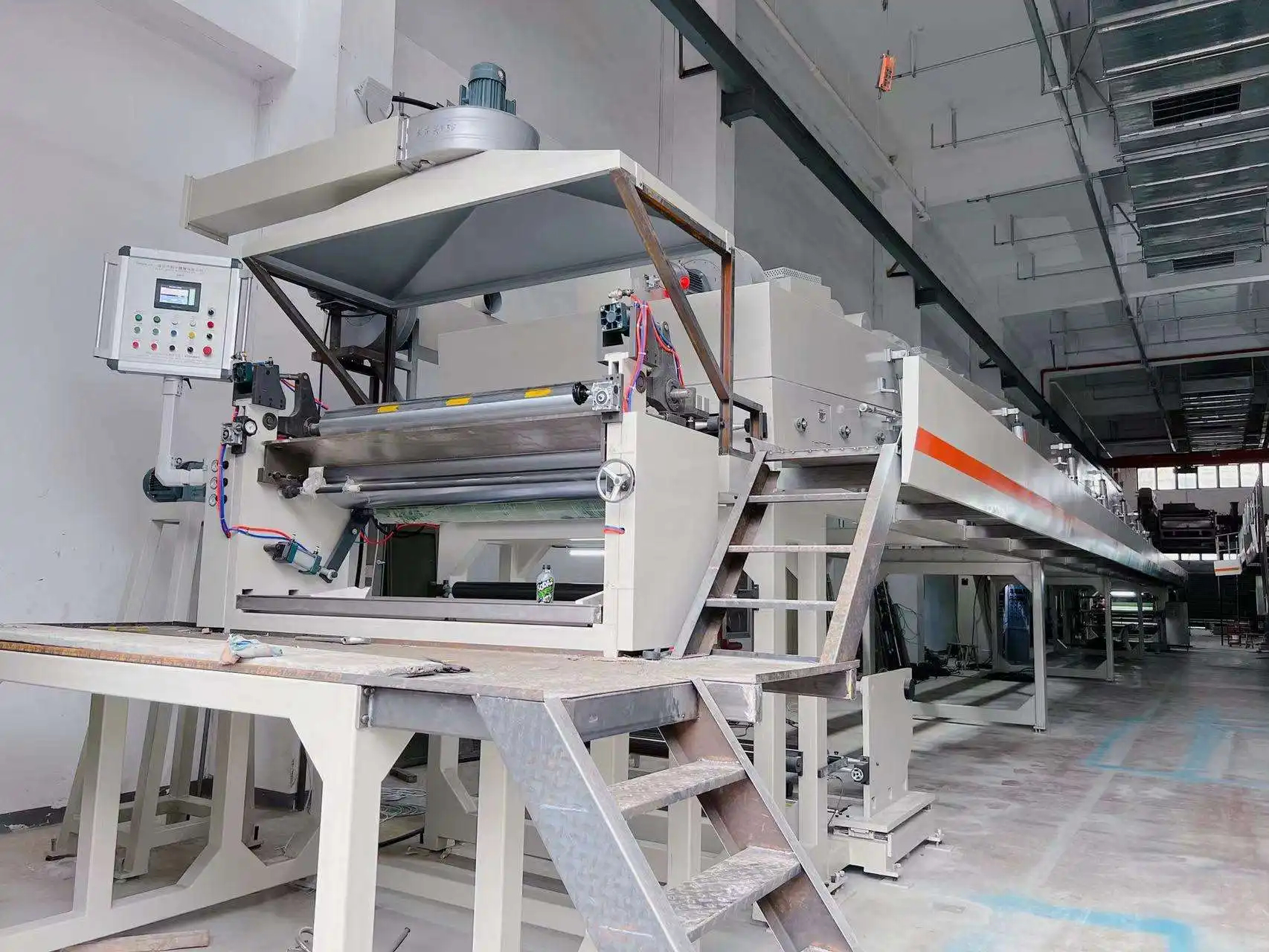

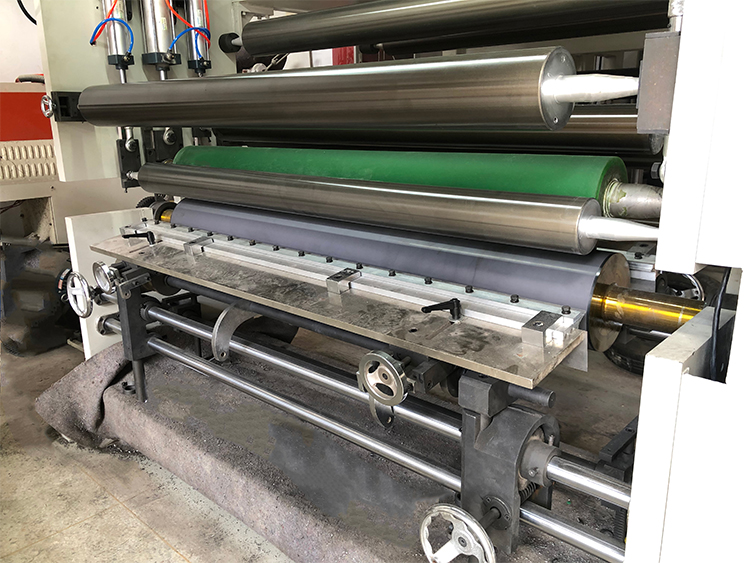

Coating
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot
die coating /micro gravure coating （Can be customized）
die coating /micro gravure coating （Can be customized）

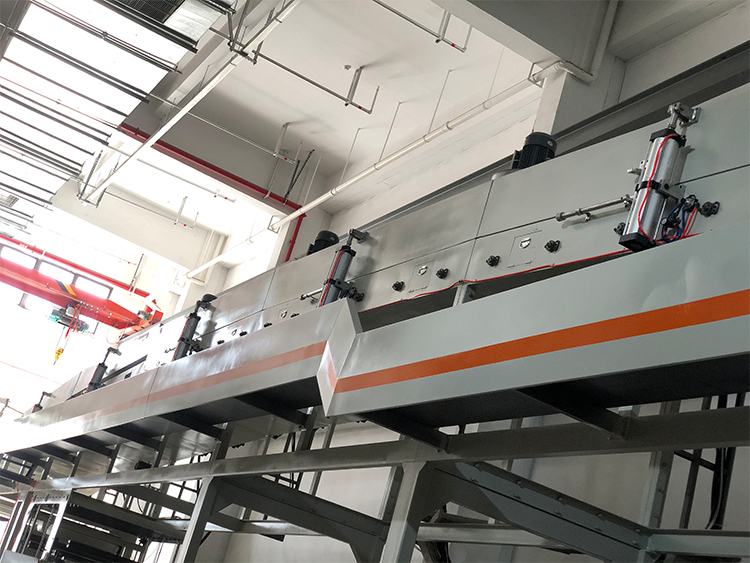

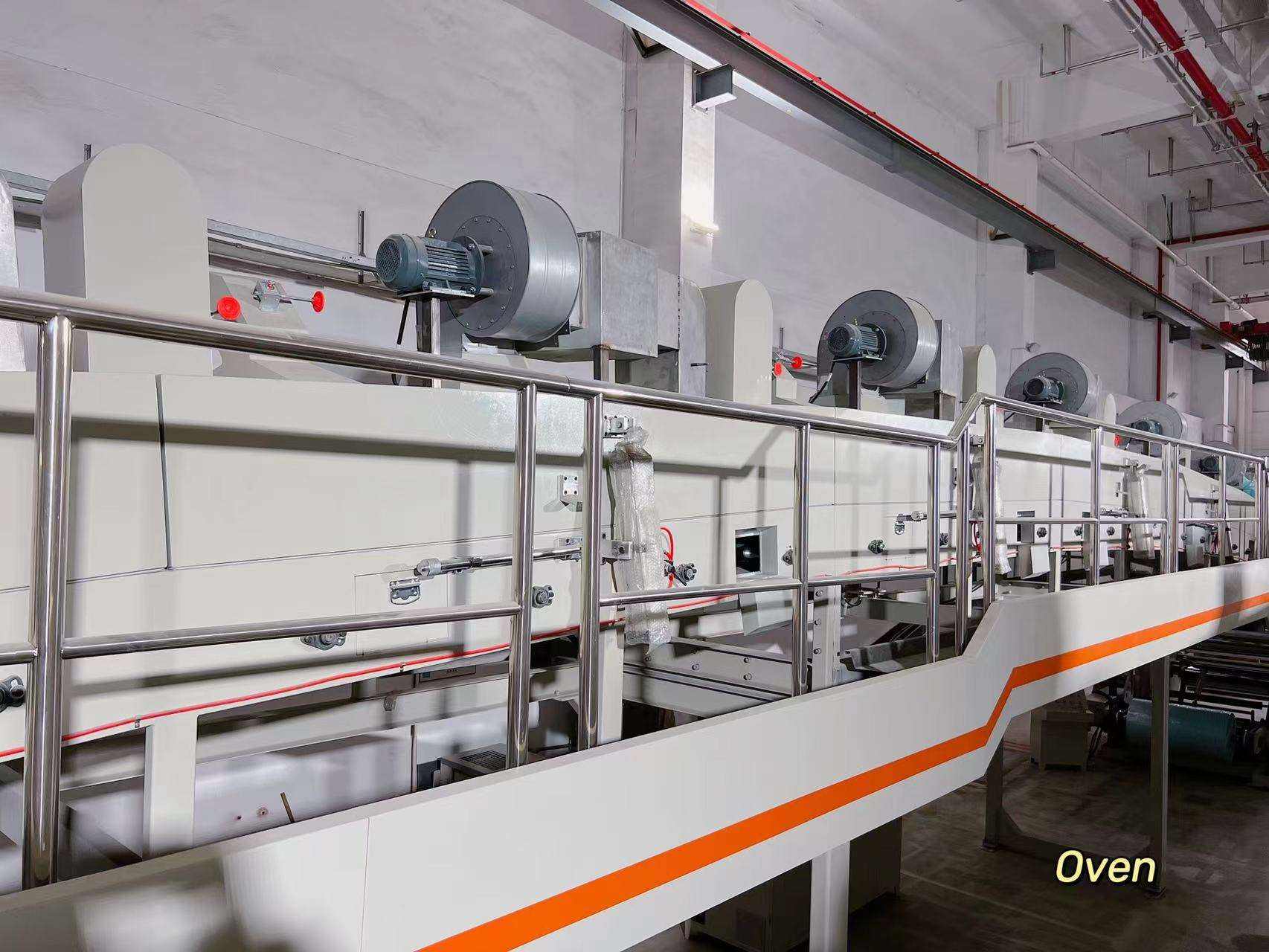

Oven heating
oven heating method: electric heating, conduction oil heating, gas heating, steam heating etc can be choosed by customer

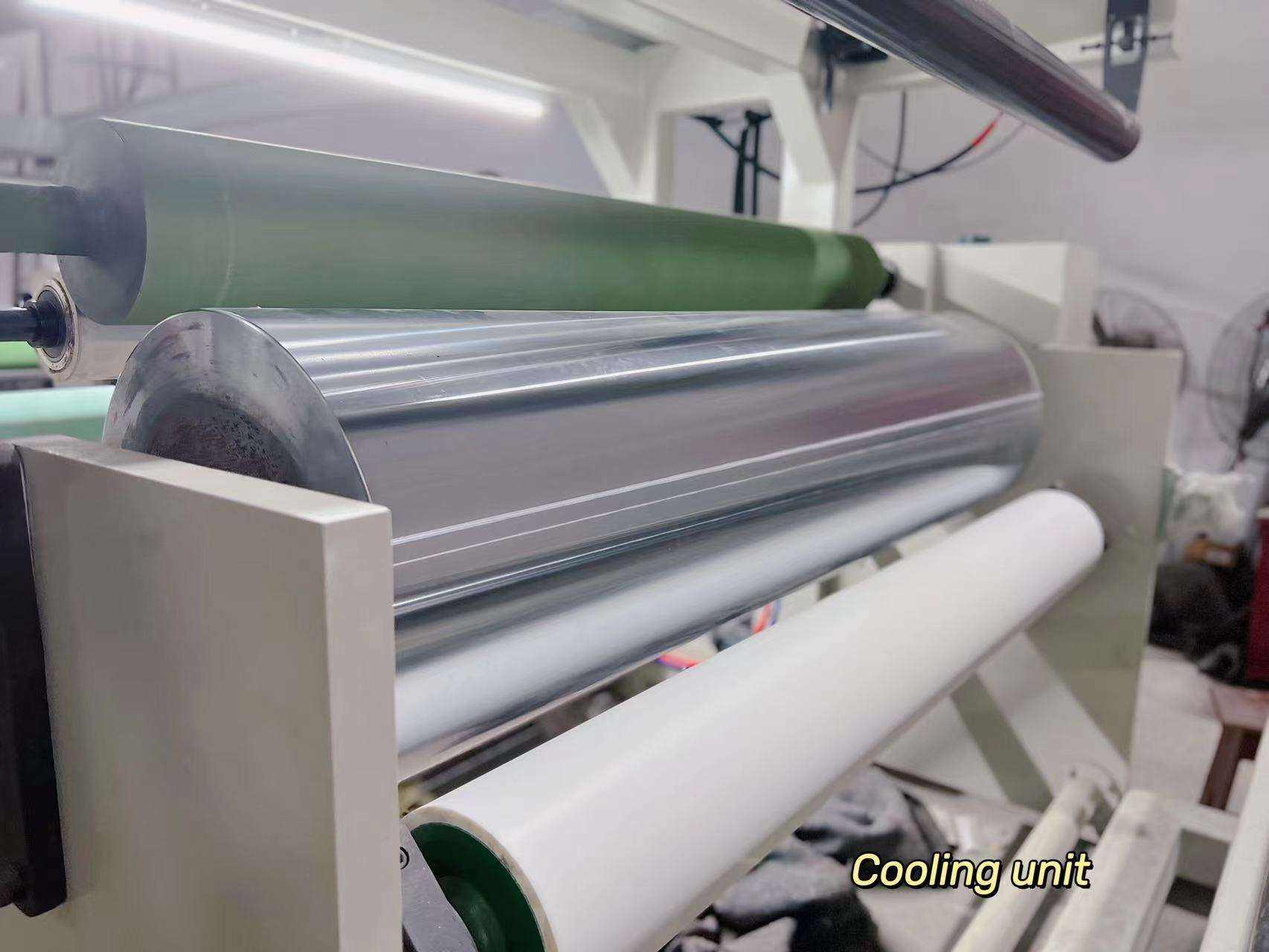

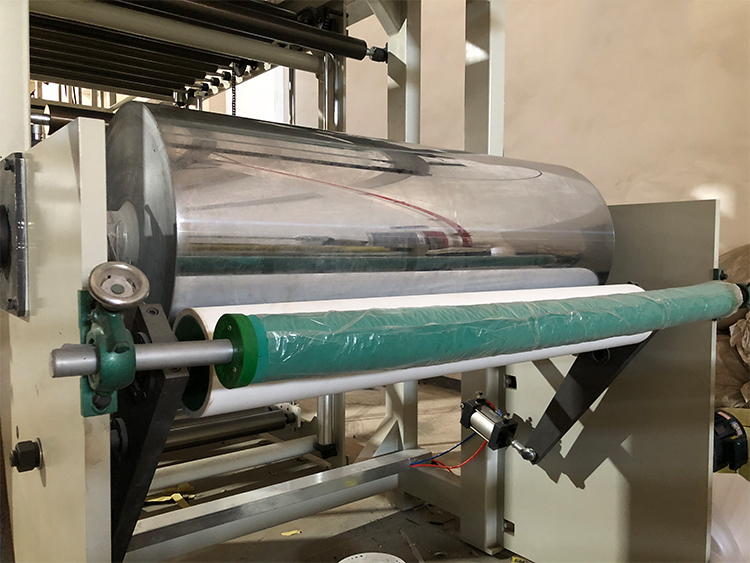

Cooling
high presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat. to reach good cooling effect.
Unwinding:
single station (hydraulic type, climb type ) double station ( non stop auto splicing system, non stop manual splicing system ) as option

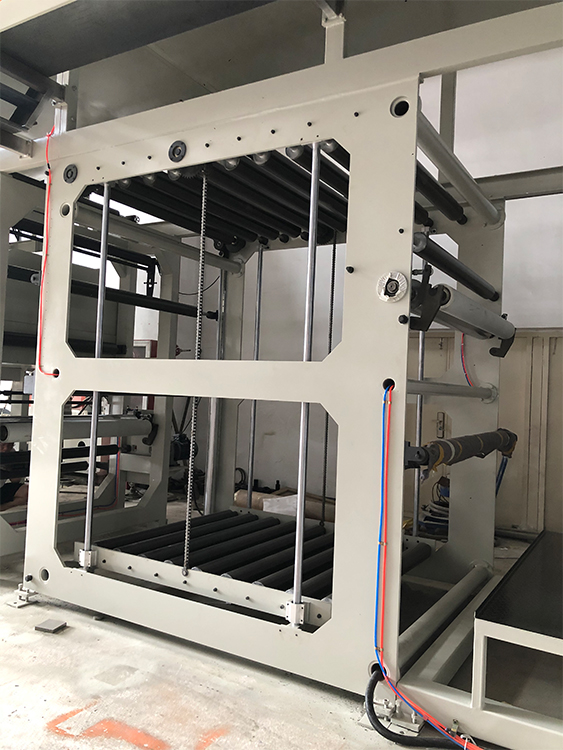

Accumulator

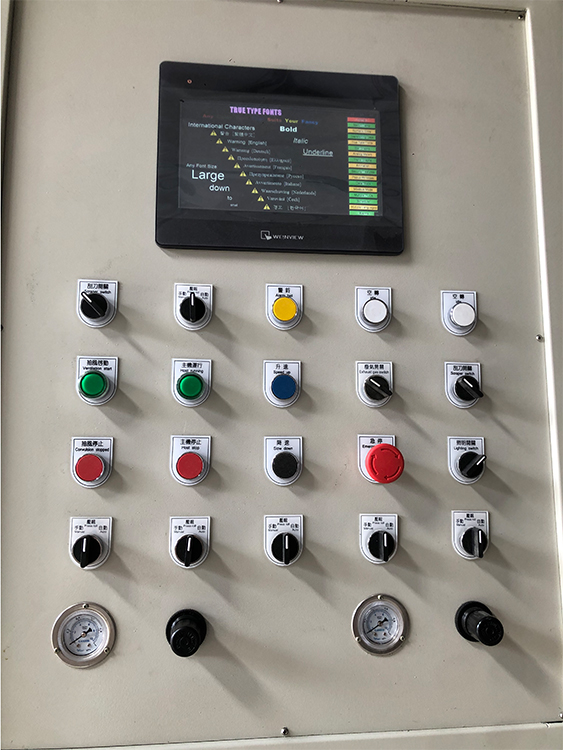

Touch screen

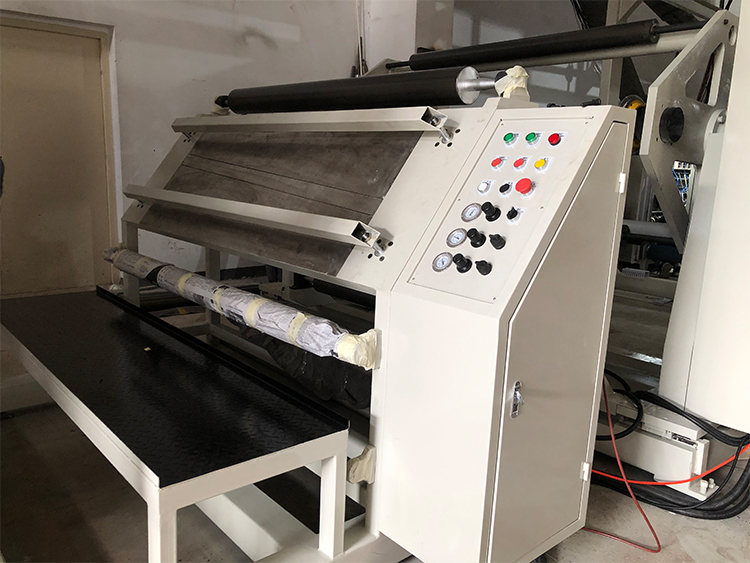

Splicing table
Machine Spec.:
1. The whole machine is controlled by 4 frequency conversion motor, and the tension (unwinding, coating, traction and winding) of the whole machine is automatically controlled by Siemens PLC system. The reliability of the tension of the whole machine is improved through the touch screen control and display of human-machine interface.
2. The form of discharging rack is electric turnover double position, and magnetic powder automatic tension control is adopted.
3. Moire coating method: the coating scraper shaft adopts heavy-duty double shaft mechanical independent swimming, the scraper adjustment mode is manual and pneumatic, and the angle can be adjusted at will. The coating amount depends on the mesh line of the moire roller, and the moire roller with different mesh line can be changed for different coating amount.
4. The oven is 20 meters, the first 18 meters is divided into 6 sections, the temperature is controlled independently, the heating adopts the heat transfer oil circulation heating, the hot air entry drying system, the adjustable internal circulation suction and exhaust device, the air inlet and exhaust wind is strong, the drying is complete, and the UV drying system is reserved for the second 2 meters.
5. The guide wheel in the oven is synchronous with the main machine, and the synchronous belt wheel transmission is adopted to reduce the material stretching and deformation. The open top air cylinder oven and the film piercing operation platform make it easy for the operators to work.
6. The intermediate tension between coating roll and traction steel roll is synchronized by floating swing arm, which is automatically controlled by PLC
7. Automatic meter and speed control device
8. EPC alignment machine is used for deviation correction, so as to make the material winding neat.
9. Key type pneumatic expansion shaft is used for retracting and releasing shaft. For the convenience of loading and unloading operation, safety lock is used for taking and releasing pneumatic expansion shaft.
10. High precision up pressure traction device, water circulation type is adopted for steel roll cooling, through which the film is smoother, smoother and more effective.
11. The form of take-up rack is electric turnover double position, the take-up adopts frequency conversion motor, and the vector frequency converter is controlled by PLC computer system.
