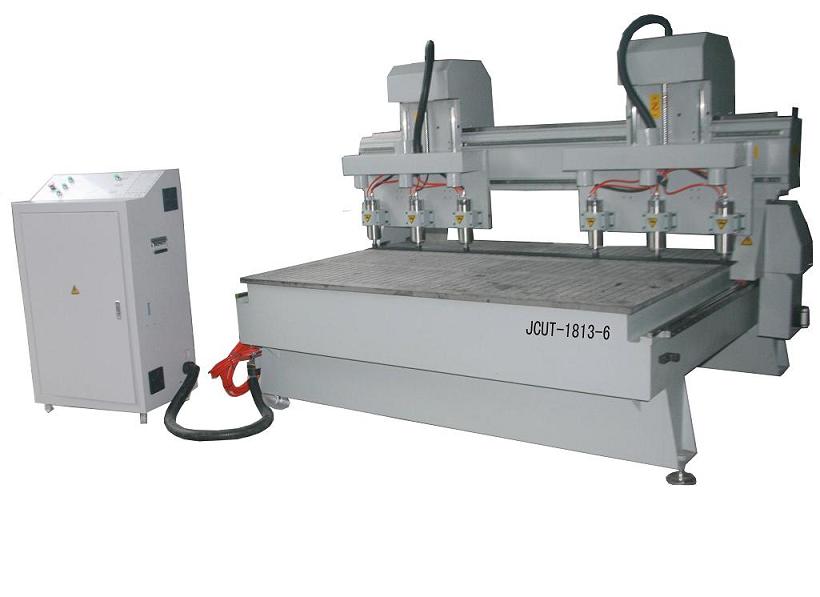

WOODMAKING CNC ROUTER  JCUT-1813-6

Applications:

advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.





1) Machine body: whole cast iron

2) Guideway: XYZ-axis use linear guideway

3) Driving mode: Rack

4) Work dimensions: 1300mm x 1800mm (300mm*6) x 80mm

5) Body dimensions: 1700mm x 2500mm x 1650mm (with bracket)

6) Z-axis working area: 80mm (or 150mm)

7) Max. Feeding height: 120mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 25000mm/min

10) Working speed: 0 - 8000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 3kW

14) Power source: AC220/50Hz (or 110v/60HZ)

15) Driver type: stepper motor (XZ-85BYG, Y-axis use two 85BYG motors)

16) Memory: without or (DSP)

17) Spindle: 2.2kW (100mm) variable speed, water cooled motor (3kW or bigger)

18) Spindle speed: 0 - 24,000rpm

19 ) Blade diameter:3.175mm, 4mm, 6mm (or 8mm, 10mm, 12mm, 12.7mm)

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45°C

23) Relative humidity: 30% - 75%

24) Pack dimensions: 1750 x 3000 x 1750mm

25) Net weight: 1000kg (with bracket)

26) Gross weight: 1200kg
