Woodworking Polishing Machine for MDF Board Sanding

Video

1 / 7

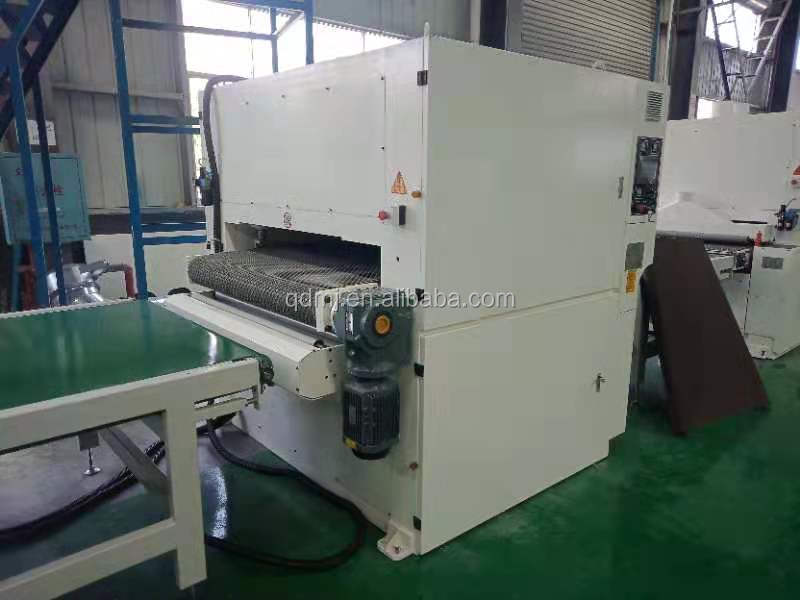

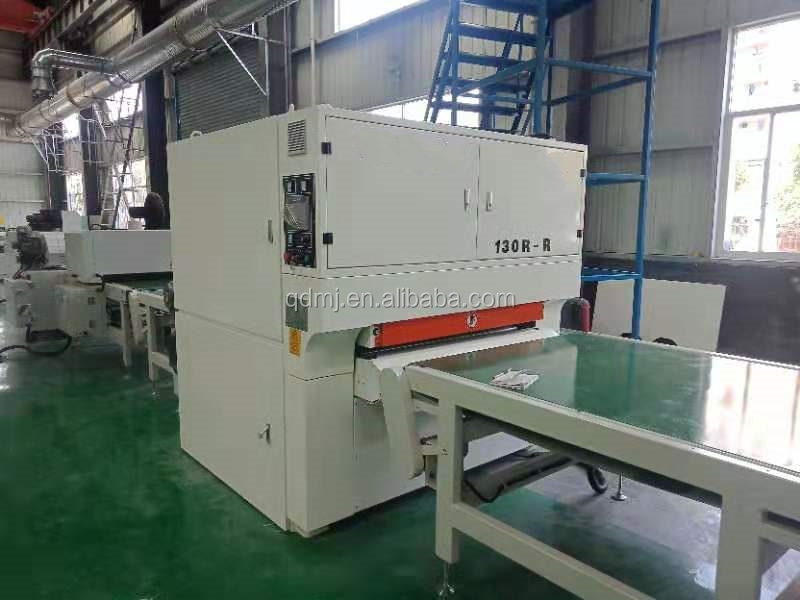

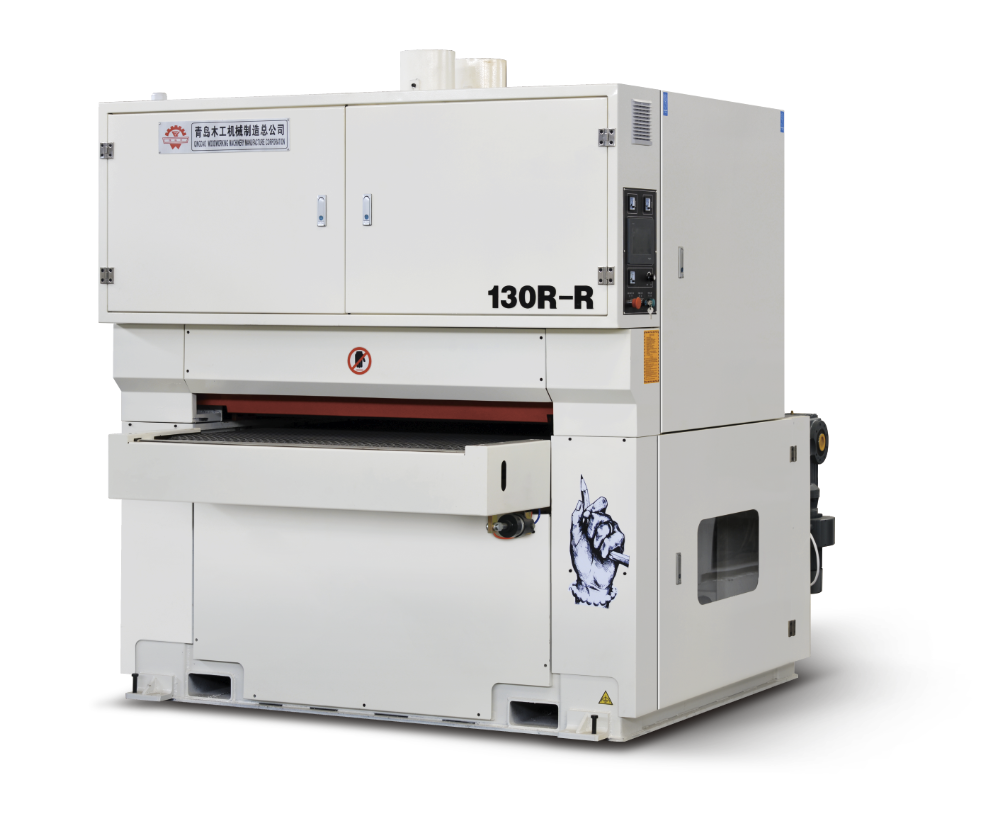

Woodworking Polishing Machine for MDF Board Sanding

$13600.00

≥1 set

Options:

SU130FR-R

Get Latest Price

You might also like

Calibrating Laminate Woodworking Double-Sided Four-Heads Sanding Machine

1 set (MOQ)

Automatic Woodworking Laminate Lumber Veneer Safety Speed Wide Belt Sander

1 set (MOQ)

High Precision Automatic Woodworking Laminate Lumber Calibrating Wide Belt Sander

1 set (MOQ)

Prime Sanding Machine for Wood Furniture and Cabinetry

1 set (MOQ)

Woodworking Furniture Polishing and Sanding Machinery

1 set (MOQ)

Woodworking Polishing Machine for MDF Board Sanding

1 set (MOQ)

Wood Machining and Polishing in Furniture and Door/Window Industries: Focusing on MDF Boards and Upper Float Sanders

1 set (MOQ)

Automatic Veneer Sanding Machine - Wide Belt Sander for Woodworking Industry

1 set (MOQ)

Heavy Duty Woodworking Two-Head Wide Belt Sander for Calibrating and Board Sanding

1 set (MOQ)

Heavy Duty Wood Sanding Machine for Block Panels and Boards

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Qingdao
Brand Name	HOLZH
Machine Type	Sanding machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, Bearing, Gearbox, motor, Pressure vessel
Warranty	1 Year
Weight (KG)	5000 KG
Power (kW)	64.12
Key Selling Points	High Productivity
Working width	40-1300mm
Working thickness	3-120mm
Working length	540-1200mm
Speed of sandpaper	18m/s
Feed speed	5-35m/min
Size of abrasive belt	1330*2200mm
Conveyer motor power	4kw
Volume of dust collector	>18000m3/h
Overall dimension	220025002400mm
Weight	4000kg
Condition	New
Warranty of core components	1 Year
Showroom Location	Germany, Viet Nam
Applicable Industries	Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works
Marketing Type	Hot Product 2022

Product description

Product Show

Specification

MODEL	SU130FR-P-P top float
Working width	40-1300mm
Working thickness	2.8-90mm
Working length	＞450 mm
Speed of sandpaper	18m/s
Feed speed	5-35m/min
Size of abrasive belt	1330*2200mm
Diameter of sanding roller	Φ240mm
Power of abrasive belt on 1st unit	22kw rubber
Power of abrasive belt on 2nd unit	18.5kw
Power of abrasive belt on 3rd unit	18.5kw
Conveyer motor power	4kw
Lifting motor power	0.75kw
Brush motor power	0.37kw
Air pressure	0.55mpa
Compressed air consumption	0.2m3/min
Volume of dust collector	>18000m3/h
Overall dimension	240025002300mm
Weight	4000Kg

Function

1 This sanding machine is kind of machine that only keep the upper unit movable while the working table keep stay and the sanding units can work up and down. It is mainly suitable for sanding production line.

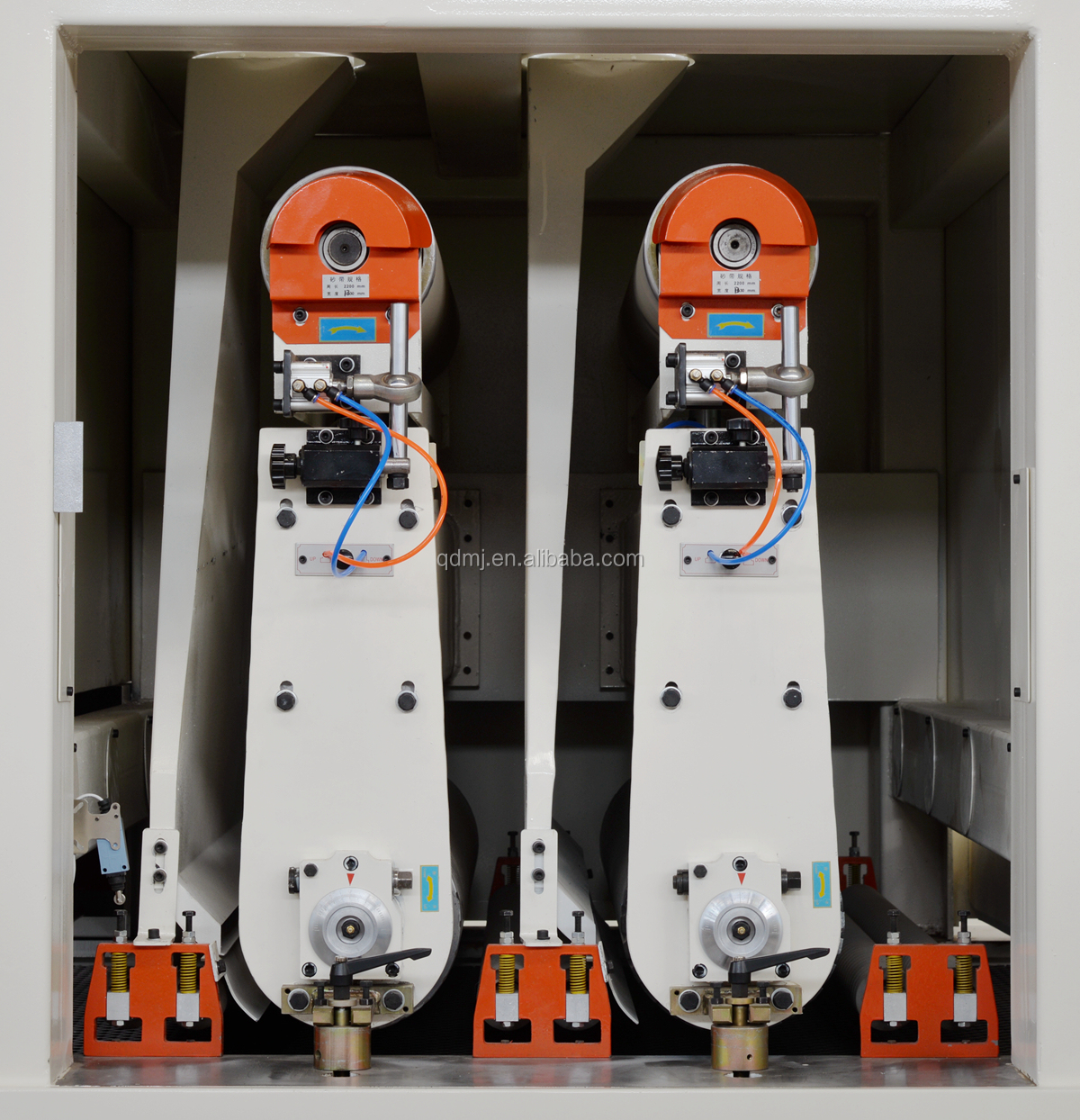

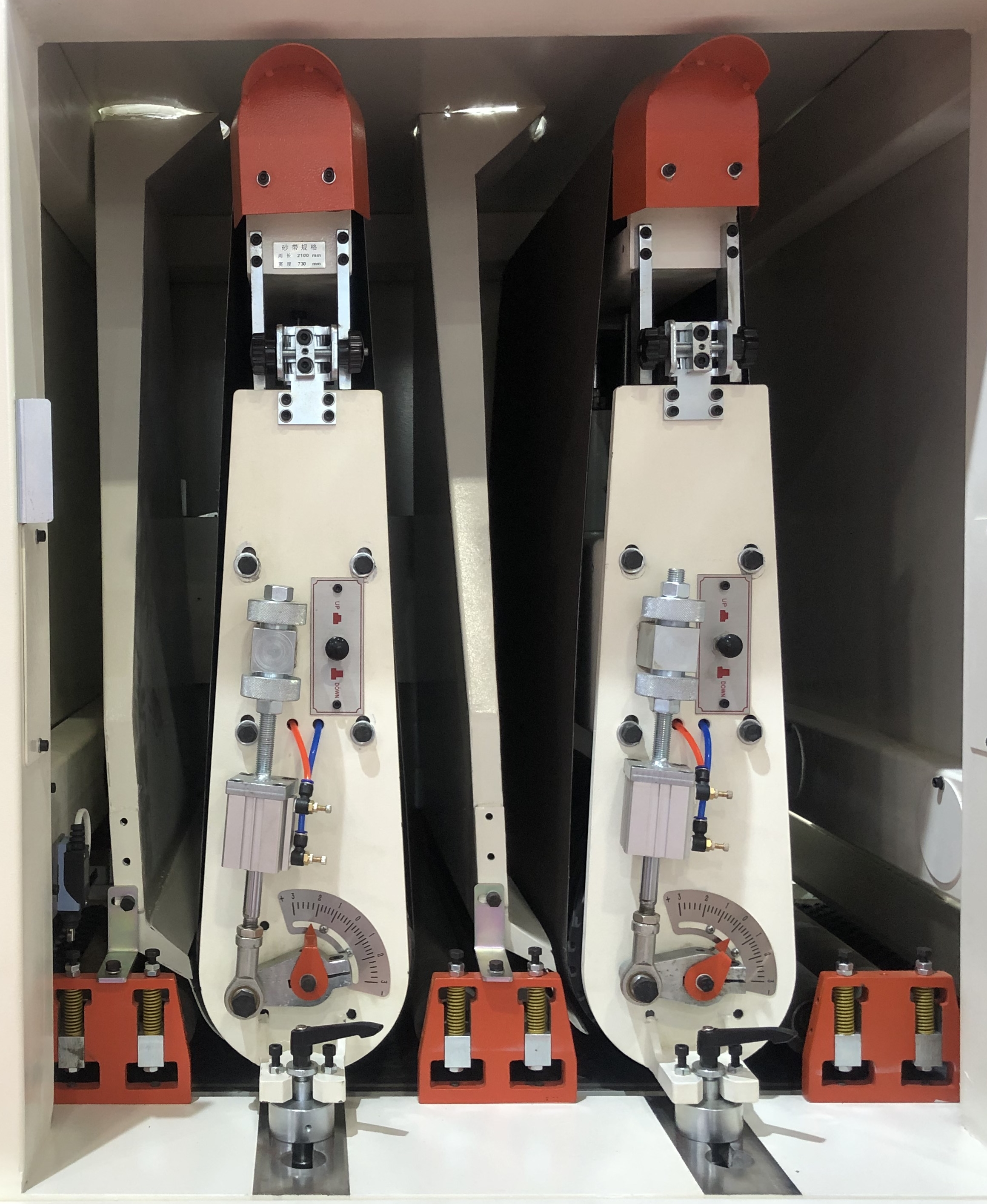

2 The front roller is rubber rollers; the second and third units are sanding pad for fine polishing.

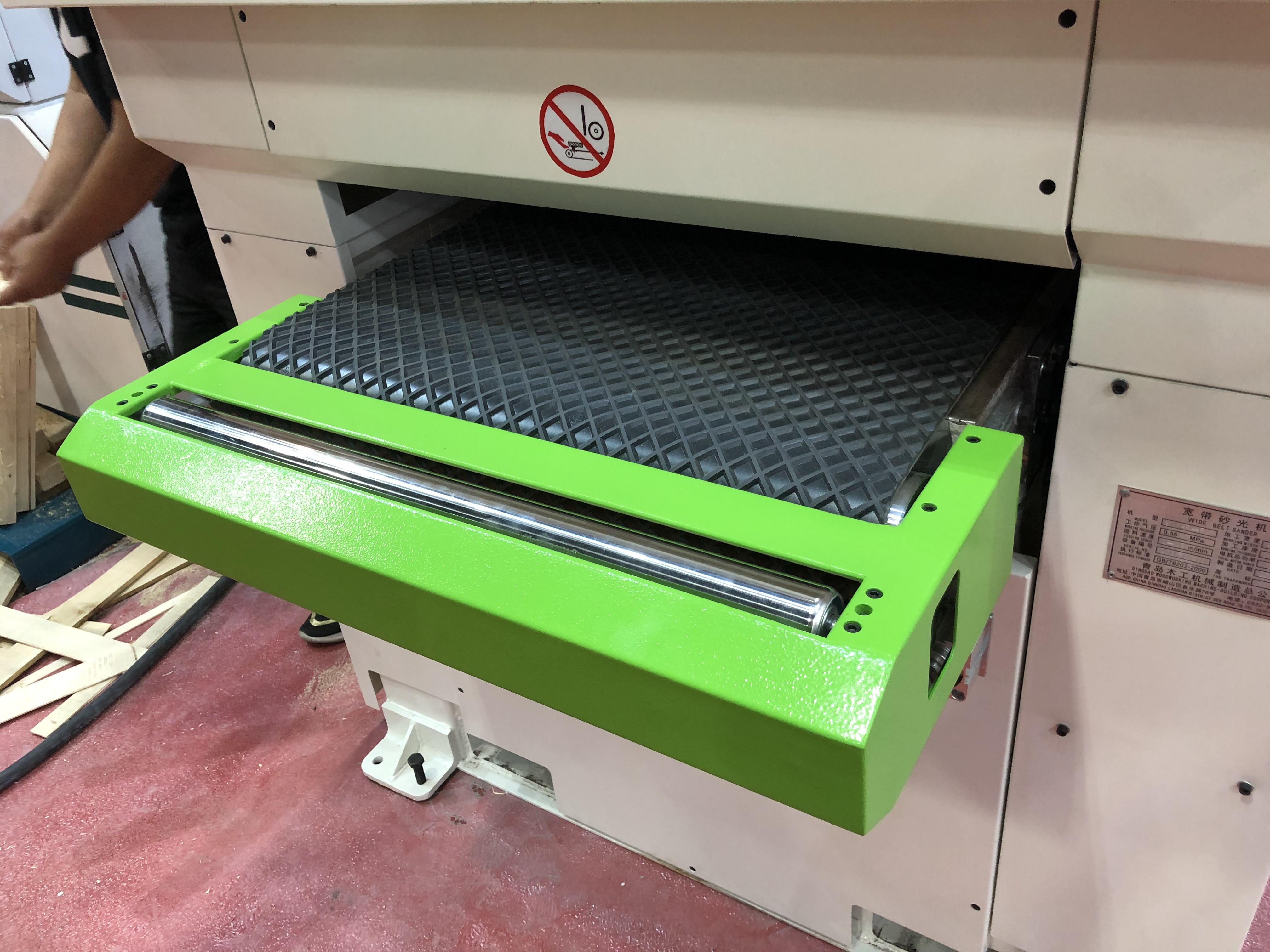

3 With thin feeding belt to sanding thin wood panel.

Standard Installation

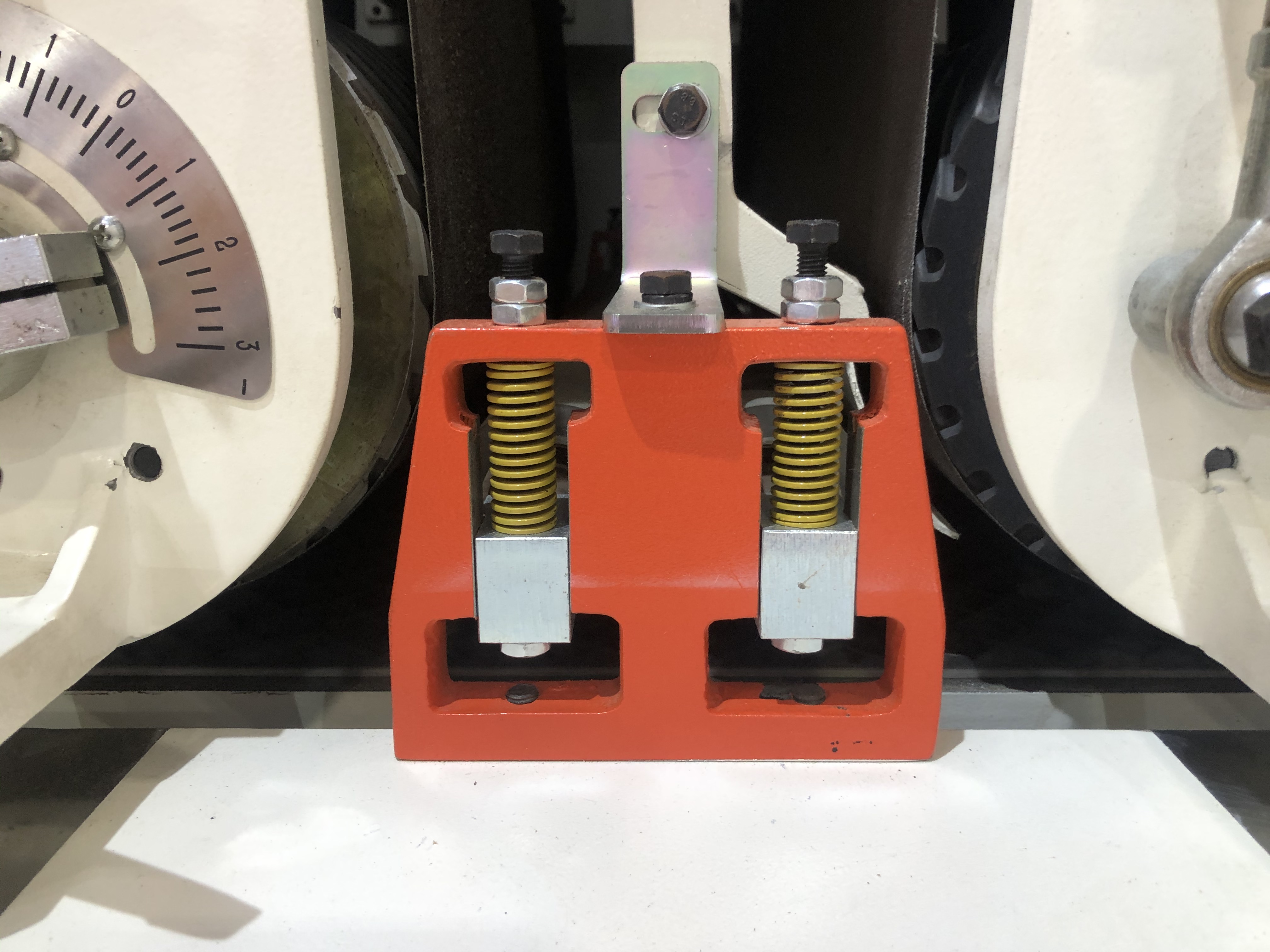

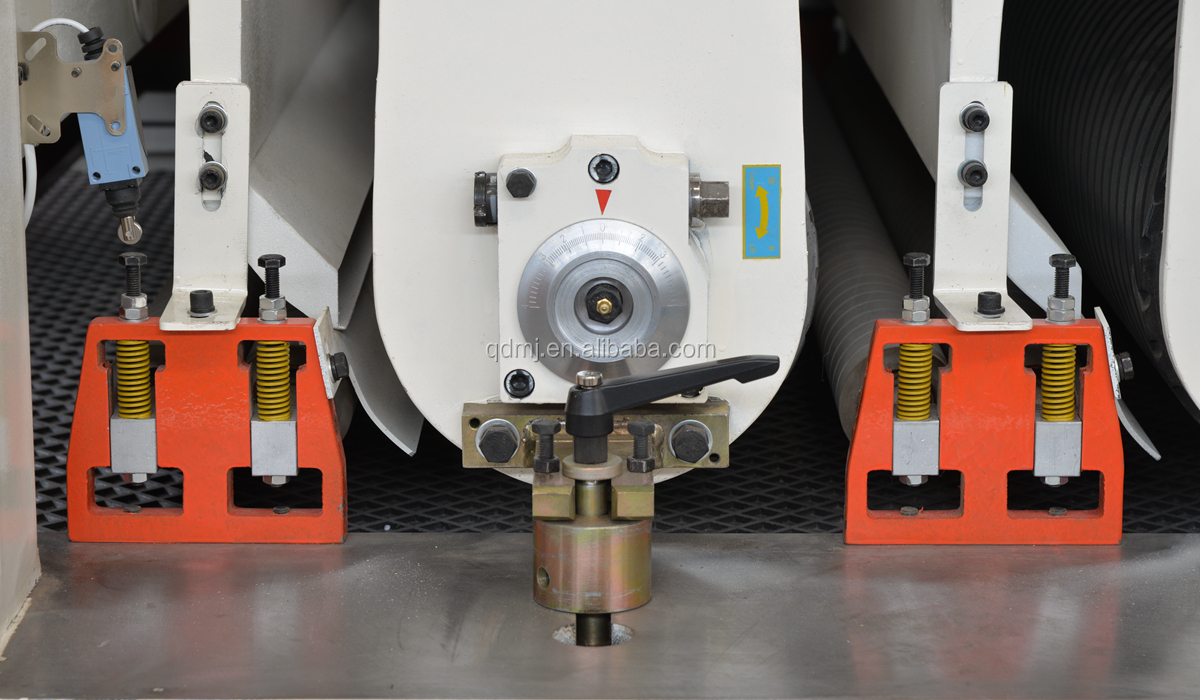

1The press roller protects device to keep the board on the feeding table.
2 Schneider Electrical component.
3 Photoelectric control equipment which control vibrating of abrasive belt along center.
4 Brush roller cleaning the panel after sanding.
5 Oil/air filters supply purity air continually.
6Japanese NSK internal bearing reduce vibration of belt.

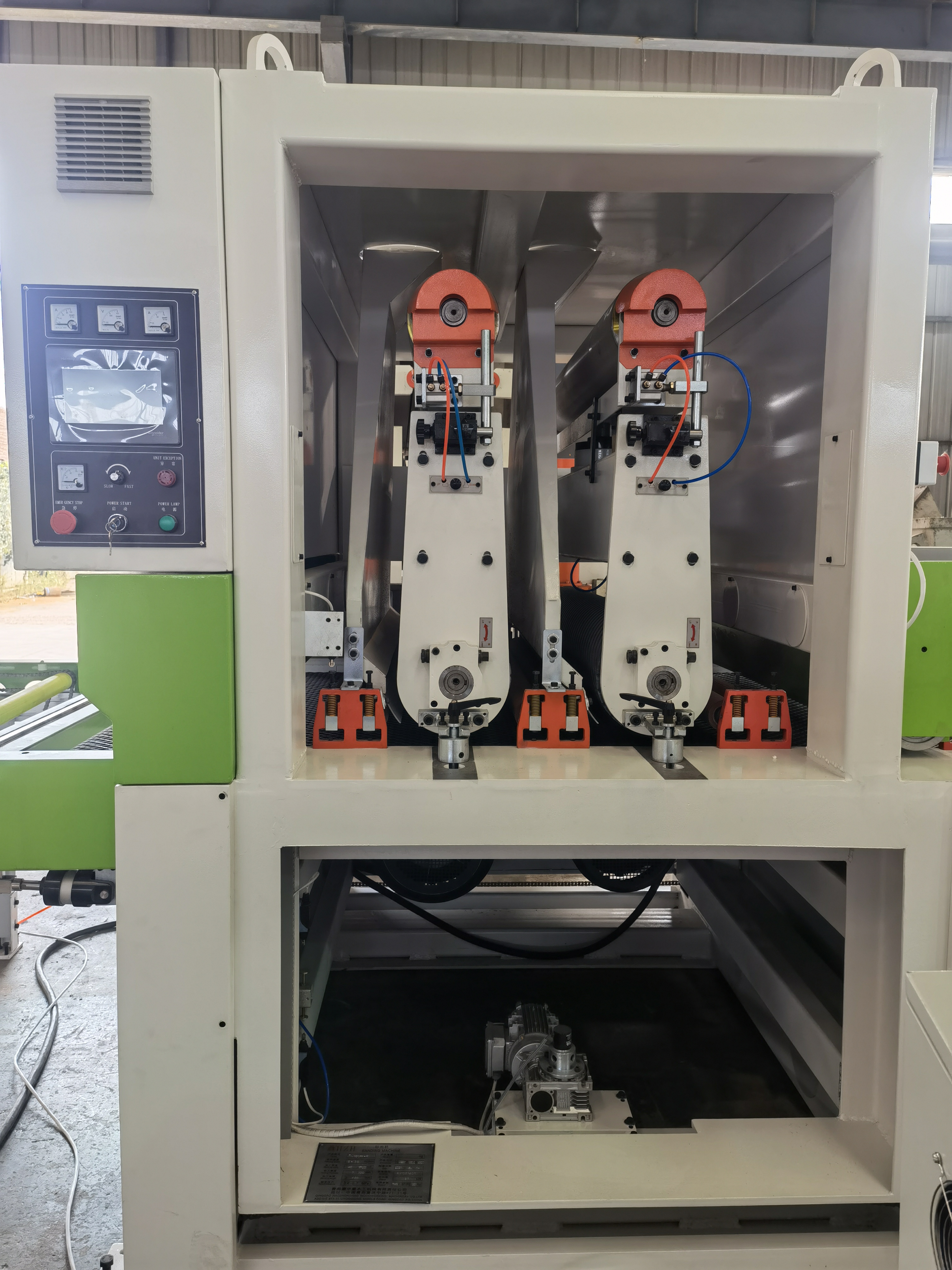

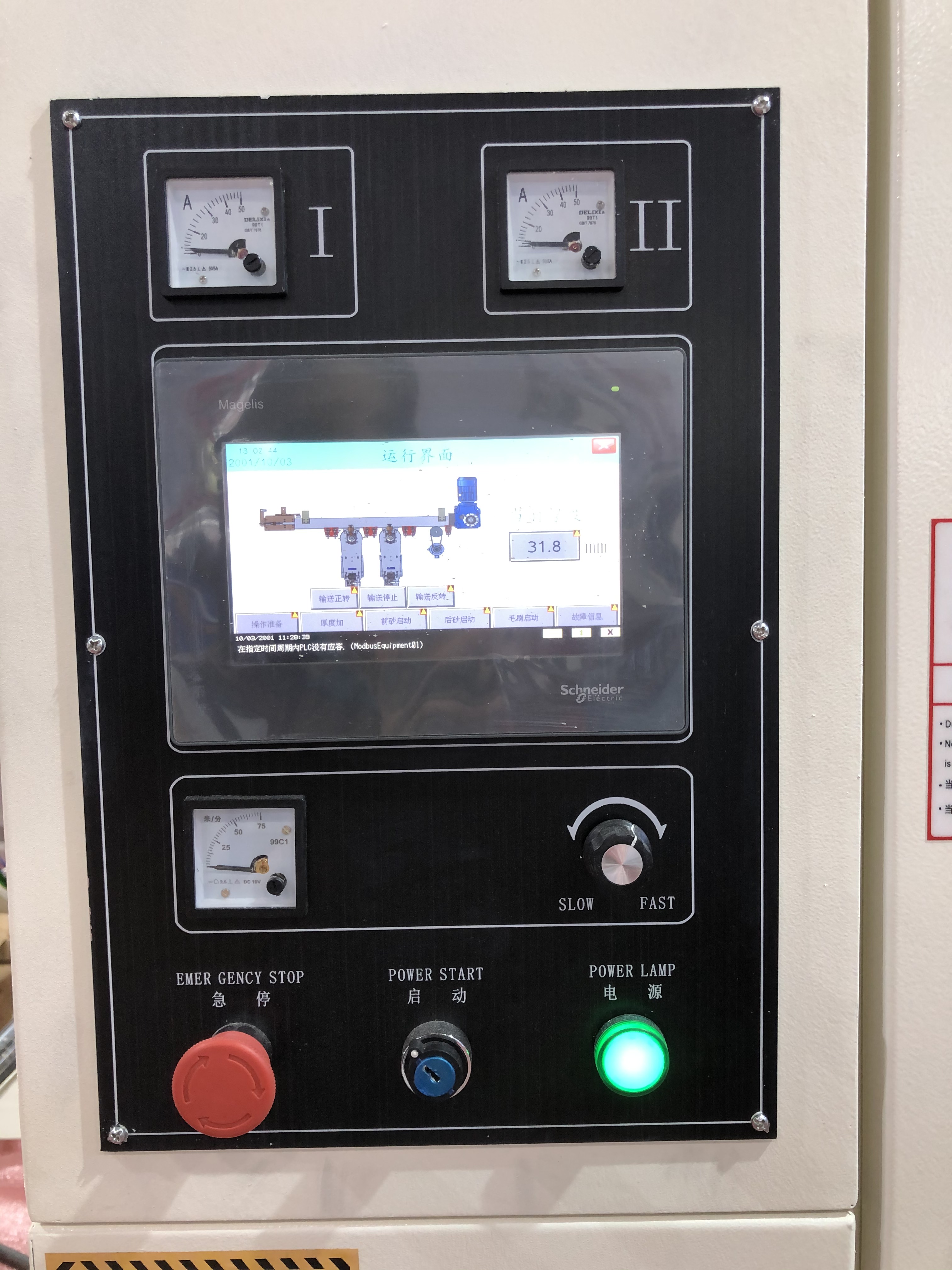

7 Touch screen operate the machine easily.
8 Operation & Maintenance manuals in English, Maintenance Kit.
