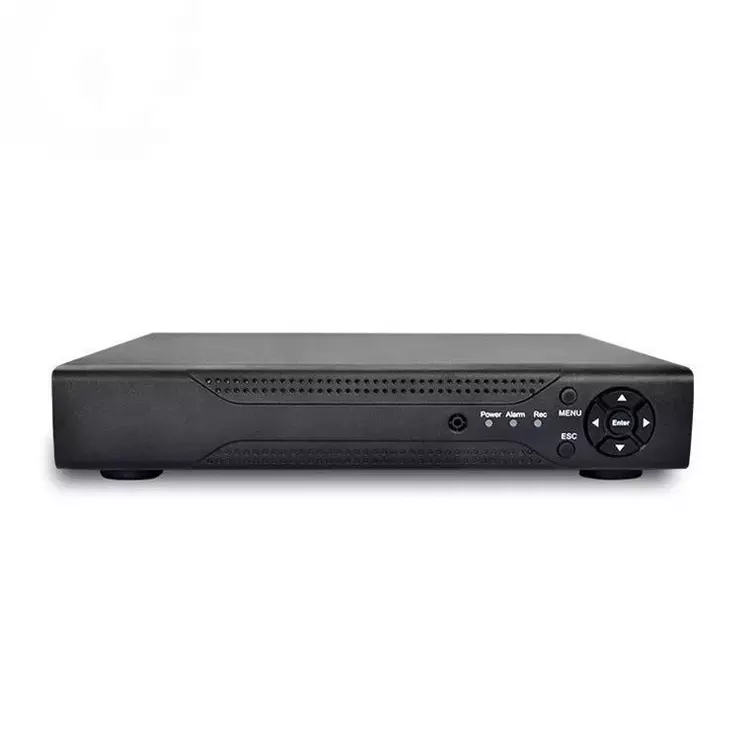

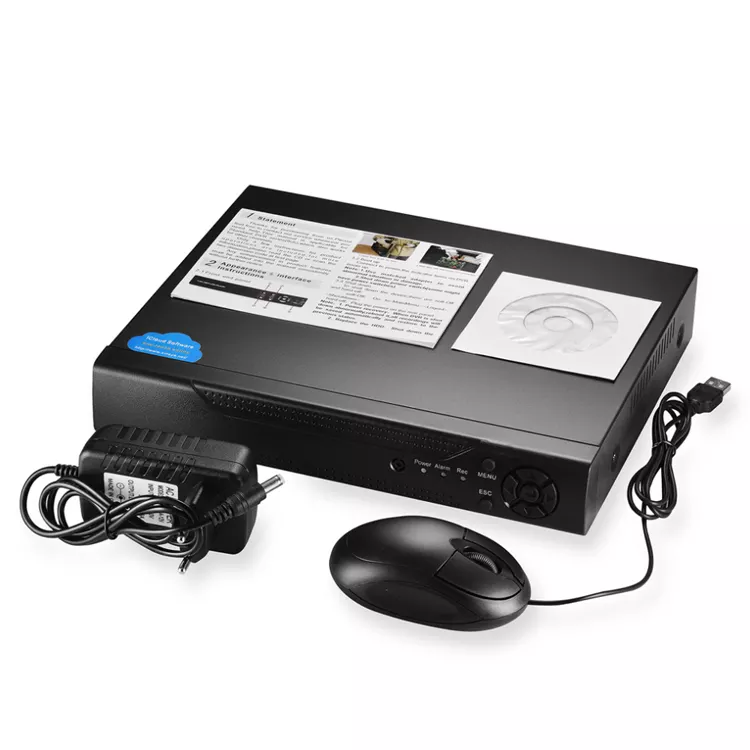

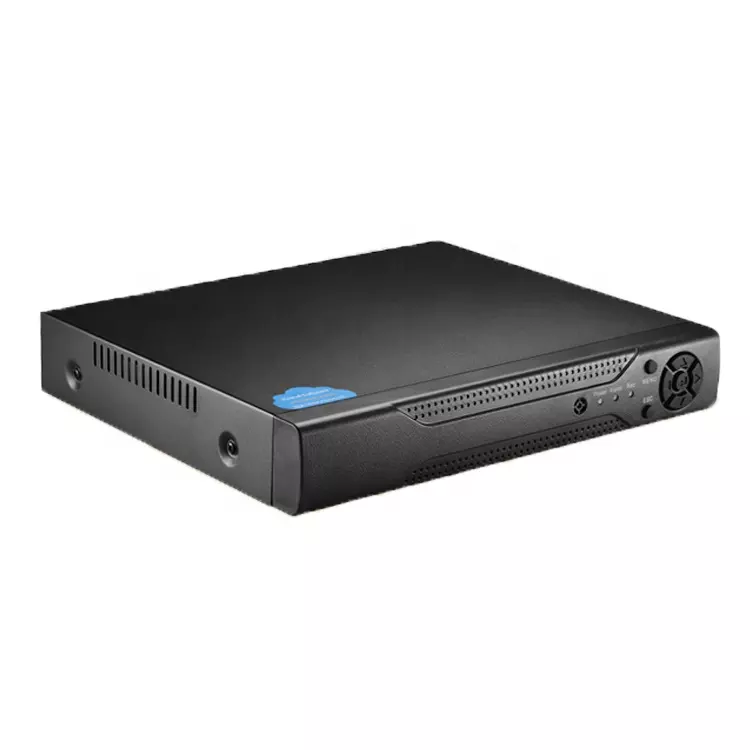

XM 5MP-N H.265 8CH DVR for XVI/AHD/TVI/CVI/CVBS/IP Coaxial P2P CCTV System
$35.00
≥10 piece
$33.00
≥50 piece
$31.00
≥200 piece
$29.00
≥500 piece
Basic Info
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Oem |
| Model Number | A6608LME |
| Product Name | Digital Video Recorder |
| HDD | Support 1 SATA HDD |
Product description
Model | A6608LME-N | |
System | Main processor | NT98321 |
Interface | Preview | 1/4/8/9 |
Video | Codec | H.265+ |
Monitor quality | VGA(1080P at most);HDMI(2K at most) | |
Preview ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps（6 in 1）/ 8*1080P@15fps（XVI），default:5M-N | |
Encode ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@8fps（6 in 1）/ 8*1080P@8fps（XVI），default:5M-N | |
Decode ability | 2*5M-N@12fps(6 in 1)/ 8*4M-N@8fps（6 in 1）/ 8*1080P@8fps（XVI），default:5M-N | |
Multi-mode input | Analog：8*5M-N Network：16*1080P；8*5M | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 4ch(analog input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |

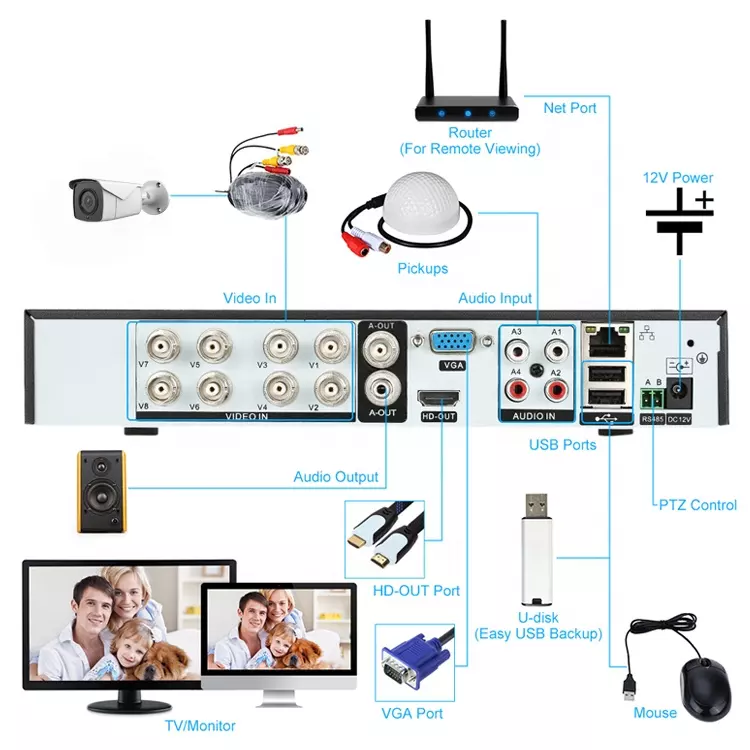

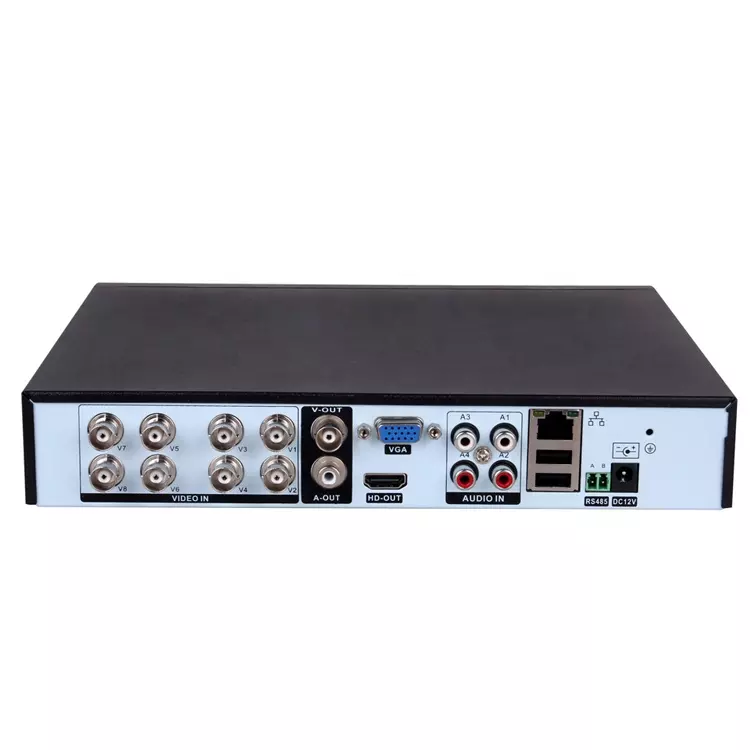

External Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Loop Vout | N/A | |
Audio I/O | 1/1 | |
Alarm I/O | 0/0 | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/2A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
Features
* Support VGA, HDMI full HD output simultaneously;
* Support ONVIF; access third party;
* Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
* Support web, VMS, center platform management software MYEYE, provide SDK development;
* Support various mobile monitoring (iPhone, Android);
* Remote Access, With DNS (ARSP),easy to monitor remotely
* Support UTC, control signal& video stream transmit through one single coaxial
* Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
