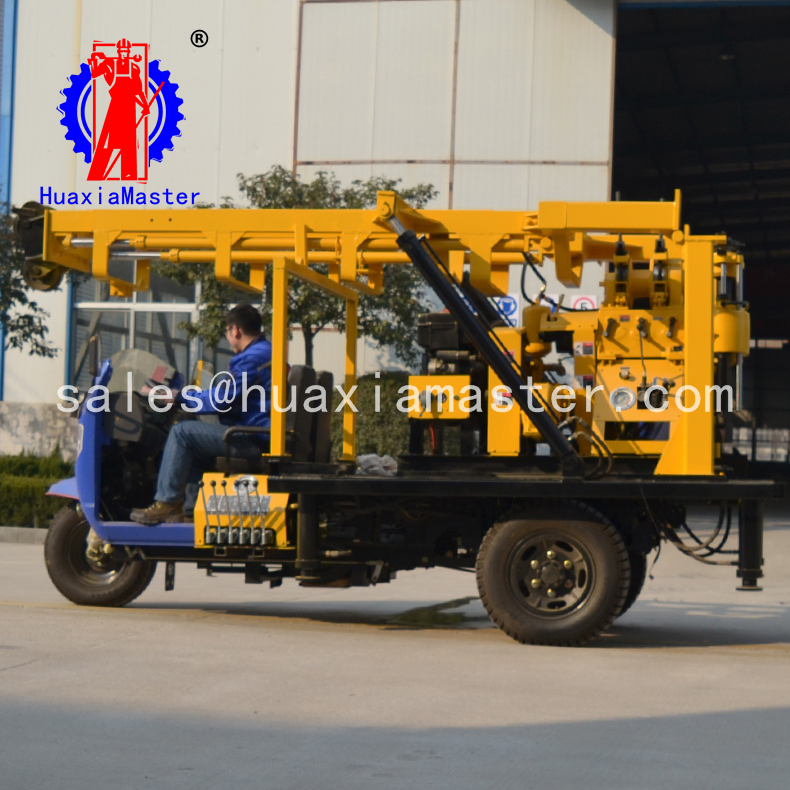

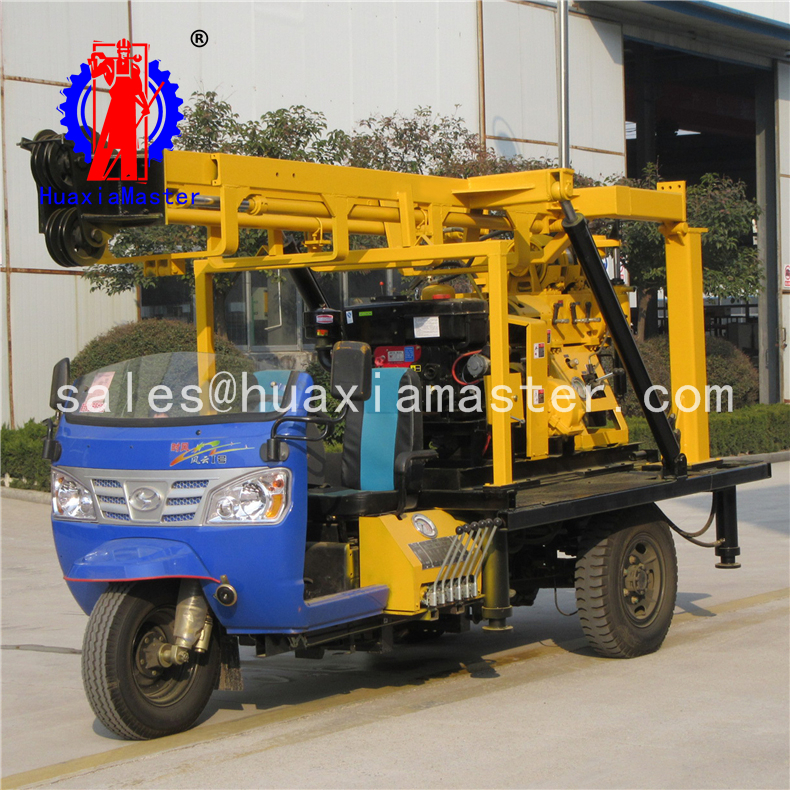

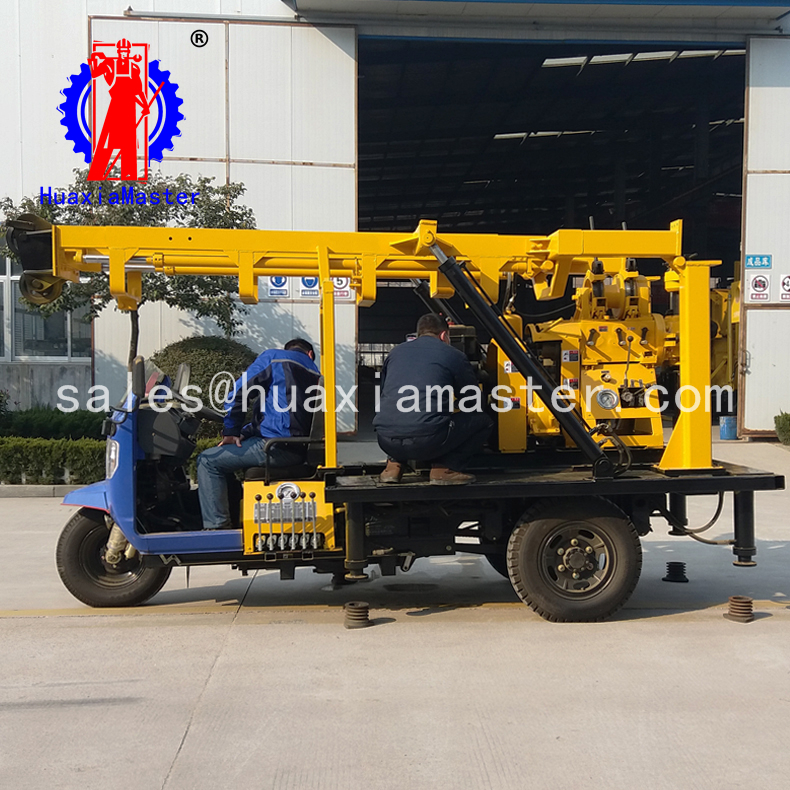

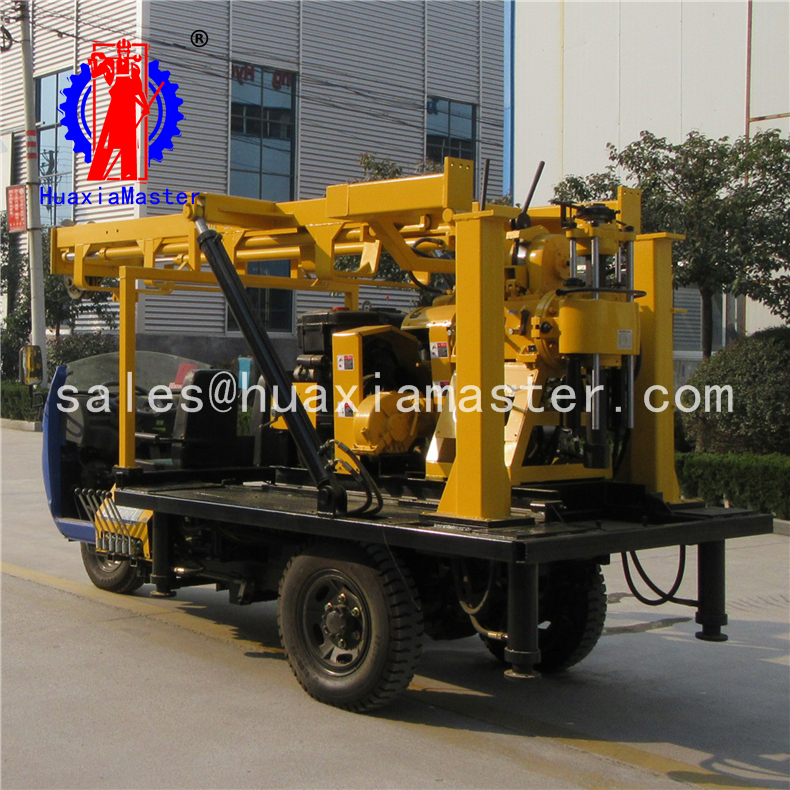

XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine
Basic Info
| Model No. | XYC-200A |
|---|---|
| Brand Name | huaxiamaster |
| Certification | Other |
| Condition | New |
| Motor | DC Motor |
| Drill Hole Diameter | 100-150mm |
| Drill Hole Depth | 200m |
Product description
1. Characteristics of XYC-200A tricycle-mounted hydraulic core drilling rig
· XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .
· The tricycle is Tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
· XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
· The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
· The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
· The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
· Equipped with taper clutch, made the machine easy to operate and free of maintenance.
· Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
· Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.
2. Parameters of XYC-200A tricycle-mounted hydraulic core drilling rig
|
Drilling depth |
200m |
|
Max. open hole diameter |
75-260mm |
|
End hole diameter(mm) |
75 |
|
Drill rod diameter |
50mm |
|
Drilling tower height |
6500mm |
|
Drilling angle |
90-75 |
|
Spindle |
|
|
Spindle speed |
64/128/287/557r/min |
|
Spindle stroke |
450mm |
|
Hoist |
|
|
Max. single line hoisting capacity |
1600kg |
|
Single line lifting speed |
17/35/75/151r/min |
|
Tightrope diameter |
12.5mm |
|
Tightrope cubic measure |
35mm |
|
Hug floodgate belt width |
70mm |
|
Mud Pump |
|
|
Type |
Horizontal Single Urn Twin-action |
|
Discharge displacement |
170l/min. |
|
Diesel |
S1115 22HP |
|
Electric motor |
15kw,1440r/min |
|
Max. pressure |
1.5mpa |
|
Work pressure |
0.7mpa |
|
Water inlet diameter |
30mm |
|
Water outlet diameter |
25mm |
|
Triangle conveyre belt |
B1728mm |
|
Chassis |
|
|
Chassis |

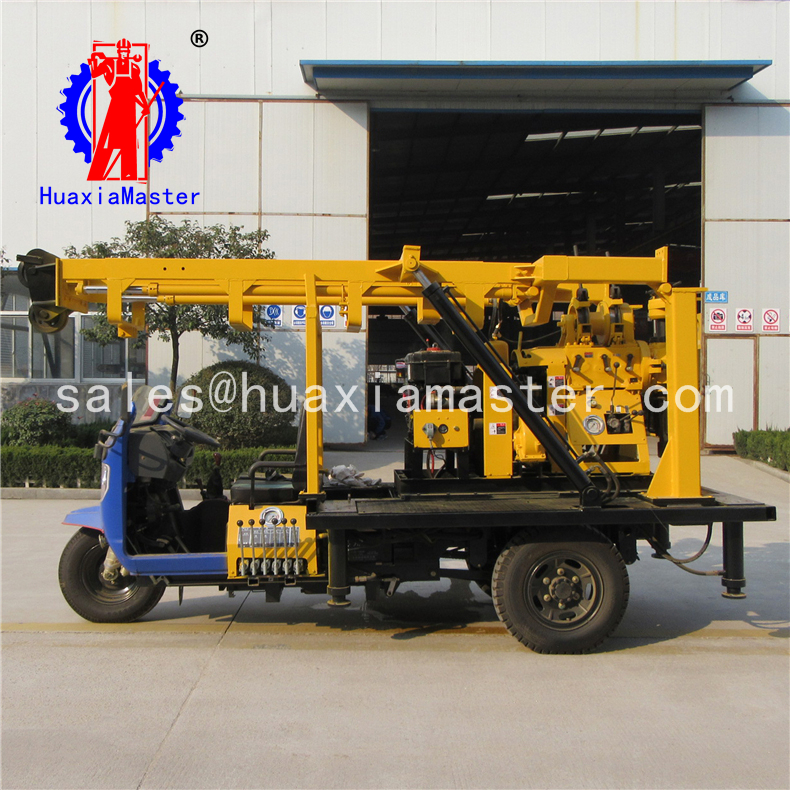

Tricar(Pictures of vehicle-mounted drilling rigs for reference only) |
|
XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine
