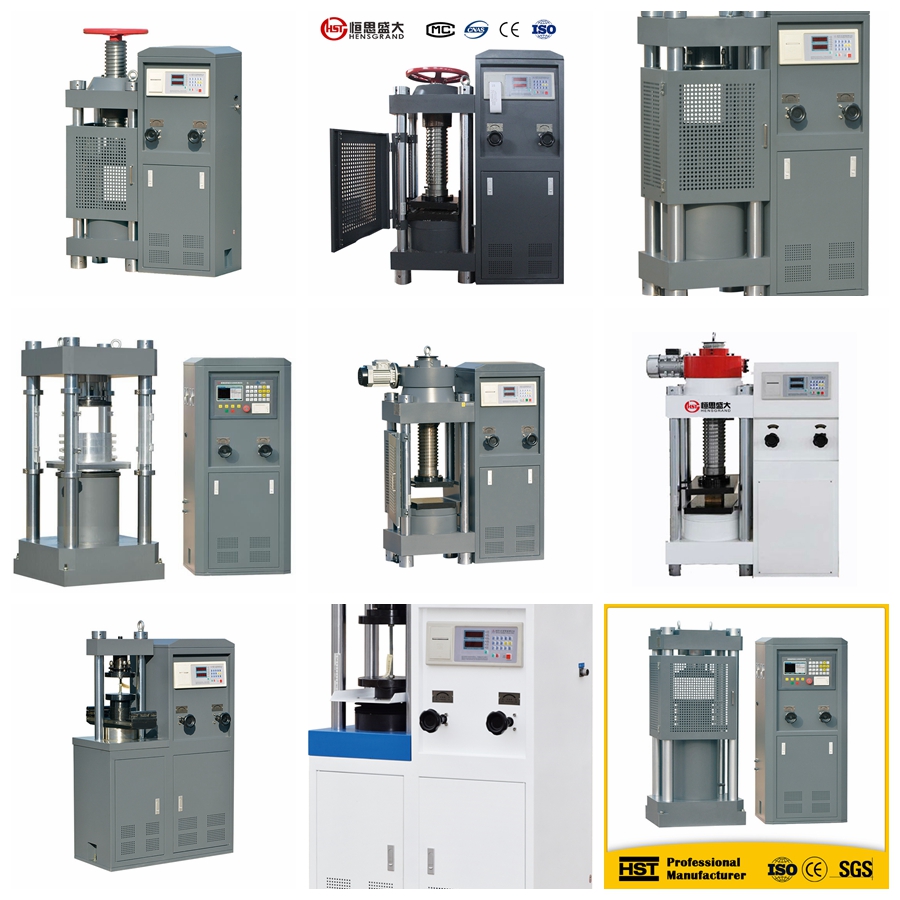

YES-3000E Digital Display Compression Testing Machine

The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printer Digital Display Compression Testing Machine is applicable for the compression, bending, splitting strength test for mortar, hollow brick, cement, cement product, firebrick, engineering ceramics, engineering plastic and plastic product, stone, wood, and so on. The machine adopts the hydraulic loading. The force is directly read out on the digital indicator.

Main Specifications of Digital Display Compression Testing Machine

Model	YES-3000E
Max. load	3000kN/300Ton
Machine Class	1 class
Range of test force	4% ~100%FS
Host Structure	Double electric screw ball adjust test space
Indicating value accuracy	±1%
Piston stroke	200mm
Distance between upper and lower platen	650mm
Upper and lower platen size	Φ300mm (Can be customized)
Display	LCD
Power supply	AC380V/50Hz/3 phase(can be customized)
Size	960×740×2080 mm
Weight	3100 kg



 Main configuration:

  Digital series  compression testing
