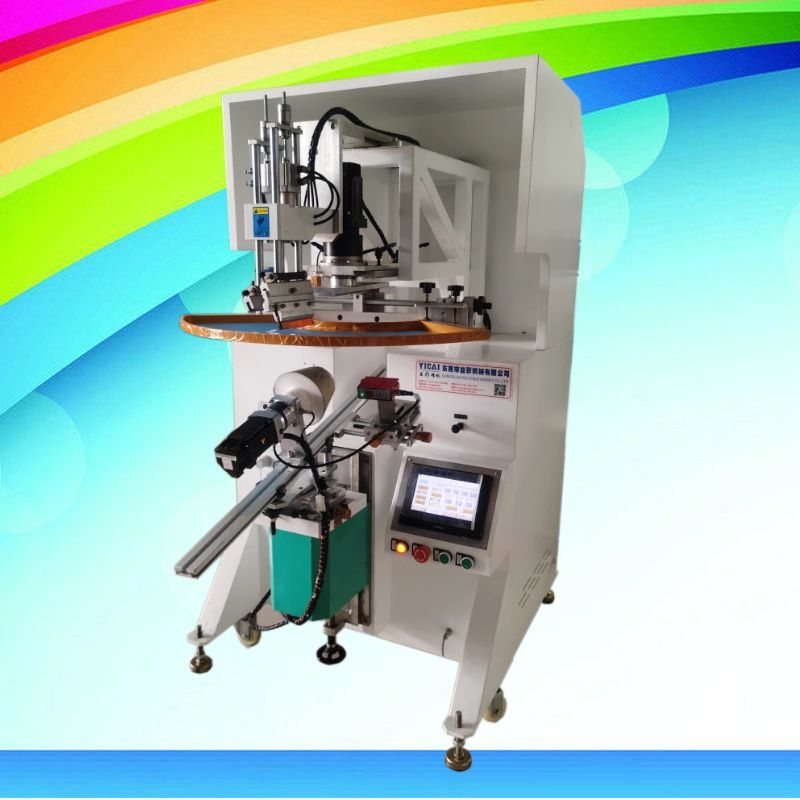

YICAI120C cone surface product silk screen printing machine

Designed for fine printing with taper products, Ordinary circular screen printer printing arc pattern will elongate and deform the pattern, Or product seragged, The printed pattern is large and small, The YICAI120C adopts the imitation printing mode, Syntaneous printing according to product arc, Can can avoid the deformation of the pattern, Improve the product printing quality; Relative to normal taper wire printing, Only for a single product, The YICAI120C is controlled by a dual servo motor, A servo motor controls the product rotation angle and speed, A servo motor controls net rotation speed and angle, The two servo motors proceed synchronously, Greater applicability, More versatility;

major function:

1. PLC touch operating system, integrates most of the printing data, including product diameter, printing speed, printing stroke, web plate rotation speed and printing stroke and so on, simple and easy to operate;

2. Dual servo control system, a motor control product rotation speed and travel, a motor control net print speed and stroke, no gear synchronous transmission structure;

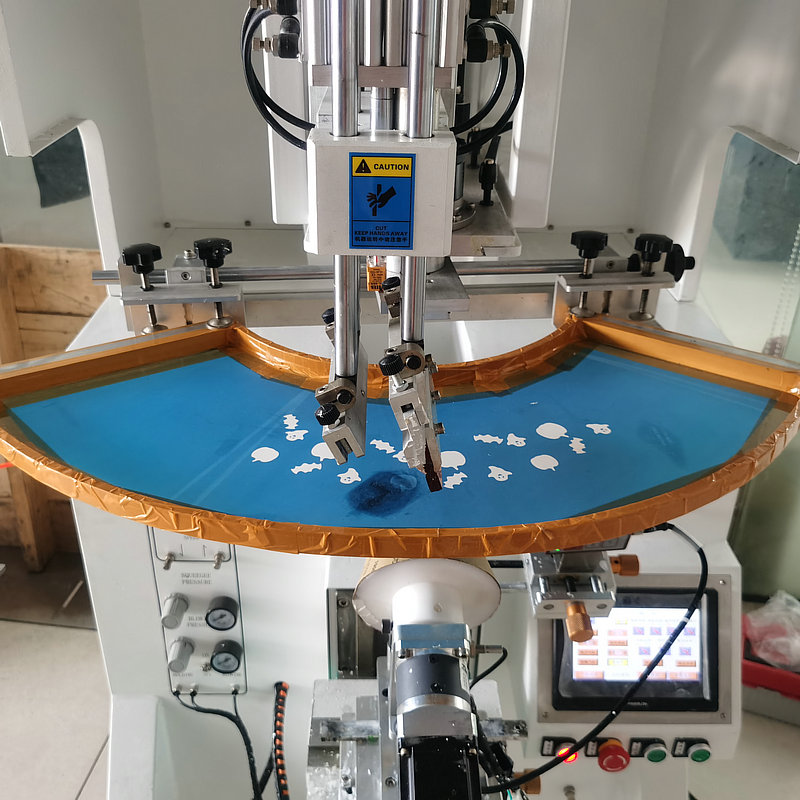

3. Lift network lifting function, convenient installation, debugging and clean the network version;

4. Seal scraping pressure independent control structure, pressure size adjustable, scraper blade back to the ink blade angle adjustable;

5. Can set timing cycle printing, foot single printing, manual point printing;

6. Can add color sensor to achieve multi-color color printing;

7. Equipped with high-quality brand pneumatic elements, practical and durable;

8. Cast aluminum three-column lifting structure, stable and durable;
