ZC-3566 Industrial Motherboard (RK3566)

Name: ZC-3566 Industrial Motherboard (RK3566)
Brand: HuiZhou GreenTouch Technology Co.,Ltd
Rating: 4.1 (11 reviews)

chipset:

RK3288

Get Latest Price

You might also like

ZC-3566 Industrial Motherboard (RK3566)

1 Piece/Pieces (MOQ)

Basic Info

Model No.	ZC3566
Brand Name
Product condition	New
Is there a package	Yes
With CPU	Yes
Graphics card type	Integrated
Memory	2G(Standard) 4G(Optional)
Brand	BBStouch
Brand Introduction	GreenTouch sub-brand

Product description

Description

The ZC566 board integrates multimedia decoding,LCD driver,Ethernet,HDMI,WIFI,3G,and Bluetooth.It supports decoding
of most popular video and picture formats,HDMI video output/input,and dual 8-bit LVDS,interface and EDP interface,which
can drive various TFT LCD displays,greatly simplifying the overall system design. The TF card and locked SIM card holder
are more stable and are very suitable for high-definition network playback boxes,video advertising machines and picture
frames advertising machine.

Features

■ High integration: Integrate USB/LVDS/EDP/HDMI/Ethernet/WIFI/BlE into one,simplifying the overall machine design;
■ Cost saving: built-in PCIE 4G module, supports Huawei, Longshang and other PCI-E 3/4G modules;
■ Rich expansion interfaces: 8 USB interfaces (3 pins,2 standard USB ports),3 expandable serial ports;
■ High definition: supports up to 3840×2160 decoding and various LVDS/EDP interface LCD displays;
■ Complete functions: Supports horizontal and vertical screens, timer switch,USB data import and other functions;
■ Easy to manage: Humanized backend management software to facilitate advertising playback management and control.

Factory

10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.

Specifications

Product Name	ZC3566
CPU	Rockchip RK3566
Internal Memory	EMMC 16G((standard) 32G/64G(optional)
Memory	2G(Standard) 4G(Optional)
Decoding resolution	Support up to 3840*2160
Playback Mode	Support loop, timing, interpolation and other playback modes
Network Support	4G, Ethernet, support WiFi/Bluetooth 4.0, wireless peripheral expansion
Multimedia	Support 4K 60fps H.265/H.264/VP9 1080P 100fps H.265/H.264 video decoding

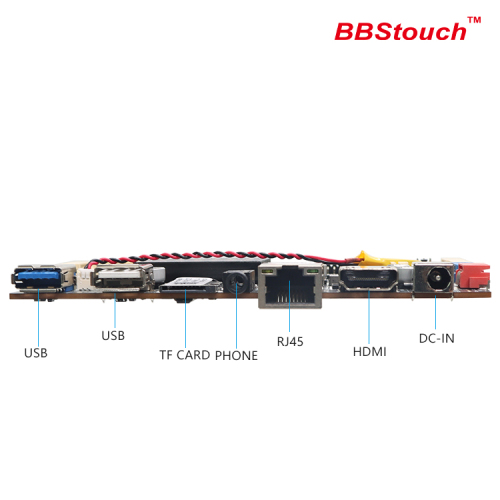

Interface	1 each USB 3.0/USB2.0, 2 built-in USB sockets
Serial Port	6 TTL serial sockets (can be changed to RS232 or 485)
GPS	Built-in WIFI, BT4.0
WIFI, BT	Built-in MINI PCI-E interface, support 4G full network
4G	Built-in MINI PCI-E interface with 4G support
Ethernet	1, 10M/100M adaptive Ethernet
Operating system	Android 11
