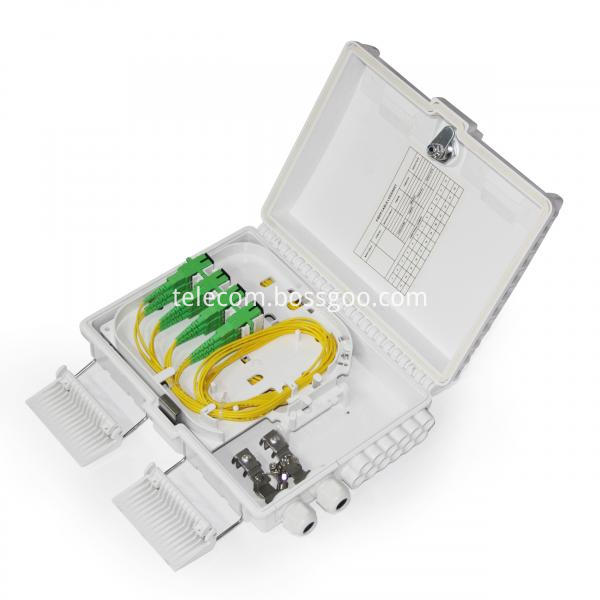

12 Cores Fiber Optic FTTH Distribution Box for Outdoor Indoor

We supply 12 Core Fiber Optic Outdoor Junction Box Termination Box with very competitive prices, every single piece of 16 Core FTTH Outdoor Fiber Optic Terminal Box is tested in the workshop before delivering to the customer.

Fiber cable of 12 Core FTTH Outdoor Fiber Optic Terminal Box are designed and manufactured in  ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.


1. ABS+PC or ABS

2. Outdoor uses, lock provided for extra security.resistance and dustproof, flame-retardant.

3. Efficient cable management.

4. Water-proof design with IP-65 Protection level.

5. 12 ports cable entrance for drop cable.

6. Inside tray bend radius protected and cable routing paths provided.

7. PE waterproof sealing ring for better IP protection

8. Operating Temperature:-40°C~60°C

Description:

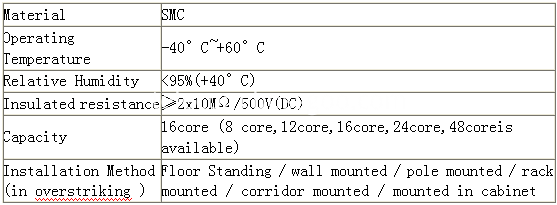

Dimensions and Capability:
 Dimensions: 335mm x 250mm x 100mm (W x H x D)
 Weight: 1.33Kg
 Adapter Capacity: 24SC/FC simplex adapters or LC duplex adapters.
 Cable Entrance: 2
 Cable Exit: 24 simplex drop cables (Pre-connectorized cables supported)
