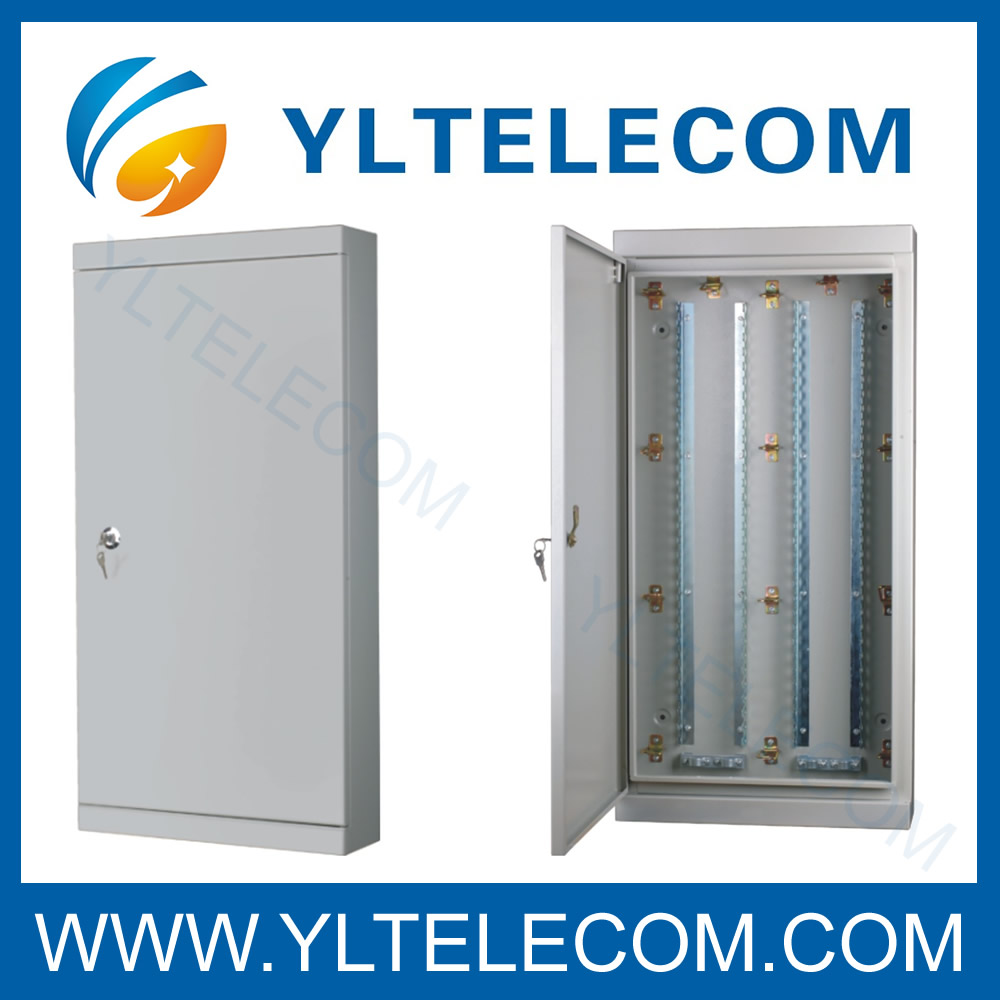

Wall Mounting Telecom Connection Cabinet Cold rolled Steel



We supply Metal Distribution Box Cabinet Wallmount 600 800 Pair with very competitive prices, every single piece of Wall Mount Box is tested in the workshop before delivering to the customer.

Fiber cable of Wall Mount Box are designed and manufactured in  ISO9001 registered facility.

The product range covers both single mode and multimode pigtails and pigtails which are fully qualified to RoHS standards.

Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Quick Detail:



1. Can be with 10pair disconnection module or 10pair connection modules

2. Material:Cold rolled steel

3. Wall mounted type,with installation accessory.Standard pack for wall mounted.

4. For LSA 10pair back mount modules,the mounting frame is included but the LSA module will be ordered separately.

5. With key and lock for secure, key lock.

6. Application:Ourdoor or indoor





Description:



The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.



Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.



It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.
Applications:



For mounting to walls,wood,metal or concrete poled





Specifications :



Distribution Box Standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
Item No	Description
YL-2017-50	50pair Distribution cabinet with back mount frame, Size: H310mm*W300mm*D130mm
YL-2017-100	100pair Distribution cabinet with back mount frame, Size: H310mm*W380mm*D130mm
YL-2018-200	200pair Distribution cabinet with back mount frame, Size: H500mm*W450mm*D130mm
YL-2018-300	300pair Distribution cabinet with back mount frame, Size: H600mm*W450mm*D130mm
YL-2018-400	400pair Distribution cabinet with back mount frame, Size: H700mm*W450mm*D130mm
YL-2019-600	600pair Distribution cabinet with back mount frame, Size: H900mm*W450mm*D130mm
YL-2019-800	800pair Distribution cabinet with back mount frame, Size: H1000mm*W450mm*D130mm
YL-2020-1000	1000pair Distribution cabinet with back mount frame, Size: H700mm*W1000mm*D130mm
YL-2020-1200	1200pair Distribution cabinet with back mount frame, Size: H900mm*W1000mm*D130mm
YL-2021-1500	1500pair Distribution cabinet with back mount frame, Size: H1400mm*W810mm*D130mm
YL-2021-2000	2000pair Distribution cabinet with back mount frame, Size: H 1400mm*W1000mm*D130mm
