These iadc 517 tricone bit for well drilling are designed for maximum penetration rates. Bit tracking is virtually eliminated by combining a large cone offset, sharp chisel-shaped inserts and non-uniform tooth spacing. Shirttail protection along with carbide leg protection increases bit life for HDD applications.Tricone Rock Bits iadc 537 provide outstanding performance along with reliability and simplicity. Please follow the guidelines listed below to choose the correct IADC number for our bit. IADC Code Reference Numbers. To further ease the selection process Rocksmith has further segregated the product catalogues based on the available sizes of steel milled teeth and the tungsten carbide inserts tricone roller bit for oil drilling

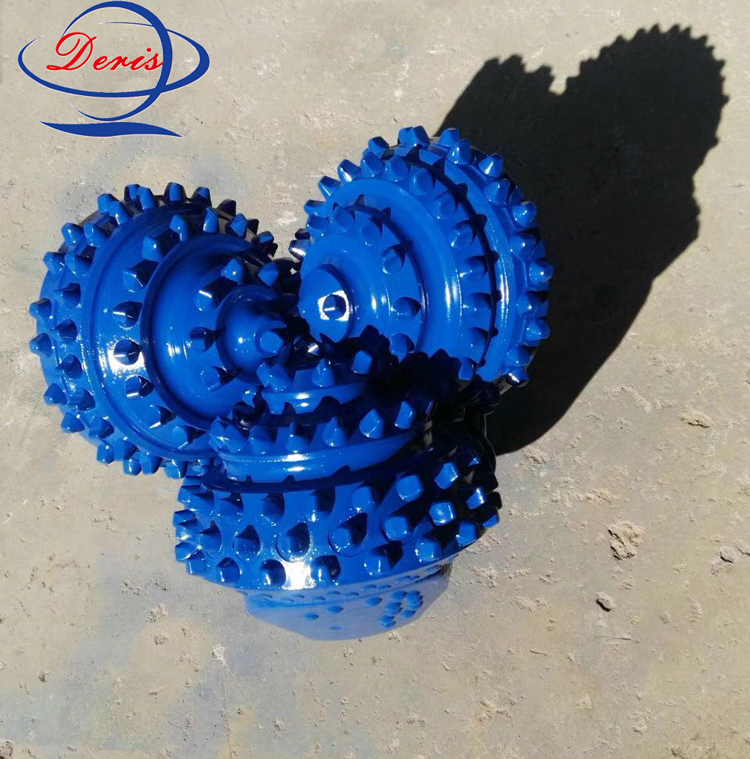

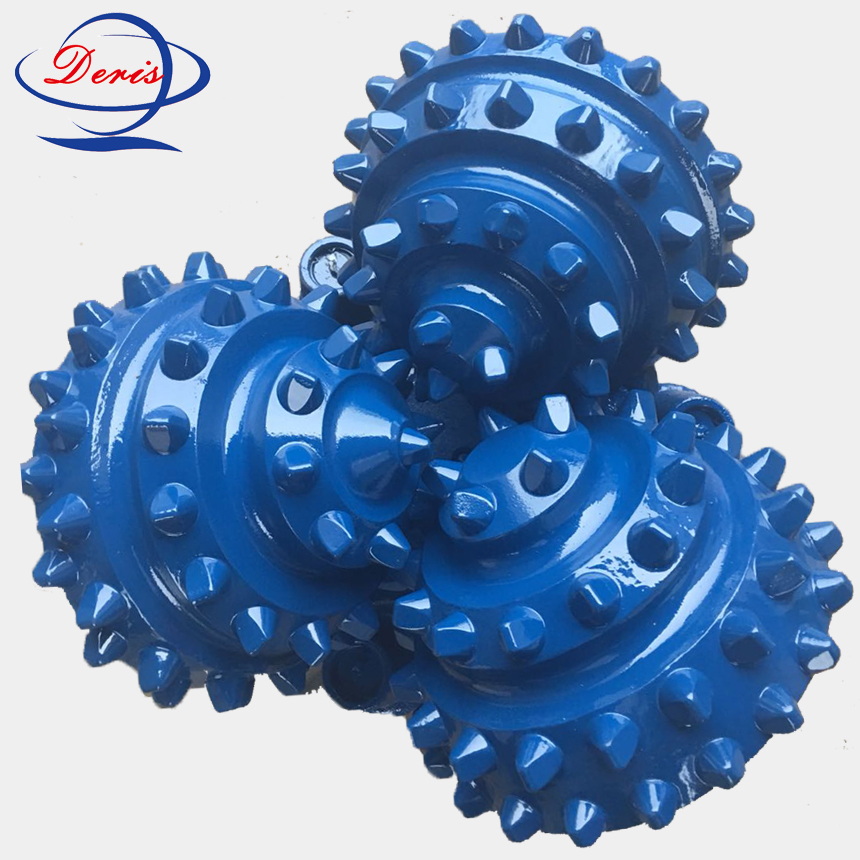

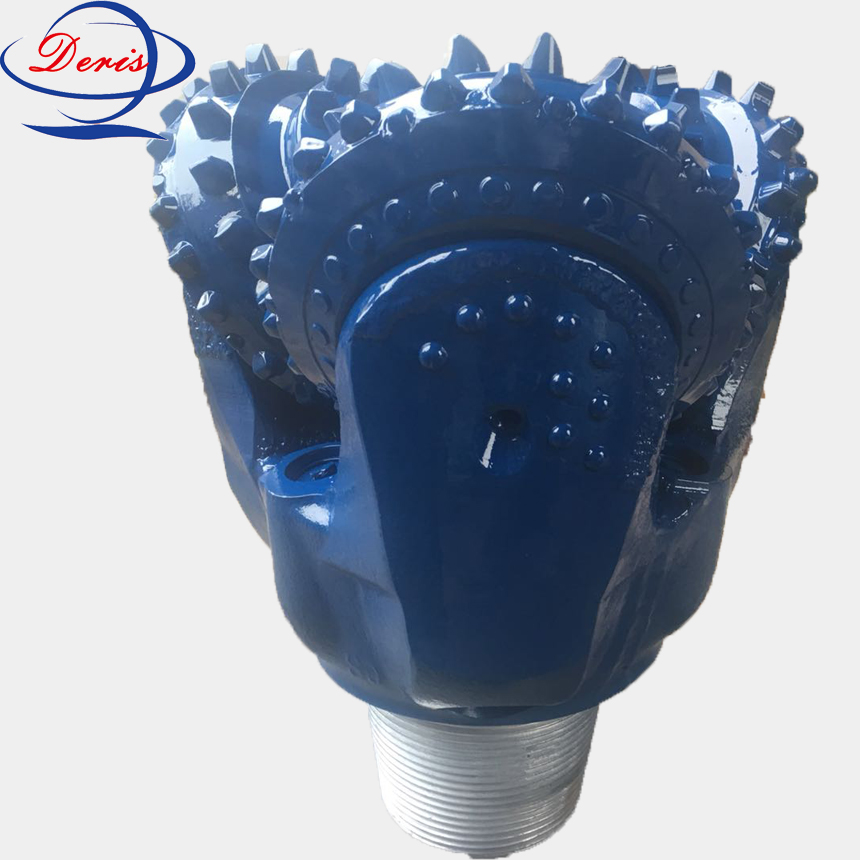

API 15 1/2" TCI Tricone Roller Bit for medium Formation Well Drilling
Diameter	15 1/2" =393.7mm
Model	HA 517G
Pin Thread	API Reg. 7 5/8"
Gross Weigh/Net Weight	189 / 202 Kgs
Packing Size	46X43X62 cm
Product Standard	API SPEC 7-1
Bearing	O-Ring Sealed Journal Bearing
Normal WOB	0.7~1.20 KN/MM
Rotary Speed	70~40RPM
Cutting Structure	Large dia offset crested scoop compacts in inner row,with added        number of compact rows,and a row of trimmers is added between gauge row and heel row.
Drilling Formation	Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.

Different type tungsten carbide chisel bits for you check

The advantage of kingdream oil rubber drill bits

Hard Alloy Welding Pervent bit wear and tear work and protect the bearing

Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation

High stength tunsten carbide teeth ,high temperature hear treatment forged alloy steel

Lubricating system protection of the bearing and seal system of the bit

Sealed Journal bearing

You can find the bit Diameter,thread Pin IADC code Serial number on the bottom

oil well tricone drilling bit parameters

IADC	WOB(KN/mm Bit Dia.)	RPM(r/min)	Applicable Formations
435 515	0.20~0.70	200~80	Soft with very low compressive strength such as shale ,clay, sandstone ,soft  limestone ,etc
535	0.35~0.80	200~80	Medium soft with low compressive strength and harder abrasive stringers ,such as hard shale ,hared gypsolyte, soft limestone, sandstone and dolomite with stringer ,etc
417 437	0.35~0.90	140~70	Very soft with low compressive strength and high drillability, such as shale, clay, sandstone and conglomerate ,etc.
517 527	0.35~1.05	120~50	Soft with low compressive strength, such as shale, clay, sandstone, soft limestone, salt bed and hard gypsolyte, etc
537 547	0.35~1.05	110~40	Medium soft with low compressive strength and harder abrasive stringers, such as hard shale, hard gypsolyte, soft limestone, sandstone and dolomite with stringers ,etc
617 627	0.35~1.05	80~40	Medium hard with high compressive strength and thick &hard stringers, such as hard shale, limestone, sandstone and dolomite, etc
637 737	0.70~1.20	70~40	Medium hard with high compressive strength and high abrasiveness ,such as limestone ,dolomite, sandstone and chert ,etc
Note: The upper limits of WOB and RPM in above table should not be used simultaneously

Size of used milled tooth bit

NO.	Tricone bit size		Thread		NO.	Tricone bit size		Thread
	Inch	mm				inch	mm
1	3-3/4	95.3	2-3/8 " REG Pin		28	9-5/8	244.5	6-5/8
2	3-7/8	98.4			29	9-7/8	250.8	6-5/8" REG Pin
3	4-1/8	104.8			30	10-1/2	266.7
4	4-1/4	108.0			31	10-5/8	269.9
5	4-1/2	114.3			32	11	279.4
6	4-5/8	117.5	2-7/8" REG Pin		33	11-5/8	6-5/8
7	4-3/4	120.7			34	12	304.8
8	4-7/8	123.8			35	12-1/4	311.2
9	5-1/2	139.7	3-1/2" REG Pin		36	12-5/16	6-5/8
10	5-5/8	142.9			37	12-3/8	314.3
11	5-2/3	143.9			38	12-7/16	315.9
12	5-3/4	146.1			39	12-5/8	320.7
13	5-7/8	149.2			40	13-1/8	333.4
14	6	152.4			41	13-1/2	342.9
15	6-1/8	155.6			42	13-5/8	346.1
16	6-1/4	158.8			43	13-3/4	349.3
17	6-1/2	165.1			44	14-1/2	374.7	7-5/8" REG Pin
18	6-5/8	168.3			45	14-3/4	374.7
19	6-3/4	171.5			46	15-1/2	393.7
20	7-1/2	190.5	4-1/2" REG Pin		47	16	7-5/8
21	7-5/8	193.7			48	17-1/2	444.5
22	7-7/8	200.0			49	18-7/8	479.4
23	8-3/8	212.7			50	20	508.0
24	8-1/2	215.9			51	22	558.8
25	8-5/8	219.1			52	24	609.6
26	8-3/4	222.3			53	26	660.4
27	9-1/2	241.3	6 5/8 " REG Pin

Application of  steel tooth tricone bits for well drilling

Our Company

Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park, next to National Highway 106,close to Tianjin Port, Beijing Airport, convenient transportation and superior location. The company covers an area of 30 acres and a factory building of 15,000 square meters.

Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team has been established. .
Products are export to the United States, Canada, Russia, Kazakhstan, Iran, Qatar, Sweden, Germany, Australia, Singapore, Mexico, Colombia and other more than 30countries. The sales volume reached 15,000 pieces of the roller cone, and the three-cone drill bit 5000 achieved first-class design, first-class manufacturing, first-class product cost performance, and first-class after-sales to achieve win-win for the industry, customers and the company.
Our company is planning to build a new factory, adding 3 production lines, CNC machine tools, drilling machines, milling machines, quality testing equipment, etc. to ensure quality and timely delivery. Make sure that every quality product meets customer needs. Looking forward to working with you.

Our certificate

Each product is manufactured and inspected in strict accordance with the industry's highest technical quality standards and API specifications. The quality assurance system established in accordance with the requirements of ISO 9001 ensures the best quality of the products and the effective operation of the company.

Oil well tricone bits Package and shipping

Package Type : wooden case ,also be packaged according to customers requirement

Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better
Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.
If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.

How about our Customers feedback ?
The drilling deepth more than 460meters 1 pc Metal seal bearing tci tricone bit  .
TCI Tricone bit Drilling 3500 meters well no problem
1 pc Hole opener drilling more than 10 well no problem
Drilling to 1600 meter the PDC drill bit continue work good enough
