IPC-1503AI all is one Industrial 15" panel PC, with i3-6100 (3.7G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W
IPC-1501AI - All in one pc with intel i7-6700 processor. Industrial 15 inch Panel PC based on Intel Gen 6 7 8 9 Core i3 i5 i7 processor.
Features
-
15" TFT 1024 x 768 with resistive touch screen
-
Aluminum panel with IP65 compliant
-
Support Intel the Gen. 6/7/8/9th Core i3/i5/i7, Celeron LGA1151 socket CPU
-
2x DIMM DDR4 2400/2133 SDRAM, MAX support 32GB
-
1x 2.5" SATA SSD/HDD; 1x M.2 Slot support M.2 2260/2280 PCIE standard SSD
-
6COM(1x RS485), 1xHDMI, 1xVGA, 4xUSB, 1x GPI0,2xLAN, 1xAUDIO and MIC
-
1x Mini PCIe slot
-
100~240V AC Power adapter input D-12V (Optional DC 9-36V input)
-
Wireless LAN with antenna (optional)
-
Modularize design for easy installation and maintenance
Specifications
Main System
-
CPU Intel? Core 6/7/8/9th i7/i5/i3 , Celeron? LGA1151 type CPU
-
Chipset Intel H310C chipset
-
System Memory 2x DDR4, MAX support 32GB
-
LAN 2x Realtek ? RL8111x (Gigabit ) 10/100/1000Ethernet
-
HDD (hard disk ) 1x 2.5" SATA SSD/HDD; 1x M.2 Slot
-
Audio Realtek ? ALC662, 5.1 channel surround Audio
-

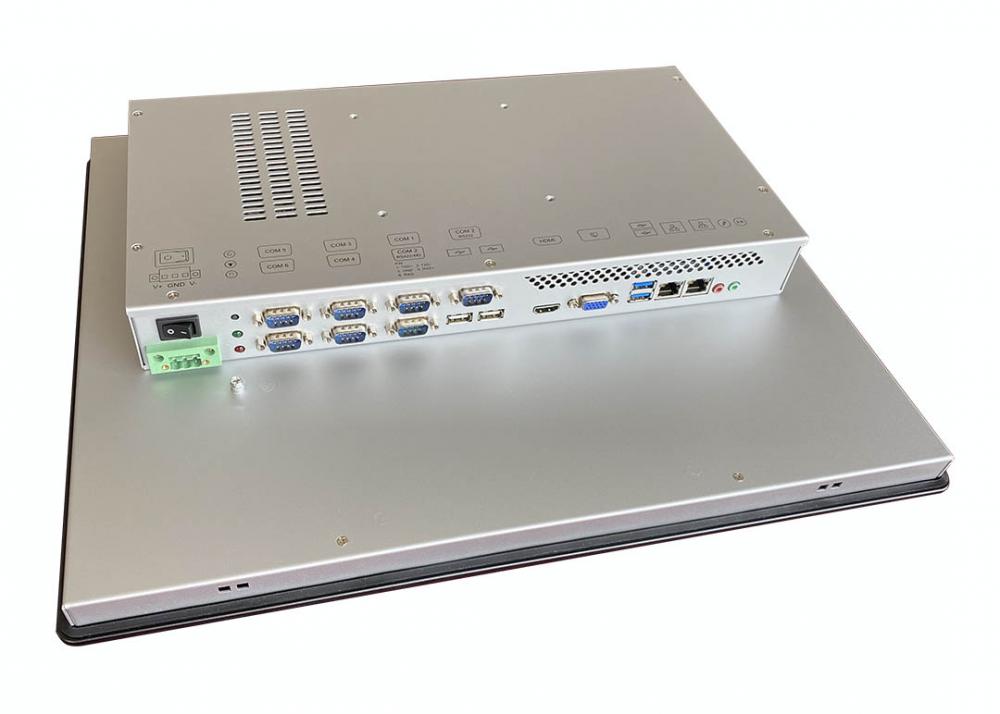

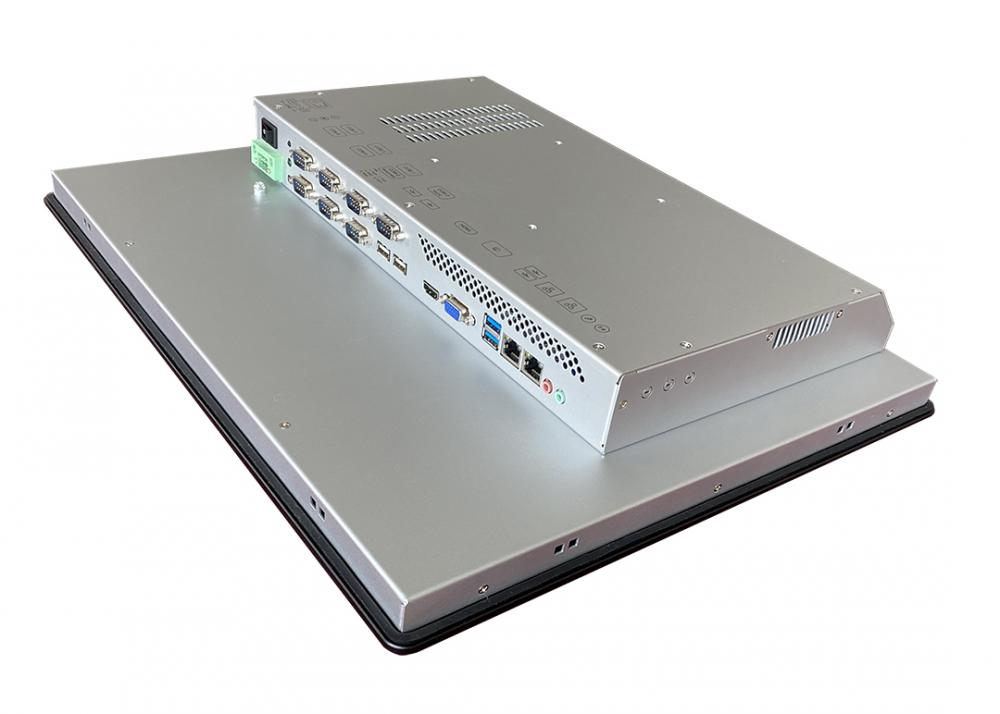

I/O Connector 5 x RS-232
1 x RS422/485
1x HDMI port
1x PS/2 (Keboard/mouse)
1x VGA DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
2x USB2.0, 2x USB3.0
1x 3Pin DC power input terminal block
-
Expansion 1 x Mini PCIe slot
General
-
Construction Aluminum panel with IP65 compliant
-
Color Black or OEM(>=100 units)
-
OS Support Windows 10/8/7, Linux
-
Mounting Panel mount or Standard VESA 100mm
-
Power supply DC 12V, with External AC adapter,Output Rating 120W
-
DC optional Optional DC 9-36V input

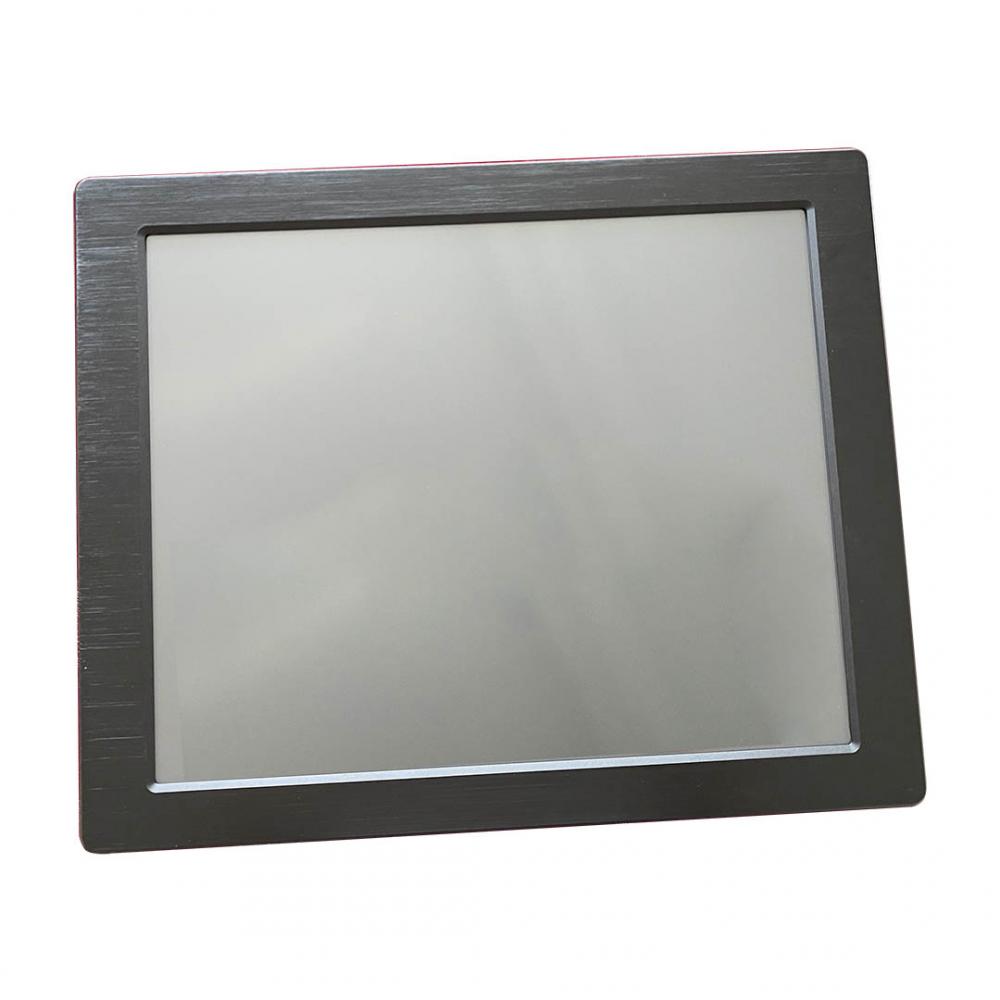

LCD display
-
Display type 15" XGA TFT LCD LED Backlight
-
Resolution 1024 x 768 pixels
-
Luminance 350 cd/m2
-
Viewing angle 178°(H), 178°(V)
-
Pixel Pitch 0.297 x 0.297 mm
-
Contrast Ratio 1000:1
-
LCD MTBF 50,000hrs
Touchscreen
-
Type Analog Resistive
-
Controller Interface Internal USB interface controller
-
Resolution Continuous
-
Light Transmission 81% or more
-
Operating Force ≤100g
-
Life Expectancy 35 Million
Environmental
-
Operate temperature -10°C~ 60°C (-14~140°F)
-
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
-
Storage humidity 5% to 95% @40°C non-condensing
-
Vibration 17 to 500HZ 1G PTP
-
Operating Shock 1G /peak ( 11m sec)
-
Ingress Protection Front panel: IP65
Packing info
-
Dimensions(WxHxD) 406 x 312 x 70mm
-
NET weight 6.5 KG
Ordering informations
-
IPC-1501AI Industrial 15" panel PC, with i7-6700 (4G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
-
IPC-1502AI Industrial 15" panel PC, with i5-6500 (3.2G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
-
IPC-1503AI Industrial 15" panel PC, with i3-6100 (3.7G) Processor, With Resistive Touch screen, with DDR4 RAM, 2.5 " SSD/HDD or M.2 SSD, 12V/120W external AC adapter
-
CPU Options Intel 6/7/8/9th Core i7/i5/i3, Celeron LGA1151 type CPU
