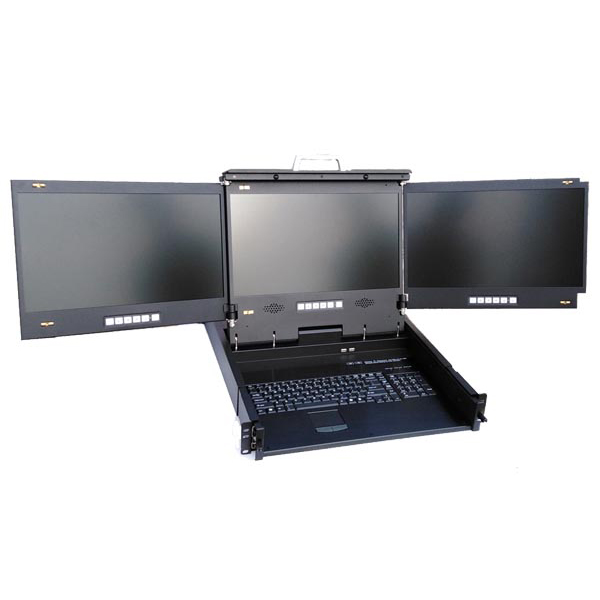

RCIM-173WX3 is a Triple Screen LCD Console Drawer, Multi LCD Console Drawer with Keyboard, Single rail, FHD 1920 x 1080, triple 17.3" LCD display, triple DVI & VGA interface,USB Hub, multi lcd console.

We provideindustrial panel monitors (4:3 normal/16:9 wide screen, Rack mount/Panel mount), OEM is accepted.

Rackmount monitots lcd diplays list:

• [RCIM-173W] Rack mount lcd monitor display with 17.3 inch wide lcd screen FHD 1920 x 1080
• [RCIM-173WX3] Triple 17.3 inch wide screen LCD Display Console Drawer
• [RCIM-19] 19 inches rack mount display monitor
• [RCIM-2x8] Rack mount dual 8 inches lcd monitor
• [RCIM-15] 15 inch rack mount lcd monitor with touch screen
• [RCIM-17] Rack mount 17 inches lcd monitor
• [RCIM-06] Rack mount dual 6 inch lcd monitor
• [RCPM-19] 19 inches rack mount LCD monitor
• [RCPM-15] Rack mount 15 inches LCD monitor
• [RCIM-08] Rackmount dual 8 inches lcd monitor

Features

• 17.3" wide screen Triple LCD Display Console Drawer, 1.5u Height
• 1920 x 1080 Ultra high resolution
• Triple DVI,HDMI & VGA Port
• Support FHD with 1080p resolution.
• 300 cd/m2 brightness
• Front 2xUSB, Rear 1xUSB 2.0 Type A, Sharing USB peripheral
• Device for computer (ex, flash disk, hard driver, KB/Mouse)
• 104-key keyboard with touch pad mouse
• USB 2.0 Keyboard & Mouse
• Build in 2x 2 watts speakers . Self-locking and auto release rails for ultra convenience

Specifications

LCD Panel

Display Type17.3" Wide Screen LCD
Resolution1920 x 1080
Max.color262K
Luminance300 cd/m2
View Angle140°(H) , 120°(V)
Contrast Ratio600:1
Response Time8 ms
Backlight Life50,000hrs

System

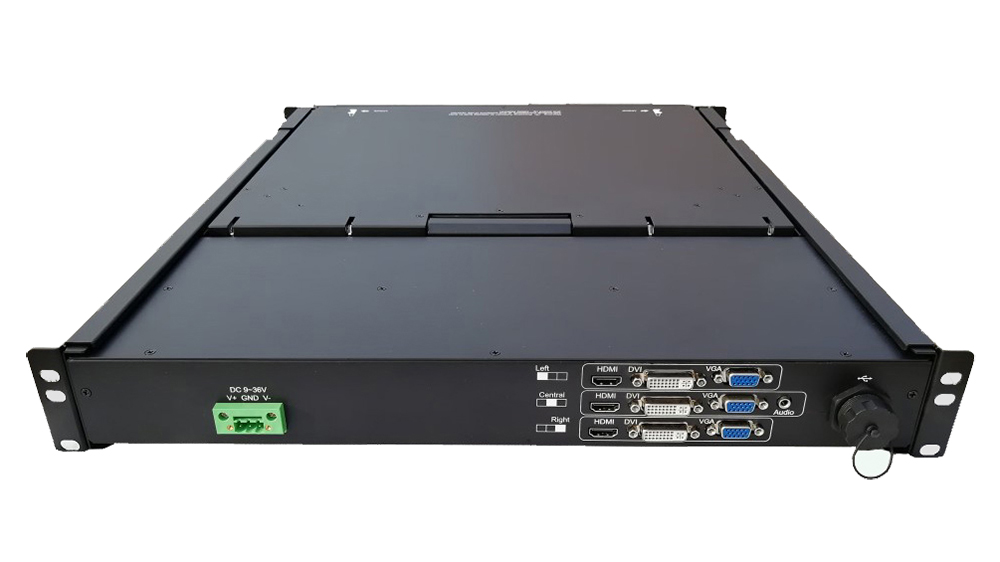

Connectors3 x DVI-D, 3 x HDMI, 3x VGA, 1 x 3.5mm Audio jack, 1 x USB for KB & Mouse
USB HUBFront x2 & Rear x 1 USB 2.0 for USB Peripheral Device
Rack Depth600mm to 900mmrack cabinet front rails to rear rails
Power Supply100-240V AC 50/60Hz via IEC Type power cord
DC Power (Optional)9~36V DC input

Mechanical and Environmental

ConstructionHeavy duty steel alloy chassis
Operate temperature0 °C to 50 °C
Storage temperature-20 °C to 60 °C
Storage humidity10% to 90% non-condensing
Anti-Vibration17HZ-500 HZ 1G PTP
Anti-Shock1G / peak( 11m sec)
Dimensions (WxHxD)450x67x 535mm
WeightNet: 17.9 kg , Gross:23 kg

Ordering Information:

RCIM-173WX3ATriple Screen LCD Console Drawers with 17.3" wide lcd, 100-240V AC IEC Type power cord
RCIM-173WX3DTriple Screen LCD Console Drawers with 17.3" wide lcd, 9~36V DC input
