1d 2d Qr Code Reader For mini kiosk

Options:

Get Latest Price

You might also like

Basic Info

Model No.	WDI-2010
Brand Name	winson
Private Mold	Yes
Products Status	Stock
Type	CCD Bar Code Scanner Engine
Scan Element Type	Ccd
Colour Depth	32 Bit
Interface Type	usb, SCSI, IEEE 1394, COM, PS/2, Other
Max Paper Size	N/A
Optical Resolution	2500pix
Scan Speed	350±50 (scans/second)
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Software development kit (SDK)	NO
Color	Black
Product Name	CCD Bar Code Scanner Engine
Interface	TTL-232/USB
Photo sensor	CCD linear sensor
Voltage requirement	DC 3.3/5V±10%
Current Consumption	Max:120mA
Language	Multiple languages
Dimensions	21mm x 23mm x 11mm(W x D x H)
Weight	6g
Configurations	Decode
Certification	Ce,Rohs

Product description

support Secondary ,we provide SDK.
With USB ,TTL interfaces for option

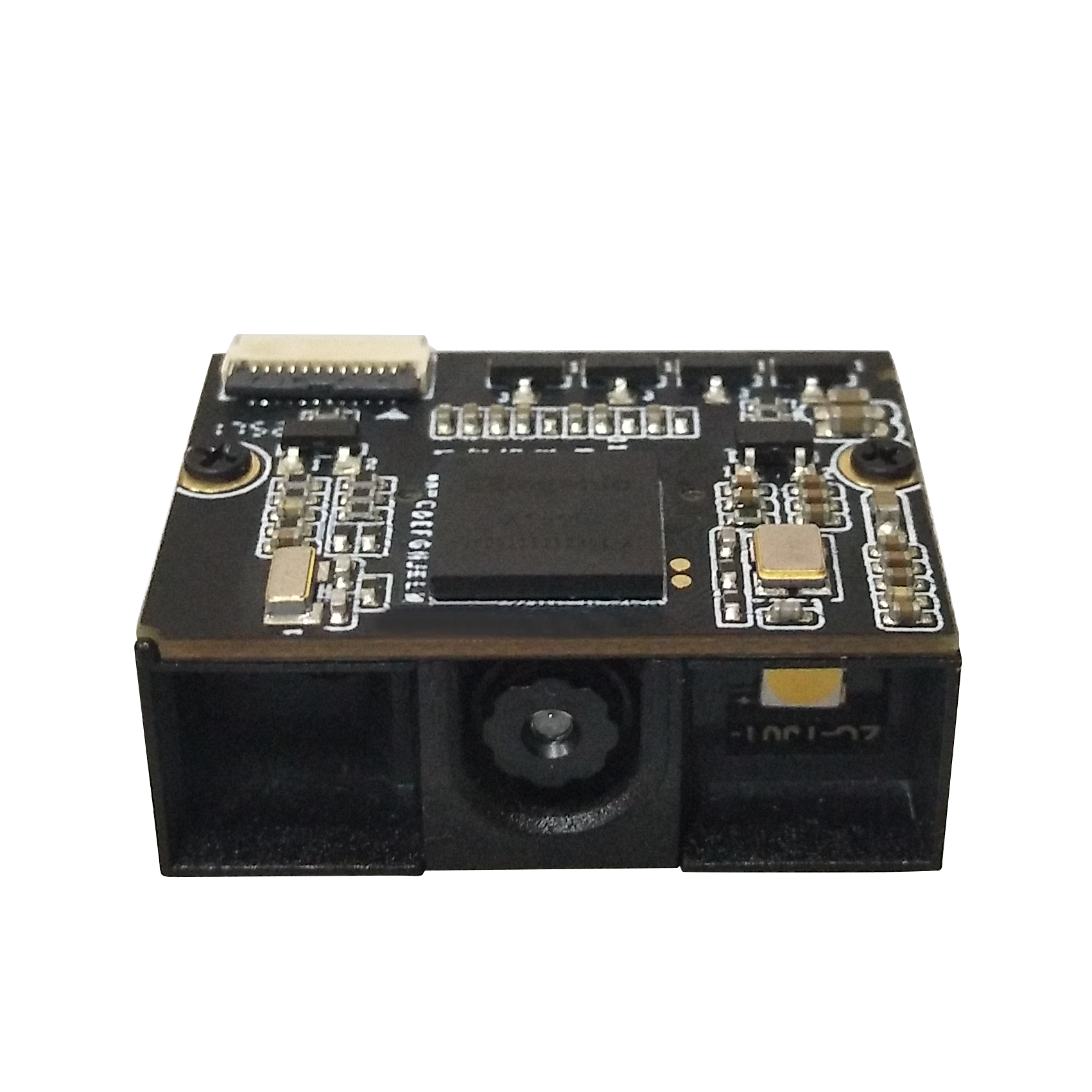

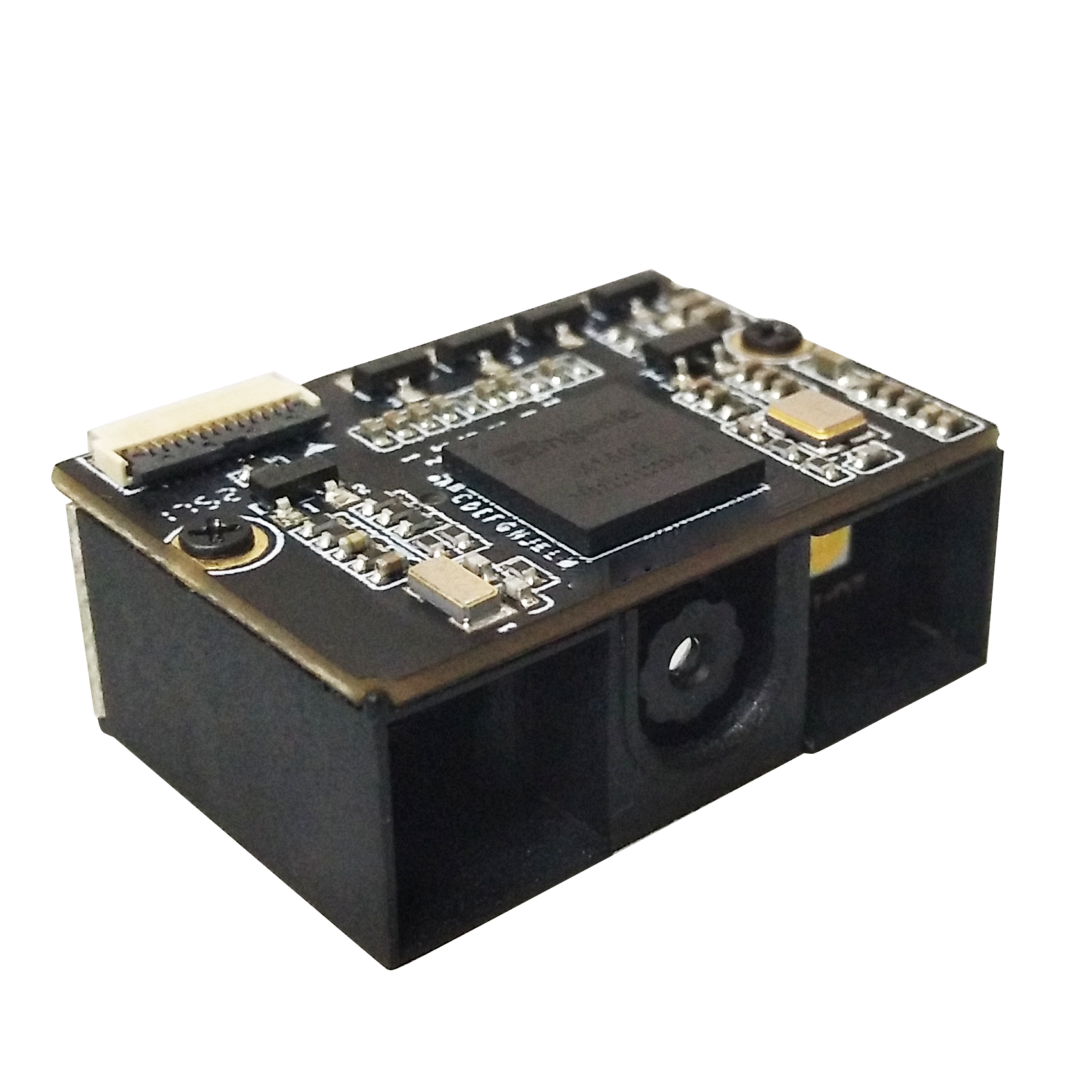

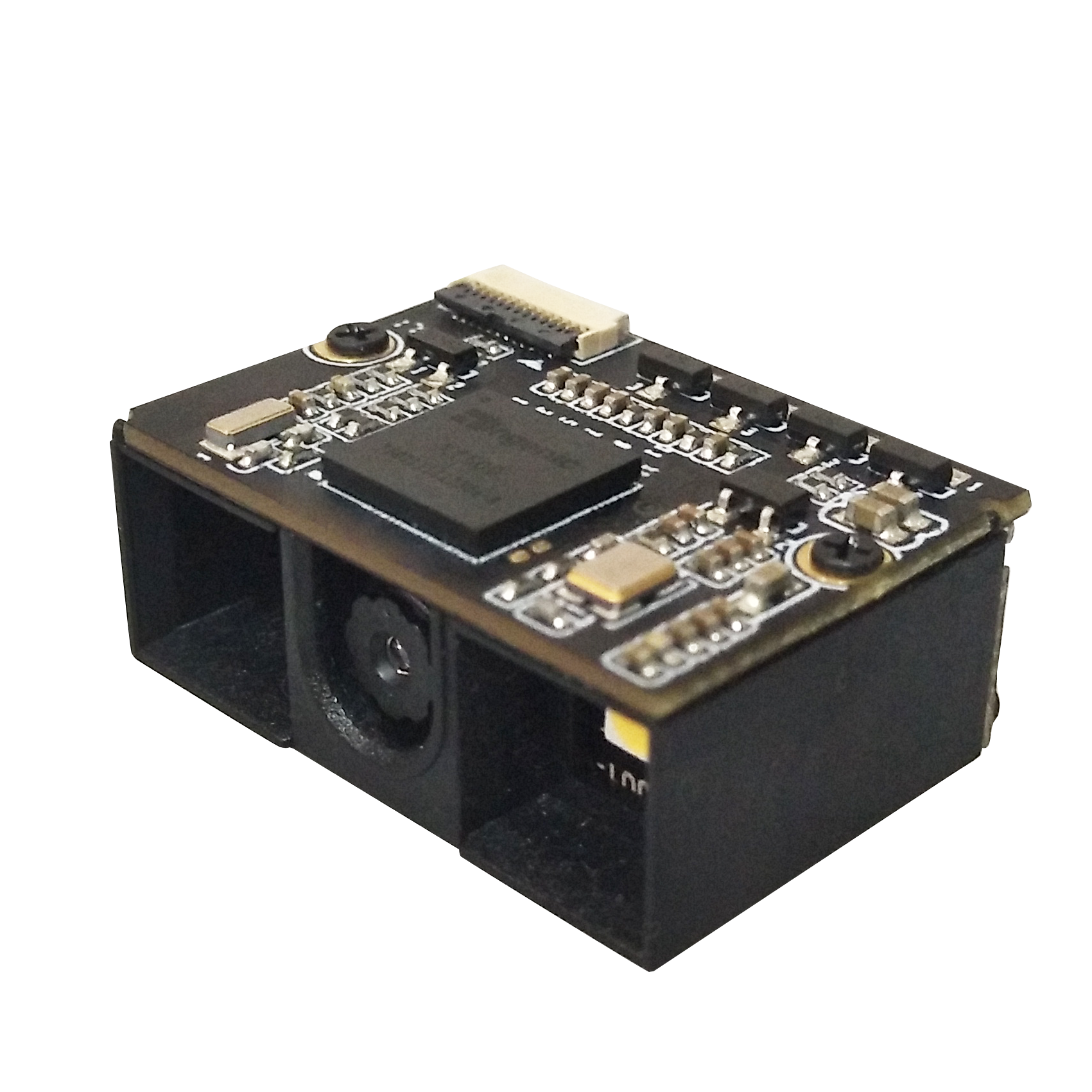

Mini Auto-scanning Module Embedded Barcode Scanner Module 1d 2d Qr Code Reader For mini kiosk

Features

1.Winson WDC-3000 CCD Bar Code Scanner Engine Small Code Reader Module OEM.

2.Support read poorly printed, damaged, low contrast, wide or high-density codes...

3.Support add a prefix/suffix, delete the last four characters, interlaced upload data...

4.OEM applications:vending machine, payment terminal machine, locker, banking machine, packing machine.

Product Description

1d 2d Qr Code Reader For mini kiosk

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.


Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

Product Detail

Technical Parameters
Electrical Characteristics
Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3/5V±10%
Current consumption	Max:120mA
Optical Characteristics
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
Light source	632nm red led
Performance Characteristics
Scan Rate	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
Min resolution	0.127mm/5mil(PCS 0.9)
Min.PCS value	>25%UPC/EAN 13(13mil)
Curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Regulatory
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
Physical Characteristics
Dimensions	23 mm x 21 mm x11mm(LWH)
Weight	6g
Configurations	Decode
Environmental Characteristics
Temp	-0°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage)
Humidity	5 - 90% (operation) 5 - 90% (storage)
Ambient Light	Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.2m drop onto concrete surface
